| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_101T01_9000001984_13318cztM0_level2.evt | modeM0/AS1A04_101T01_9000001984_13318cztM0_level2_quad_clean.evt |
| Size (bytes) | 625,311,360 | 100,177,920 |
| Size | 596.3 MB | 95.5 MB |
| Events in quadrant A | 3,497,250 | 645,444 |
| Events in quadrant B | 3,759,967 | 668,382 |
| Events in quadrant C | 3,469,247 | 650,647 |
| Events in quadrant D | 7,740,063 | 584,461 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14918 | 3 |
| B | 0 | 15592 | 2 |
| C | 0 | 14821 | 2 |
| D | 0 | 27853 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6957 | 99 | 1.423027% |
| B | 6957 | 202 | 2.903550% |
| C | 6957 | 53 | 0.761823% |
| D | 6957 | 1048 | 15.063964% |

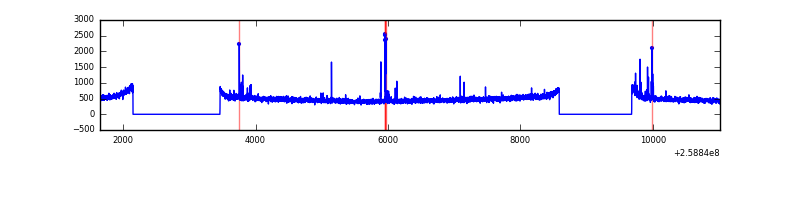

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9368 | 6960 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9368 | 6960 | 10 | 10 | 0.11% | 0.14% |  |
| C | 9368 | 6960 | 6 | 6 | 0.06% | 0.09% |  |
| D | 9368 | 6960 | 564 | 564 | 6.02% | 8.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 72968 | 400.63 | 883 | 863 | 180.0 |
| A | 1 | 162 | 17136 | 90.42 | 883 | 863 | 180.0 |
| A | 0 | 226 | 8037 | 39.86 | 883 | 863 | 180.0 |
| B | 0 | 230 | 83835 | 485.55 | 890 | 868 | 170.9 |
| B | 4 | 173 | 68176 | 393.91 | 890 | 868 | 170.9 |
| B | 3 | 64 | 44040 | 252.66 | 890 | 868 | 170.9 |
| C | 6 | 96 | 42470 | 207.03 | 869 | 876 | 200.9 |
| C | 15 | 208 | 33696 | 163.36 | 869 | 876 | 200.9 |
| C | 13 | 61 | 6404 | 27.51 | 869 | 876 | 200.9 |
| D | 1 | 52 | 4537701 | 22763.44 | 820 | 797 | 199.3 |
| D | 5 | 222 | 64231 | 318.27 | 820 | 797 | 199.3 |
| D | 2 | 234 | 20123 | 96.97 | 820 | 797 | 199.3 |

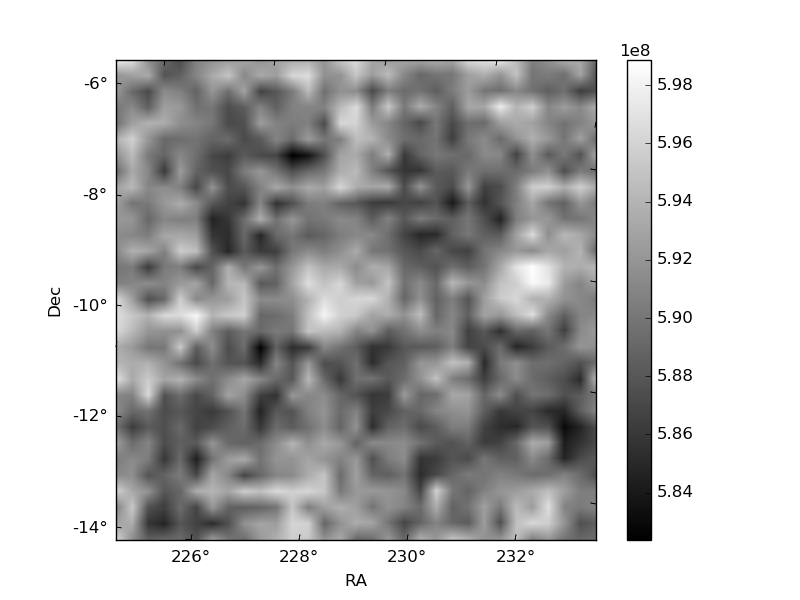

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

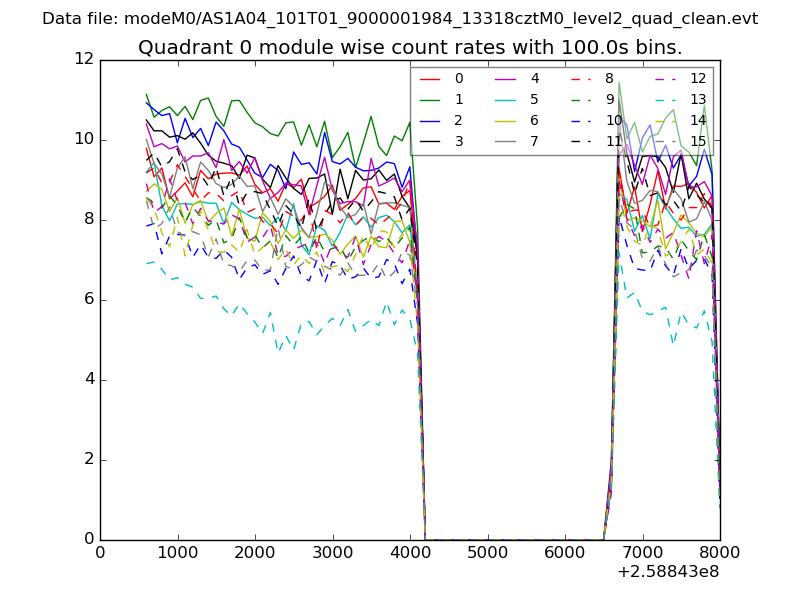

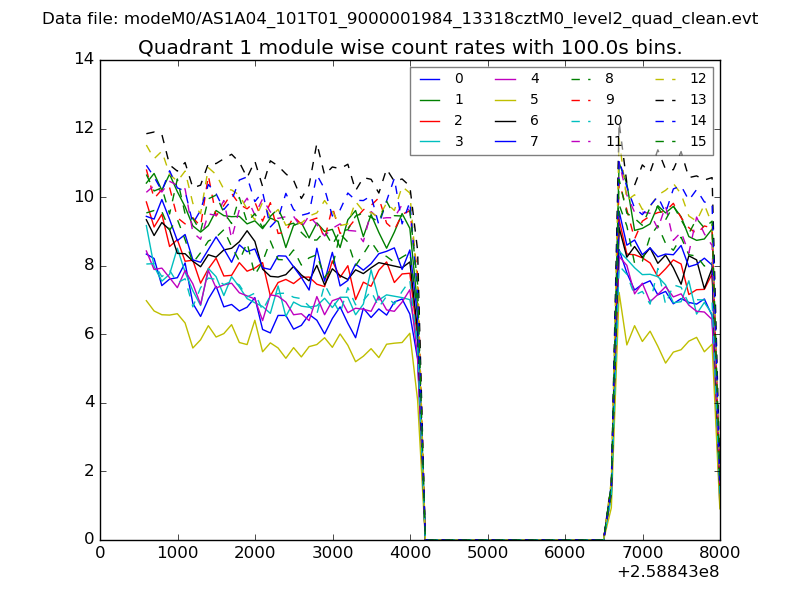

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

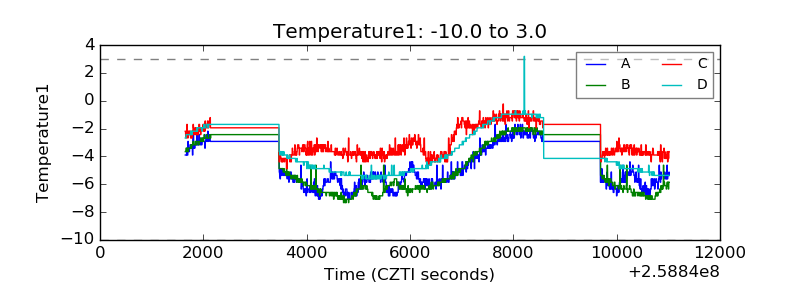

| Temperature 1 |  |

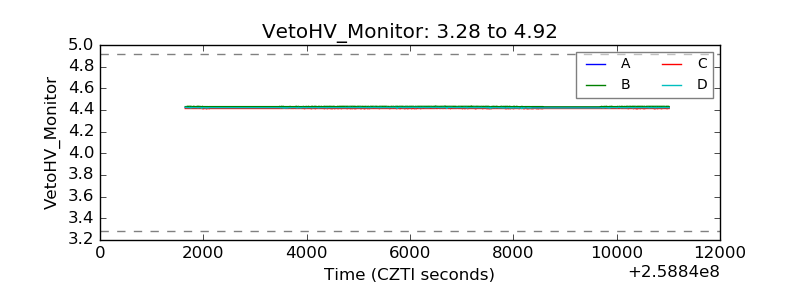

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

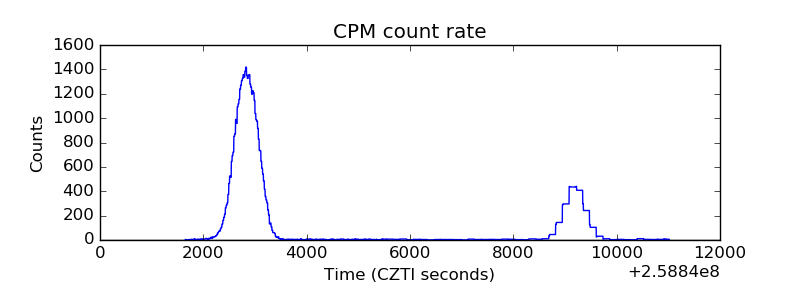

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

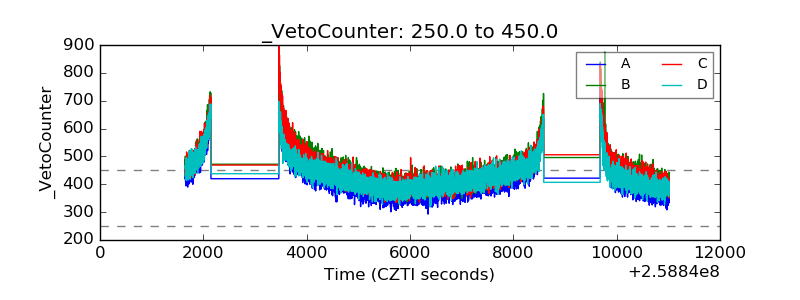

| Veto Counter |  |
