| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_101T01_9000001984_13329cztM0_level2.evt | modeM0/AS1A04_101T01_9000001984_13329cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,165,760 | 75,254,400 |
| Size | 448.4 MB | 71.8 MB |
| Events in quadrant A | 3,276,520 | 462,748 |
| Events in quadrant B | 3,517,844 | 474,357 |
| Events in quadrant C | 3,283,132 | 460,012 |
| Events in quadrant D | 3,733,696 | 441,775 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13876 | 3 |
| B | 0 | 14521 | 2 |
| C | 0 | 13779 | 2 |
| D | 0 | 15434 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6301 | 66 | 1.047453% |
| B | 6301 | 125 | 1.983812% |
| C | 6301 | 72 | 1.142676% |
| D | 6301 | 100 | 1.587050% |

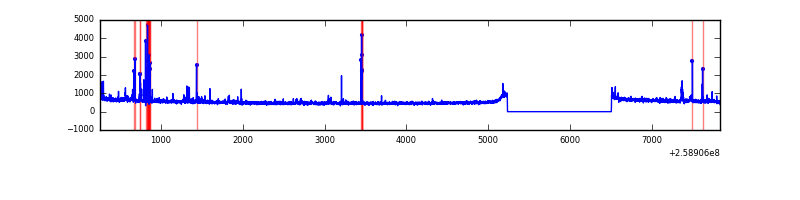

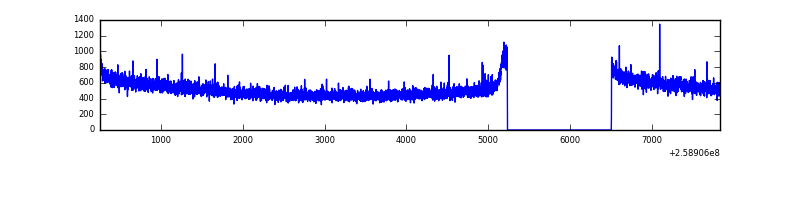

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7572 | 6303 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7572 | 6303 | 25 | 25 | 0.33% | 0.40% |  |
| C | 7572 | 6303 | 25 | 25 | 0.33% | 0.40% |  |
| D | 7572 | 6303 | 43 | 43 | 0.57% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 10627 | 57.9 | 845 | 832 | 169.2 |
| A | 9 | 143 | 7868 | 41.59 | 845 | 832 | 169.2 |
| A | 0 | 226 | 7738 | 40.82 | 845 | 832 | 169.2 |
| B | 4 | 142 | 119341 | 742.4 | 849 | 832 | 159.6 |
| B | 3 | 64 | 33357 | 203.75 | 849 | 832 | 159.6 |
| B | 0 | 190 | 18619 | 111.43 | 849 | 832 | 159.6 |
| C | 15 | 208 | 80507 | 423.28 | 820 | 827 | 188.2 |
| C | 13 | 61 | 6015 | 27.56 | 820 | 827 | 188.2 |
| C | 3 | 233 | 4108 | 17.43 | 820 | 827 | 188.2 |
| D | 8 | 195 | 221323 | 1141.11 | 812 | 792 | 193.3 |
| D | 5 | 222 | 205813 | 1060.86 | 812 | 792 | 193.3 |
| D | 1 | 52 | 176527 | 909.32 | 812 | 792 | 193.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

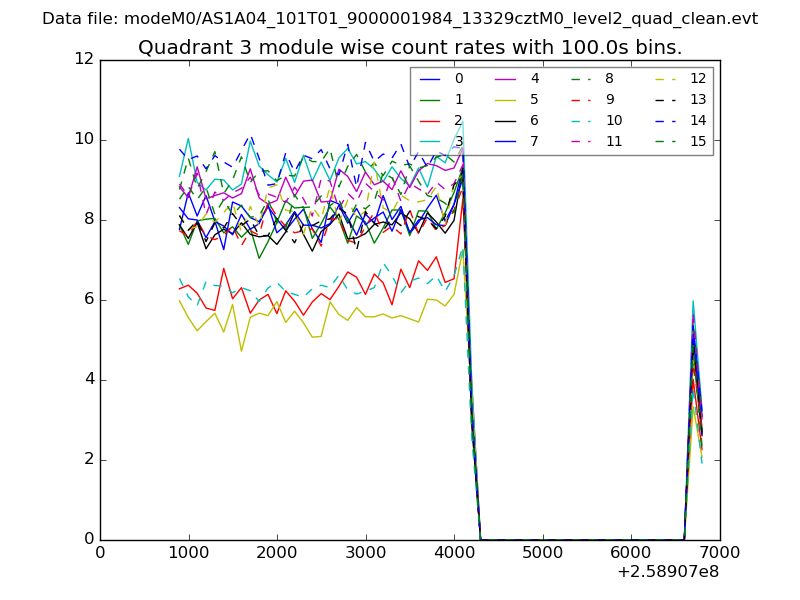

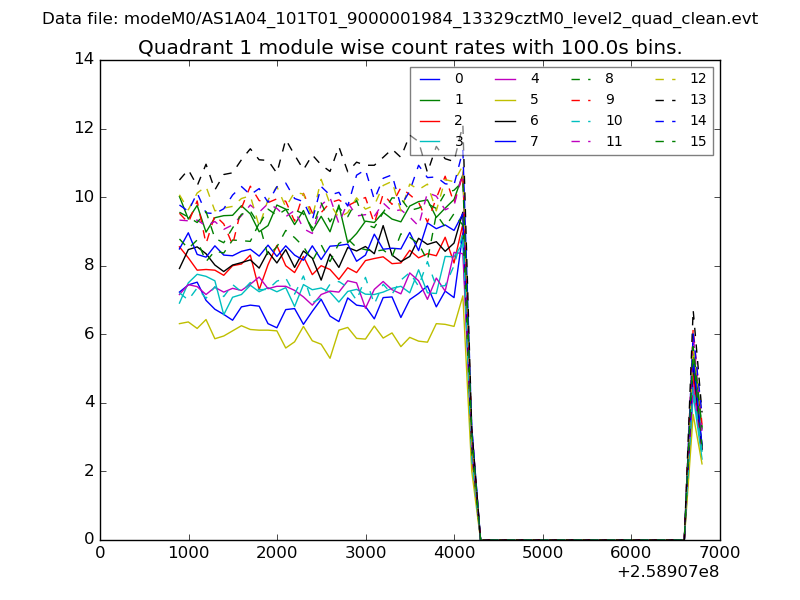

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

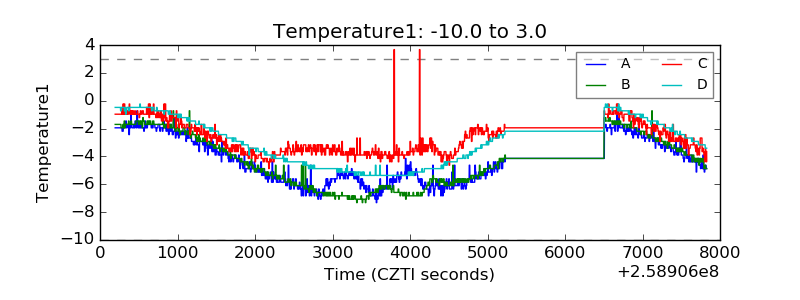

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

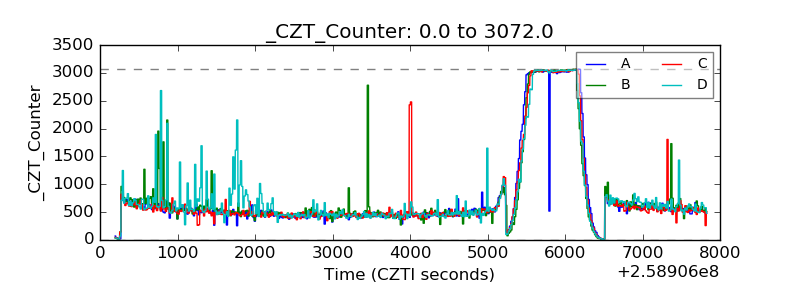

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

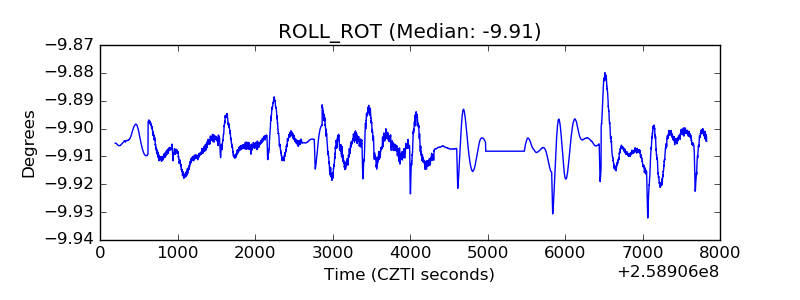

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

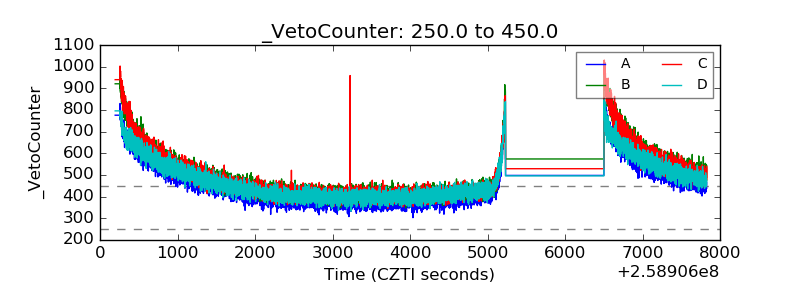

| Veto Counter |  |
