| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_101T01_9000001984_13331cztM0_level2.evt | modeM0/AS1A04_101T01_9000001984_13331cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,955,200 | 96,120,000 |
| Size | 435.8 MB | 91.7 MB |
| Events in quadrant A | 3,494,891 | 622,717 |
| Events in quadrant B | 3,434,927 | 644,613 |
| Events in quadrant C | 3,232,942 | 621,077 |
| Events in quadrant D | 3,251,756 | 586,538 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14469 | 3 |
| B | 0 | 14159 | 2 |
| C | 0 | 13435 | 2 |
| D | 0 | 13820 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6250 | 135 | 2.160000% |
| B | 6250 | 126 | 2.016000% |
| C | 6250 | 51 | 0.816000% |
| D | 6250 | 62 | 0.992000% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8991 | 6253 | 13 | 13 | 0.14% | 0.21% |  |
| B | 8991 | 6253 | 6 | 6 | 0.07% | 0.10% |  |
| C | 8991 | 6253 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8991 | 6253 | 11 | 11 | 0.12% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 258241 | 1535.5 | 832 | 817 | 167.6 |
| A | 1 | 162 | 18313 | 104.36 | 832 | 817 | 167.6 |
| A | 9 | 143 | 9005 | 48.84 | 832 | 817 | 167.6 |
| B | 3 | 64 | 30126 | 183.43 | 846 | 827 | 159.7 |
| B | 3 | 209 | 28583 | 173.77 | 846 | 827 | 159.7 |
| B | 4 | 216 | 20141 | 120.92 | 846 | 827 | 159.7 |
| C | 3 | 233 | 49293 | 259.24 | 813 | 820 | 187.0 |
| C | 15 | 208 | 11208 | 55.56 | 813 | 820 | 187.0 |
| C | 13 | 61 | 5815 | 26.71 | 813 | 820 | 187.0 |
| D | 8 | 195 | 96978 | 498.21 | 802 | 782 | 193.1 |
| D | 1 | 52 | 43602 | 221.77 | 802 | 782 | 193.1 |
| D | 5 | 222 | 36271 | 183.8 | 802 | 782 | 193.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

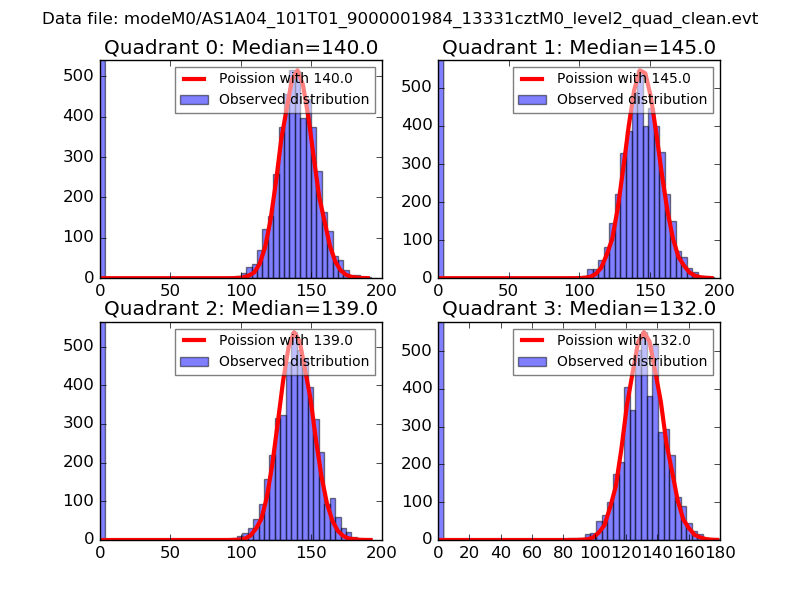

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

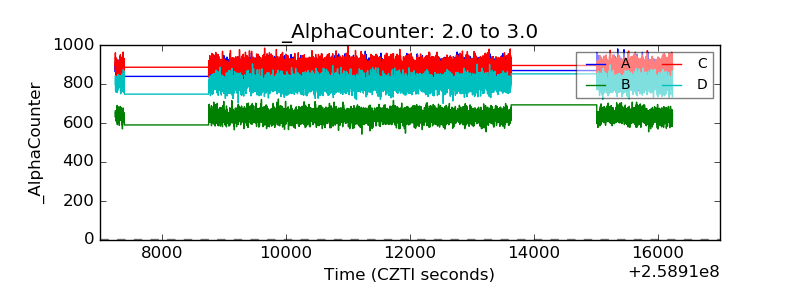

| Alpha Counter |  |

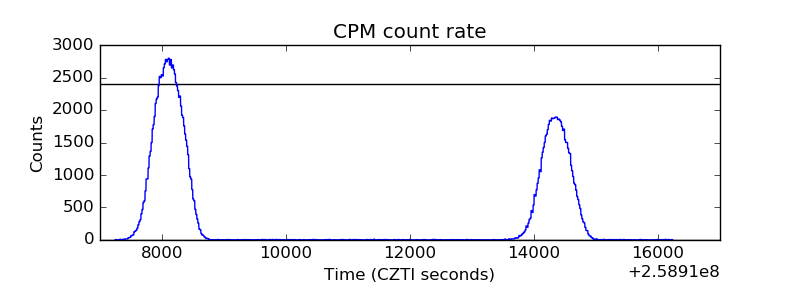

| _CPM_Rate |  |

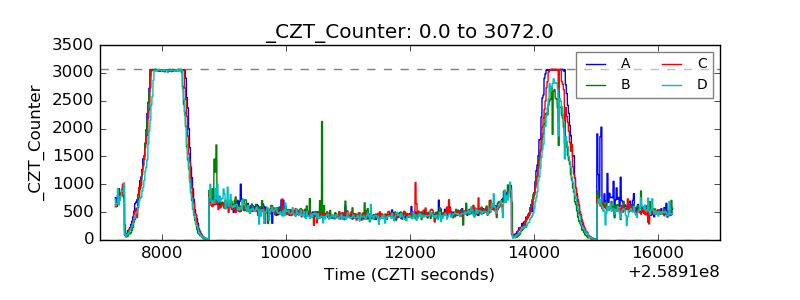

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
