| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_082T01_9000001986_13346cztM0_level2.evt | modeM0/AS1G08_082T01_9000001986_13346cztM0_level2_quad_clean.evt |
| Size (bytes) | 470,393,280 | 102,962,880 |
| Size | 448.6 MB | 98.2 MB |
| Events in quadrant A | 2,982,358 | 682,461 |
| Events in quadrant B | 3,200,269 | 703,602 |
| Events in quadrant C | 3,032,024 | 676,522 |
| Events in quadrant D | 4,616,551 | 629,442 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12807 | 3 |
| B | 0 | 13369 | 2 |
| C | 0 | 12793 | 2 |
| D | 0 | 17827 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6106 | 49 | 0.802489% |
| B | 6106 | 92 | 1.506715% |
| C | 6106 | 30 | 0.491320% |
| D | 6106 | 660 | 10.809040% |

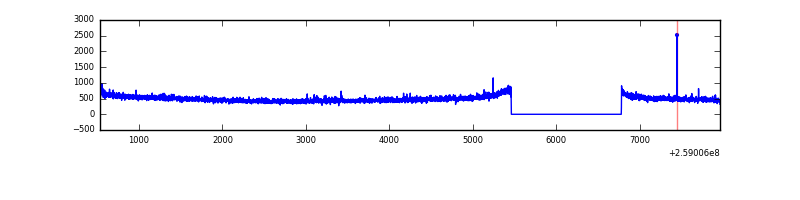

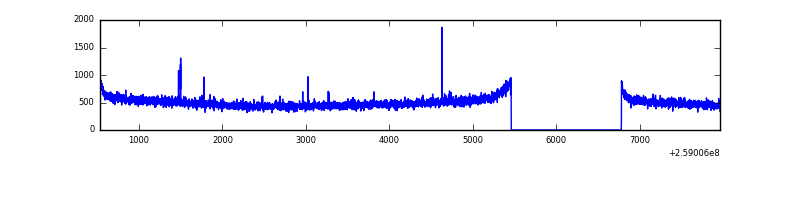

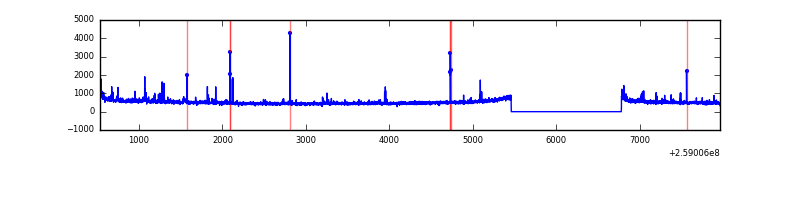

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7427 | 6108 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7427 | 6108 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7427 | 6108 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7427 | 6108 | 470 | 470 | 6.33% | 7.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 15391 | 94.98 | 769 | 756 | 154.1 |
| A | 0 | 226 | 6918 | 39.99 | 769 | 756 | 154.1 |
| A | 12 | 194 | 5800 | 32.73 | 769 | 756 | 154.1 |
| B | 3 | 64 | 58846 | 401.66 | 779 | 762 | 144.6 |
| B | 10 | 245 | 57094 | 389.54 | 779 | 762 | 144.6 |
| B | 12 | 111 | 16564 | 109.27 | 779 | 762 | 144.6 |
| C | 3 | 233 | 108197 | 625.44 | 748 | 753 | 171.8 |
| C | 14 | 234 | 8522 | 45.22 | 748 | 753 | 171.8 |
| C | 13 | 61 | 5452 | 27.35 | 748 | 753 | 171.8 |
| D | 5 | 222 | 1850006 | 11177.89 | 693 | 674 | 165.4 |
| D | 8 | 195 | 48964 | 291.88 | 693 | 674 | 165.4 |
| D | 2 | 136 | 36436 | 216.16 | 693 | 674 | 165.4 |

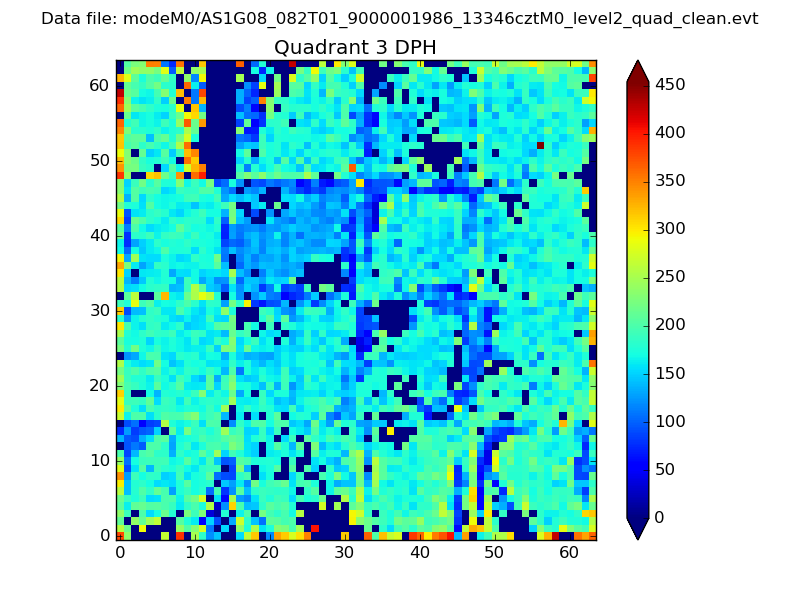

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

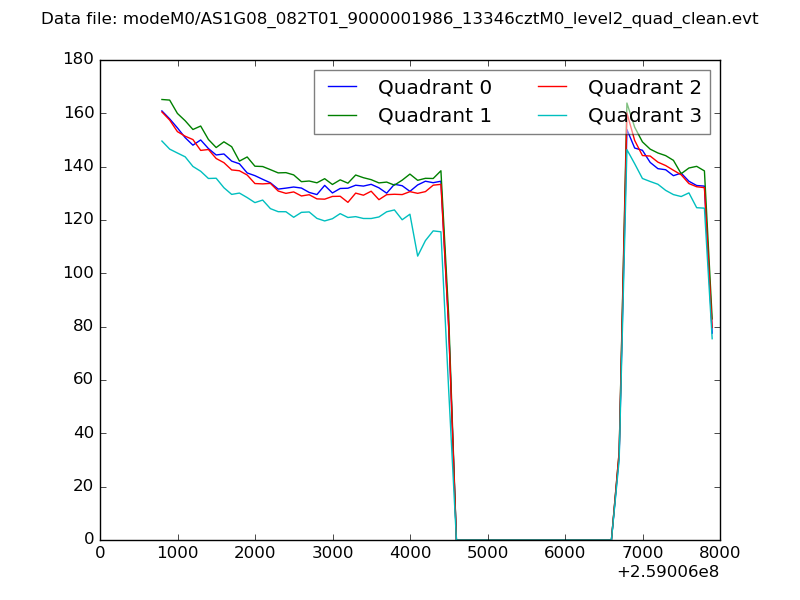

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

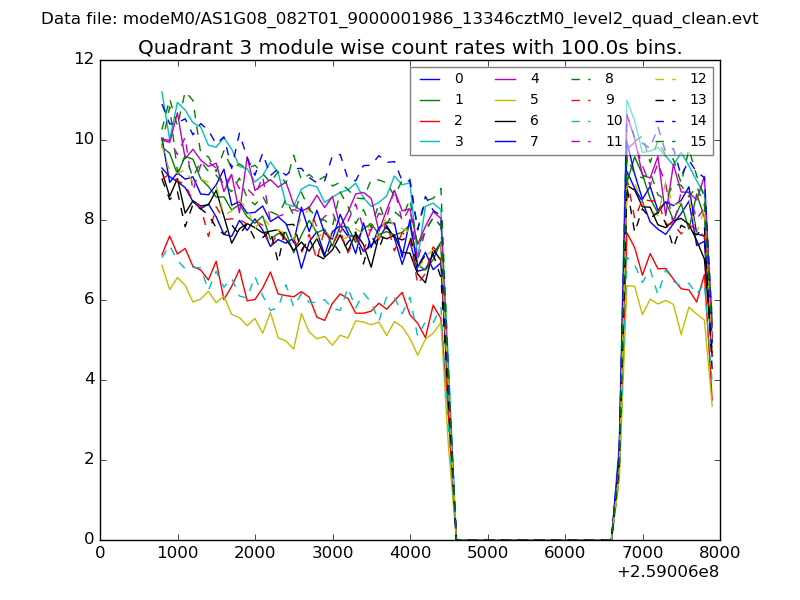

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

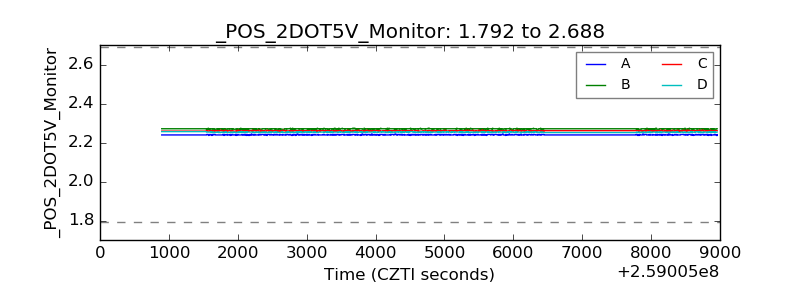

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

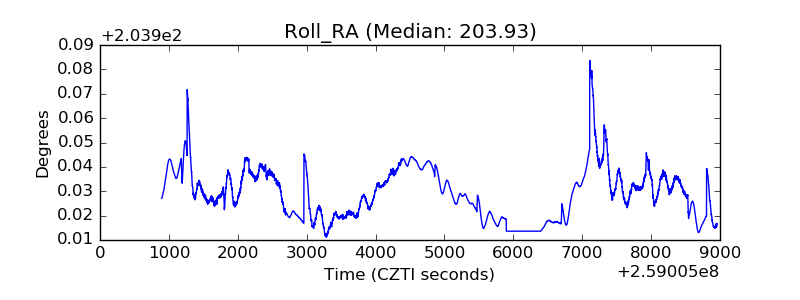

| _Roll_RA |  |
| Veto Counter |  |
