| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_082T01_9000001986_13350cztM0_level2.evt | modeM0/AS1G08_082T01_9000001986_13350cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,974,720 | 111,369,600 |
| Size | 496.8 MB | 106.2 MB |
| Events in quadrant A | 3,591,830 | 714,325 |
| Events in quadrant B | 3,726,060 | 733,978 |
| Events in quadrant C | 3,837,794 | 705,350 |
| Events in quadrant D | 4,083,570 | 668,023 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16249 | 3 |
| B | 0 | 16453 | 2 |
| C | 0 | 16748 | 2 |
| D | 0 | 17790 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7928 | 72 | 0.908174% |
| B | 7928 | 125 | 1.576690% |
| C | 7928 | 151 | 1.904642% |
| D | 7928 | 241 | 3.039859% |

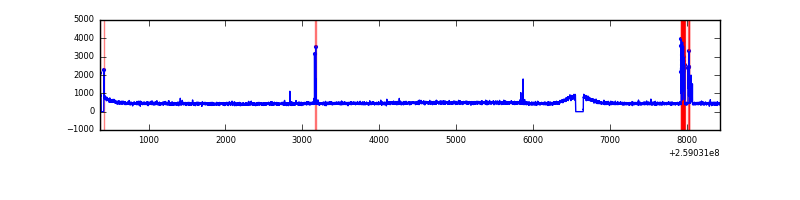

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8064 | 7931 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8064 | 7931 | 5 | 5 | 0.06% | 0.06% |  |
| C | 8064 | 7931 | 46 | 46 | 0.57% | 0.58% |  |
| D | 8064 | 7931 | 75 | 75 | 0.93% | 0.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 14500 | 71.36 | 929 | 907 | 190.5 |
| A | 0 | 226 | 8254 | 38.57 | 929 | 907 | 190.5 |
| A | 12 | 194 | 7108 | 32.55 | 929 | 907 | 190.5 |
| B | 3 | 64 | 46063 | 251.26 | 937 | 911 | 179.7 |
| B | 12 | 111 | 21155 | 112.66 | 937 | 911 | 179.7 |
| B | 11 | 111 | 17894 | 94.51 | 937 | 911 | 179.7 |
| C | 14 | 220 | 150515 | 710.07 | 911 | 915 | 210.7 |
| C | 3 | 233 | 85666 | 402.27 | 911 | 915 | 210.7 |
| C | 14 | 234 | 18899 | 85.36 | 911 | 915 | 210.7 |
| D | 14 | 34 | 468593 | 2186.15 | 894 | 869 | 213.9 |
| D | 8 | 195 | 98228 | 455.06 | 894 | 869 | 213.9 |
| D | 5 | 222 | 55572 | 255.68 | 894 | 869 | 213.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

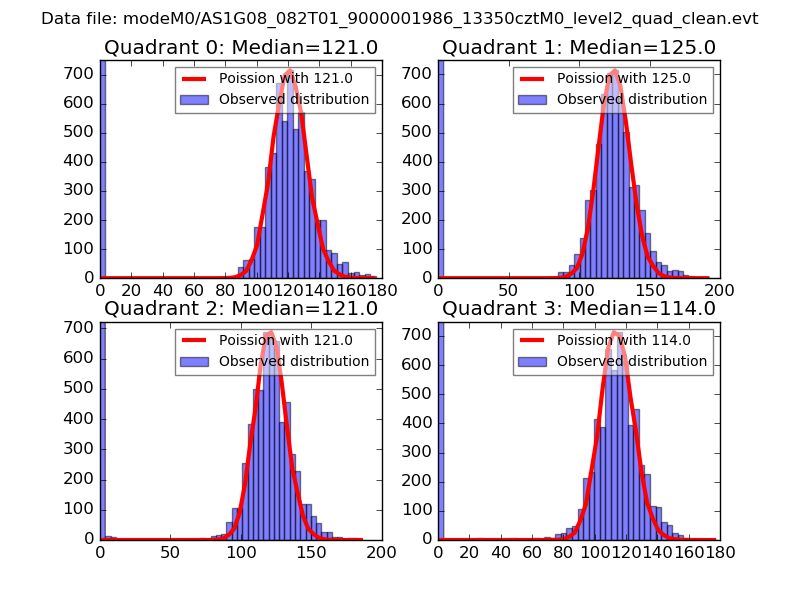

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

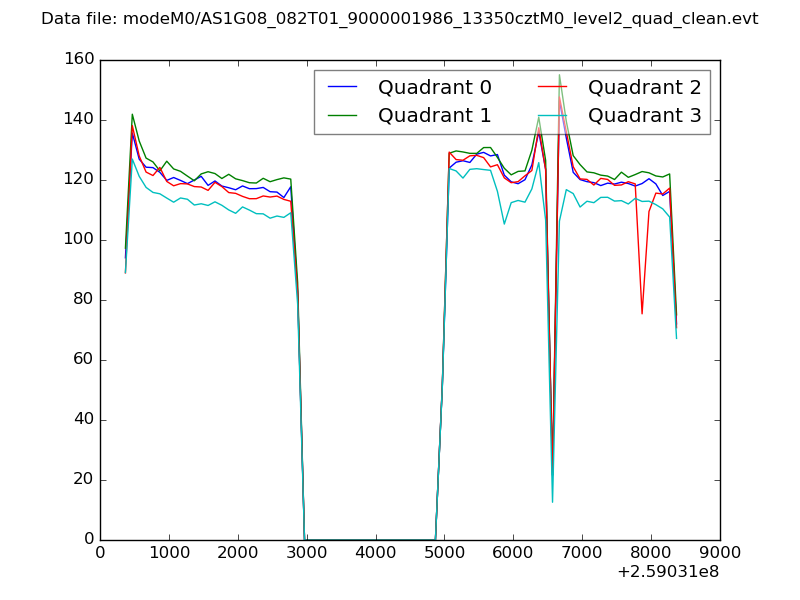

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

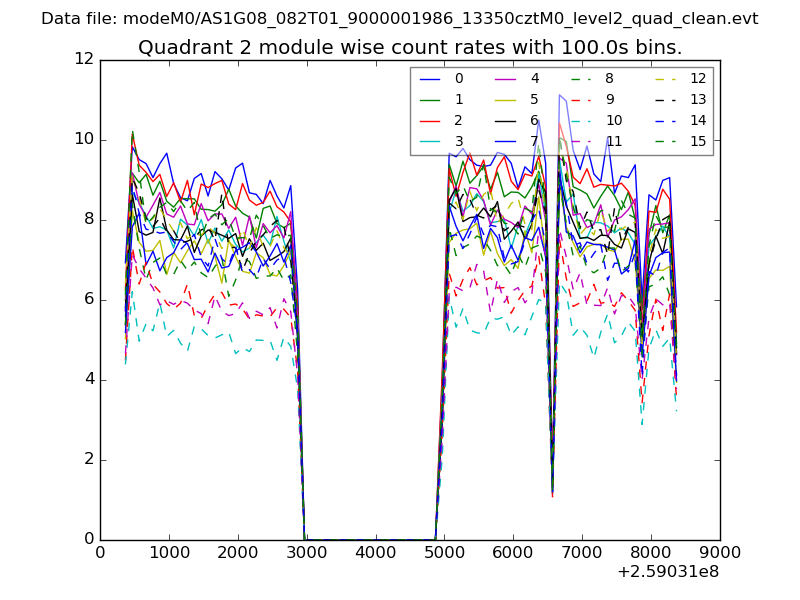

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

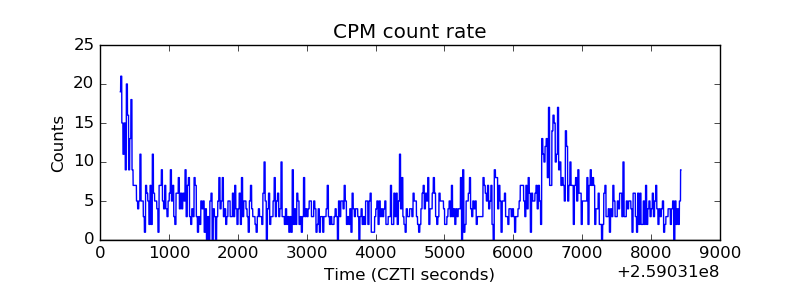

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

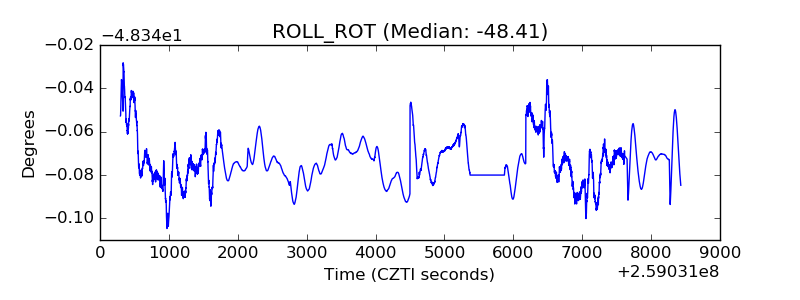

| _ROLL_ROT |  |

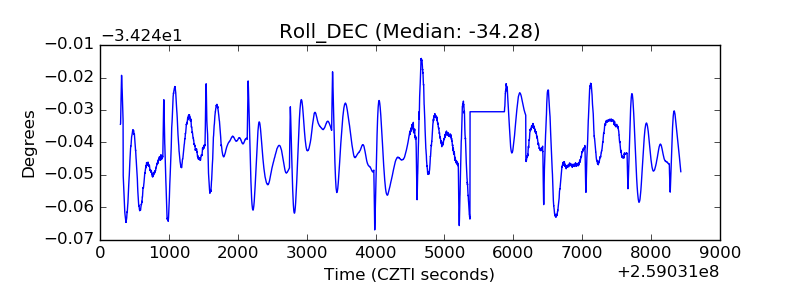

| _Roll_DEC |  |

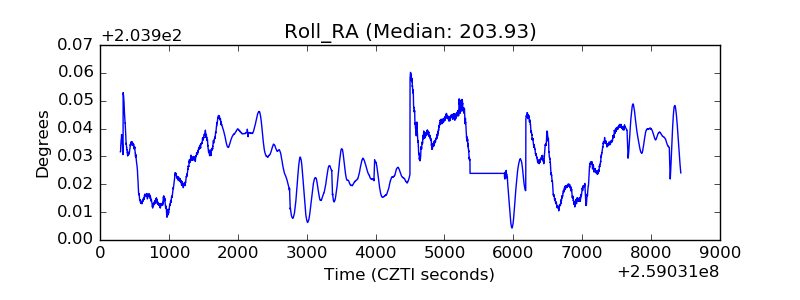

| _Roll_RA |  |
| Veto Counter |  |
