| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_082T01_9000001986_13372cztM0_level2.evt | modeM0/AS1G08_082T01_9000001986_13372cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,549,120 | 77,958,720 |
| Size | 486.9 MB | 74.3 MB |
| Events in quadrant A | 3,520,824 | 479,937 |
| Events in quadrant B | 3,640,201 | 486,987 |
| Events in quadrant C | 3,439,051 | 474,130 |
| Events in quadrant D | 4,406,227 | 451,150 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14839 | 3 |
| B | 0 | 15222 | 2 |
| C | 0 | 14592 | 2 |
| D | 0 | 17492 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6714 | 98 | 1.459637% |
| B | 6714 | 90 | 1.340483% |
| C | 6714 | 46 | 0.685136% |
| D | 6714 | 159 | 2.368186% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7945 | 6716 | 19 | 19 | 0.24% | 0.28% |  |
| B | 7945 | 6716 | 19 | 19 | 0.24% | 0.28% |  |
| C | 7945 | 6716 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7945 | 6716 | 75 | 75 | 0.94% | 1.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 100135 | 566.81 | 874 | 856 | 175.2 |
| A | 8 | 15 | 25172 | 138.83 | 874 | 856 | 175.2 |
| A | 15 | 69 | 17264 | 93.68 | 874 | 856 | 175.2 |
| B | 10 | 246 | 65655 | 397.53 | 874 | 855 | 163.0 |
| B | 3 | 64 | 52070 | 314.19 | 874 | 855 | 163.0 |
| B | 4 | 142 | 43119 | 259.28 | 874 | 855 | 163.0 |
| C | 14 | 220 | 91950 | 476.62 | 841 | 846 | 191.1 |
| C | 3 | 233 | 67637 | 349.42 | 841 | 846 | 191.1 |
| C | 13 | 61 | 6103 | 27.5 | 841 | 846 | 191.1 |
| D | 1 | 52 | 685665 | 3477.23 | 831 | 810 | 197.0 |
| D | 14 | 34 | 250761 | 1269.08 | 831 | 810 | 197.0 |
| D | 8 | 195 | 213764 | 1081.24 | 831 | 810 | 197.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

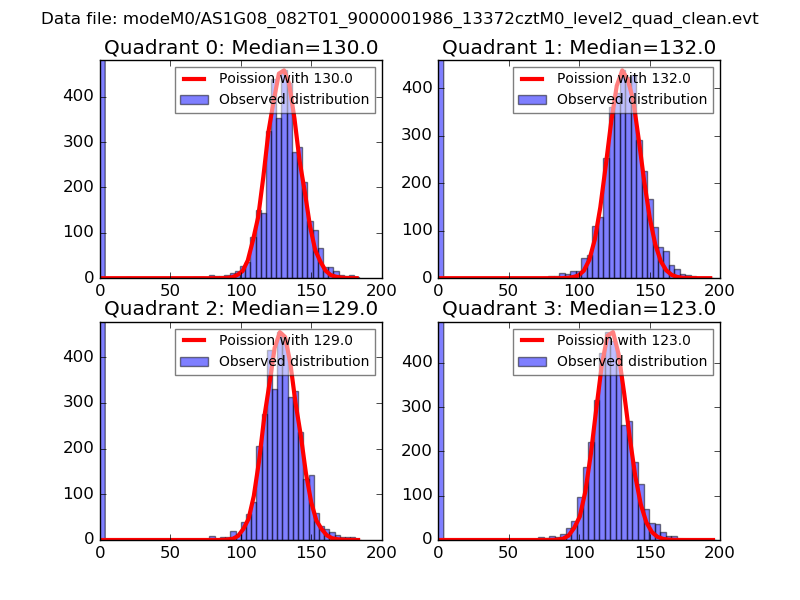

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

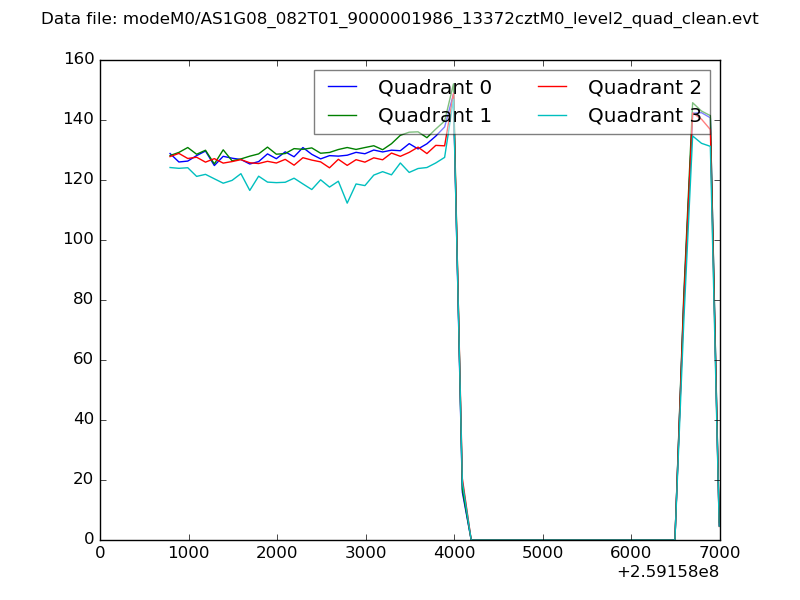

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

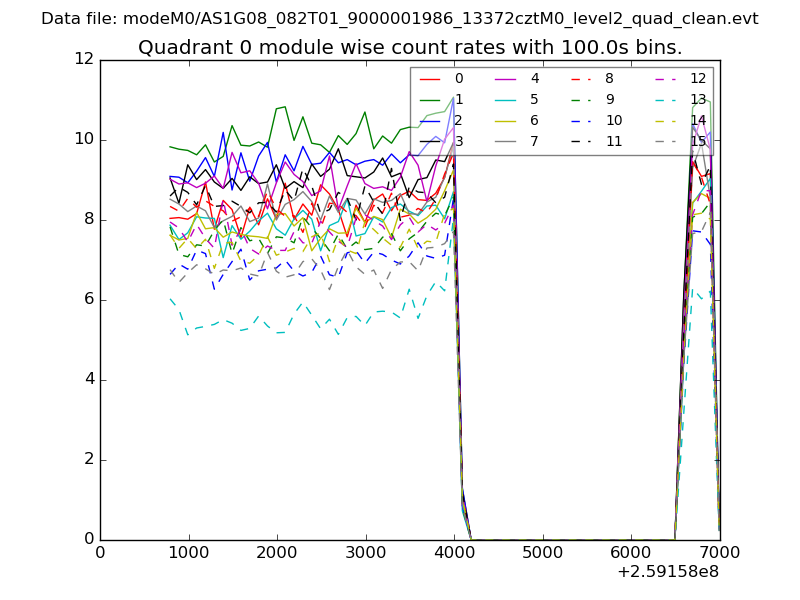

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

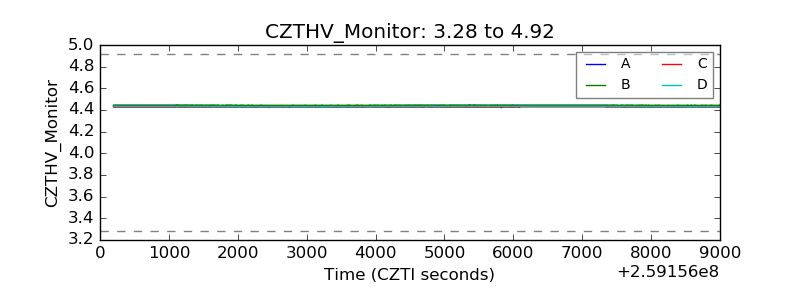

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

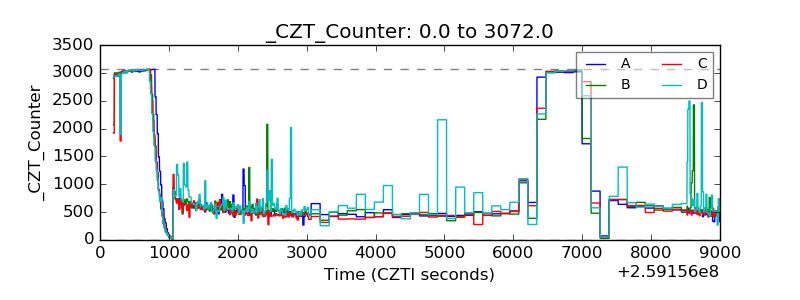

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

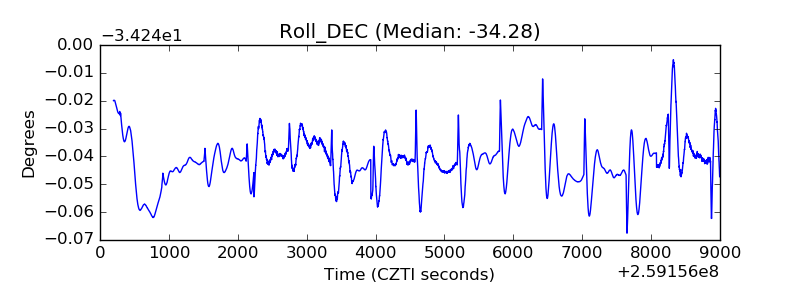

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

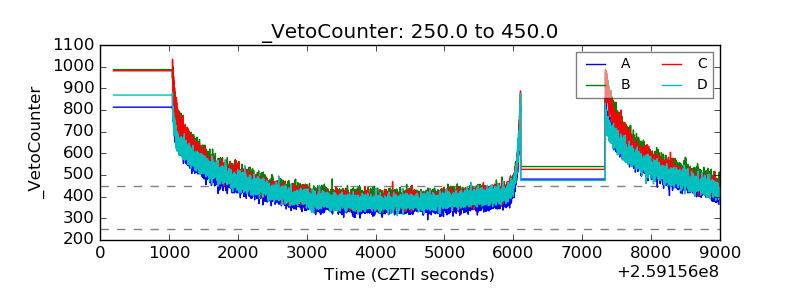

| Veto Counter |  |
