| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13392cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13392cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,663,040 | 103,893,120 |
| Size | 471.7 MB | 99.1 MB |
| Events in quadrant A | 3,438,788 | 664,999 |
| Events in quadrant B | 3,841,875 | 675,575 |
| Events in quadrant C | 3,652,681 | 658,386 |
| Events in quadrant D | 3,538,311 | 625,912 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15415 | 3 |
| B | 0 | 16429 | 2 |
| C | 0 | 15835 | 2 |
| D | 0 | 16067 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7495 | 21 | 0.280187% |
| B | 7495 | 137 | 1.827885% |
| C | 7495 | 30 | 0.400267% |
| D | 7495 | 19 | 0.253502% |

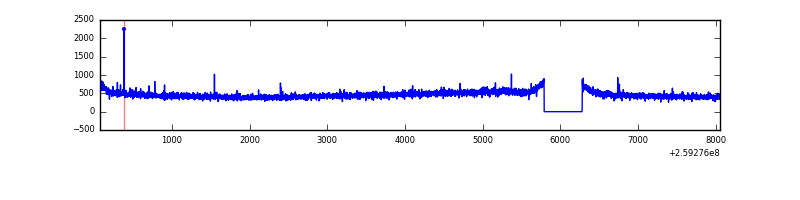

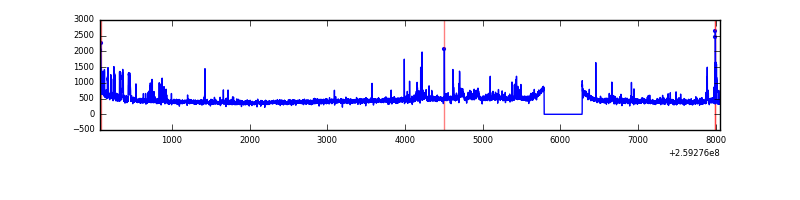

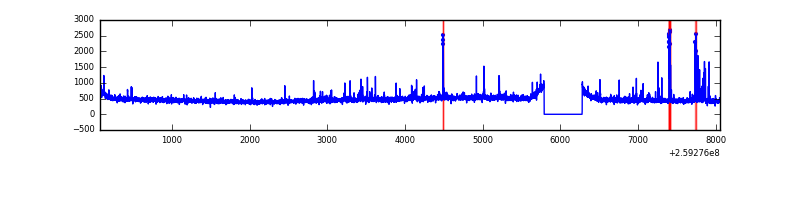

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

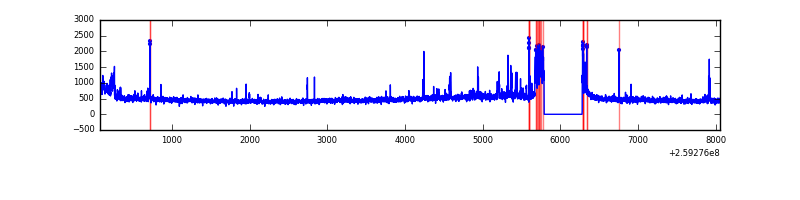

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7986 | 7497 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7986 | 7497 | 22 | 22 | 0.28% | 0.29% |  |
| C | 7986 | 7497 | 16 | 16 | 0.20% | 0.21% |  |
| D | 7986 | 7497 | 5 | 5 | 0.06% | 0.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 13232 | 68.43 | 885 | 865 | 180.7 |
| A | 15 | 69 | 8526 | 42.39 | 885 | 865 | 180.7 |
| A | 8 | 15 | 8177 | 40.46 | 885 | 865 | 180.7 |
| B | 3 | 64 | 219311 | 1285.06 | 888 | 864 | 170.0 |
| B | 10 | 244 | 77719 | 452.12 | 888 | 864 | 170.0 |
| B | 0 | 214 | 23954 | 135.83 | 888 | 864 | 170.0 |
| C | 14 | 220 | 184245 | 914.0 | 864 | 869 | 200.6 |
| C | 3 | 233 | 101195 | 500.05 | 864 | 869 | 200.6 |
| C | 13 | 61 | 6118 | 26.16 | 864 | 869 | 200.6 |
| D | 5 | 222 | 187742 | 920.15 | 851 | 828 | 203.1 |
| D | 2 | 136 | 72524 | 352.95 | 851 | 828 | 203.1 |
| D | 2 | 234 | 26458 | 126.17 | 851 | 828 | 203.1 |

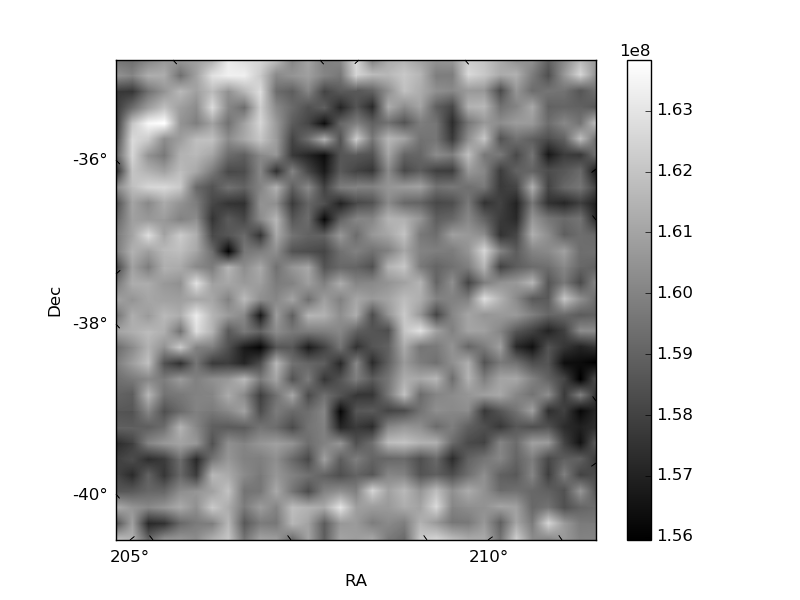

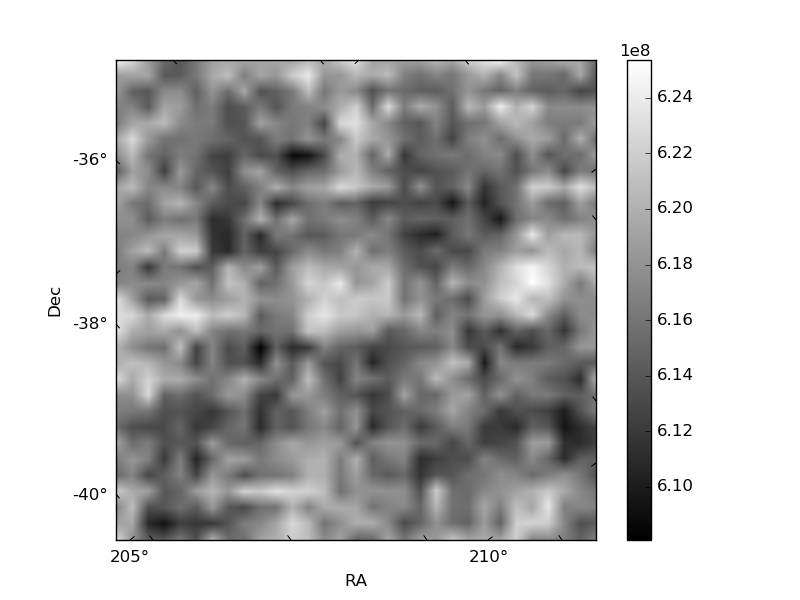

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |

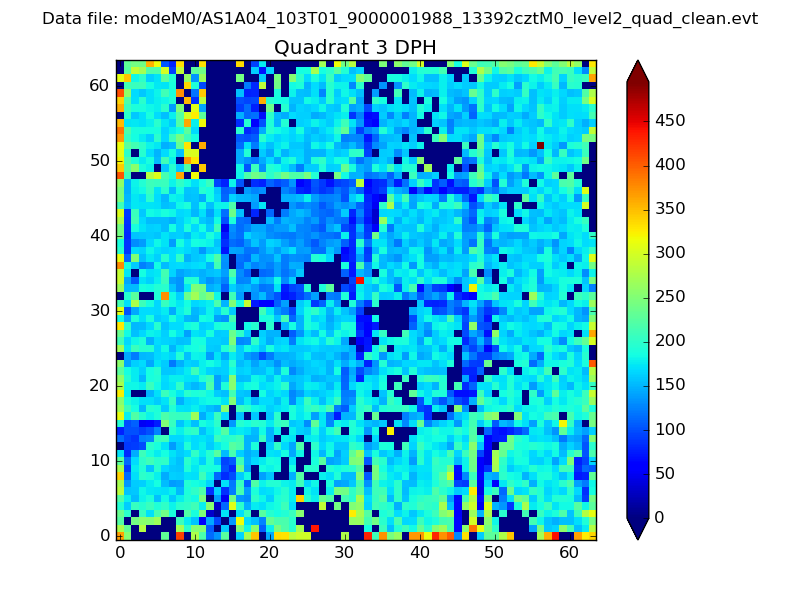

Quadrant C |

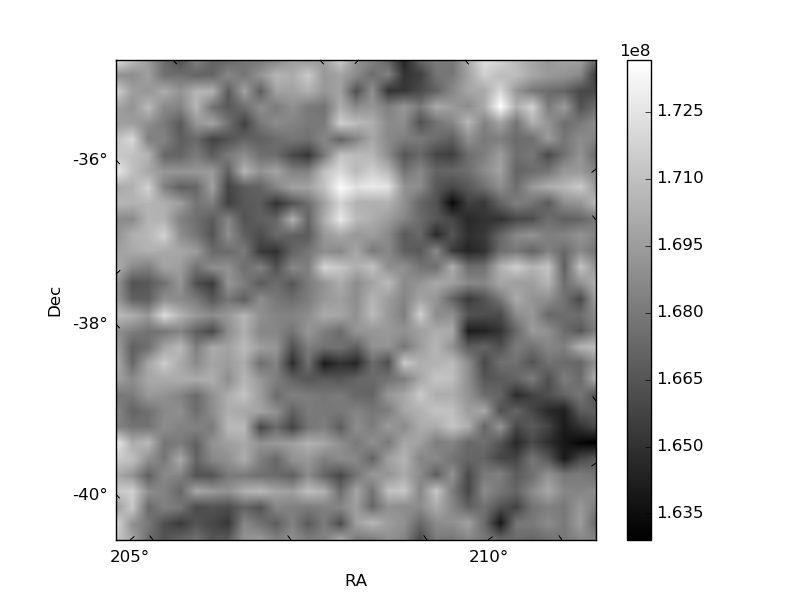

| Plot type | Count rate plots | Images |
|---|---|---|

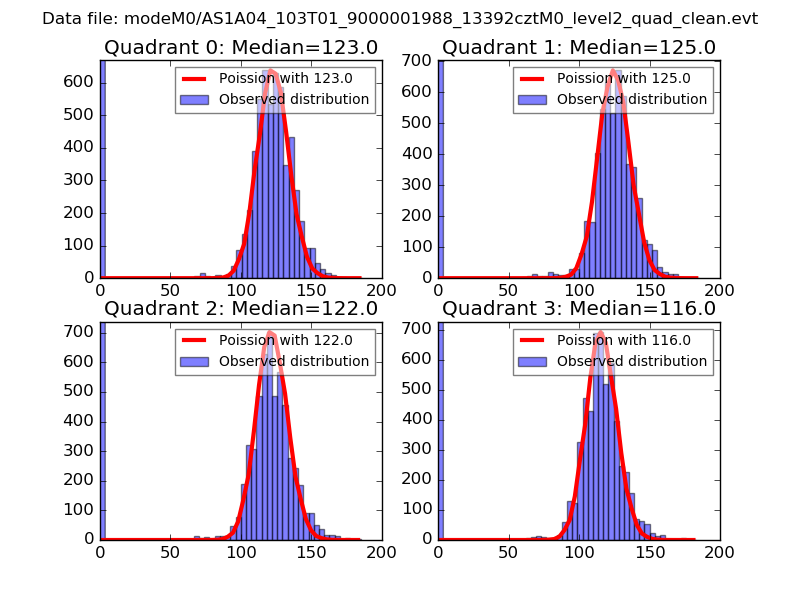

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

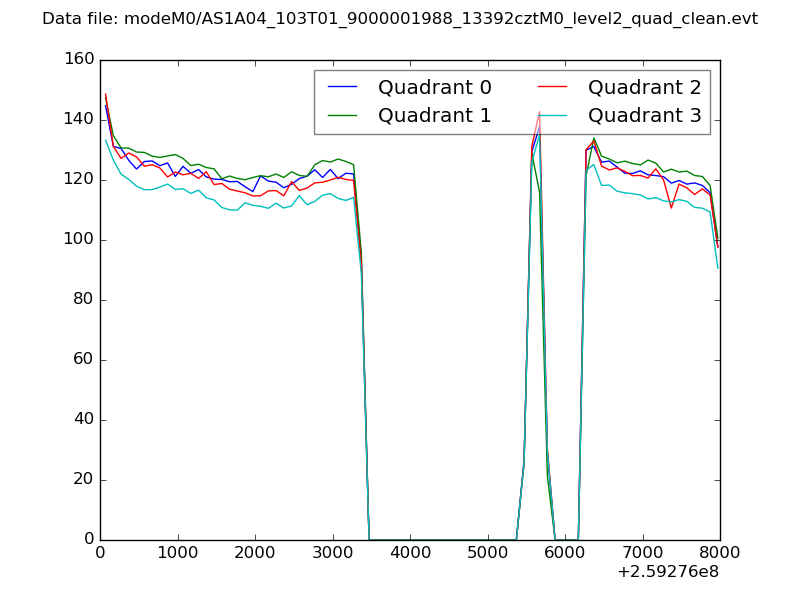

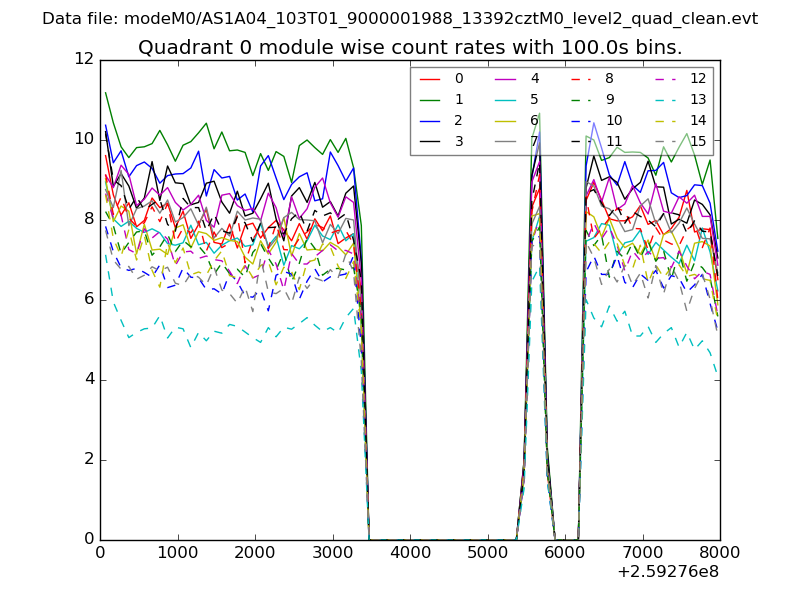

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

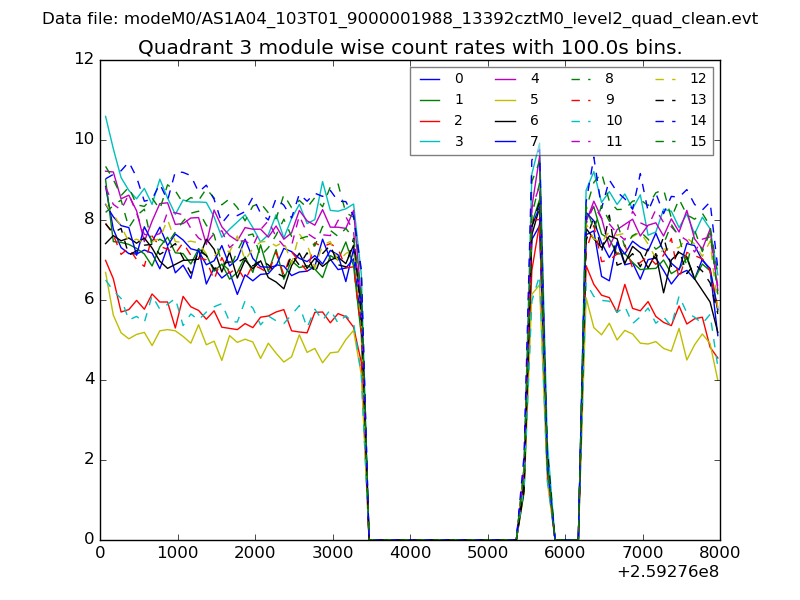

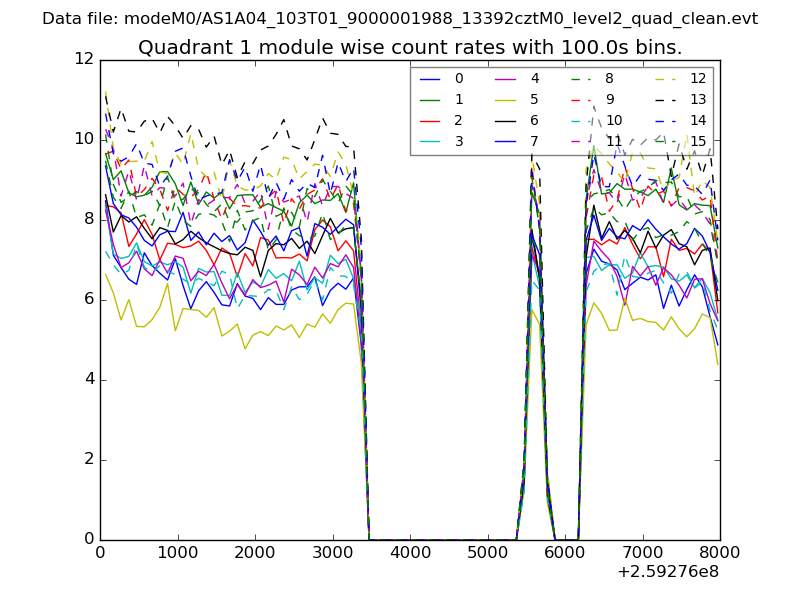

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

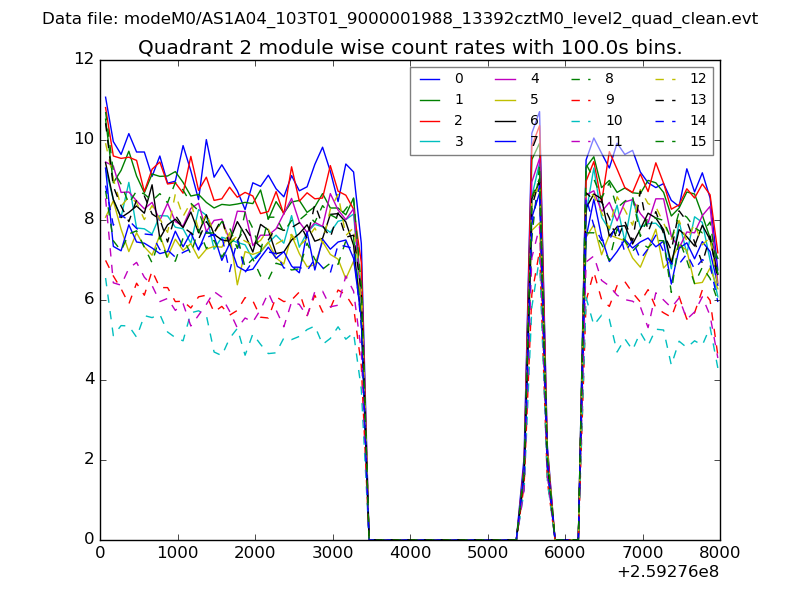

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

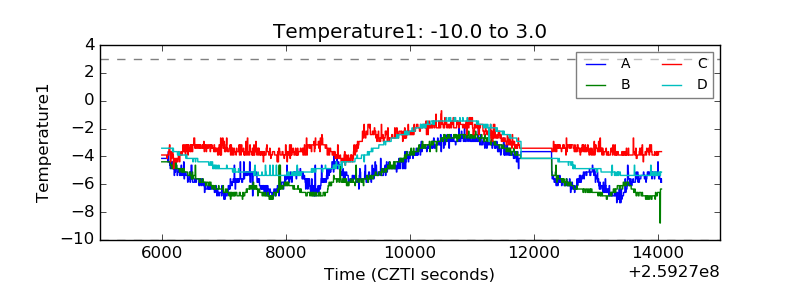

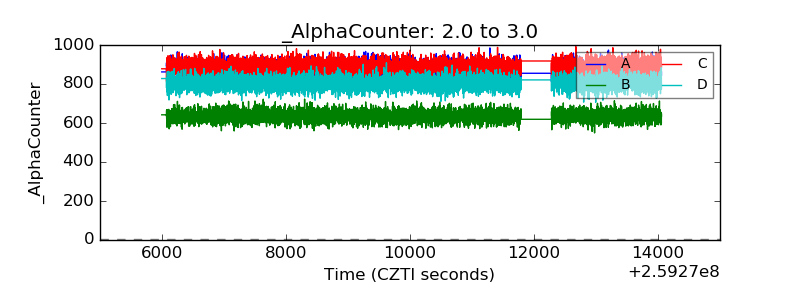

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

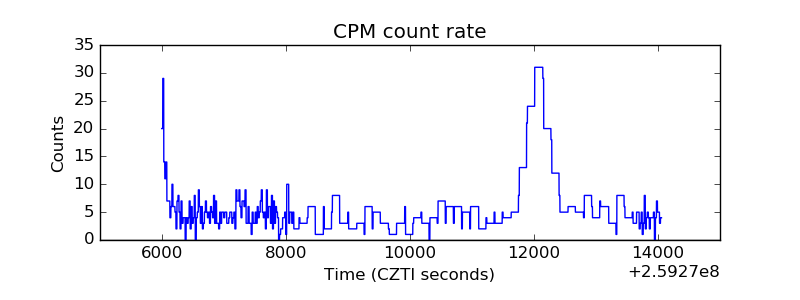

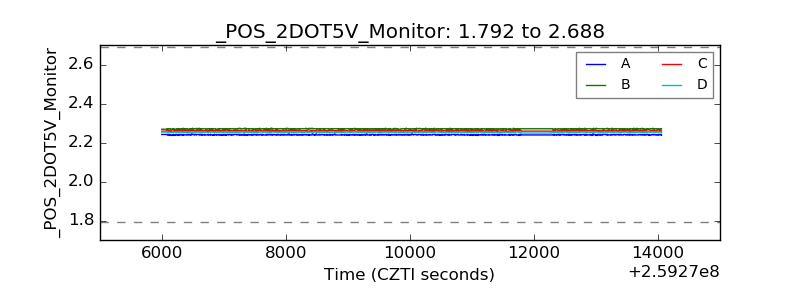

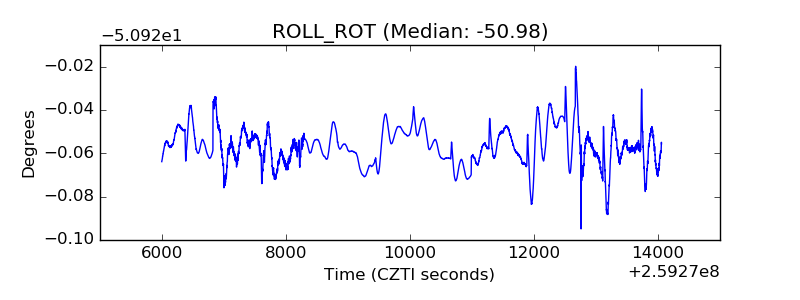

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

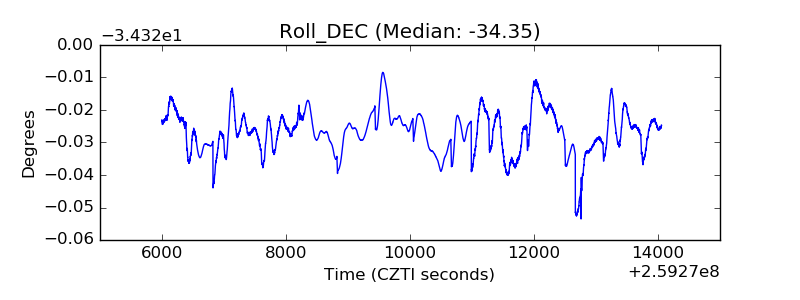

| _Roll_DEC |  |

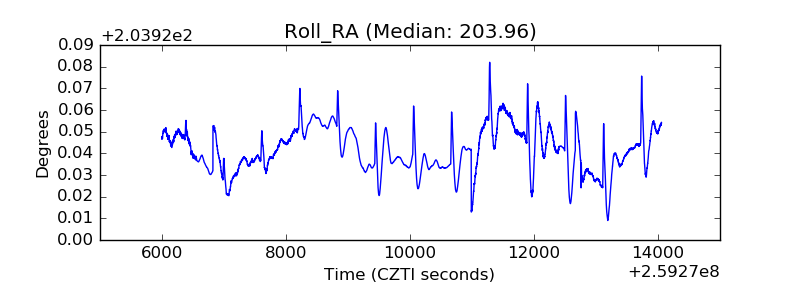

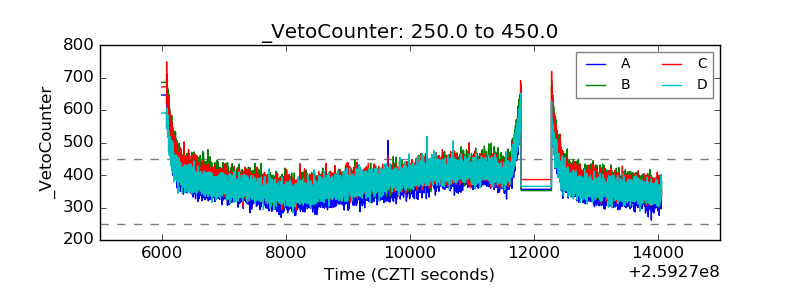

| _Roll_RA |  |
| Veto Counter |  |
