| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13400cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13400cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,561,280 | 66,542,400 |
| Size | 425.9 MB | 63.5 MB |
| Events in quadrant A | 3,165,700 | 393,422 |
| Events in quadrant B | 3,329,301 | 400,899 |
| Events in quadrant C | 3,276,747 | 393,857 |
| Events in quadrant D | 3,314,501 | 377,169 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13609 | 3 |
| B | 0 | 13997 | 2 |
| C | 0 | 13867 | 2 |
| D | 0 | 14036 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6439 | 87 | 1.351141% |
| B | 6439 | 90 | 1.397733% |
| C | 6439 | 67 | 1.040534% |
| D | 6439 | 66 | 1.025004% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

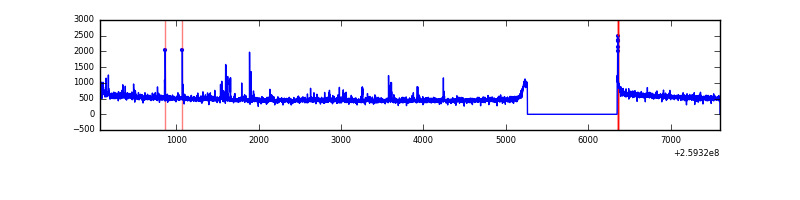

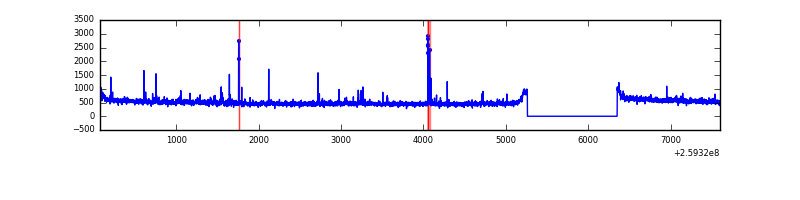

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7530 | 6440 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7529 | 6439 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7530 | 6440 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7529 | 6439 | 10 | 10 | 0.13% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 16252 | 93.91 | 815 | 798 | 164.6 |
| A | 15 | 69 | 7744 | 42.21 | 815 | 798 | 164.6 |
| A | 0 | 226 | 7226 | 39.06 | 815 | 798 | 164.6 |
| B | 3 | 64 | 35812 | 226.86 | 816 | 796 | 154.3 |
| B | 10 | 247 | 29210 | 184.09 | 816 | 796 | 154.3 |
| B | 3 | 209 | 25810 | 162.06 | 816 | 796 | 154.3 |
| C | 14 | 220 | 87620 | 478.42 | 793 | 799 | 181.5 |
| C | 3 | 233 | 80403 | 438.65 | 793 | 799 | 181.5 |
| C | 6 | 253 | 11373 | 58.27 | 793 | 799 | 181.5 |
| D | 8 | 195 | 200633 | 1060.98 | 788 | 766 | 188.4 |
| D | 2 | 136 | 51153 | 267.48 | 788 | 766 | 188.4 |
| D | 1 | 52 | 45545 | 237.71 | 788 | 766 | 188.4 |

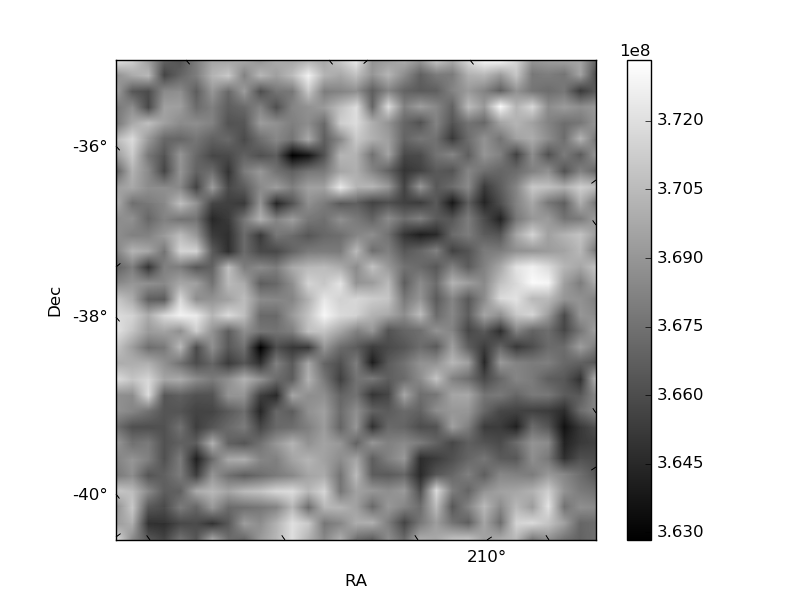

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

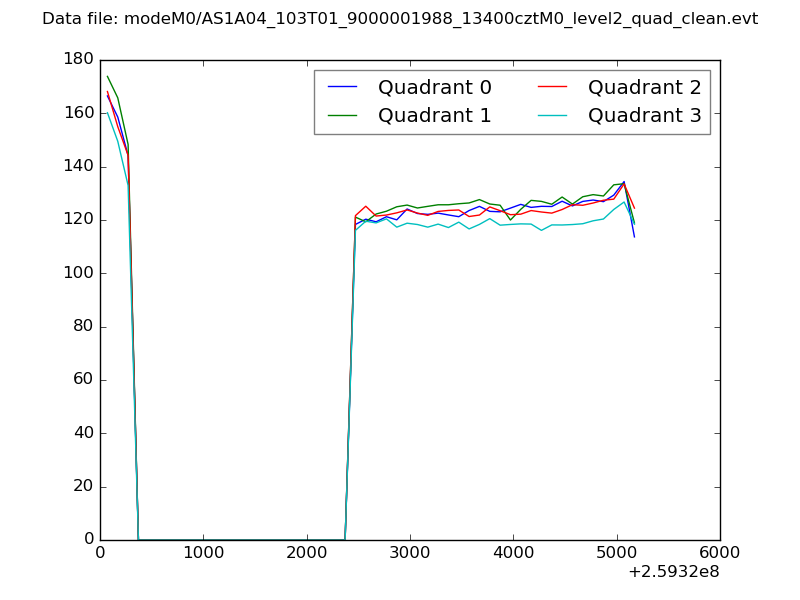

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

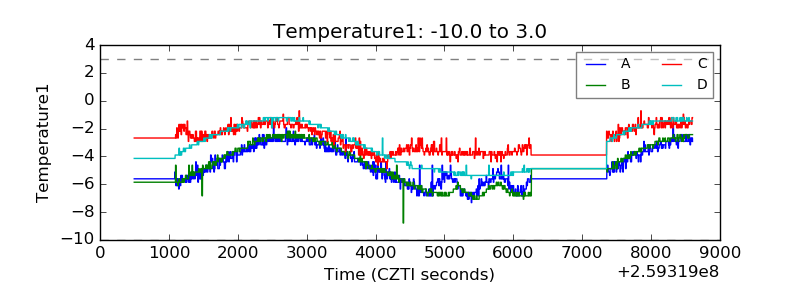

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

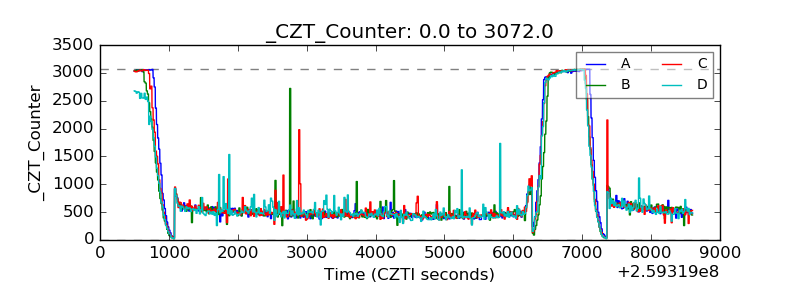

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

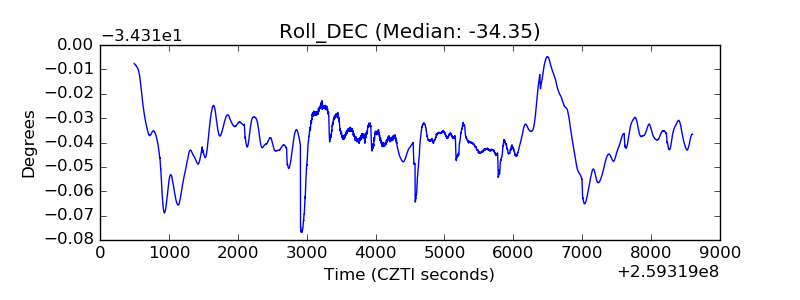

| _Roll_DEC |  |

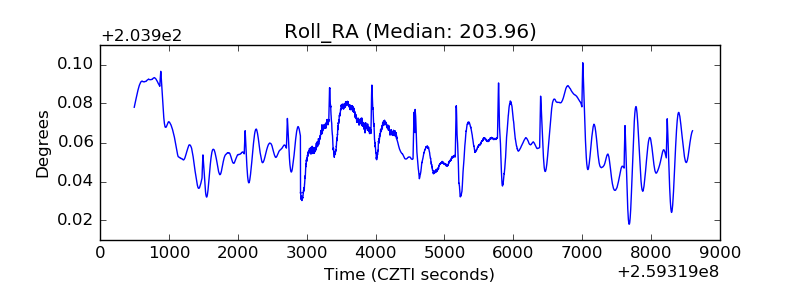

| _Roll_RA |  |
| Veto Counter |  |
