| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13419cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13419cztM0_level2_quad_clean.evt |
| Size (bytes) | 546,975,360 | 102,810,240 |
| Size | 521.6 MB | 98.0 MB |
| Events in quadrant A | 3,363,708 | 674,065 |
| Events in quadrant B | 3,596,669 | 689,909 |
| Events in quadrant C | 3,408,904 | 664,658 |
| Events in quadrant D | 5,738,889 | 615,216 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14347 | 3 |
| B | 0 | 15011 | 2 |
| C | 0 | 14494 | 2 |
| D | 0 | 21825 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6742 | 99 | 1.468407% |
| B | 6742 | 158 | 2.343518% |
| C | 6742 | 68 | 1.008603% |
| D | 6742 | 630 | 9.344408% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

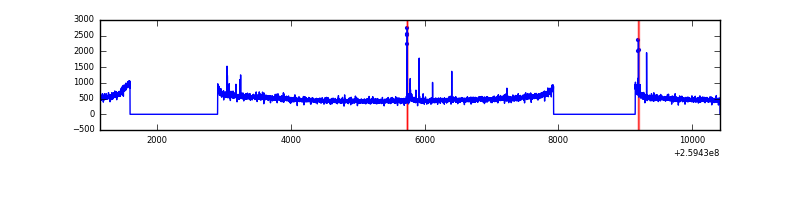

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9274 | 6744 | 3 | 3 | 0.03% | 0.04% |  |
| B | 9274 | 6743 | 19 | 19 | 0.20% | 0.28% |  |
| C | 9274 | 6744 | 7 | 7 | 0.08% | 0.10% |  |
| D | 9274 | 6744 | 521 | 521 | 5.62% | 7.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 28458 | 157.59 | 862 | 844 | 175.2 |
| A | 15 | 69 | 19037 | 103.82 | 862 | 844 | 175.2 |
| A | 0 | 226 | 7644 | 38.81 | 862 | 844 | 175.2 |
| B | 3 | 64 | 101043 | 615.25 | 865 | 841 | 162.9 |
| B | 0 | 230 | 51183 | 309.1 | 865 | 841 | 162.9 |
| B | 4 | 173 | 30064 | 179.43 | 865 | 841 | 162.9 |
| C | 3 | 233 | 97959 | 507.12 | 833 | 835 | 191.5 |
| C | 14 | 220 | 64163 | 330.66 | 833 | 835 | 191.5 |
| C | 13 | 61 | 5977 | 26.85 | 833 | 835 | 191.5 |
| D | 1 | 52 | 1299231 | 6775.36 | 803 | 784 | 191.6 |
| D | 13 | 249 | 1062042 | 5537.7 | 803 | 784 | 191.6 |
| D | 8 | 195 | 317306 | 1651.63 | 803 | 784 | 191.6 |

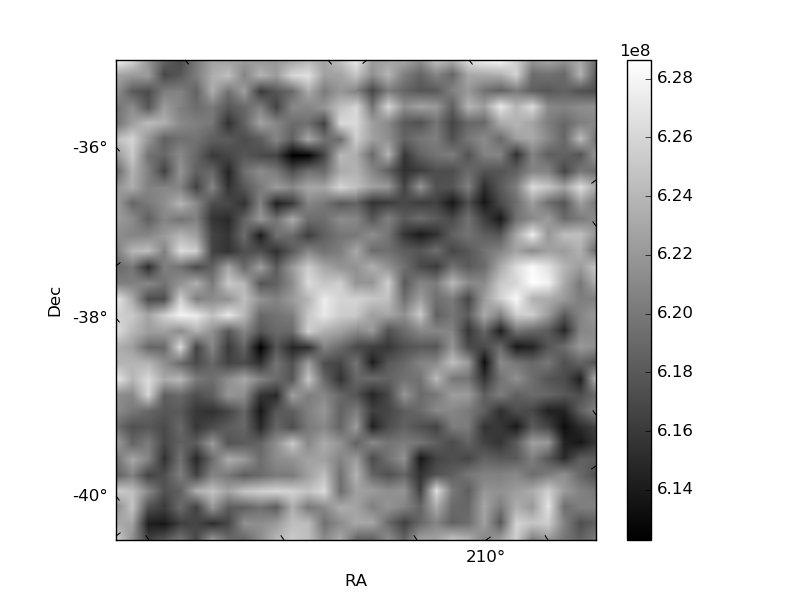

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

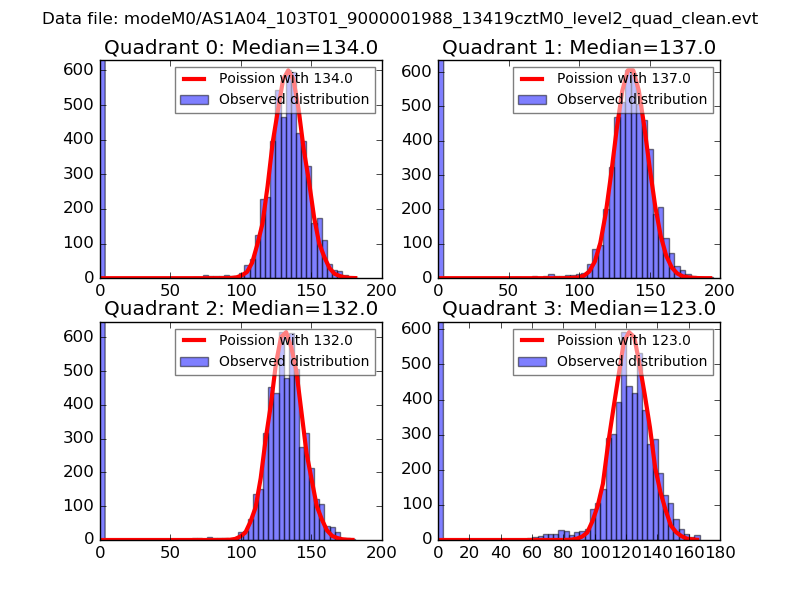

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

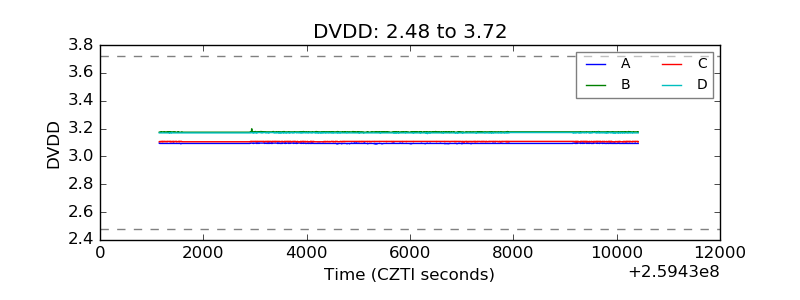

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

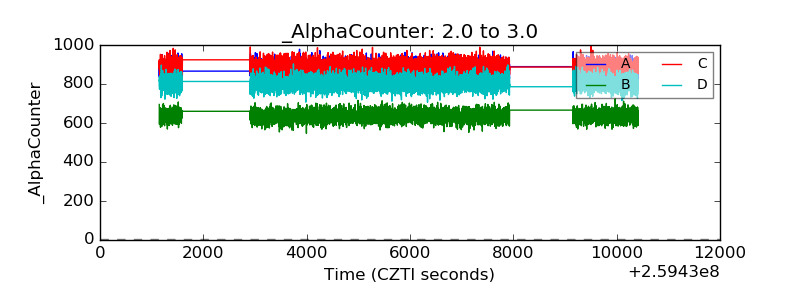

| Alpha Counter |  |
| _CPM_Rate |  |

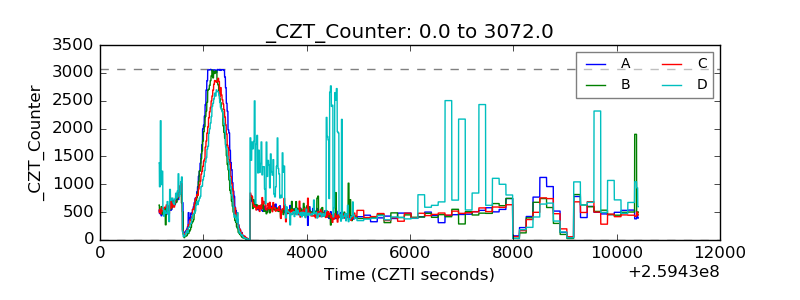

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

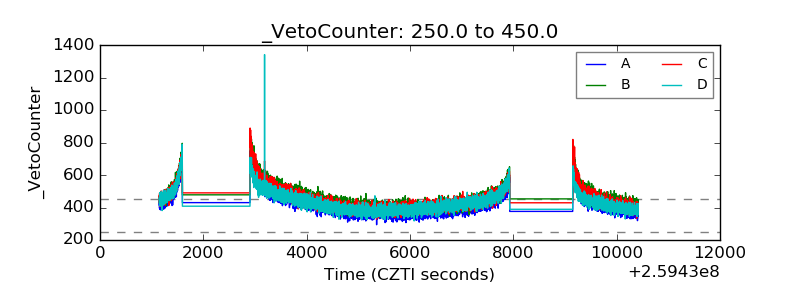

| Veto Counter |  |
