| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13441cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13441cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,244,480 | 84,372,480 |
| Size | 468.5 MB | 80.5 MB |
| Events in quadrant A | 3,193,517 | 524,736 |
| Events in quadrant B | 3,266,225 | 537,236 |
| Events in quadrant C | 3,202,194 | 525,446 |
| Events in quadrant D | 4,749,582 | 489,542 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14064 | 3 |
| B | 0 | 14117 | 2 |
| C | 0 | 14034 | 2 |
| D | 0 | 18779 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6863 | 89 | 1.296809% |
| B | 6863 | 85 | 1.238525% |
| C | 6863 | 84 | 1.223955% |
| D | 6863 | 307 | 4.473262% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7789 | 6864 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7789 | 6864 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7789 | 6864 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7789 | 6864 | 185 | 185 | 2.38% | 2.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 69 | 37899 | 223.39 | 817 | 799 | 166.1 |
| A | 0 | 226 | 7123 | 38.08 | 817 | 799 | 166.1 |
| A | 1 | 162 | 6230 | 32.7 | 817 | 799 | 166.1 |
| B | 3 | 64 | 46404 | 289.91 | 819 | 798 | 157.3 |
| B | 12 | 111 | 18889 | 115.0 | 819 | 798 | 157.3 |
| B | 11 | 111 | 15777 | 95.22 | 819 | 798 | 157.3 |
| C | 3 | 233 | 54656 | 288.12 | 806 | 811 | 186.9 |
| C | 13 | 61 | 5732 | 26.33 | 806 | 811 | 186.9 |
| C | 14 | 234 | 4307 | 18.71 | 806 | 811 | 186.9 |
| D | 13 | 249 | 1542481 | 8083.76 | 788 | 766 | 190.7 |
| D | 12 | 110 | 205920 | 1075.69 | 788 | 766 | 190.7 |
| D | 2 | 234 | 22627 | 114.62 | 788 | 766 | 190.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

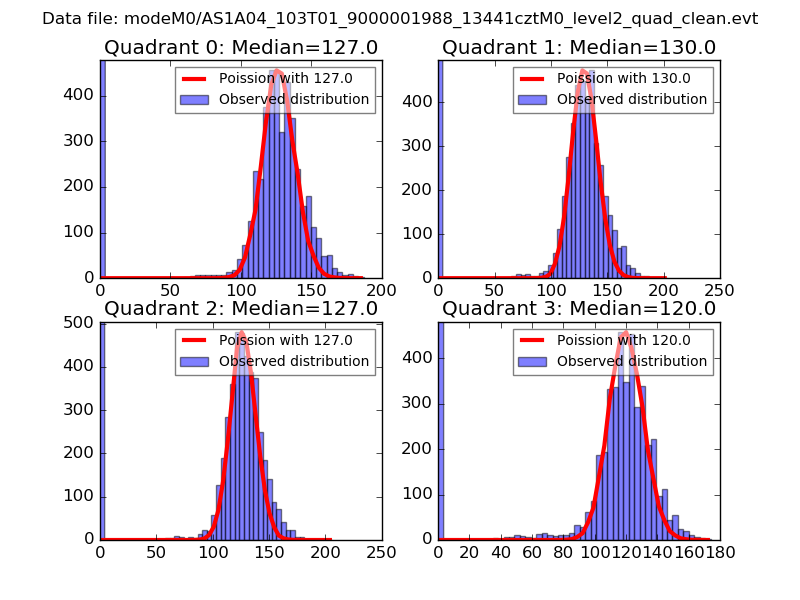

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

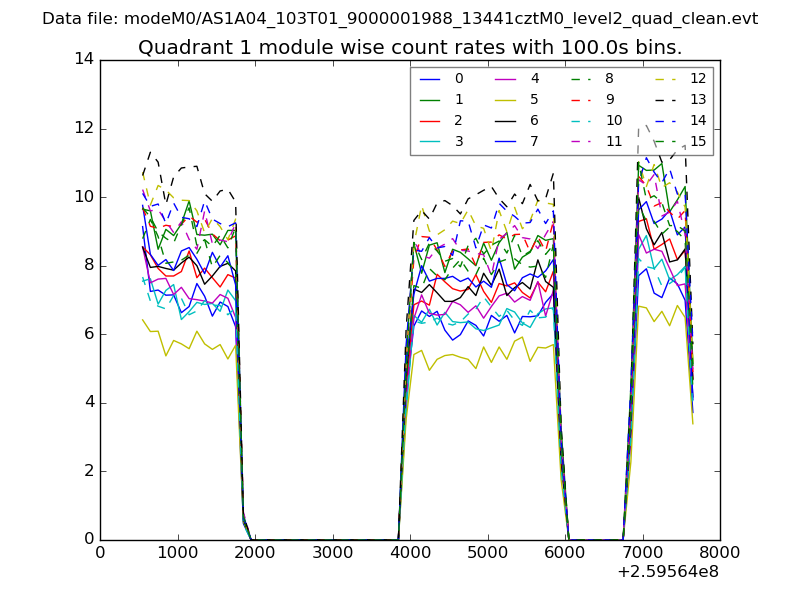

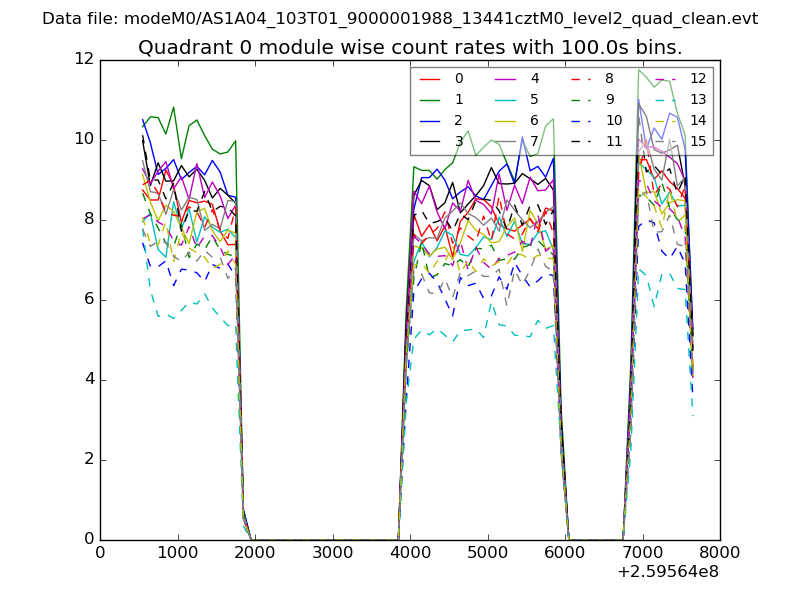

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

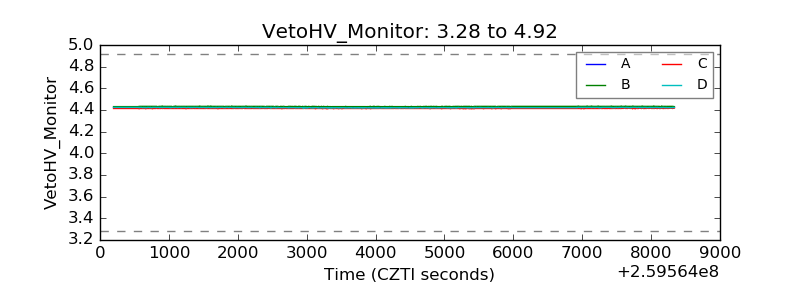

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

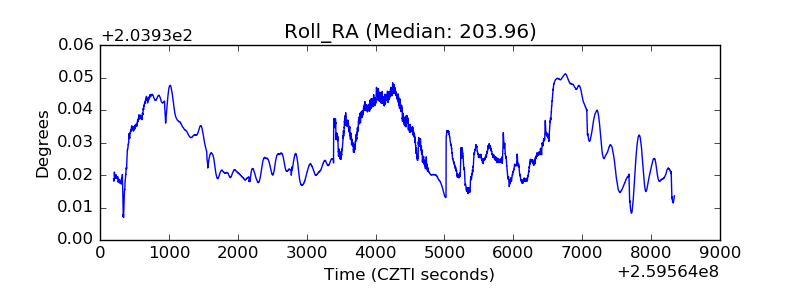

| _ROLL_ROT |  |

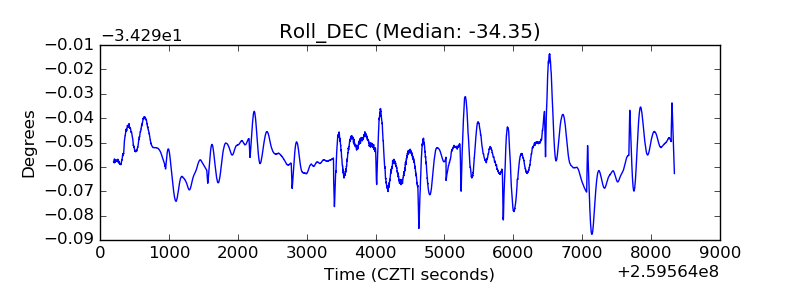

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
