| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13448cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13448cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,507,840 | 94,443,840 |
| Size | 406.7 MB | 90.1 MB |
| Events in quadrant A | 3,142,445 | 609,236 |
| Events in quadrant B | 3,237,154 | 624,152 |
| Events in quadrant C | 3,110,844 | 601,953 |
| Events in quadrant D | 2,987,843 | 575,199 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13518 | 3 |
| B | 0 | 13684 | 2 |
| C | 0 | 13448 | 2 |
| D | 0 | 13435 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6450 | 96 | 1.488372% |
| B | 6450 | 111 | 1.720930% |
| C | 6450 | 57 | 0.883721% |
| D | 6450 | 40 | 0.620155% |

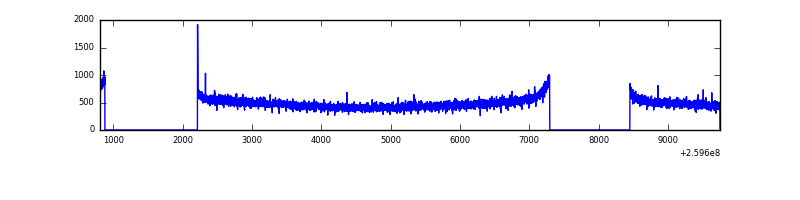

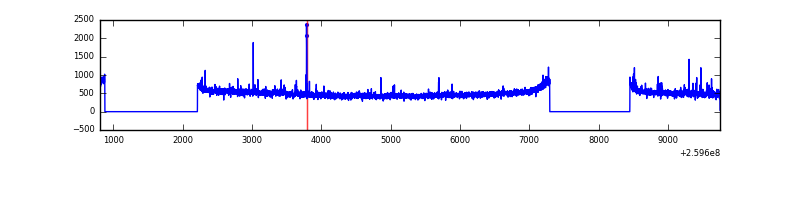

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8941 | 6451 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8941 | 6451 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8941 | 6451 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8941 | 6452 | 2 | 2 | 0.02% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 2 | 250 | 11704 | 66.07 | 811 | 794 | 165.1 |
| A | 1 | 162 | 9444 | 52.38 | 811 | 794 | 165.1 |
| A | 0 | 226 | 7313 | 39.48 | 811 | 794 | 165.1 |
| B | 4 | 173 | 22361 | 141.16 | 812 | 793 | 152.8 |
| B | 3 | 64 | 20679 | 130.15 | 812 | 793 | 152.8 |
| B | 12 | 111 | 17668 | 110.44 | 812 | 793 | 152.8 |
| C | 3 | 233 | 46294 | 252.55 | 782 | 787 | 180.2 |
| C | 6 | 253 | 6007 | 28.97 | 782 | 787 | 180.2 |
| C | 13 | 61 | 5658 | 27.03 | 782 | 787 | 180.2 |
| D | 2 | 234 | 21377 | 112.77 | 774 | 754 | 182.9 |
| D | 2 | 136 | 18871 | 99.06 | 774 | 754 | 182.9 |
| D | 12 | 110 | 13917 | 71.97 | 774 | 754 | 182.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

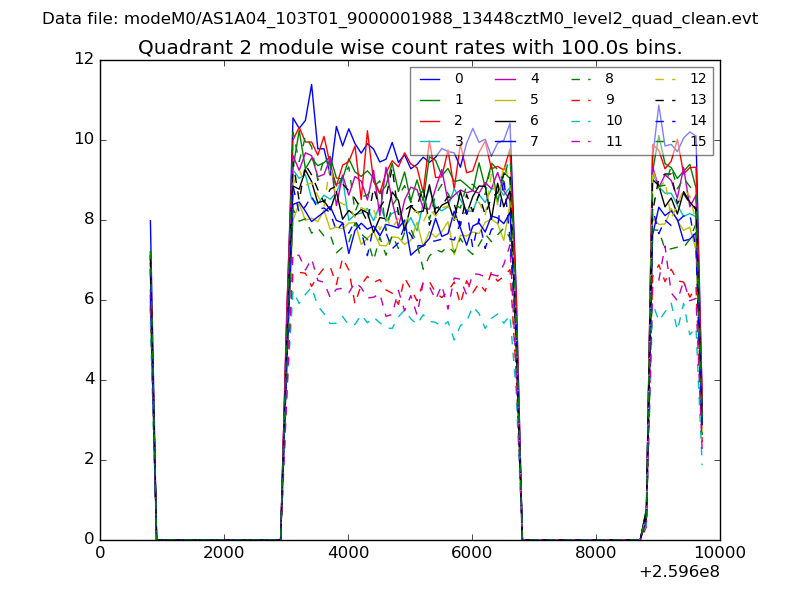

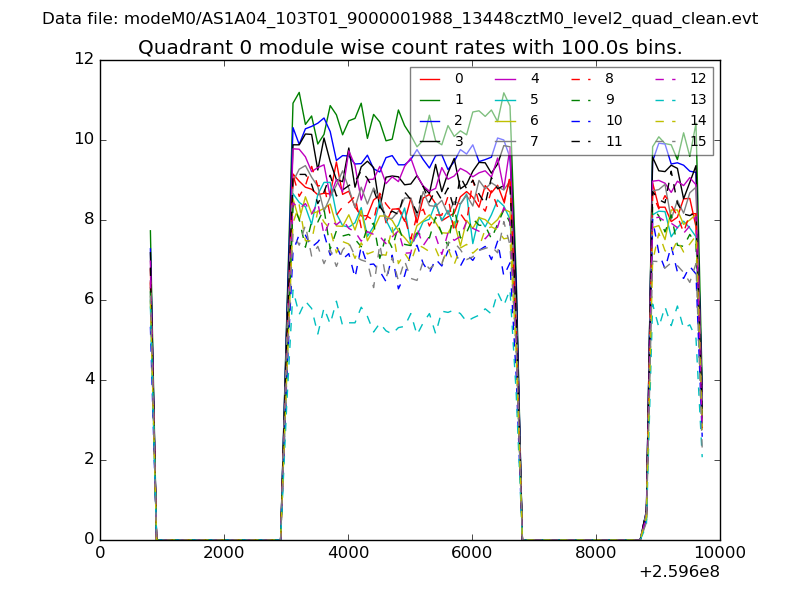

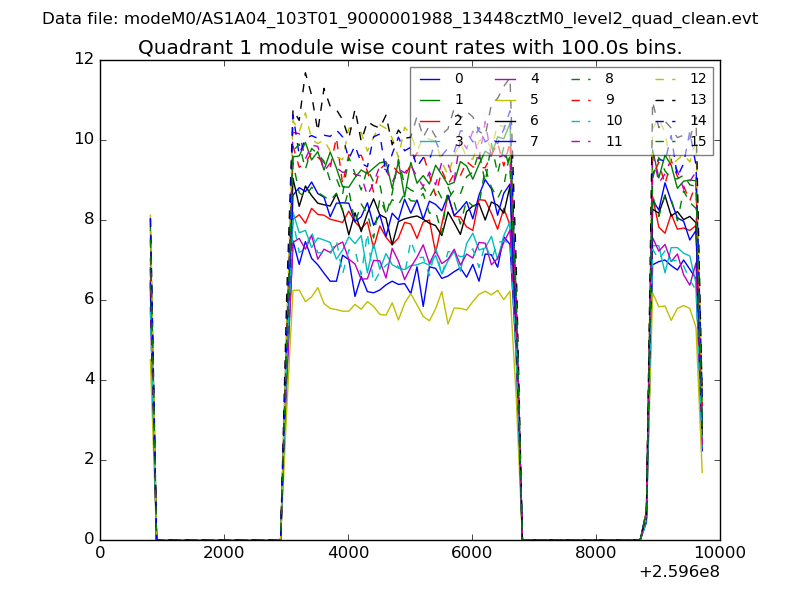

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

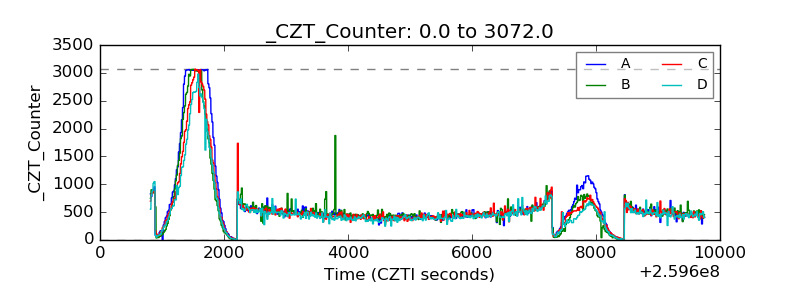

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

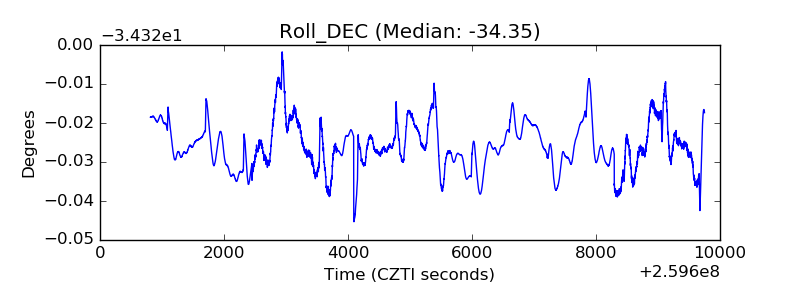

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
