| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13455cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13455cztM0_level2_quad_clean.evt |
| Size (bytes) | 465,073,920 | 78,981,120 |
| Size | 443.5 MB | 75.3 MB |
| Events in quadrant A | 2,905,953 | 490,463 |
| Events in quadrant B | 3,328,415 | 503,456 |
| Events in quadrant C | 2,929,987 | 490,315 |
| Events in quadrant D | 4,486,993 | 462,138 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12896 | 2 |
| B | 0 | 14032 | 1 |
| C | 0 | 12923 | 1 |
| D | 0 | 17624 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6380 | 29 | 0.454545% |
| B | 6380 | 203 | 3.181818% |
| C | 6380 | 31 | 0.485893% |
| D | 6380 | 62 | 0.971787% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7206 | 6381 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7206 | 6381 | 160 | 160 | 2.22% | 2.51% |  |
| C | 7206 | 6381 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7206 | 6381 | 20 | 20 | 0.28% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 13493 | 83.48 | 749 | 732 | 152.9 |
| A | 0 | 226 | 6672 | 38.86 | 749 | 732 | 152.9 |
| A | 12 | 194 | 5605 | 31.88 | 749 | 732 | 152.9 |
| B | 3 | 64 | 421724 | 2967.7 | 737 | 718 | 141.9 |
| B | 3 | 209 | 18883 | 128.05 | 737 | 718 | 141.9 |
| B | 12 | 111 | 16765 | 113.12 | 737 | 718 | 141.9 |
| C | 3 | 233 | 64040 | 368.51 | 735 | 739 | 171.8 |
| C | 13 | 61 | 5195 | 25.94 | 735 | 739 | 171.8 |
| C | 14 | 234 | 1732 | 5.78 | 735 | 739 | 171.8 |
| D | 8 | 195 | 1641195 | 9358.2 | 726 | 706 | 175.3 |
| D | 13 | 104 | 24347 | 134.86 | 726 | 706 | 175.3 |
| D | 2 | 234 | 24064 | 133.25 | 726 | 706 | 175.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

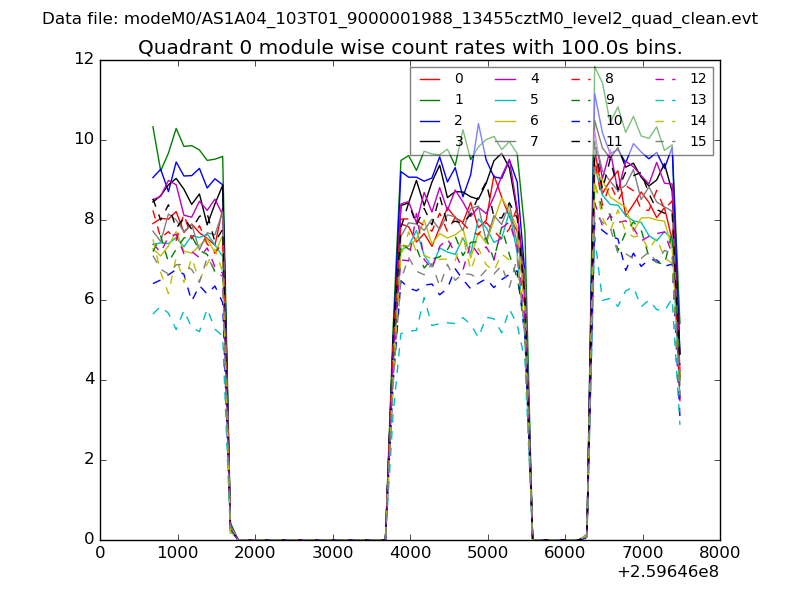

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

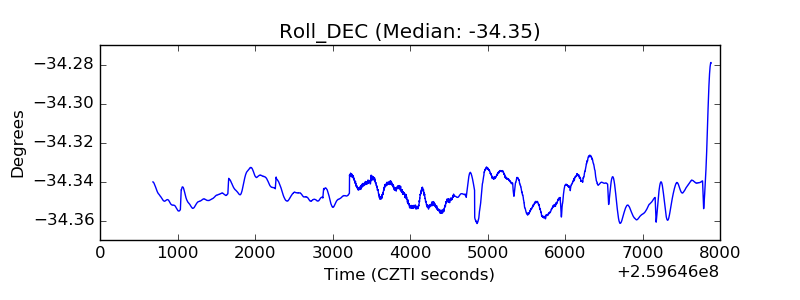

| _Roll_DEC |  |

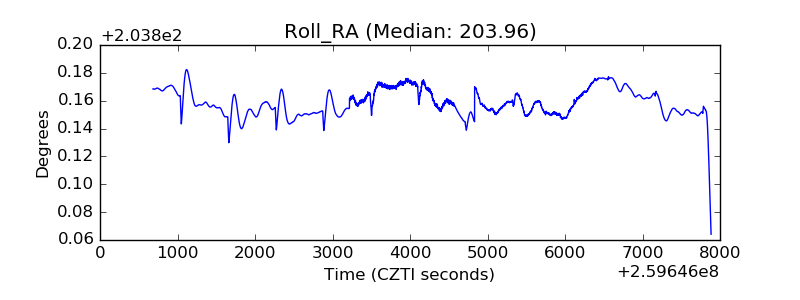

| _Roll_RA |  |
| Veto Counter |  |
