| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13460cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13460cztM0_level2_quad_clean.evt |
| Size (bytes) | 480,225,600 | 68,898,240 |
| Size | 458.0 MB | 65.7 MB |
| Events in quadrant A | 3,435,479 | 408,201 |
| Events in quadrant B | 3,533,250 | 416,659 |
| Events in quadrant C | 3,417,125 | 409,156 |
| Events in quadrant D | 3,708,619 | 390,652 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14389 | 3 |
| B | 0 | 14611 | 2 |
| C | 0 | 14328 | 2 |
| D | 0 | 15452 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6617 | 99 | 1.496146% |
| B | 6617 | 114 | 1.722835% |
| C | 6617 | 78 | 1.178782% |
| D | 6617 | 139 | 2.100650% |

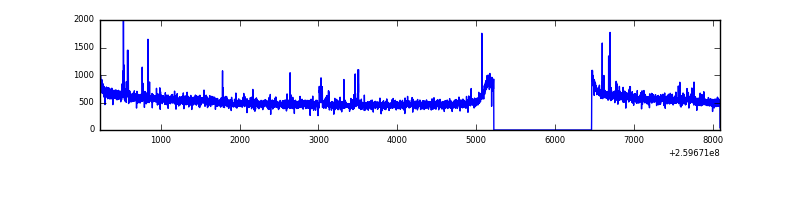

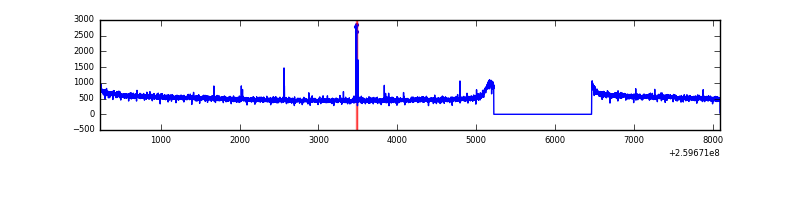

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7858 | 6618 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7858 | 6618 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7858 | 6618 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7858 | 6618 | 52 | 52 | 0.66% | 0.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 8069 | 40.7 | 888 | 869 | 176.9 |
| A | 11 | 29 | 8062 | 40.66 | 888 | 869 | 176.9 |
| A | 12 | 194 | 6815 | 33.62 | 888 | 869 | 176.9 |
| B | 4 | 173 | 27125 | 159.17 | 884 | 864 | 165.0 |
| B | 3 | 209 | 24068 | 140.64 | 884 | 864 | 165.0 |
| B | 12 | 111 | 18753 | 108.43 | 884 | 864 | 165.0 |
| C | 3 | 233 | 42926 | 215.64 | 858 | 863 | 195.1 |
| C | 0 | 207 | 17318 | 84.36 | 858 | 863 | 195.1 |
| C | 14 | 220 | 7735 | 35.23 | 858 | 863 | 195.1 |
| D | 14 | 34 | 180436 | 890.66 | 851 | 831 | 201.7 |
| D | 2 | 136 | 143976 | 709.86 | 851 | 831 | 201.7 |
| D | 13 | 104 | 70333 | 344.66 | 851 | 831 | 201.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

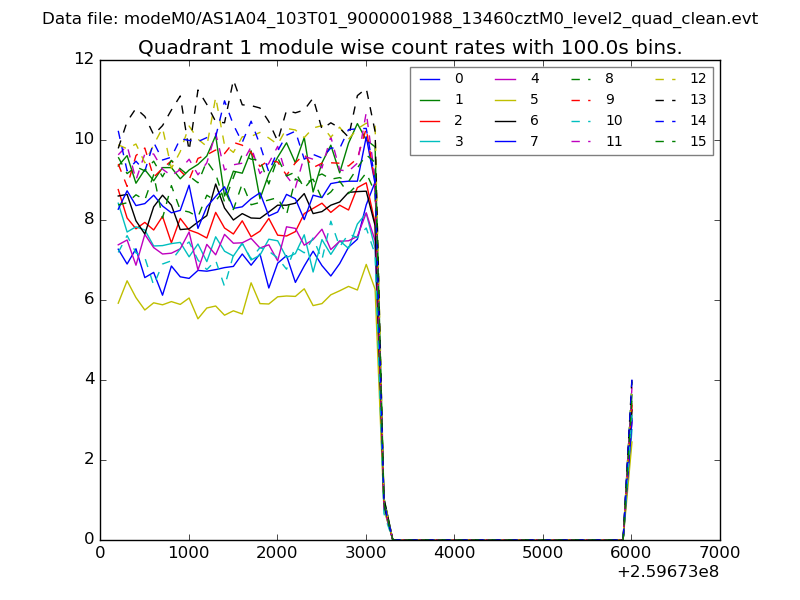

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

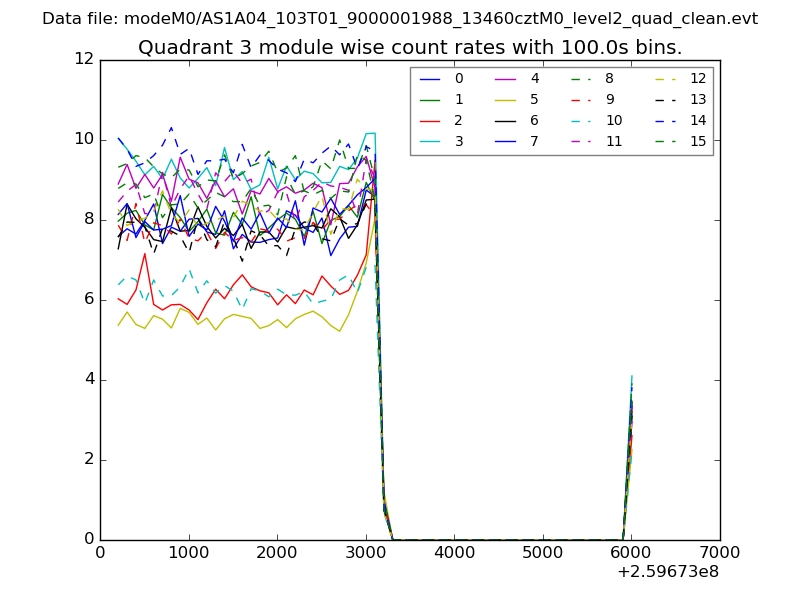

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

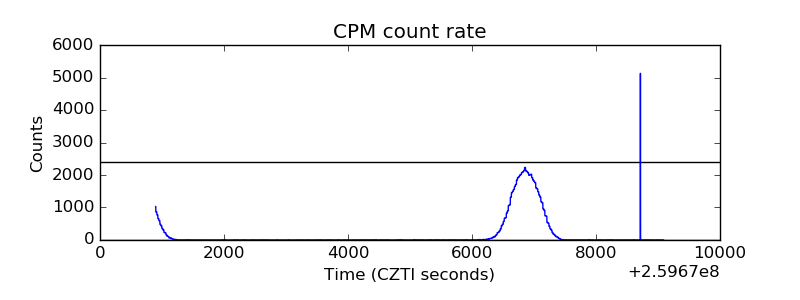

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

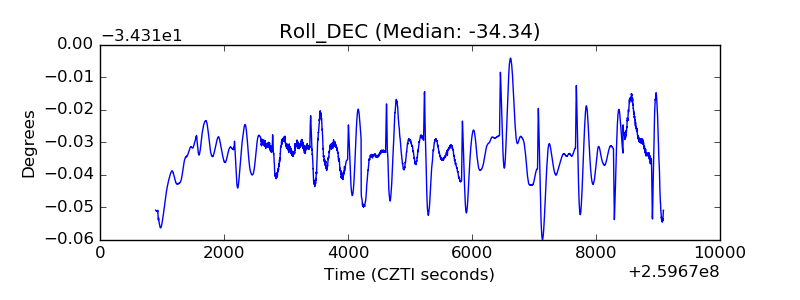

| _Roll_DEC |  |

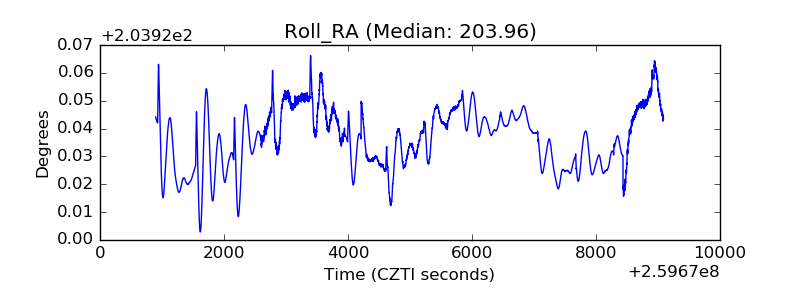

| _Roll_RA |  |

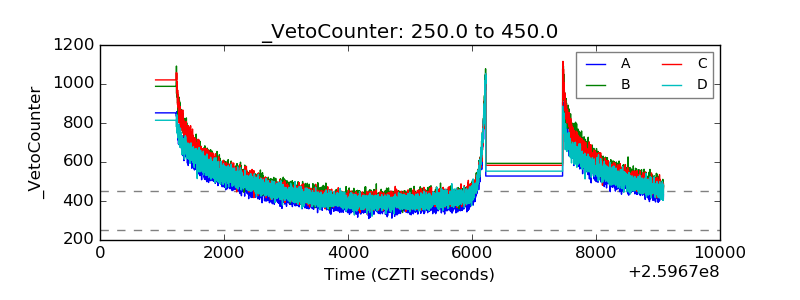

| Veto Counter |  |
