| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13463cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13463cztM0_level2_quad_clean.evt |
| Size (bytes) | 420,842,880 | 92,324,160 |
| Size | 401.3 MB | 88.0 MB |
| Events in quadrant A | 3,121,367 | 589,940 |
| Events in quadrant B | 3,157,589 | 604,139 |
| Events in quadrant C | 3,047,126 | 584,625 |
| Events in quadrant D | 2,975,071 | 561,869 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13534 | 3 |
| B | 0 | 13567 | 2 |
| C | 0 | 13390 | 2 |
| D | 0 | 13464 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6524 | 39 | 0.597793% |
| B | 6524 | 61 | 0.935009% |
| C | 6524 | 20 | 0.306560% |
| D | 6524 | 15 | 0.229920% |

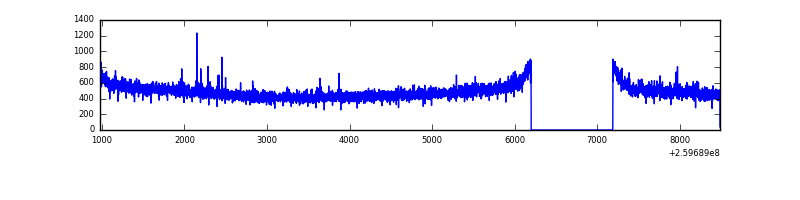

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7515 | 6525 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7515 | 6525 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7515 | 6526 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7515 | 6526 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 26511 | 159.89 | 800 | 783 | 160.9 |
| A | 1 | 162 | 11289 | 65.29 | 800 | 783 | 160.9 |
| A | 0 | 226 | 7290 | 40.44 | 800 | 783 | 160.9 |
| B | 3 | 209 | 18735 | 117.01 | 804 | 784 | 153.4 |
| B | 12 | 111 | 17694 | 110.22 | 804 | 784 | 153.4 |
| B | 11 | 111 | 14813 | 91.44 | 804 | 784 | 153.4 |
| C | 3 | 233 | 29084 | 157.92 | 774 | 778 | 179.2 |
| C | 13 | 61 | 5576 | 26.77 | 774 | 778 | 179.2 |
| C | 3 | 202 | 1913 | 6.33 | 774 | 778 | 179.2 |
| D | 8 | 195 | 30468 | 160.81 | 766 | 744 | 184.8 |
| D | 14 | 35 | 20125 | 104.85 | 766 | 744 | 184.8 |
| D | 2 | 234 | 18949 | 98.49 | 766 | 744 | 184.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

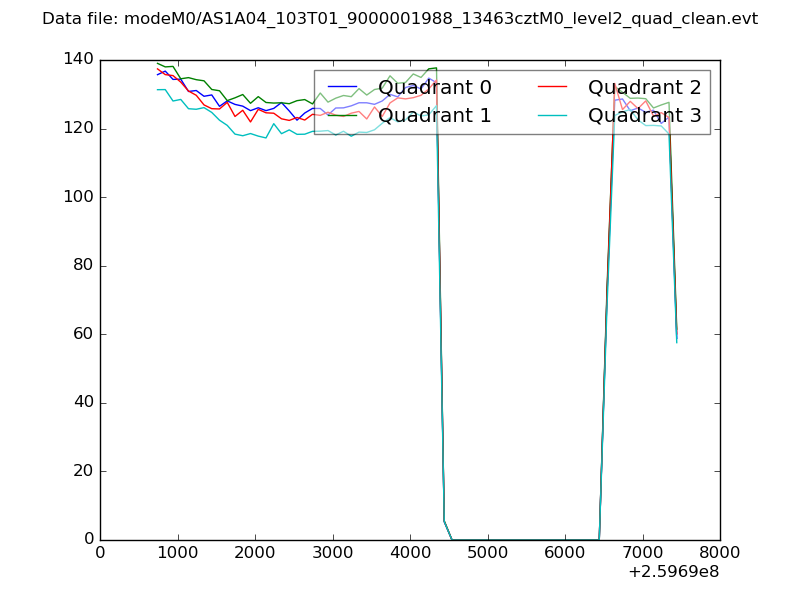

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

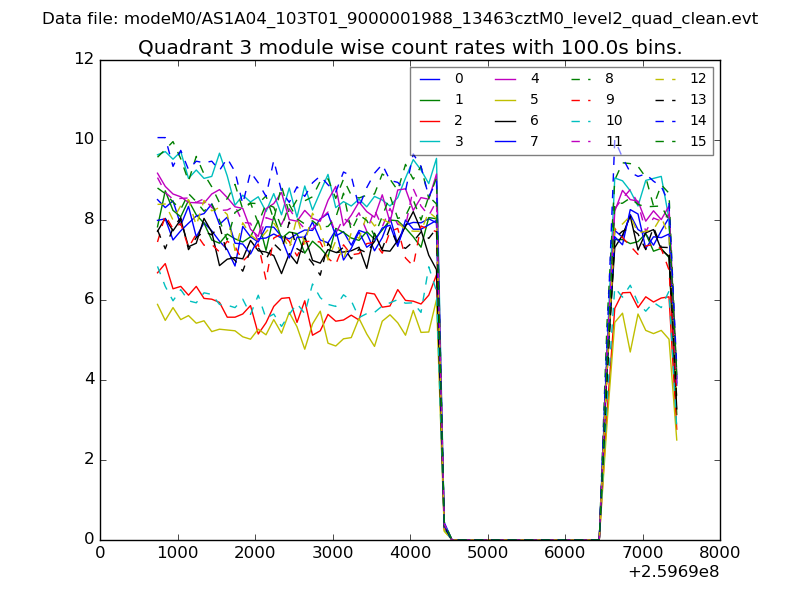

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

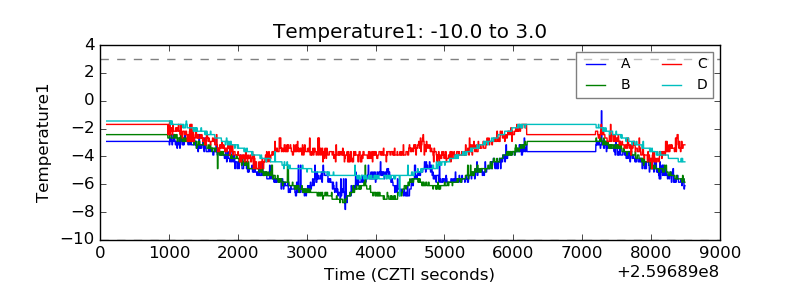

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

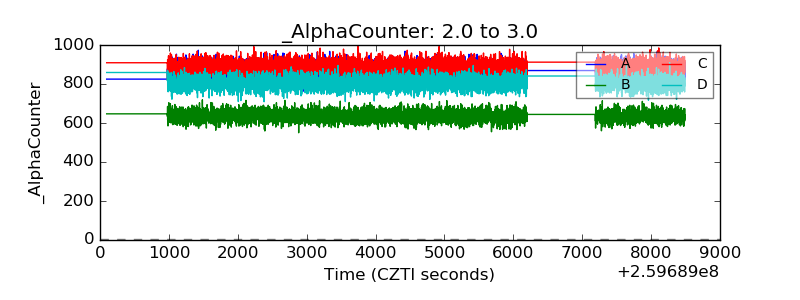

| Alpha Counter |  |
| _CPM_Rate |  |

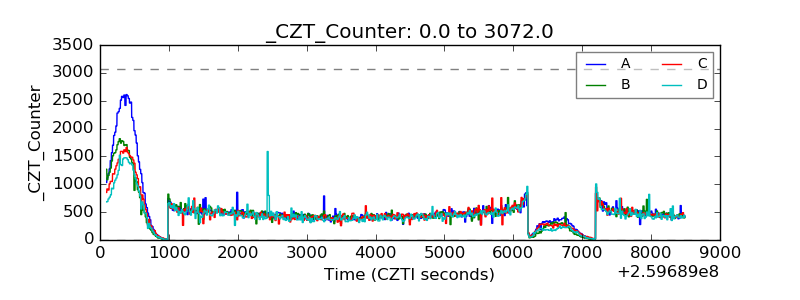

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

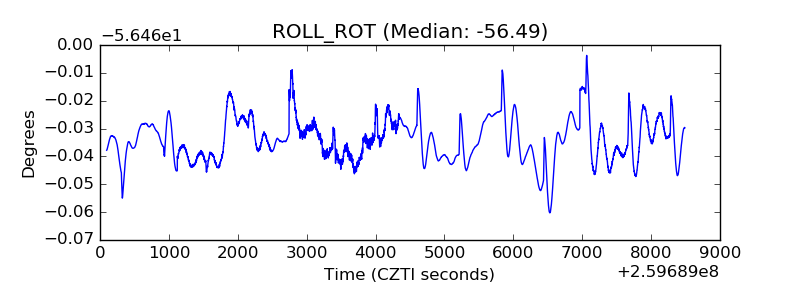

| _ROLL_ROT |  |

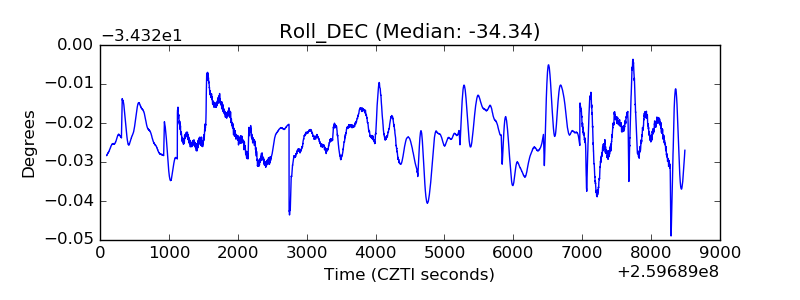

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
