| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13466cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13466cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,890,240 | 106,781,760 |
| Size | 502.5 MB | 101.8 MB |
| Events in quadrant A | 3,875,314 | 671,491 |
| Events in quadrant B | 3,984,135 | 685,459 |
| Events in quadrant C | 3,773,895 | 668,122 |
| Events in quadrant D | 3,765,182 | 637,594 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17153 | 3 |
| B | 0 | 17336 | 2 |
| C | 0 | 16915 | 2 |
| D | 0 | 17226 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8214 | 50 | 0.608717% |
| B | 8214 | 112 | 1.363526% |
| C | 8214 | 25 | 0.304358% |
| D | 8214 | 26 | 0.316533% |

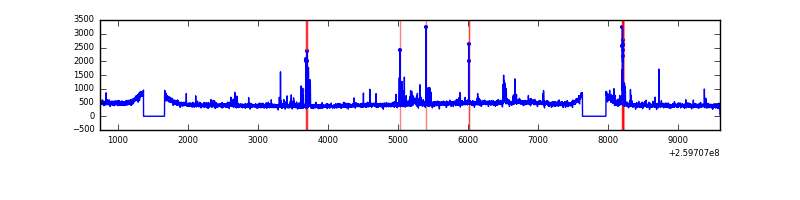

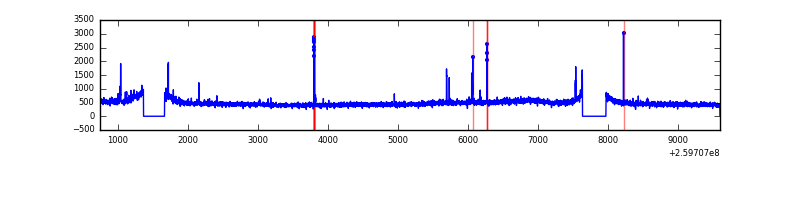

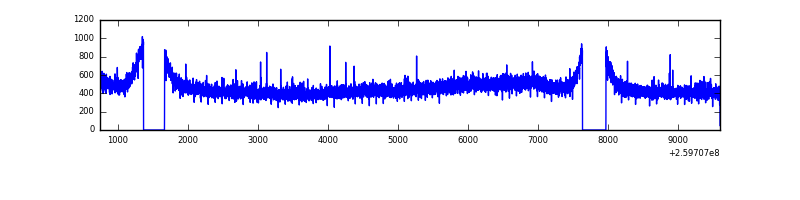

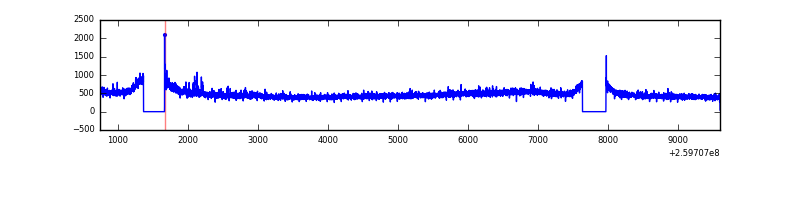

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8850 | 8217 | 1 | 1 | 0.01% | 0.01% |  |
| B | 8850 | 8215 | 13 | 13 | 0.15% | 0.16% |  |
| C | 8850 | 8217 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8850 | 8217 | 16 | 16 | 0.18% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 88030 | 432.32 | 981 | 957 | 201.4 |
| A | 1 | 162 | 9185 | 40.85 | 981 | 957 | 201.4 |
| A | 0 | 226 | 8674 | 38.31 | 981 | 957 | 201.4 |
| B | 3 | 64 | 74211 | 382.54 | 986 | 959 | 191.5 |
| B | 0 | 214 | 36175 | 183.91 | 986 | 959 | 191.5 |
| B | 12 | 111 | 22721 | 113.65 | 986 | 959 | 191.5 |
| C | 3 | 233 | 38419 | 168.55 | 957 | 962 | 222.2 |
| C | 13 | 61 | 6811 | 26.32 | 957 | 962 | 222.2 |
| C | 10 | 9 | 4696 | 16.8 | 957 | 962 | 222.2 |
| D | 12 | 110 | 114894 | 502.96 | 943 | 915 | 226.6 |
| D | 9 | 85 | 43883 | 189.61 | 943 | 915 | 226.6 |
| D | 2 | 234 | 29873 | 127.78 | 943 | 915 | 226.6 |

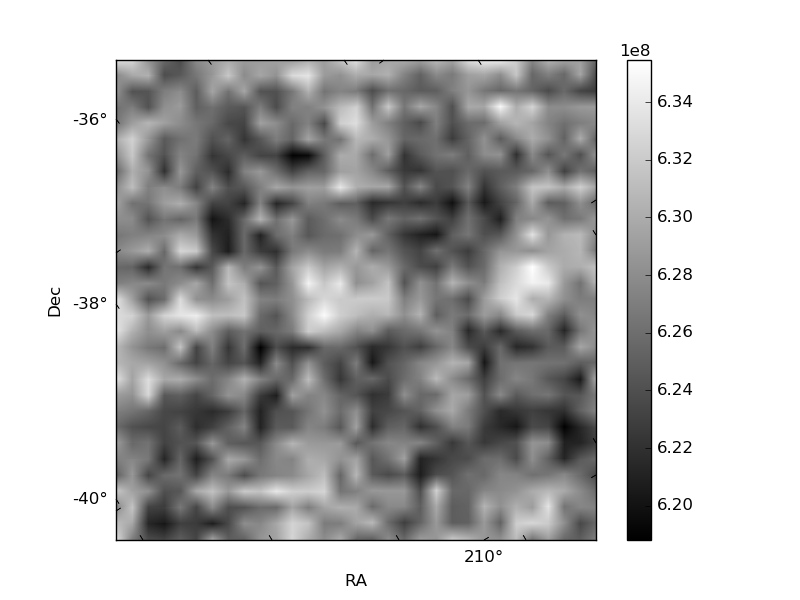

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

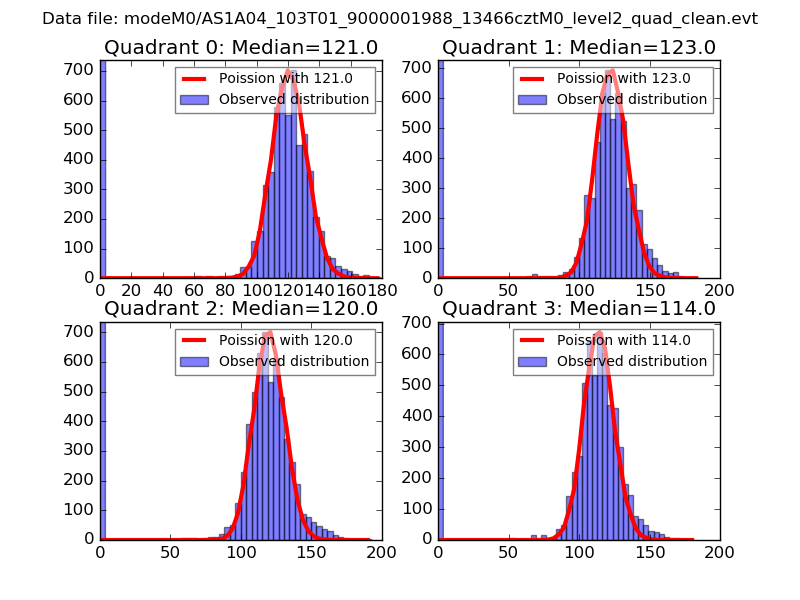

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

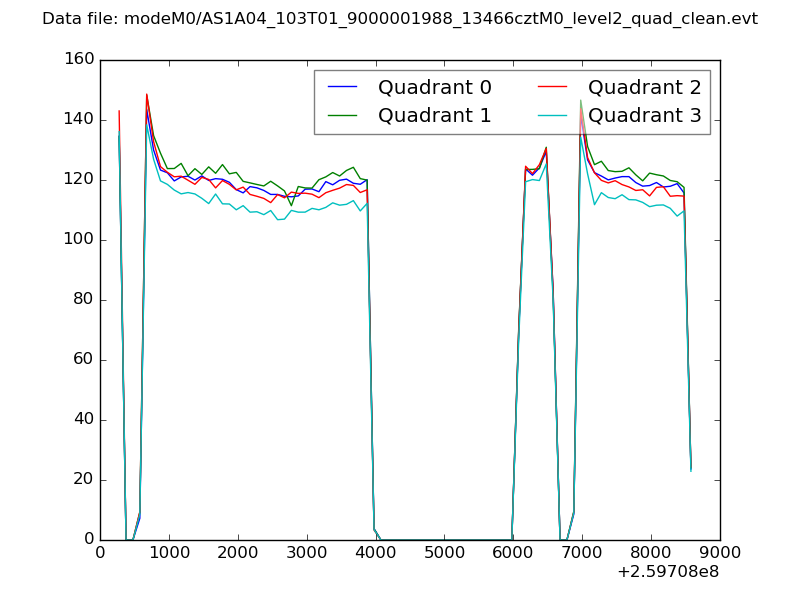

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

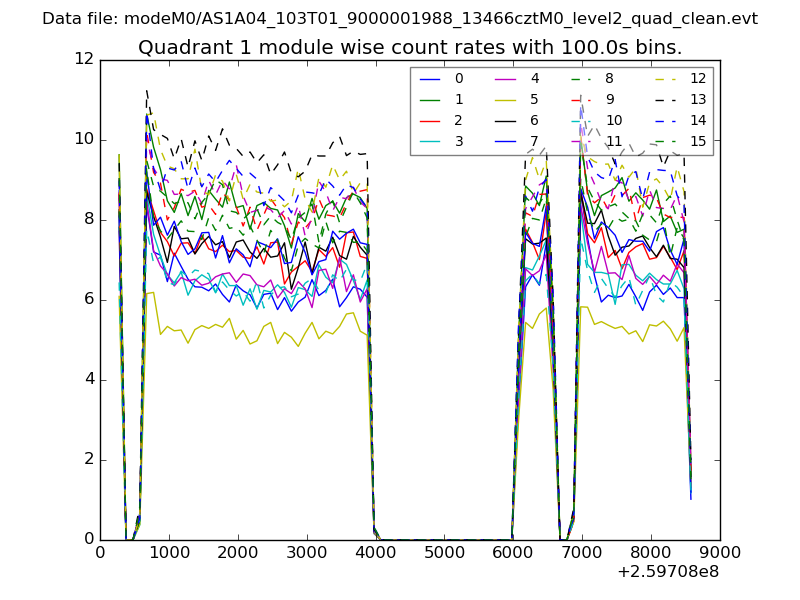

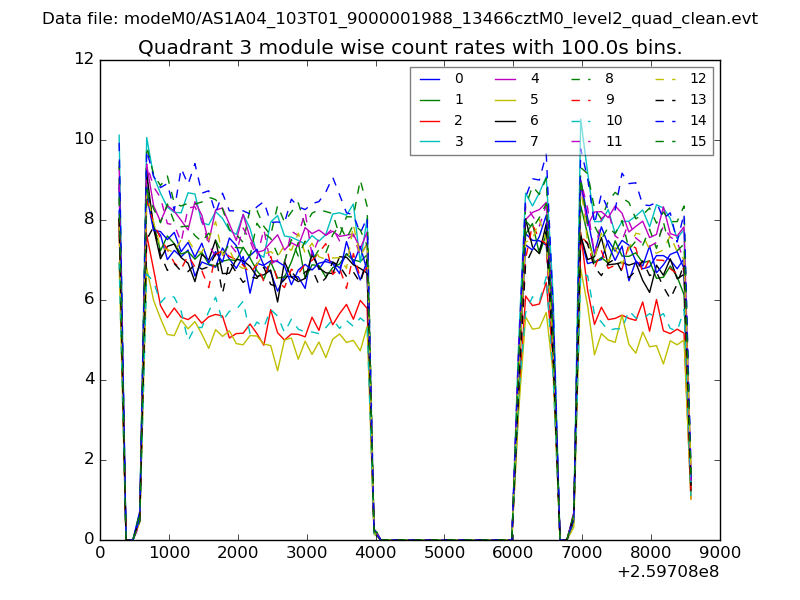

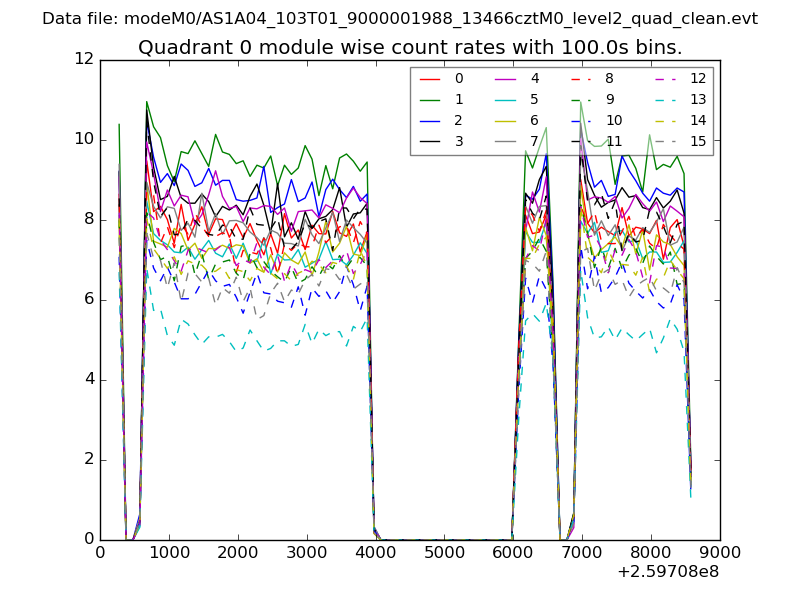

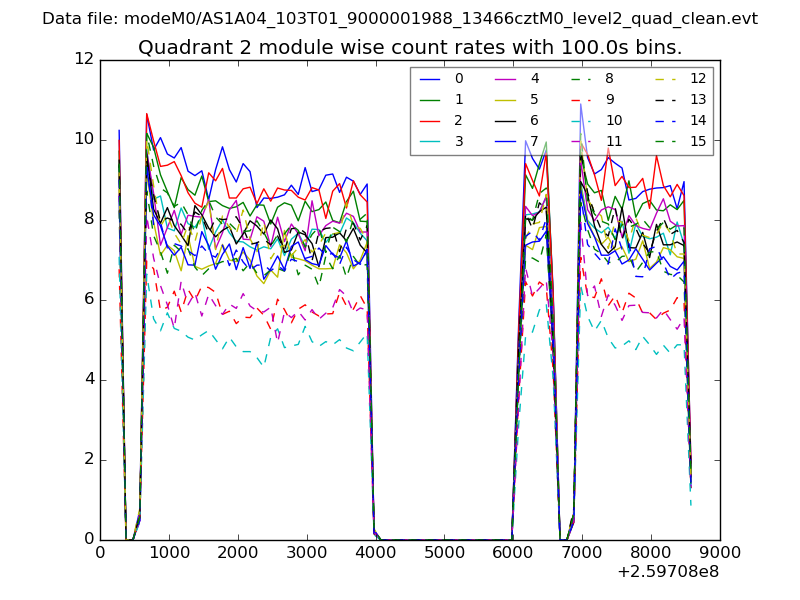

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

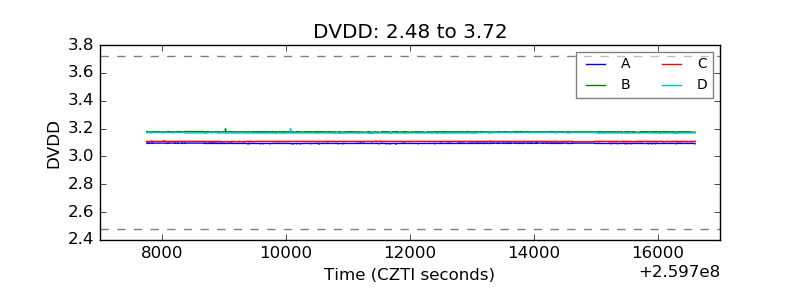

| D_VDD |  |

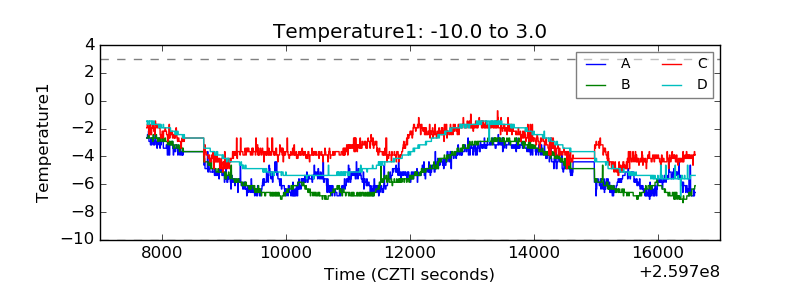

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

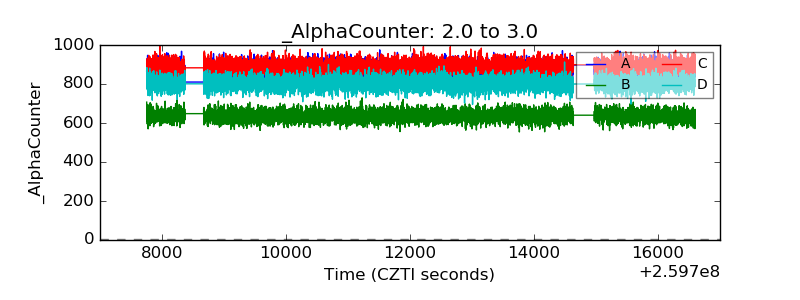

| Alpha Counter |  |

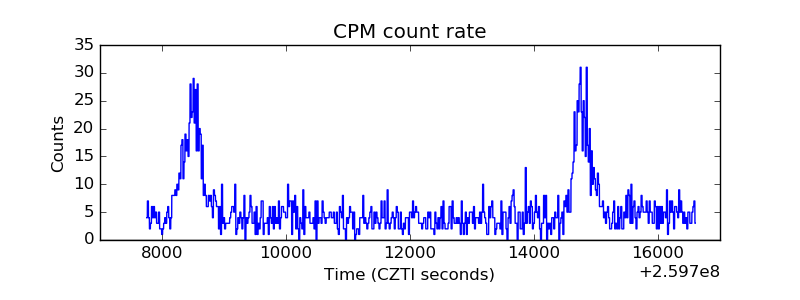

| _CPM_Rate |  |

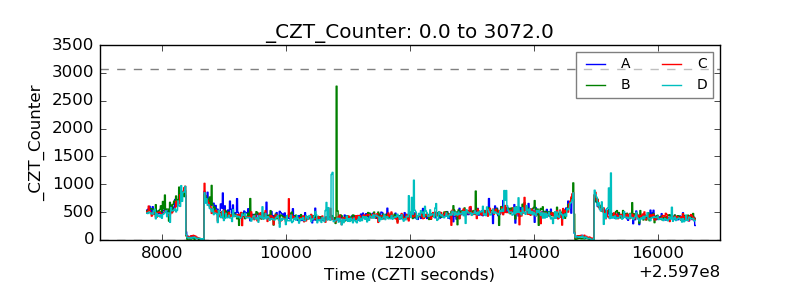

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

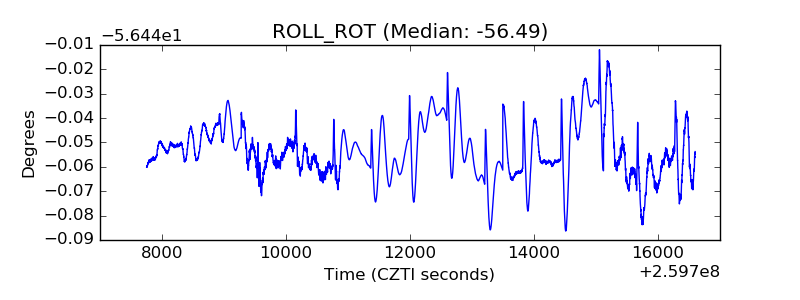

| _ROLL_ROT |  |

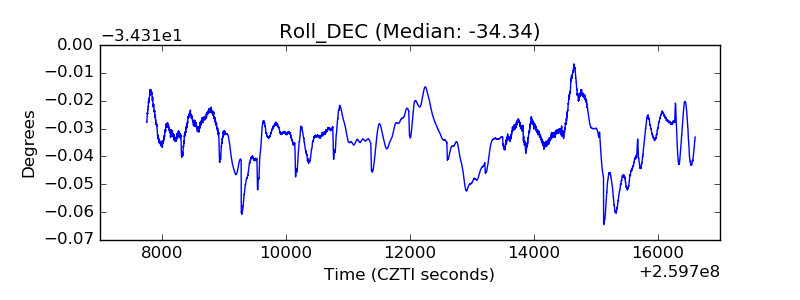

| _Roll_DEC |  |

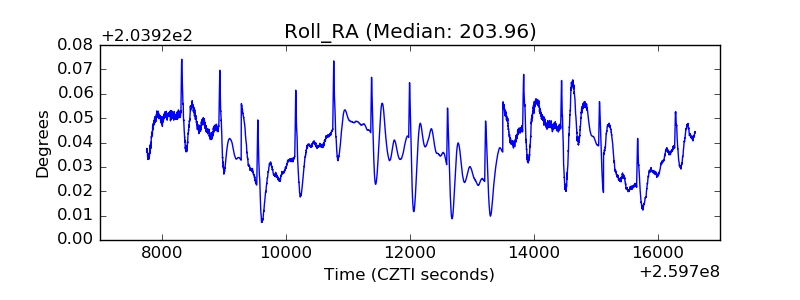

| _Roll_RA |  |

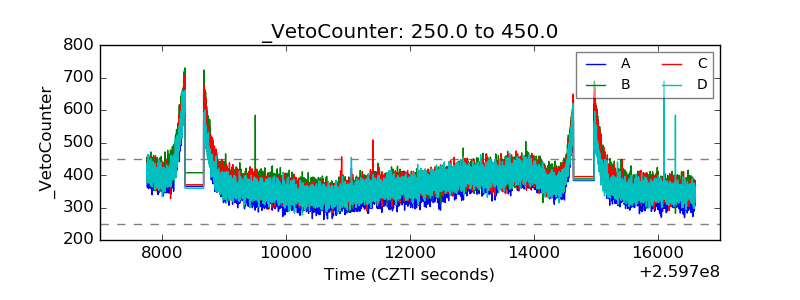

| Veto Counter |  |
