| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13489cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13489cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,032,320 | 65,833,920 |
| Size | 462.6 MB | 62.8 MB |
| Events in quadrant A | 3,530,030 | 385,410 |
| Events in quadrant B | 3,632,280 | 391,173 |
| Events in quadrant C | 3,498,917 | 385,522 |
| Events in quadrant D | 3,575,739 | 366,666 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14671 | 3 |
| B | 0 | 14993 | 2 |
| C | 0 | 14556 | 2 |
| D | 0 | 14899 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6658 | 106 | 1.592070% |
| B | 6658 | 120 | 1.802343% |
| C | 6658 | 87 | 1.306699% |
| D | 6658 | 116 | 1.742265% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

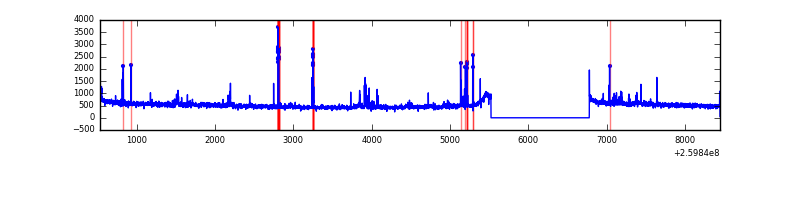

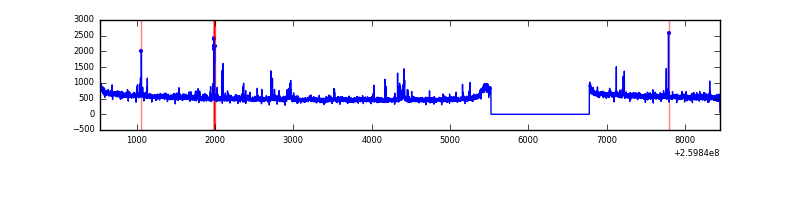

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7914 | 6659 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7914 | 6659 | 9 | 9 | 0.11% | 0.14% |  |
| C | 7914 | 6659 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7914 | 6659 | 32 | 32 | 0.40% | 0.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 30643 | 167.74 | 898 | 880 | 177.4 |
| A | 1 | 162 | 30068 | 164.5 | 898 | 880 | 177.4 |
| A | 1 | 178 | 9532 | 48.76 | 898 | 880 | 177.4 |
| B | 0 | 230 | 52715 | 313.18 | 891 | 871 | 165.5 |
| B | 4 | 173 | 44972 | 266.4 | 891 | 871 | 165.5 |
| B | 3 | 64 | 30707 | 180.23 | 891 | 871 | 165.5 |
| C | 3 | 233 | 76770 | 382.95 | 871 | 876 | 198.2 |
| C | 14 | 220 | 20313 | 98.08 | 871 | 876 | 198.2 |
| C | 13 | 61 | 6254 | 27.14 | 871 | 876 | 198.2 |
| D | 13 | 122 | 79440 | 385.61 | 864 | 842 | 203.8 |
| D | 12 | 110 | 63546 | 307.64 | 864 | 842 | 203.8 |
| D | 13 | 249 | 62756 | 303.76 | 864 | 842 | 203.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

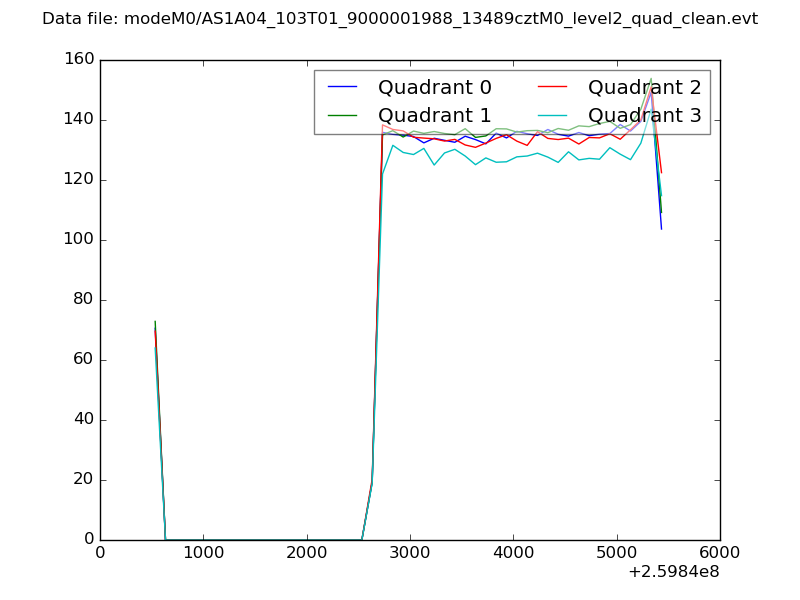

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

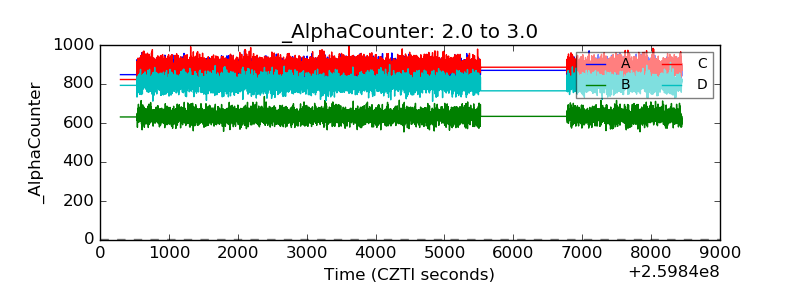

| Alpha Counter |  |

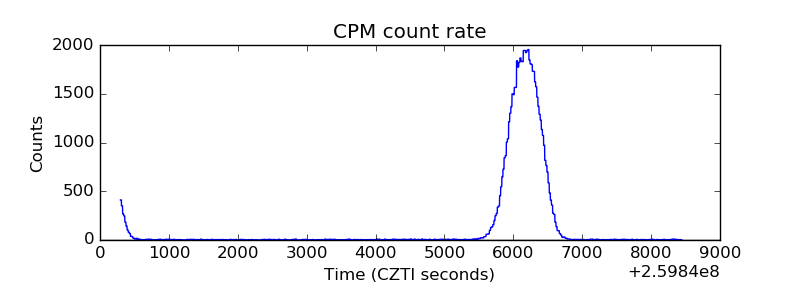

| _CPM_Rate |  |

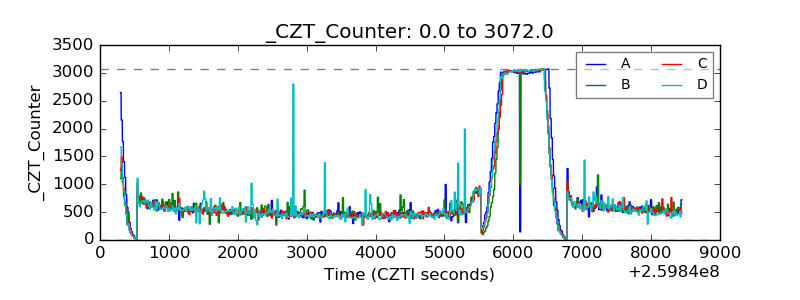

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

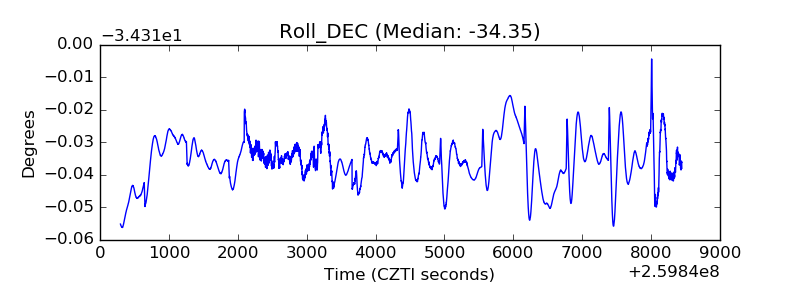

| _Roll_DEC |  |

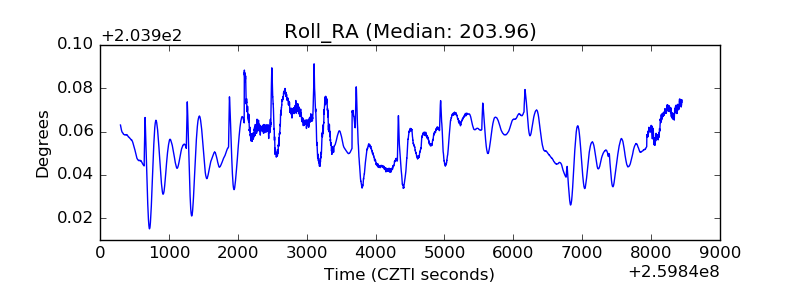

| _Roll_RA |  |
| Veto Counter |  |
