| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13491cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13491cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,966,720 | 90,884,160 |
| Size | 435.8 MB | 86.7 MB |
| Events in quadrant A | 3,393,608 | 580,816 |
| Events in quadrant B | 3,557,530 | 590,044 |
| Events in quadrant C | 3,216,084 | 577,264 |
| Events in quadrant D | 3,230,983 | 551,554 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13998 | 2 |
| B | 0 | 14655 | 1 |
| C | 0 | 13607 | 1 |
| D | 0 | 13994 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6496 | 120 | 1.847291% |
| B | 6496 | 150 | 2.309113% |
| C | 6496 | 72 | 1.108374% |
| D | 6496 | 100 | 1.539409% |

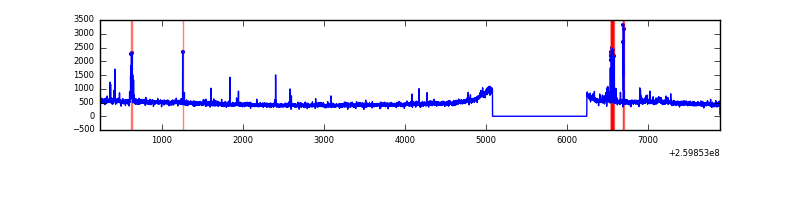

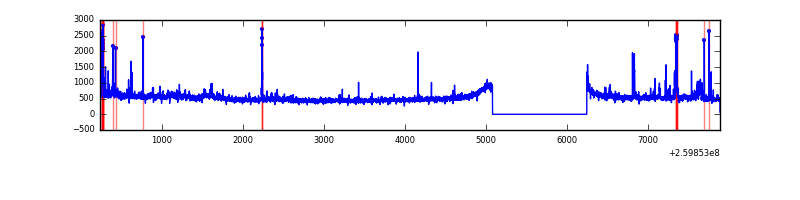

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7662 | 6497 | 12 | 12 | 0.16% | 0.18% |  |
| B | 7662 | 6497 | 26 | 26 | 0.34% | 0.40% |  |
| C | 7662 | 6497 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7662 | 6497 | 21 | 21 | 0.27% | 0.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 155872 | 929.44 | 832 | 819 | 166.8 |
| A | 1 | 162 | 23791 | 137.7 | 832 | 819 | 166.8 |
| A | 1 | 178 | 8128 | 43.81 | 832 | 819 | 166.8 |
| B | 3 | 64 | 86101 | 544.46 | 828 | 809 | 156.7 |
| B | 10 | 244 | 64750 | 408.16 | 828 | 809 | 156.7 |
| B | 4 | 173 | 56049 | 352.62 | 828 | 809 | 156.7 |
| C | 3 | 233 | 66465 | 355.81 | 803 | 809 | 184.5 |
| C | 0 | 207 | 12786 | 64.91 | 803 | 809 | 184.5 |
| C | 13 | 61 | 5766 | 26.86 | 803 | 809 | 184.5 |
| D | 13 | 122 | 98411 | 516.6 | 796 | 774 | 189.0 |
| D | 8 | 195 | 71794 | 375.77 | 796 | 774 | 189.0 |
| D | 2 | 136 | 35961 | 186.18 | 796 | 774 | 189.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

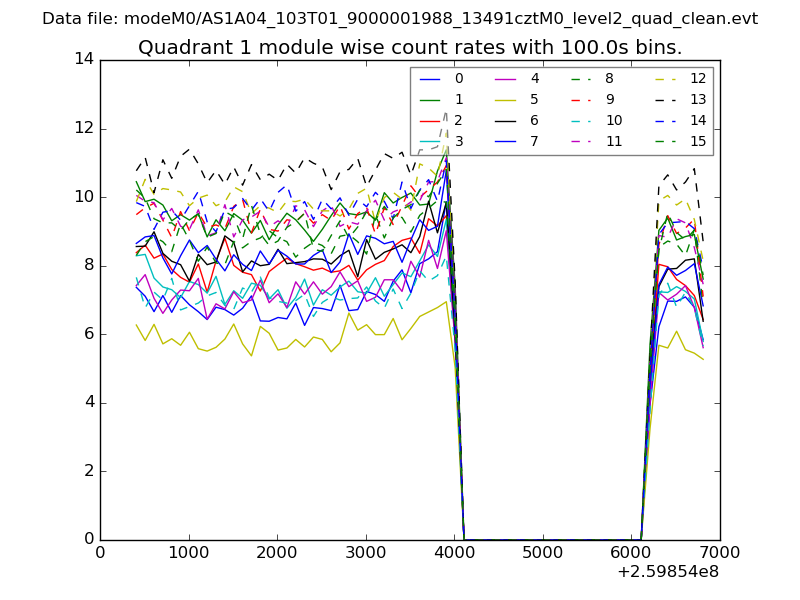

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

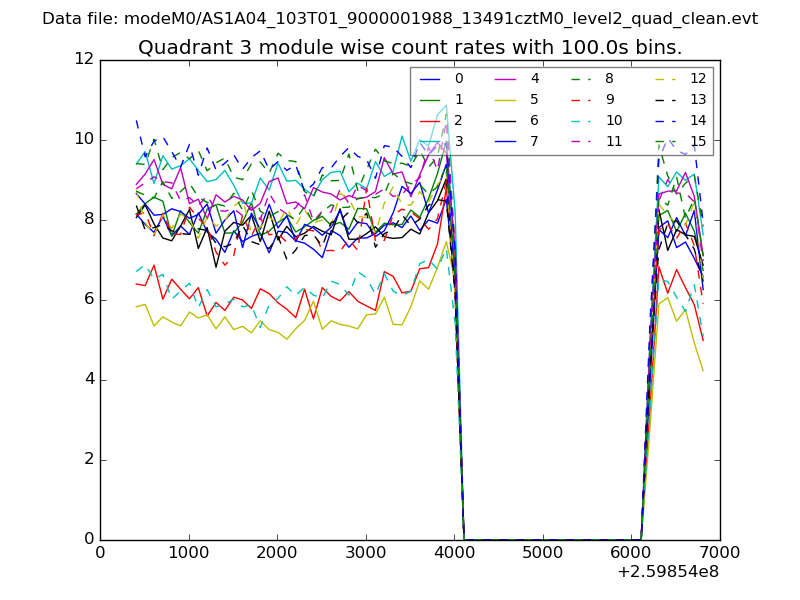

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

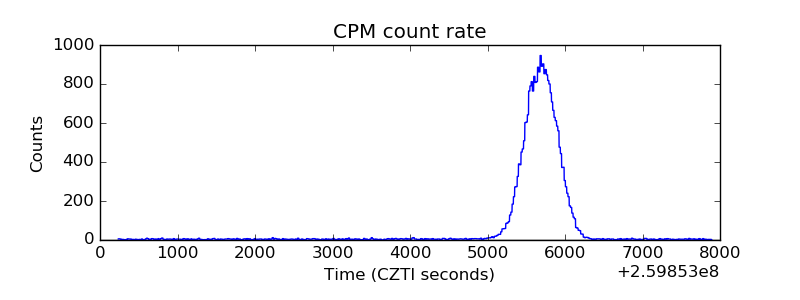

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

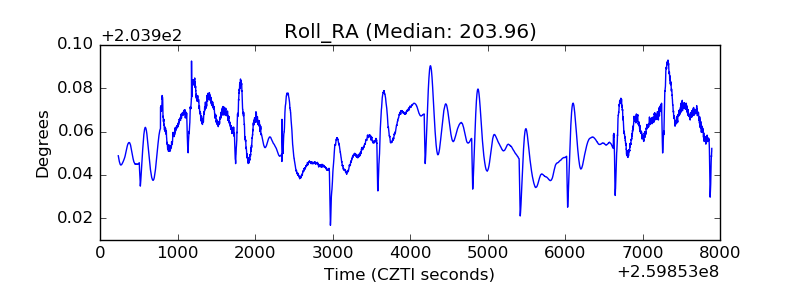

| _Roll_RA |  |

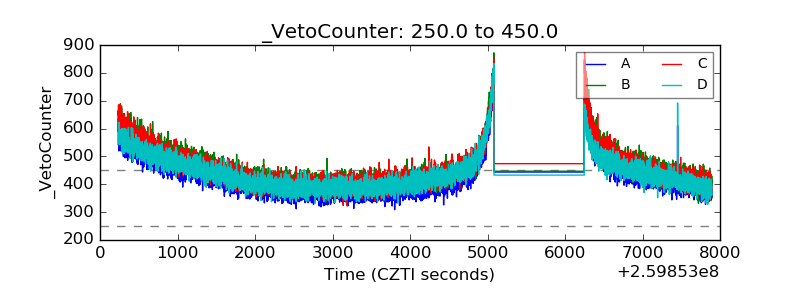

| Veto Counter |  |
