| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_103T01_9000001988_13503cztM0_level2.evt | modeM0/AS1A04_103T01_9000001988_13503cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,435,200 | 66,680,640 |
| Size | 467.7 MB | 63.6 MB |
| Events in quadrant A | 3,311,650 | 398,222 |
| Events in quadrant B | 4,327,360 | 403,263 |
| Events in quadrant C | 3,336,393 | 398,690 |
| Events in quadrant D | 3,450,609 | 379,650 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13776 | 3 |
| B | 0 | 16905 | 2 |
| C | 0 | 13871 | 2 |
| D | 0 | 14239 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6290 | 100 | 1.589825% |
| B | 6290 | 258 | 4.101749% |
| C | 6290 | 81 | 1.287758% |
| D | 6290 | 106 | 1.685215% |

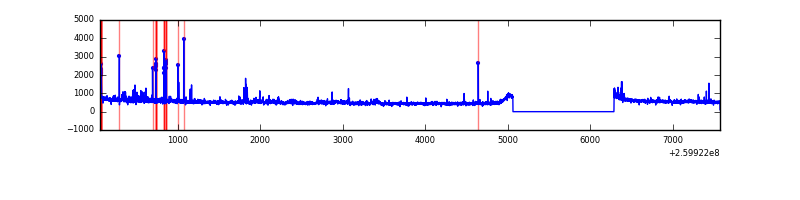

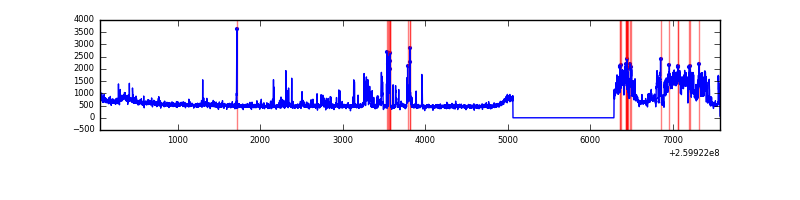

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7516 | 6291 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7516 | 6291 | 30 | 30 | 0.40% | 0.48% |  |
| C | 7516 | 6291 | 4 | 4 | 0.05% | 0.06% |  |
| D | 7516 | 6291 | 32 | 32 | 0.43% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 27277 | 155.19 | 844 | 829 | 170.4 |
| A | 8 | 15 | 18710 | 104.92 | 844 | 829 | 170.4 |
| A | 5 | 98 | 12943 | 71.08 | 844 | 829 | 170.4 |
| B | 3 | 64 | 1006602 | 6457.13 | 836 | 819 | 155.8 |
| B | 0 | 214 | 18892 | 116.03 | 836 | 819 | 155.8 |
| B | 12 | 111 | 17969 | 110.1 | 836 | 819 | 155.8 |
| C | 3 | 233 | 101801 | 537.63 | 826 | 831 | 187.8 |
| C | 6 | 253 | 9573 | 46.55 | 826 | 831 | 187.8 |
| C | 13 | 61 | 5744 | 26.16 | 826 | 831 | 187.8 |
| D | 8 | 195 | 128553 | 664.67 | 815 | 794 | 192.2 |
| D | 2 | 136 | 66597 | 342.34 | 815 | 794 | 192.2 |
| D | 11 | 129 | 53920 | 276.39 | 815 | 794 | 192.2 |

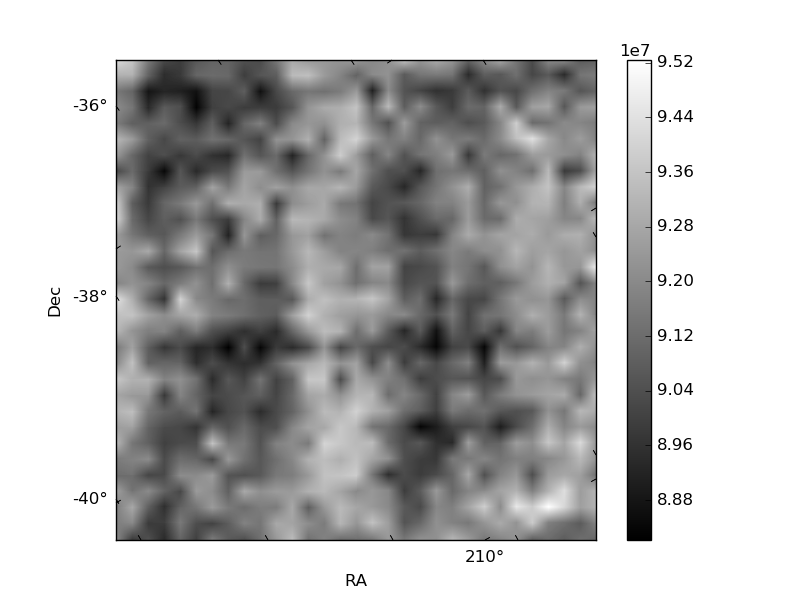

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

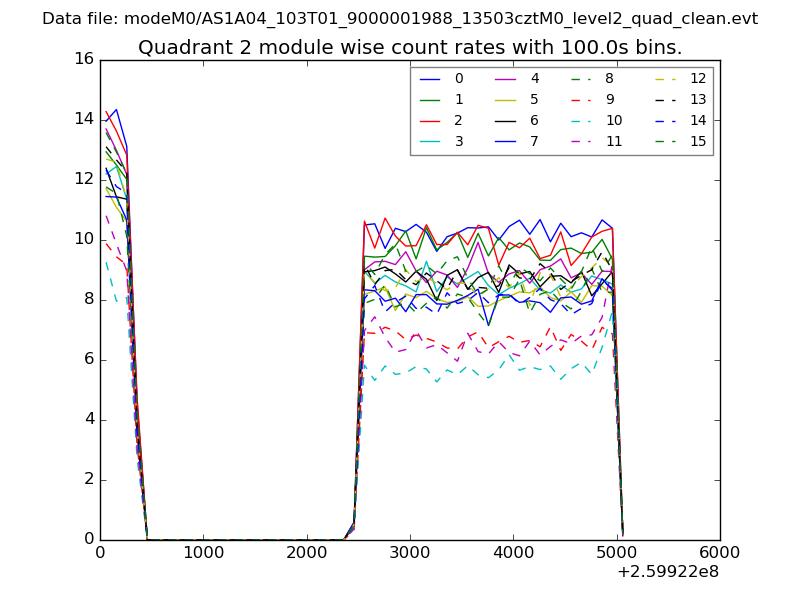

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

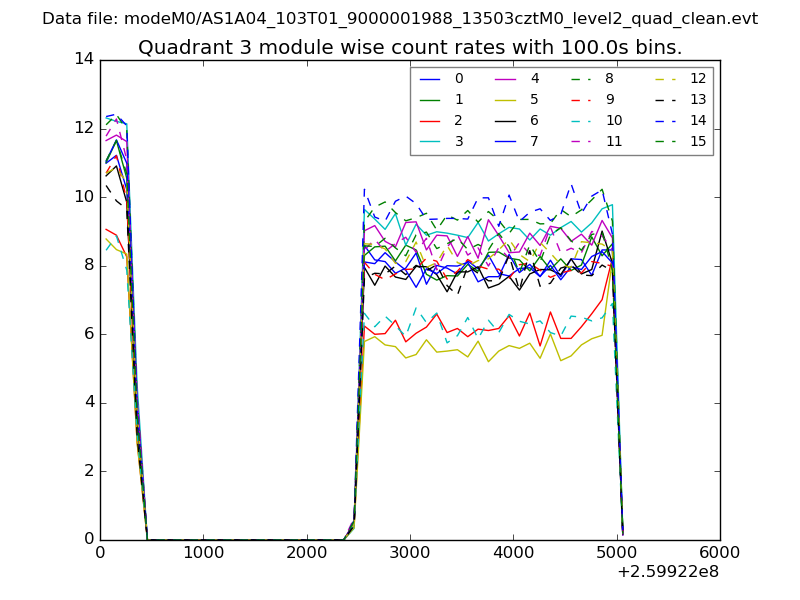

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

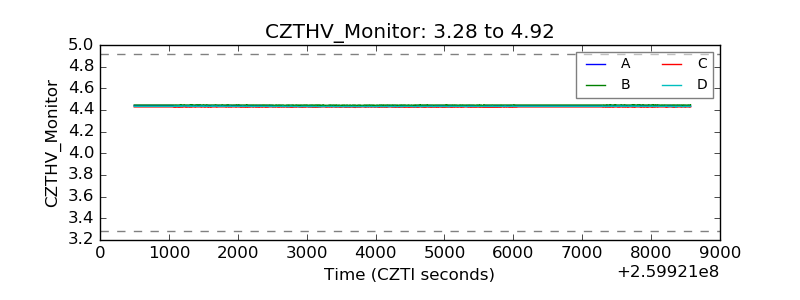

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

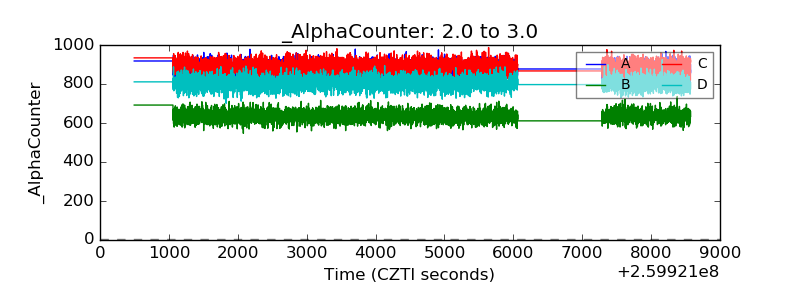

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

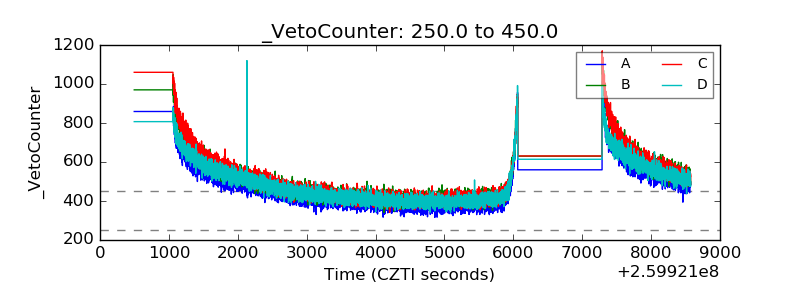

| Veto Counter |  |
