| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_020T01_9000001990_13510cztM0_level2.evt | modeM0/AS1T02_020T01_9000001990_13510cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,990,720 | 86,143,680 |
| Size | 430.1 MB | 82.2 MB |
| Events in quadrant A | 3,014,827 | 548,186 |
| Events in quadrant B | 4,379,744 | 585,073 |
| Events in quadrant C | 2,988,880 | 536,660 |
| Events in quadrant D | 2,852,958 | 505,325 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13095 | 2 |
| B | 0 | 17246 | 1 |
| C | 0 | 12730 | 1 |
| D | 0 | 12902 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6208 | 25 | 0.402706% |
| B | 6208 | 314 | 5.057990% |
| C | 6208 | 14 | 0.225515% |
| D | 6208 | 11 | 0.177191% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6609 | 6210 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6609 | 6209 | 117 | 117 | 1.77% | 1.88% |  |
| C | 6609 | 6210 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6609 | 6210 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 152734 | 994.97 | 737 | 720 | 152.8 |
| A | 1 | 162 | 18910 | 119.06 | 737 | 720 | 152.8 |
| A | 1 | 178 | 6447 | 37.48 | 737 | 720 | 152.8 |
| B | 3 | 64 | 1374002 | 9577.56 | 746 | 727 | 143.4 |
| B | 4 | 142 | 28607 | 194.44 | 746 | 727 | 143.4 |
| B | 4 | 173 | 23977 | 162.15 | 746 | 727 | 143.4 |
| C | 3 | 233 | 157692 | 934.14 | 719 | 723 | 168.0 |
| C | 0 | 207 | 19026 | 108.92 | 719 | 723 | 168.0 |
| C | 14 | 234 | 7136 | 38.16 | 719 | 723 | 168.0 |
| D | 8 | 195 | 140629 | 806.34 | 710 | 690 | 173.5 |
| D | 2 | 234 | 20831 | 116.05 | 710 | 690 | 173.5 |
| D | 2 | 136 | 10816 | 58.35 | 710 | 690 | 173.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

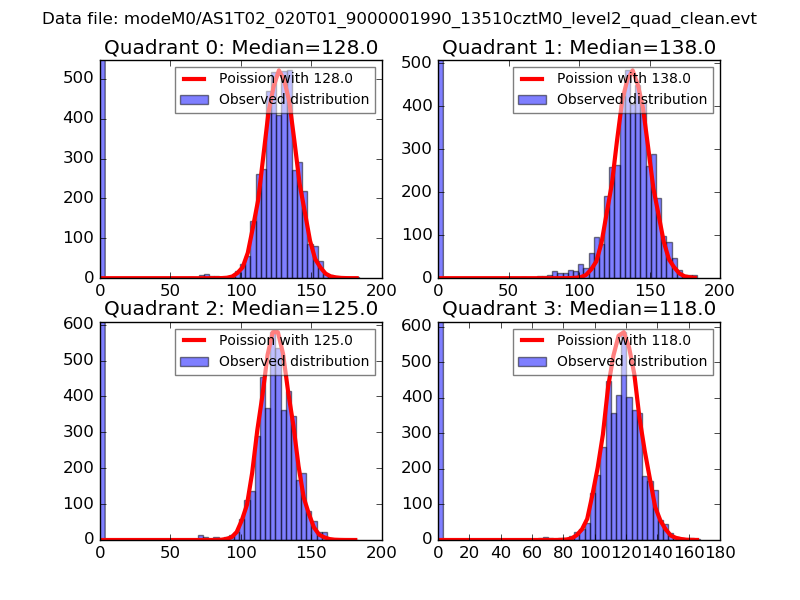

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

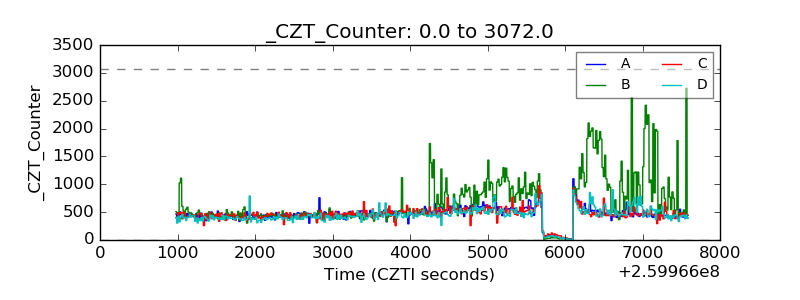

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

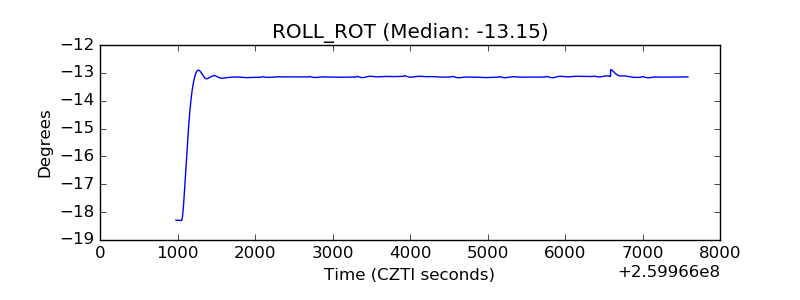

| _ROLL_ROT |  |

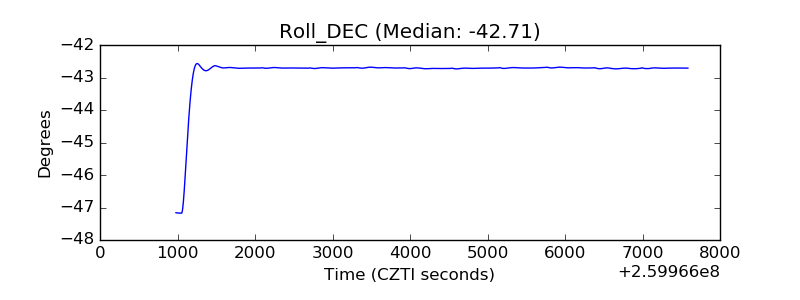

| _Roll_DEC |  |
| _Roll_RA |  |

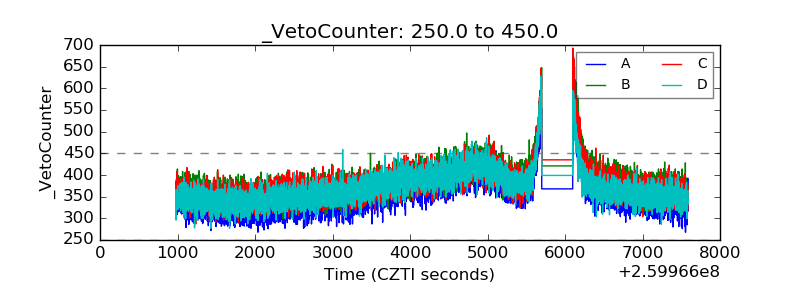

| Veto Counter |  |
