| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_048T01_9000001992_13532cztM0_level2.evt | modeM0/AS1A04_048T01_9000001992_13532cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,078,400 | 73,667,520 |
| Size | 436.9 MB | 70.3 MB |
| Events in quadrant A | 3,190,870 | 453,149 |
| Events in quadrant B | 3,302,259 | 462,637 |
| Events in quadrant C | 3,534,304 | 455,310 |
| Events in quadrant D | 3,429,294 | 431,414 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13240 | 3 |
| B | 0 | 13550 | 2 |
| C | 0 | 14407 | 2 |
| D | 0 | 14126 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6132 | 55 | 0.896934% |
| B | 6132 | 71 | 1.157860% |
| C | 6132 | 52 | 0.848010% |
| D | 6132 | 91 | 1.484018% |

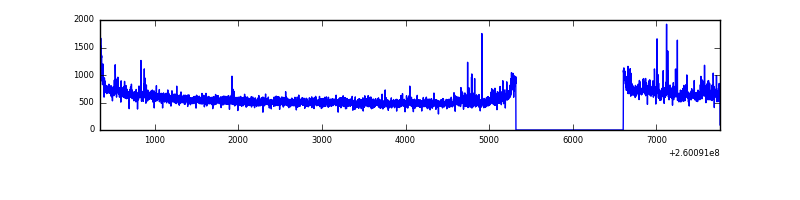

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7418 | 6133 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7418 | 6133 | 10 | 10 | 0.13% | 0.16% |  |
| C | 7418 | 6134 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7418 | 6133 | 42 | 42 | 0.57% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 12092 | 69.02 | 821 | 805 | 163.5 |
| A | 4 | 2 | 8114 | 44.7 | 821 | 805 | 163.5 |
| A | 2 | 250 | 7559 | 41.3 | 821 | 805 | 163.5 |
| B | 4 | 142 | 60097 | 393.26 | 817 | 798 | 150.8 |
| B | 0 | 189 | 19103 | 121.4 | 817 | 798 | 150.8 |
| B | 3 | 209 | 18175 | 115.24 | 817 | 798 | 150.8 |
| C | 3 | 233 | 390289 | 2130.01 | 805 | 812 | 182.9 |
| C | 13 | 61 | 5725 | 26.87 | 805 | 812 | 182.9 |
| C | 14 | 234 | 4819 | 21.91 | 805 | 812 | 182.9 |
| D | 13 | 104 | 200001 | 1056.96 | 796 | 775 | 188.5 |
| D | 8 | 195 | 117980 | 621.81 | 796 | 775 | 188.5 |
| D | 13 | 172 | 38277 | 198.96 | 796 | 775 | 188.5 |

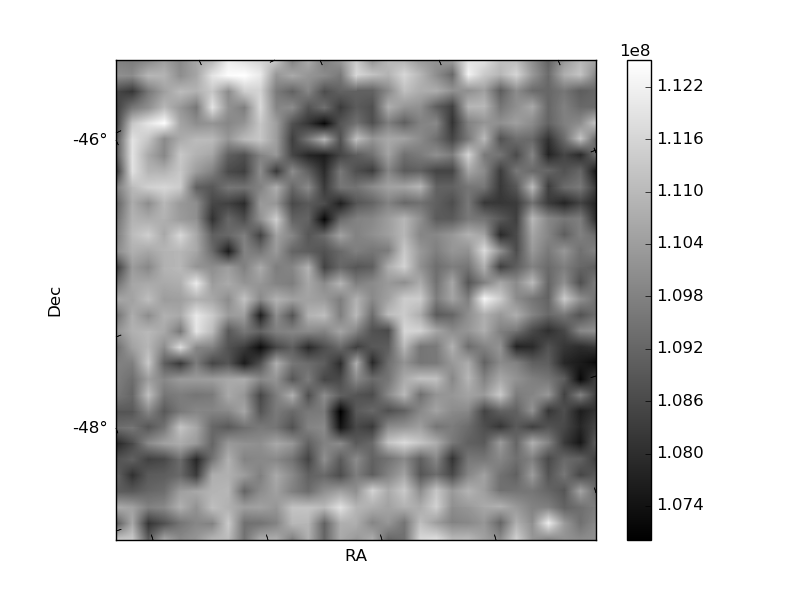

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

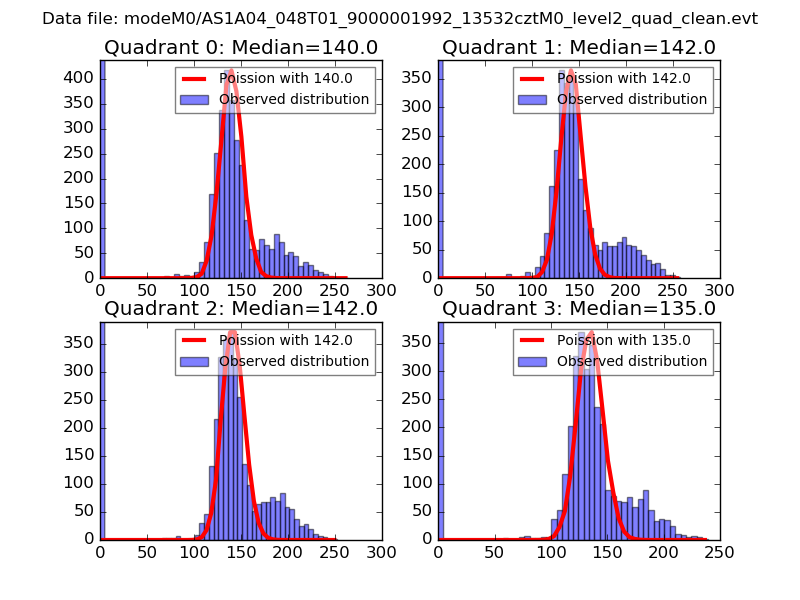

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

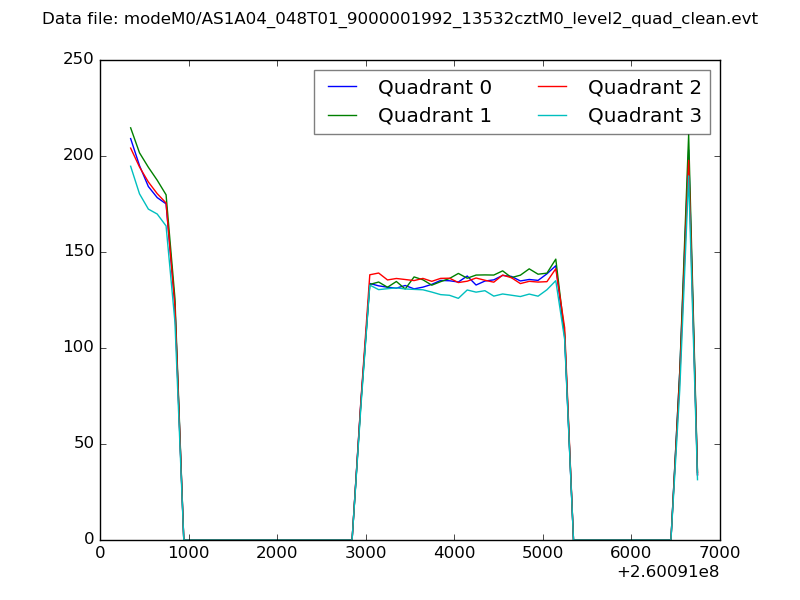

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

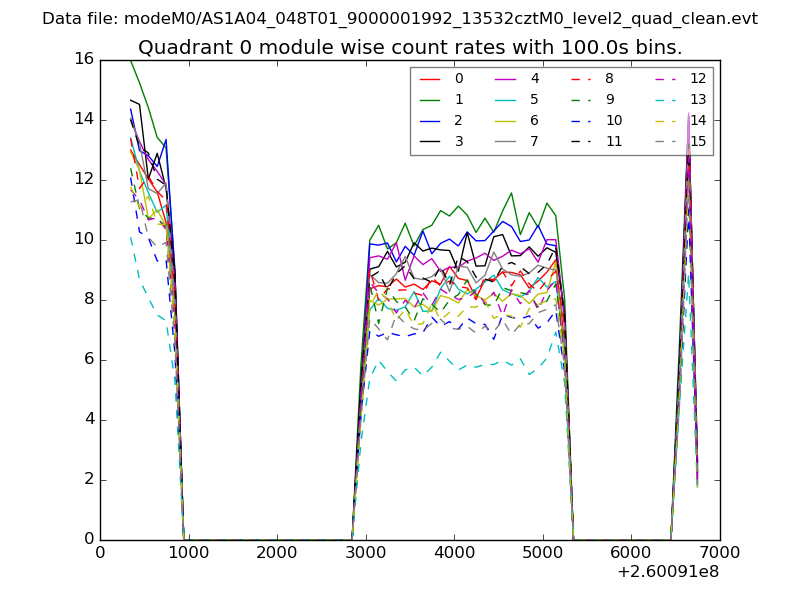

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

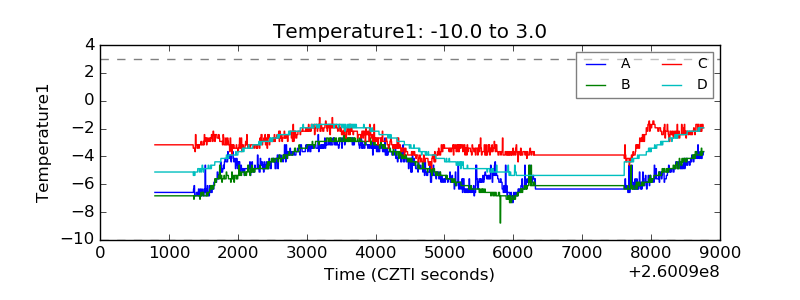

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

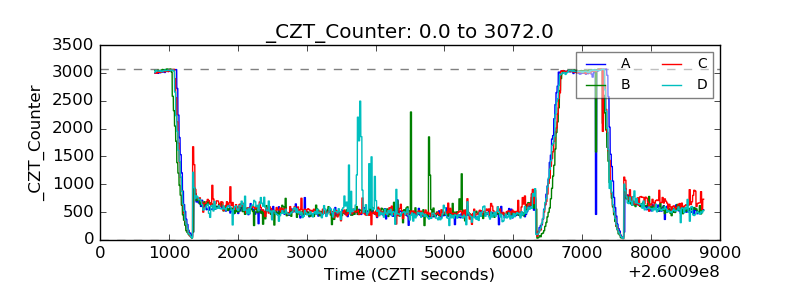

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

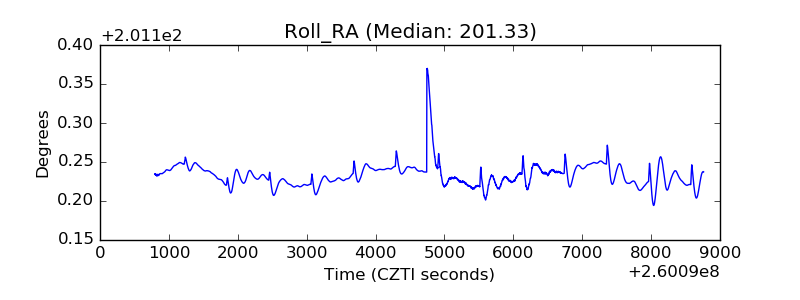

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
