| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_085T01_9000001996_13552cztM0_level2.evt | modeM0/AS1A04_085T01_9000001996_13552cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,701,120 | 100,823,040 |
| Size | 488.0 MB | 96.2 MB |
| Events in quadrant A | 3,345,781 | 649,500 |
| Events in quadrant B | 3,605,568 | 652,076 |
| Events in quadrant C | 3,442,415 | 643,703 |
| Events in quadrant D | 4,616,101 | 608,501 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14965 | 2 |
| B | 0 | 15524 | 1 |
| C | 0 | 14900 | 1 |
| D | 0 | 18565 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7171 | 79 | 1.101659% |
| B | 7171 | 144 | 2.008088% |
| C | 7171 | 63 | 0.878539% |
| D | 7171 | 241 | 3.360759% |

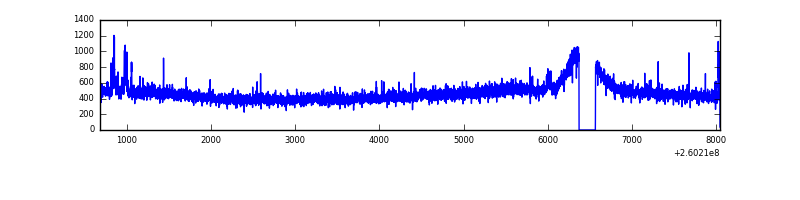

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7367 | 7173 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7367 | 7172 | 18 | 18 | 0.24% | 0.25% |  |
| C | 7367 | 7173 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7367 | 7172 | 96 | 96 | 1.30% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 238 | 32296 | 180.4 | 857 | 836 | 174.4 |
| A | 0 | 226 | 7657 | 39.11 | 857 | 836 | 174.4 |
| A | 10 | 229 | 7284 | 36.97 | 857 | 836 | 174.4 |
| B | 3 | 64 | 73547 | 446.82 | 853 | 833 | 162.7 |
| B | 0 | 182 | 56866 | 344.32 | 853 | 833 | 162.7 |
| B | 4 | 80 | 35919 | 215.6 | 853 | 833 | 162.7 |
| C | 3 | 233 | 157385 | 805.64 | 838 | 841 | 194.3 |
| C | 14 | 234 | 10130 | 47.8 | 838 | 841 | 194.3 |
| C | 12 | 4 | 7185 | 32.65 | 838 | 841 | 194.3 |
| D | 8 | 195 | 640524 | 3185.23 | 830 | 805 | 200.8 |
| D | 13 | 122 | 635959 | 3162.5 | 830 | 805 | 200.8 |
| D | 2 | 14 | 85075 | 419.59 | 830 | 805 | 200.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

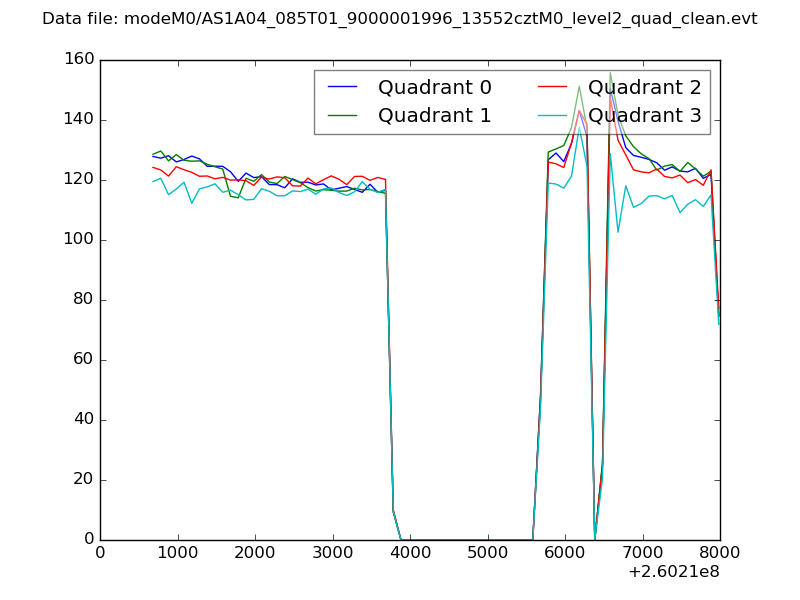

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

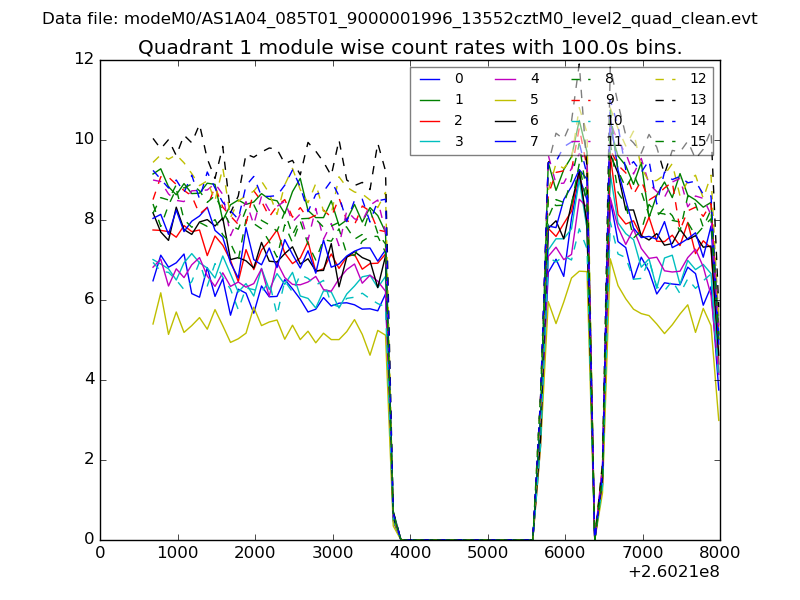

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

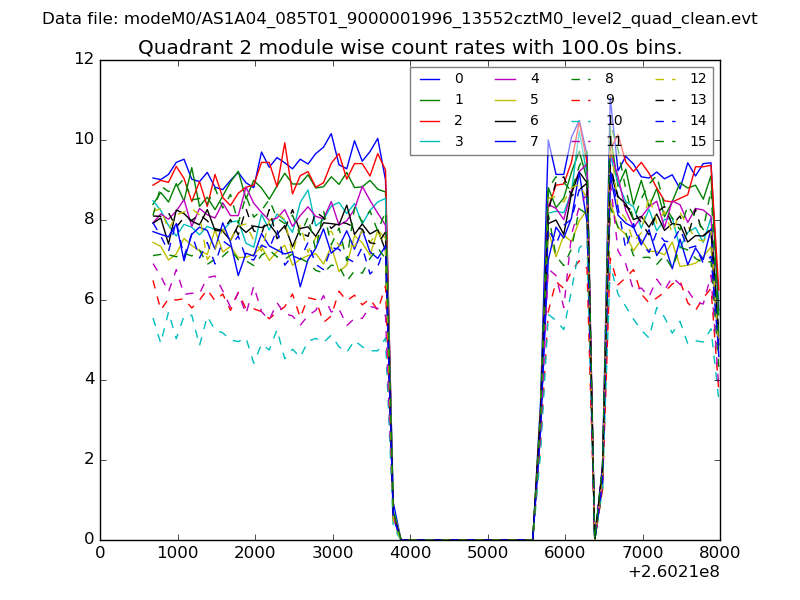

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

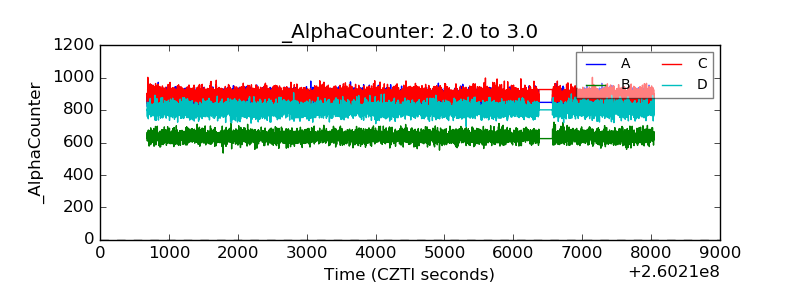

| Alpha Counter |  |
| _CPM_Rate |  |

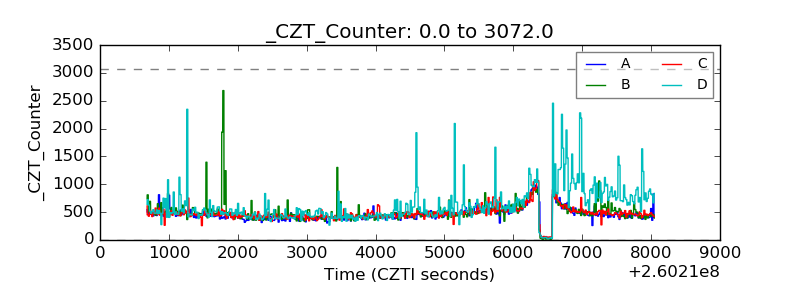

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

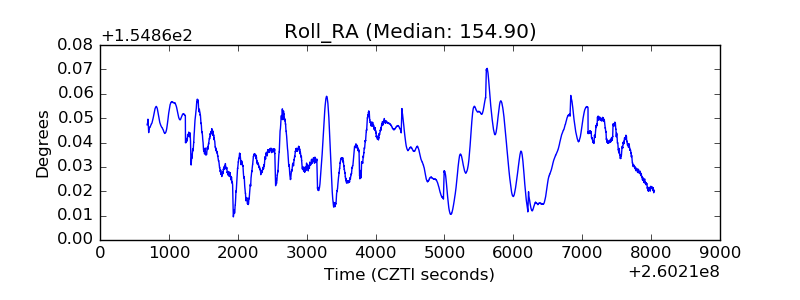

| _Roll_RA |  |

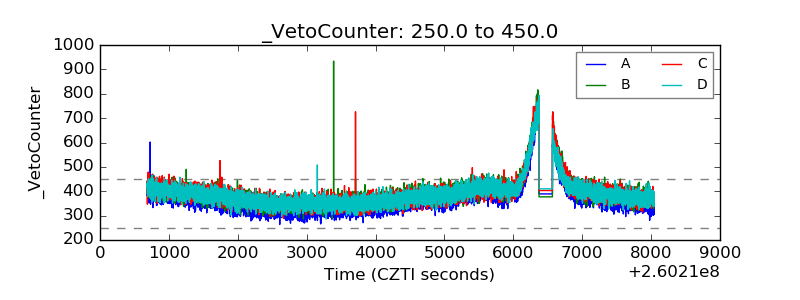

| Veto Counter |  |
