| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_180T01_9000002000_13564cztM0_level2.evt | modeM0/AS1A04_180T01_9000002000_13564cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,568,320 | 76,919,040 |
| Size | 484.1 MB | 73.4 MB |
| Events in quadrant A | 3,350,632 | 473,778 |
| Events in quadrant B | 3,574,685 | 473,401 |
| Events in quadrant C | 3,484,984 | 469,720 |
| Events in quadrant D | 4,506,062 | 444,223 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13911 | 2 |
| B | 0 | 14538 | 1 |
| C | 0 | 14117 | 1 |
| D | 0 | 17600 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6714 | 112 | 1.668156% |
| B | 6714 | 118 | 1.757522% |
| C | 6714 | 103 | 1.534108% |
| D | 6714 | 199 | 2.963956% |

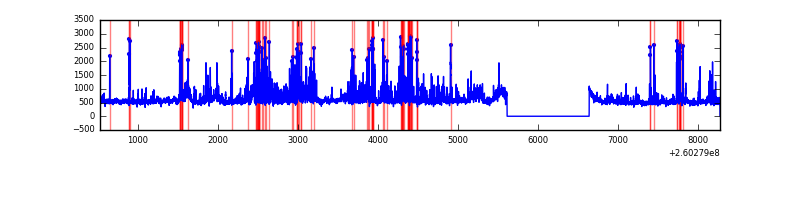

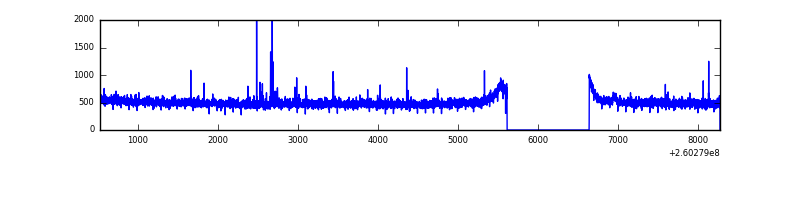

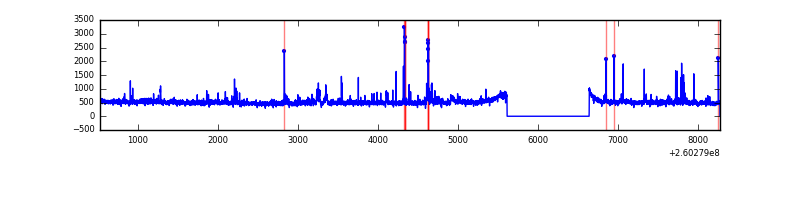

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

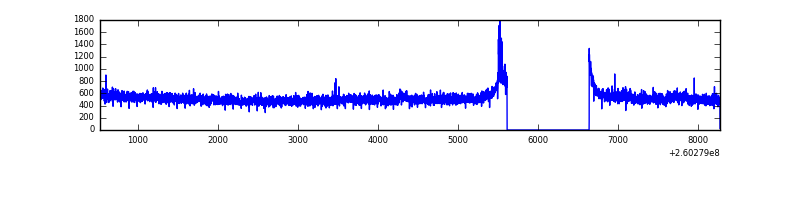

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7740 | 6715 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7740 | 6715 | 12 | 12 | 0.16% | 0.18% |  |
| C | 7740 | 6715 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7740 | 6715 | 101 | 101 | 1.30% | 1.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 17580 | 95.06 | 861 | 842 | 176.1 |
| A | 0 | 226 | 8246 | 42.05 | 861 | 842 | 176.1 |
| A | 0 | 23 | 7189 | 36.05 | 861 | 842 | 176.1 |
| B | 3 | 64 | 76900 | 470.31 | 850 | 829 | 161.7 |
| B | 0 | 85 | 76451 | 467.54 | 850 | 829 | 161.7 |
| B | 3 | 209 | 33442 | 201.63 | 850 | 829 | 161.7 |
| C | 3 | 233 | 225275 | 1178.12 | 826 | 830 | 190.5 |
| C | 7 | 238 | 26705 | 135.82 | 826 | 830 | 190.5 |
| C | 13 | 61 | 6026 | 27.27 | 826 | 830 | 190.5 |
| D | 8 | 195 | 545382 | 2742.85 | 827 | 804 | 198.5 |
| D | 12 | 110 | 254714 | 1278.86 | 827 | 804 | 198.5 |
| D | 13 | 104 | 191571 | 960.83 | 827 | 804 | 198.5 |

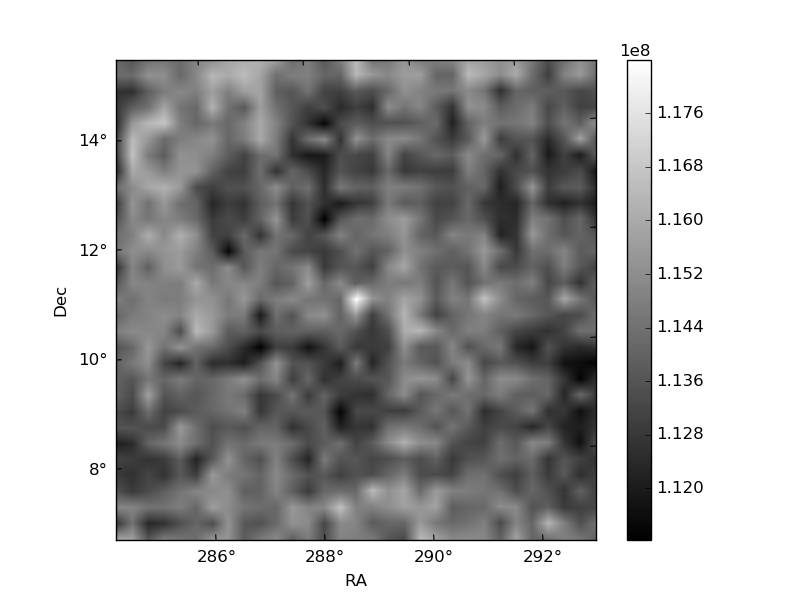

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

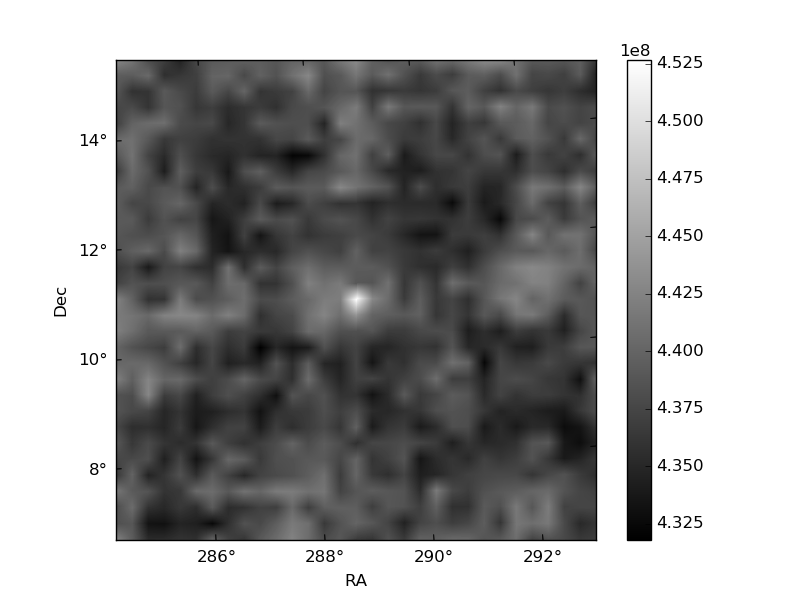

| Plot type | Count rate plots | Images |
|---|---|---|

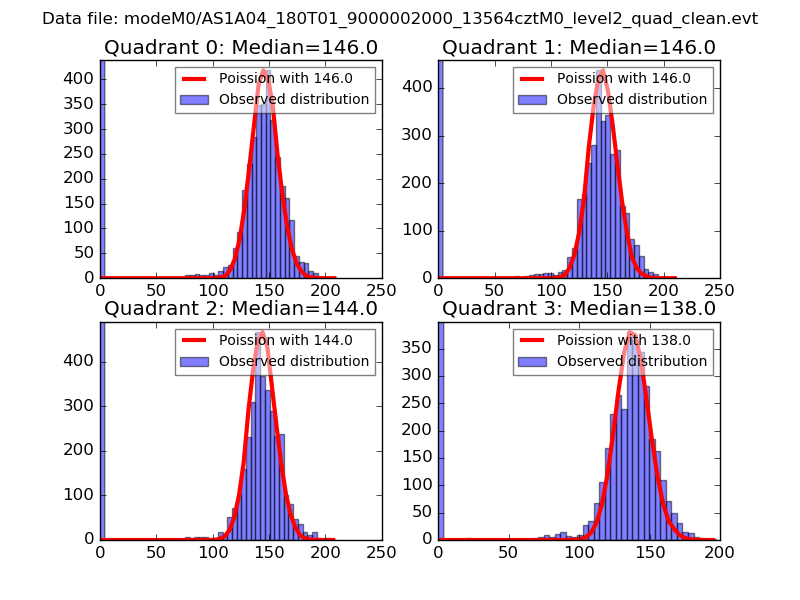

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

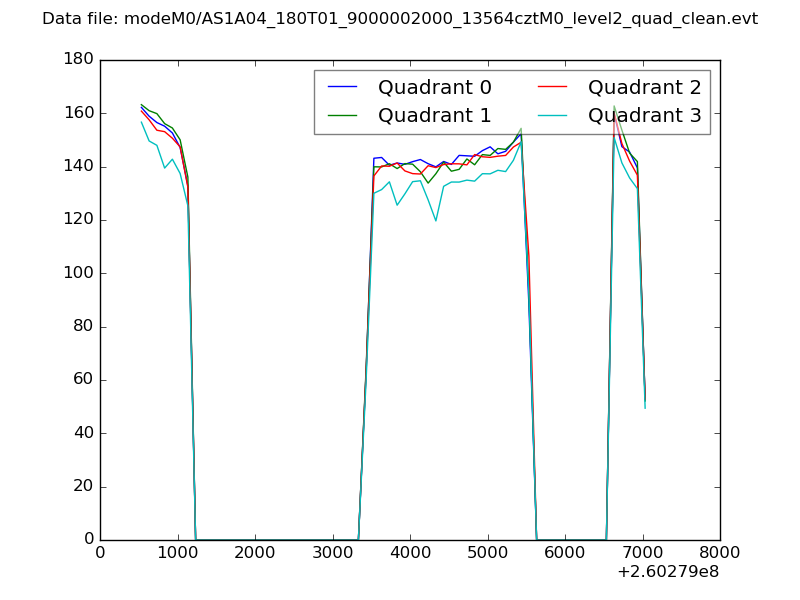

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

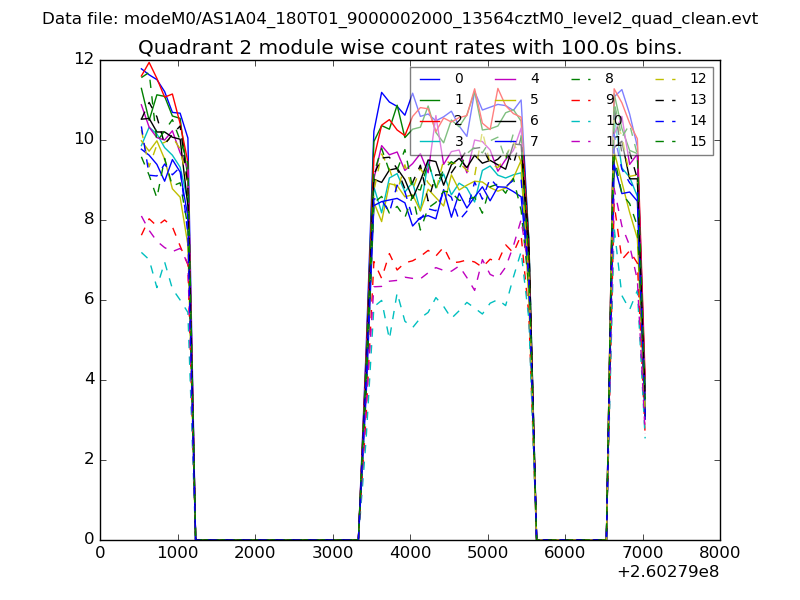

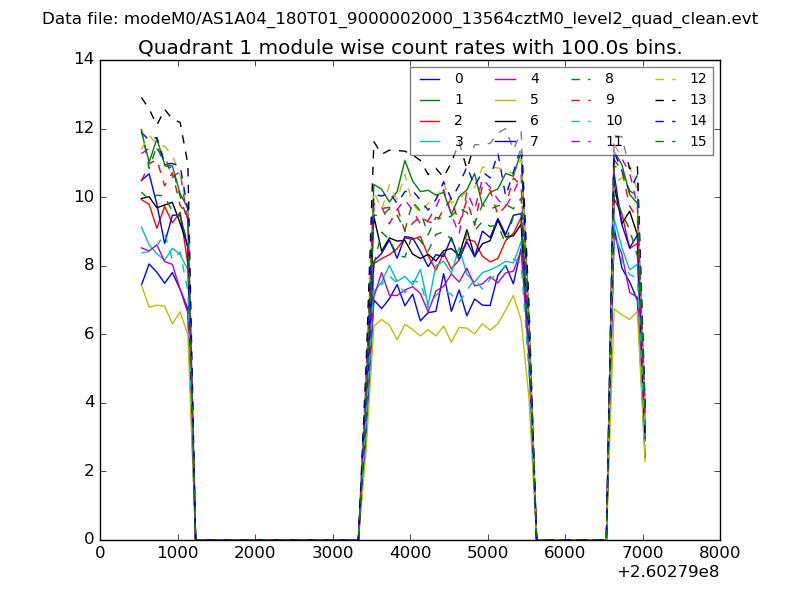

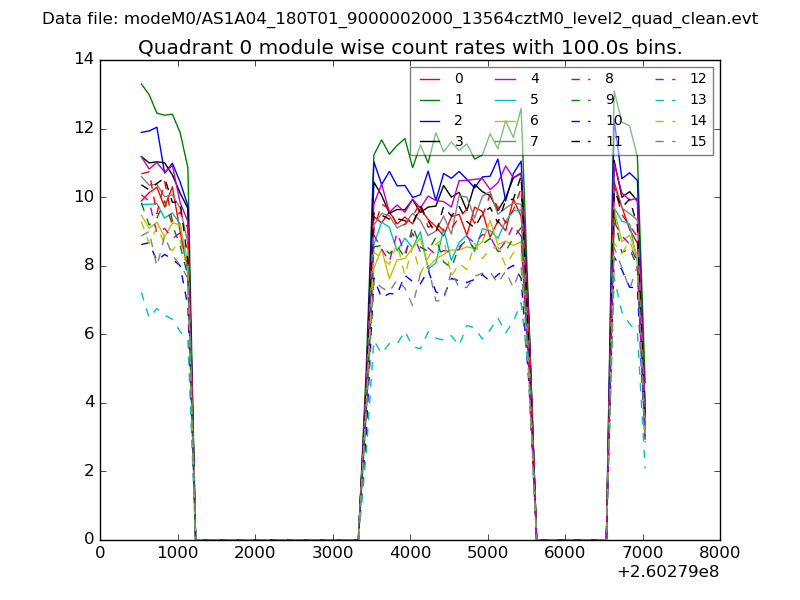

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

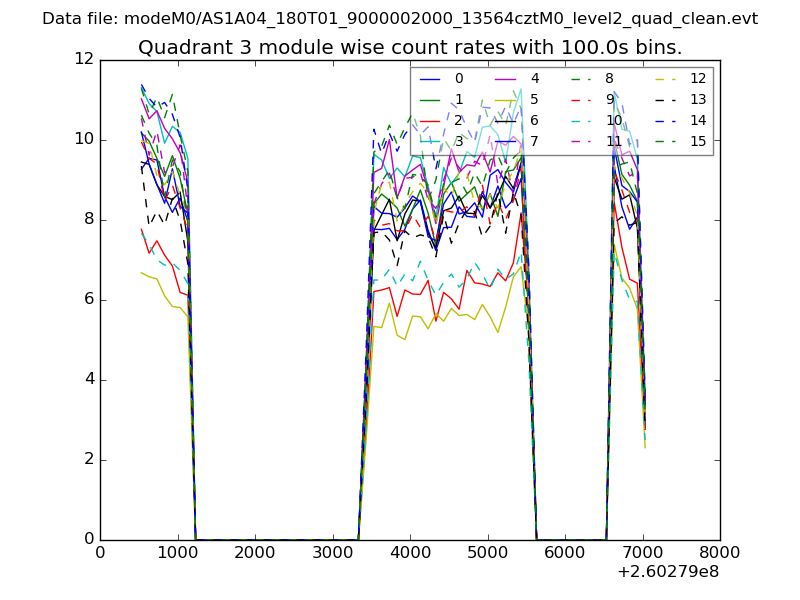

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

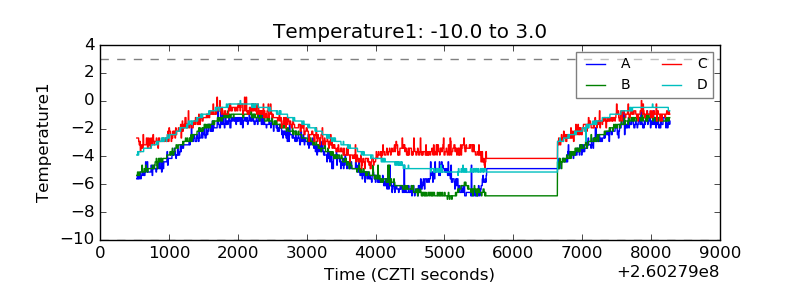

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

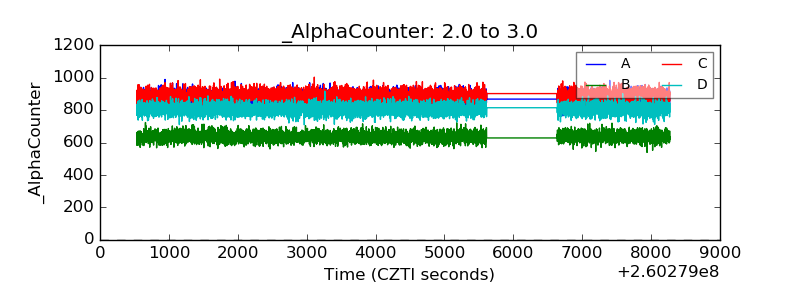

| Alpha Counter |  |

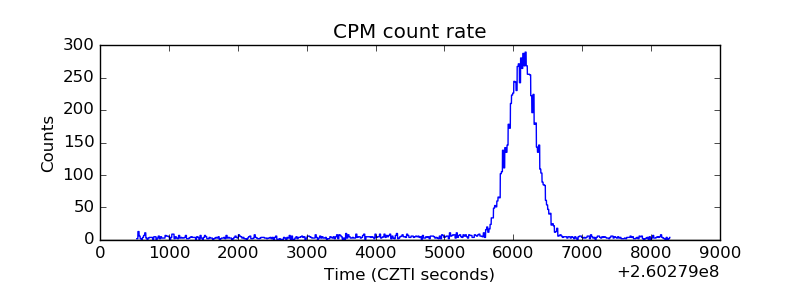

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

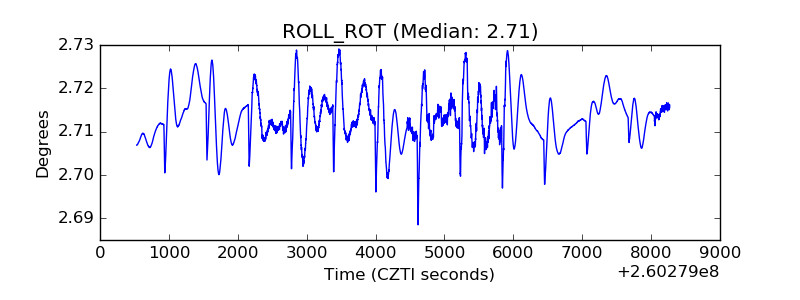

| _ROLL_ROT |  |

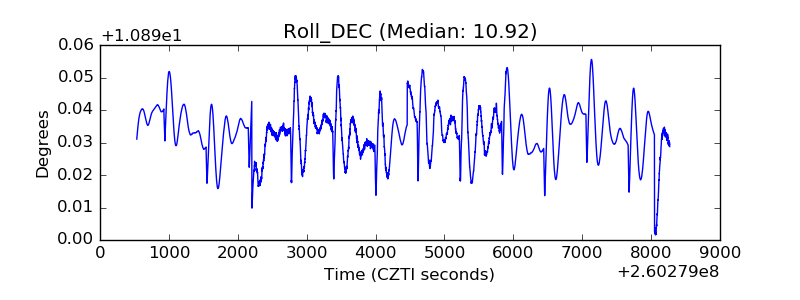

| _Roll_DEC |  |
| _Roll_RA |  |

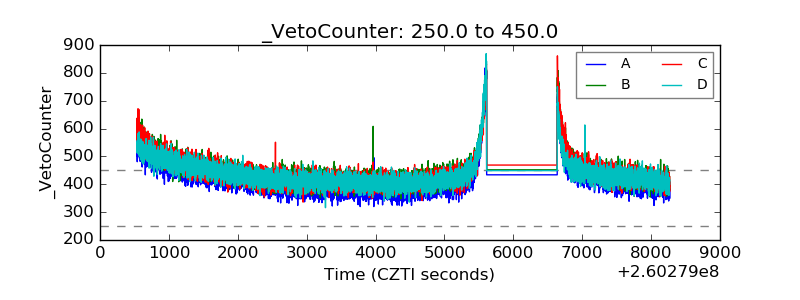

| Veto Counter |  |
