| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_047T01_9000002002_13571cztM0_level2.evt | modeM0/AS1G08_047T01_9000002002_13571cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,589,440 | 79,519,680 |
| Size | 452.6 MB | 75.8 MB |
| Events in quadrant A | 3,123,699 | 490,697 |
| Events in quadrant B | 3,530,813 | 490,227 |
| Events in quadrant C | 3,299,081 | 487,374 |
| Events in quadrant D | 3,953,329 | 461,508 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13890 | 3 |
| B | 0 | 14928 | 2 |
| C | 0 | 13968 | 2 |
| D | 0 | 16326 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6858 | 11 | 0.160397% |
| B | 6858 | 96 | 1.399825% |
| C | 6858 | 9 | 0.131234% |
| D | 6858 | 125 | 1.822689% |

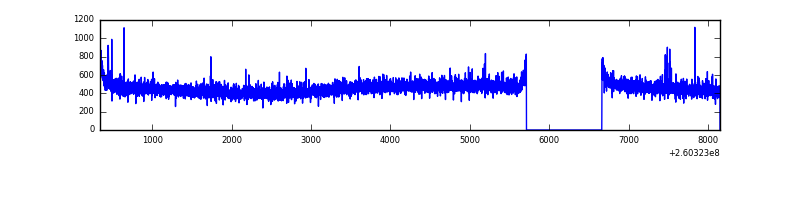

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7809 | 6860 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7809 | 6859 | 62 | 62 | 0.79% | 0.90% |  |
| C | 7809 | 6859 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7809 | 6859 | 113 | 113 | 1.45% | 1.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 16876 | 98.13 | 802 | 783 | 164.0 |
| A | 0 | 226 | 7502 | 40.97 | 802 | 783 | 164.0 |
| A | 0 | 23 | 6821 | 36.82 | 802 | 783 | 164.0 |
| B | 3 | 64 | 273352 | 1782.59 | 800 | 779 | 152.9 |
| B | 4 | 173 | 46777 | 300.82 | 800 | 779 | 152.9 |
| B | 0 | 182 | 35033 | 224.02 | 800 | 779 | 152.9 |
| C | 3 | 233 | 250237 | 1379.6 | 780 | 785 | 180.8 |
| C | 13 | 61 | 5652 | 26.91 | 780 | 785 | 180.8 |
| C | 0 | 207 | 3470 | 14.85 | 780 | 785 | 180.8 |
| D | 2 | 14 | 297618 | 1600.05 | 771 | 750 | 185.5 |
| D | 5 | 222 | 213161 | 1144.85 | 771 | 750 | 185.5 |
| D | 1 | 20 | 179643 | 964.19 | 771 | 750 | 185.5 |

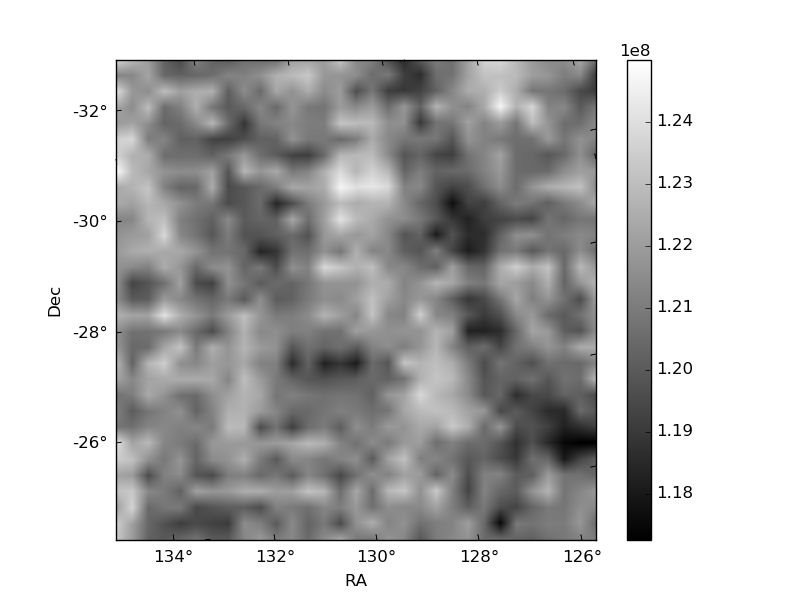

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

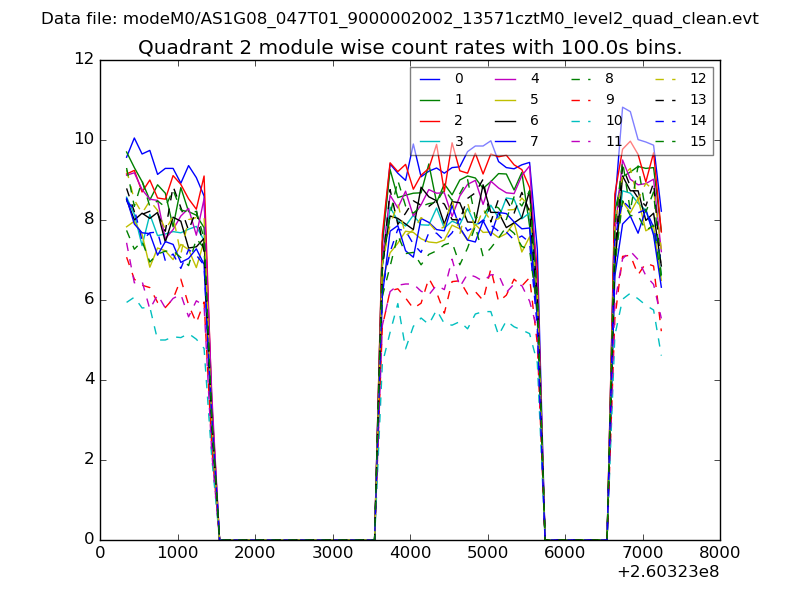

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

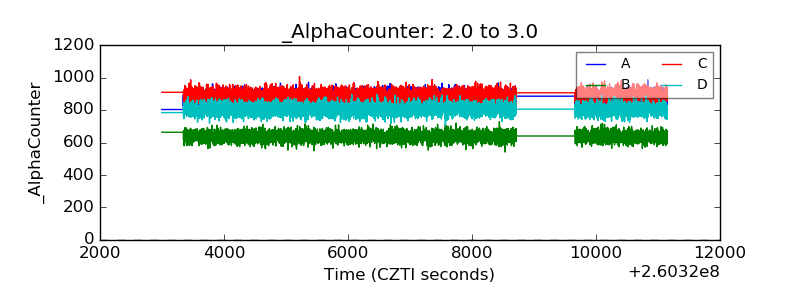

| Alpha Counter |  |
| _CPM_Rate |  |

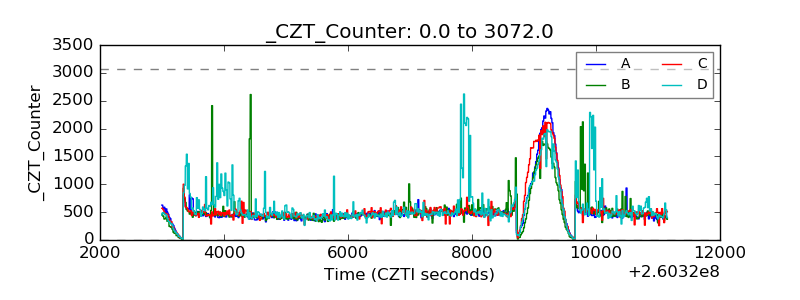

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

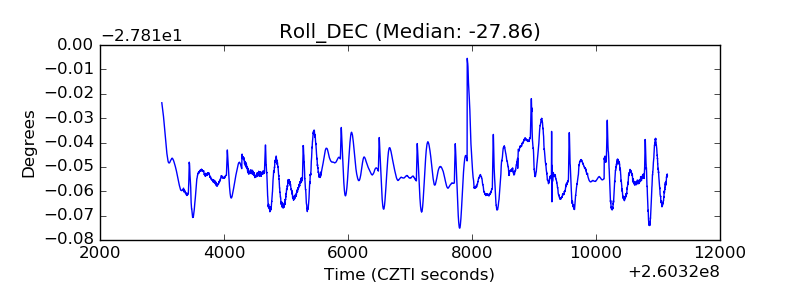

| _Roll_DEC |  |

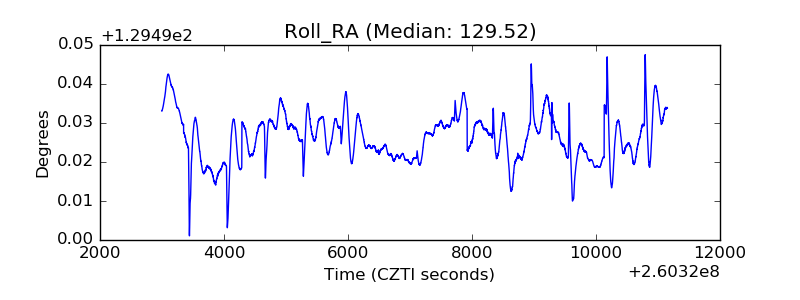

| _Roll_RA |  |

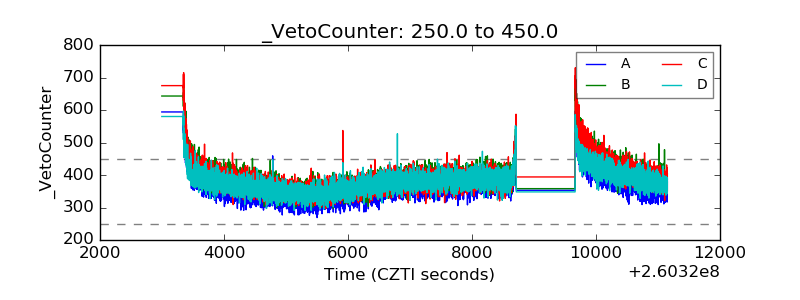

| Veto Counter |  |
