| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_047T01_9000002002_13576cztM0_level2.evt | modeM0/AS1G08_047T01_9000002002_13576cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,893,120 | 76,276,800 |
| Size | 442.4 MB | 72.7 MB |
| Events in quadrant A | 3,294,365 | 469,834 |
| Events in quadrant B | 3,453,223 | 480,018 |
| Events in quadrant C | 3,417,663 | 473,907 |
| Events in quadrant D | 3,464,597 | 454,719 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13458 | 3 |
| B | 0 | 13963 | 2 |
| C | 0 | 13937 | 2 |
| D | 0 | 14024 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6175 | 40 | 0.647773% |
| B | 6175 | 75 | 1.214575% |
| C | 6175 | 38 | 0.615385% |
| D | 6175 | 77 | 1.246964% |

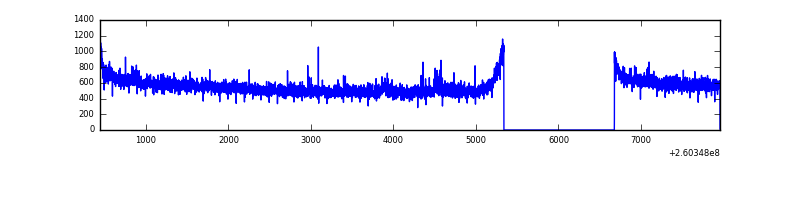

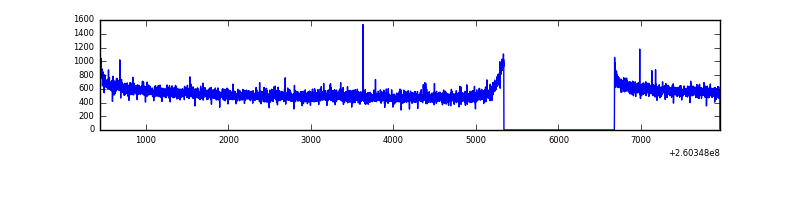

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7516 | 6176 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7516 | 6176 | 8 | 8 | 0.11% | 0.13% |  |
| C | 7516 | 6176 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7516 | 6176 | 29 | 29 | 0.39% | 0.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 16233 | 91.26 | 846 | 833 | 168.7 |
| A | 0 | 226 | 8003 | 42.49 | 846 | 833 | 168.7 |
| A | 0 | 23 | 7325 | 38.47 | 846 | 833 | 168.7 |
| B | 0 | 182 | 80471 | 507.1 | 844 | 827 | 157.1 |
| B | 4 | 80 | 32385 | 200.93 | 844 | 827 | 157.1 |
| B | 3 | 209 | 21966 | 134.59 | 844 | 827 | 157.1 |
| C | 3 | 233 | 206744 | 1108.68 | 822 | 830 | 185.7 |
| C | 13 | 61 | 5952 | 27.58 | 822 | 830 | 185.7 |
| C | 0 | 207 | 3409 | 13.88 | 822 | 830 | 185.7 |
| D | 8 | 195 | 119725 | 614.23 | 820 | 799 | 193.6 |
| D | 13 | 249 | 60086 | 306.21 | 820 | 799 | 193.6 |
| D | 9 | 85 | 52661 | 267.86 | 820 | 799 | 193.6 |

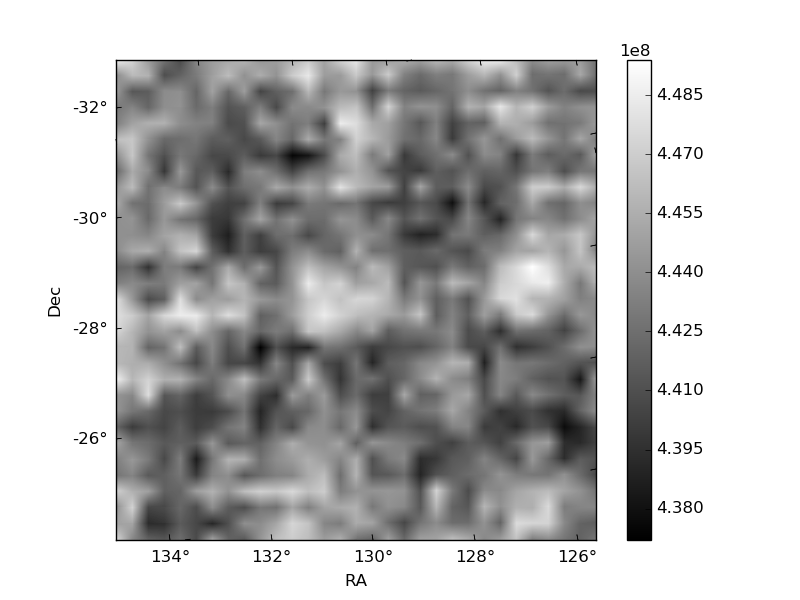

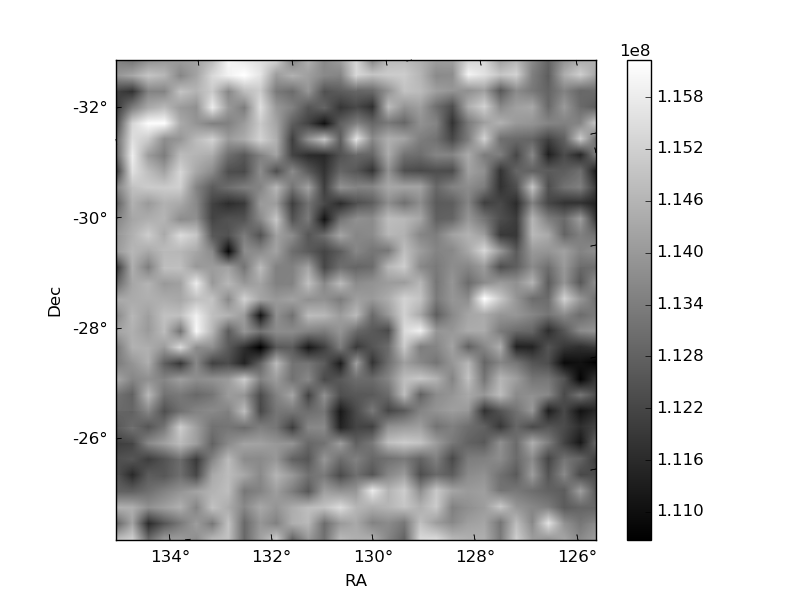

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

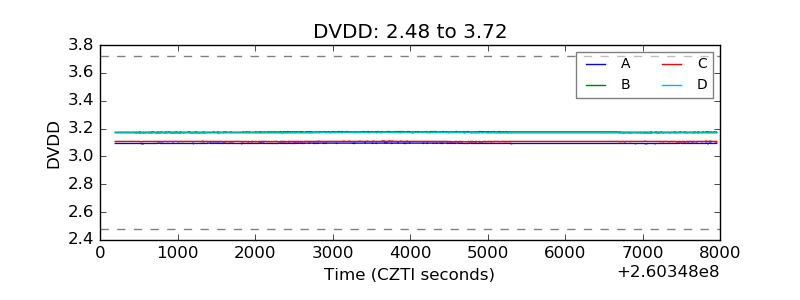

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

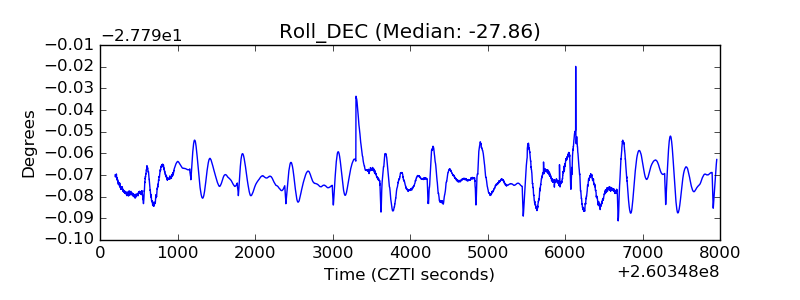

| _Roll_DEC |  |

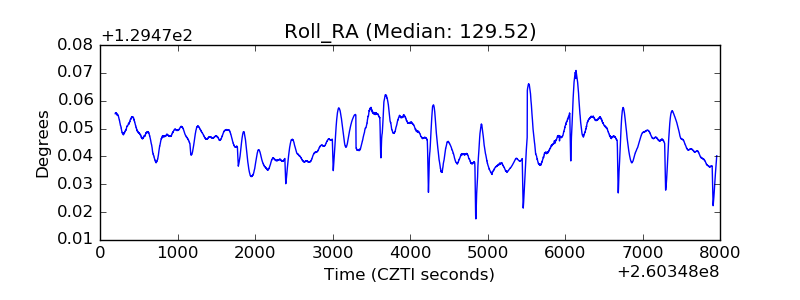

| _Roll_RA |  |

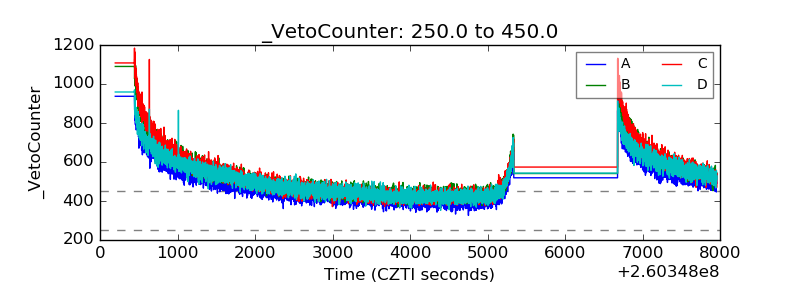

| Veto Counter |  |
