| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_047T01_9000002002_13578cztM0_level2.evt | modeM0/AS1G08_047T01_9000002002_13578cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,636,160 | 97,231,680 |
| Size | 451.7 MB | 92.7 MB |
| Events in quadrant A | 3,304,698 | 630,184 |
| Events in quadrant B | 3,690,187 | 631,351 |
| Events in quadrant C | 3,428,509 | 626,632 |
| Events in quadrant D | 3,481,704 | 605,820 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13738 | 3 |
| B | 0 | 14917 | 2 |
| C | 0 | 14292 | 2 |
| D | 0 | 14473 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6457 | 151 | 2.338547% |
| B | 6457 | 241 | 3.732383% |
| C | 6457 | 124 | 1.920396% |
| D | 6457 | 132 | 2.044293% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7598 | 6458 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7598 | 6458 | 74 | 74 | 0.97% | 1.15% |  |
| C | 7598 | 6458 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7598 | 6458 | 12 | 12 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 27576 | 156.91 | 846 | 827 | 170.5 |
| A | 1 | 178 | 8537 | 45.23 | 846 | 827 | 170.5 |
| A | 15 | 69 | 8521 | 45.13 | 846 | 827 | 170.5 |
| B | 0 | 182 | 227325 | 1440.33 | 834 | 815 | 157.3 |
| B | 3 | 64 | 79456 | 500.06 | 834 | 815 | 157.3 |
| B | 4 | 142 | 51579 | 322.8 | 834 | 815 | 157.3 |
| C | 3 | 233 | 252162 | 1349.83 | 814 | 820 | 186.2 |
| C | 13 | 61 | 6010 | 27.87 | 814 | 820 | 186.2 |
| C | 14 | 234 | 3789 | 15.94 | 814 | 820 | 186.2 |
| D | 8 | 195 | 122912 | 619.3 | 822 | 799 | 197.2 |
| D | 1 | 20 | 76656 | 384.71 | 822 | 799 | 197.2 |
| D | 13 | 104 | 32588 | 161.22 | 822 | 799 | 197.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

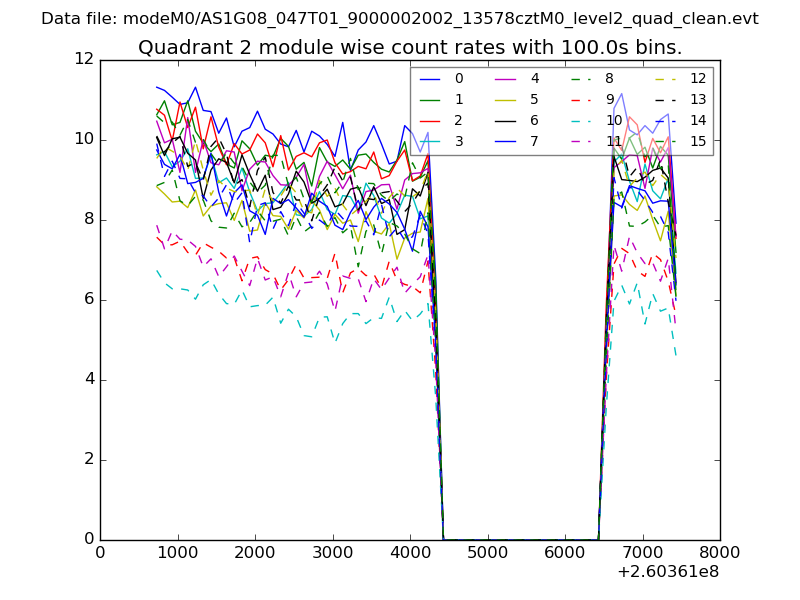

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

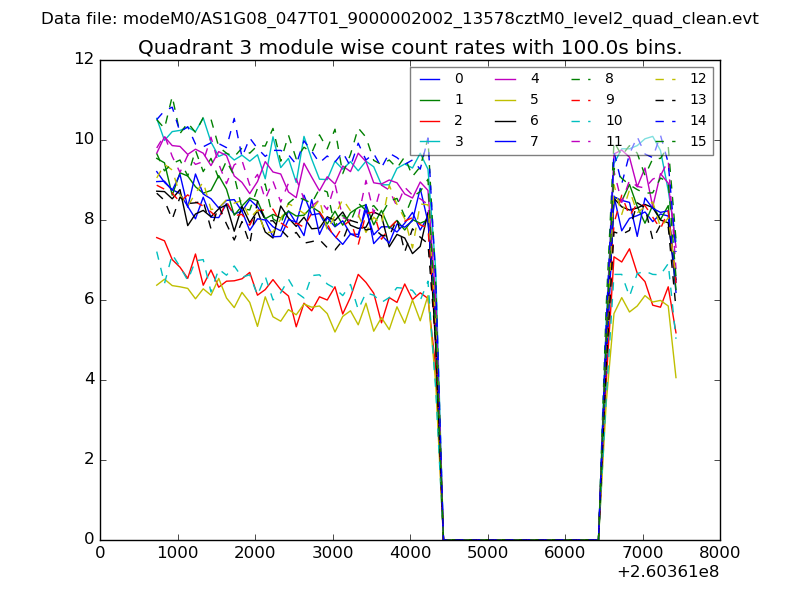

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

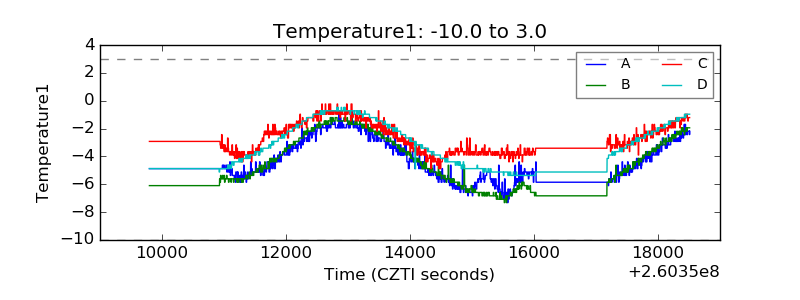

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

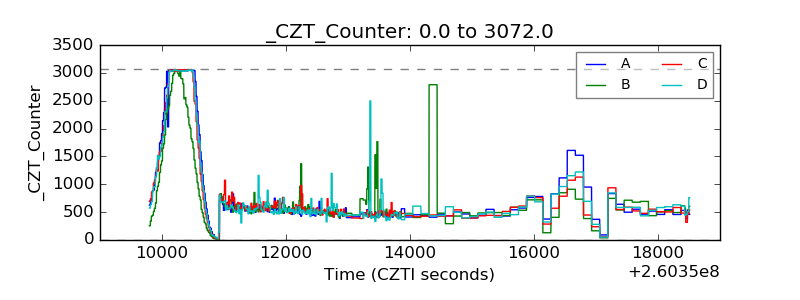

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

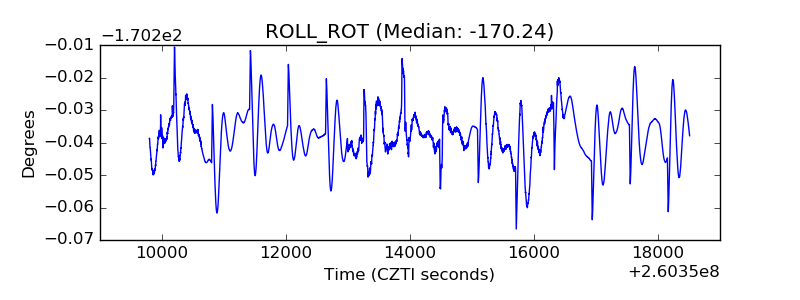

| _ROLL_ROT |  |
| _Roll_DEC |  |

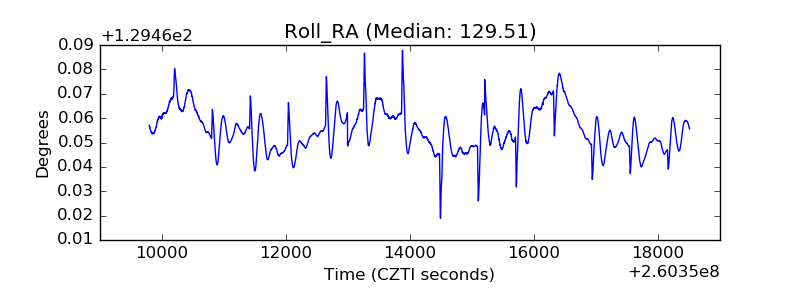

| _Roll_RA |  |
| Veto Counter |  |
