| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_047T01_9000002002_13580cztM0_level2.evt | modeM0/AS1G08_047T01_9000002002_13580cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,325,120 | 97,557,120 |
| Size | 460.0 MB | 93.0 MB |
| Events in quadrant A | 3,386,353 | 621,478 |
| Events in quadrant B | 3,634,168 | 627,450 |
| Events in quadrant C | 3,507,840 | 619,036 |
| Events in quadrant D | 3,602,019 | 597,459 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14608 | 2 |
| B | 0 | 15335 | 1 |
| C | 0 | 14741 | 1 |
| D | 0 | 15279 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7023 | 84 | 1.196070% |
| B | 7023 | 112 | 1.594760% |
| C | 7023 | 38 | 0.541079% |
| D | 7023 | 94 | 1.338459% |

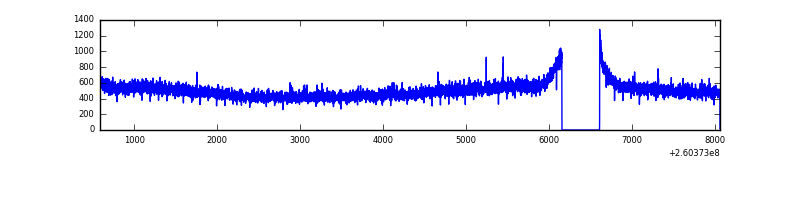

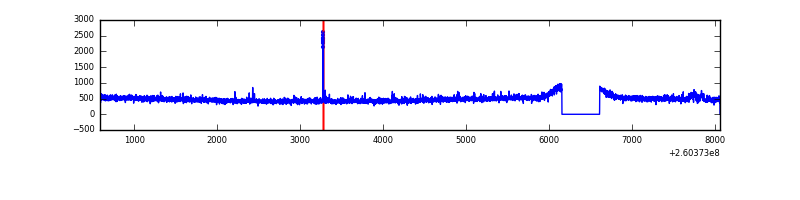

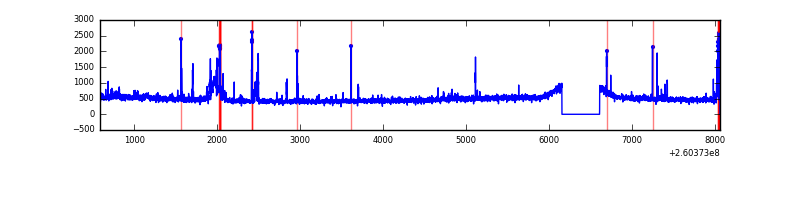

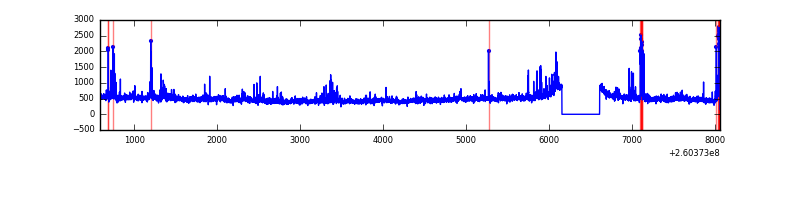

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7479 | 7024 | 7 | 7 | 0.09% | 0.10% |  |
| B | 7479 | 7024 | 31 | 31 | 0.41% | 0.44% |  |
| C | 7479 | 7024 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7479 | 7024 | 29 | 29 | 0.39% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 25391 | 140.46 | 859 | 841 | 174.8 |
| A | 11 | 29 | 24227 | 133.8 | 859 | 841 | 174.8 |
| A | 15 | 69 | 18989 | 103.83 | 859 | 841 | 174.8 |
| B | 4 | 173 | 101202 | 613.91 | 853 | 833 | 163.5 |
| B | 3 | 64 | 71903 | 434.71 | 853 | 833 | 163.5 |
| B | 0 | 182 | 58970 | 355.6 | 853 | 833 | 163.5 |
| C | 3 | 233 | 282083 | 1466.84 | 825 | 830 | 191.7 |
| C | 13 | 61 | 6064 | 27.3 | 825 | 830 | 191.7 |
| C | 8 | 128 | 4033 | 16.7 | 825 | 830 | 191.7 |
| D | 8 | 195 | 136912 | 689.64 | 827 | 805 | 197.4 |
| D | 13 | 122 | 76775 | 384.93 | 827 | 805 | 197.4 |
| D | 2 | 136 | 67918 | 340.05 | 827 | 805 | 197.4 |

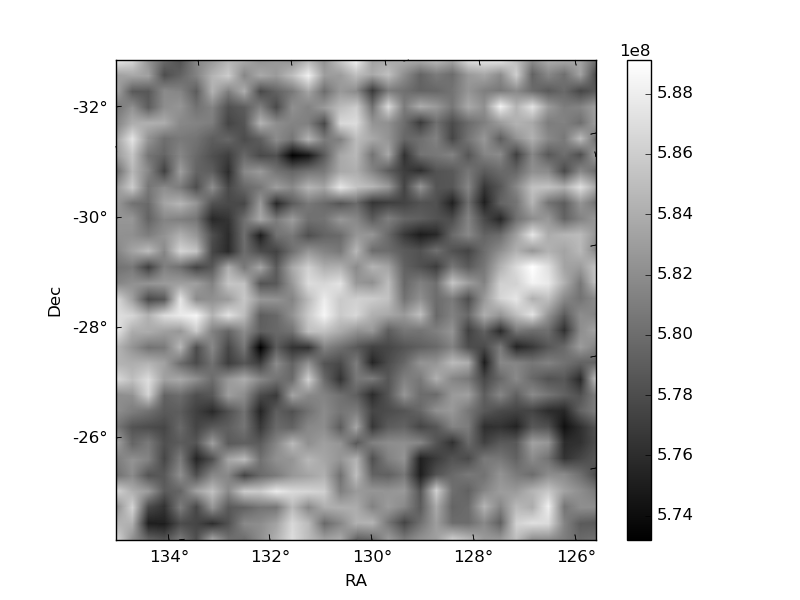

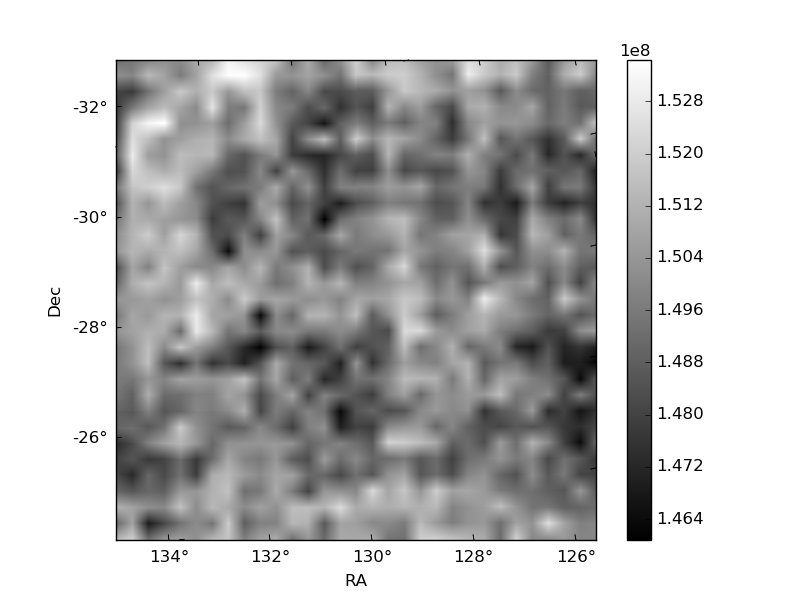

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

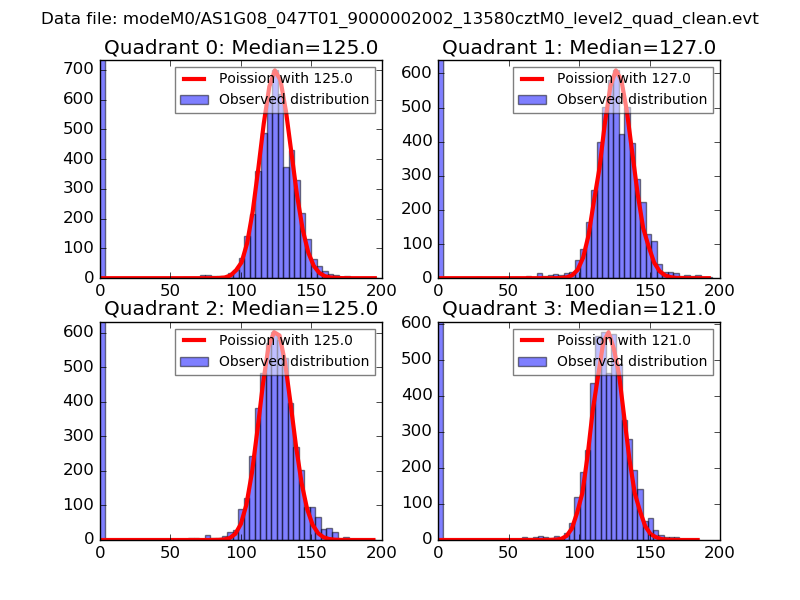

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

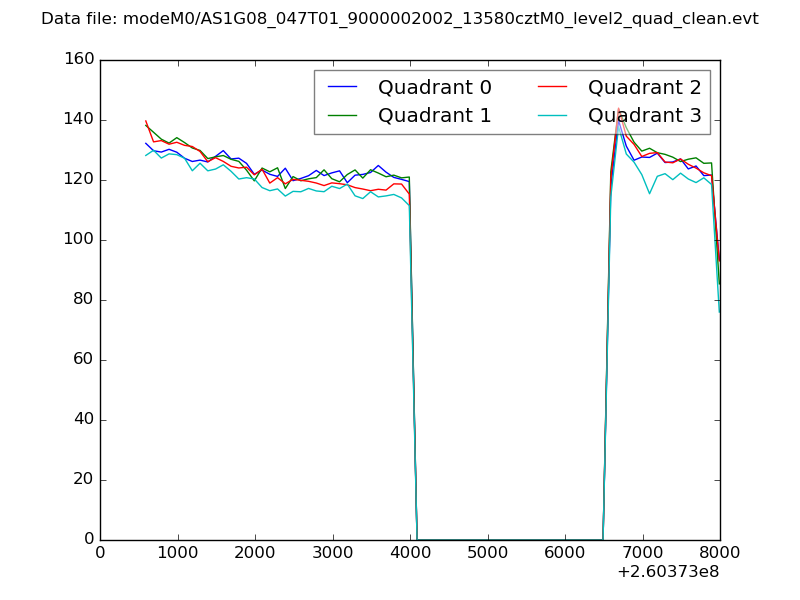

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

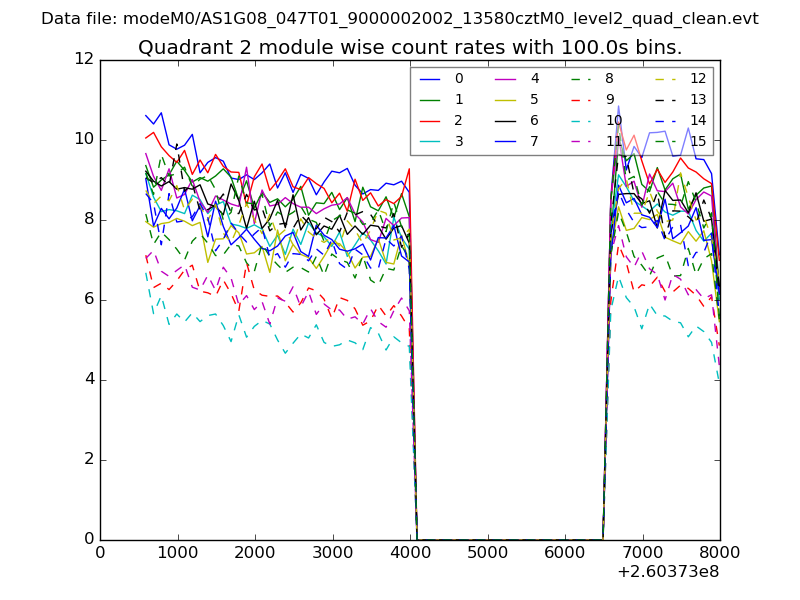

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

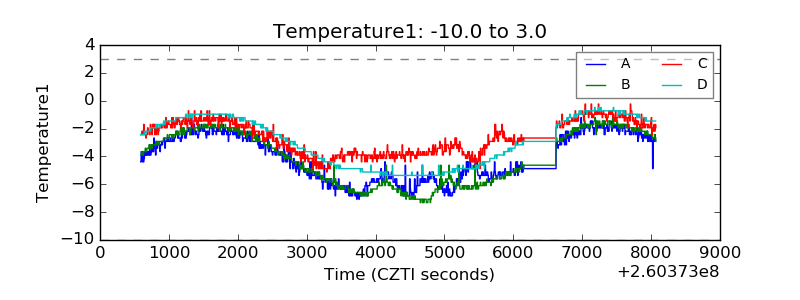

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

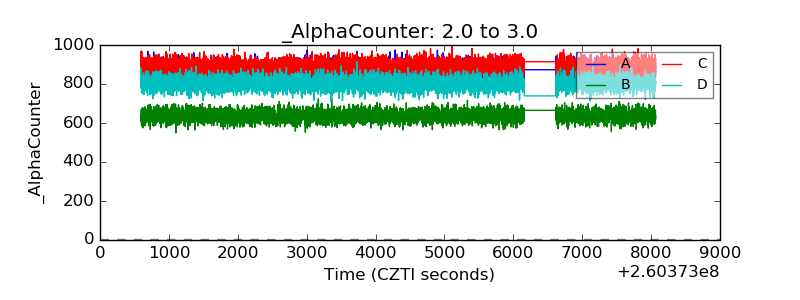

| Alpha Counter |  |

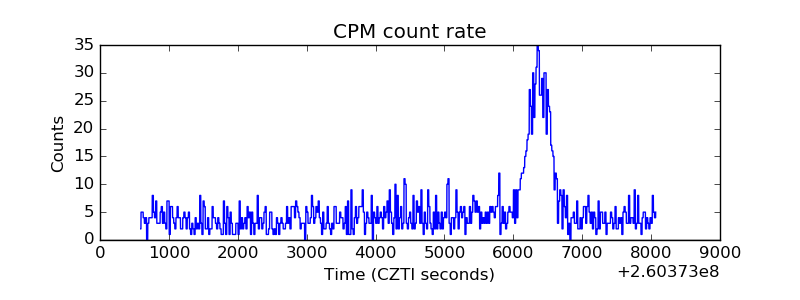

| _CPM_Rate |  |

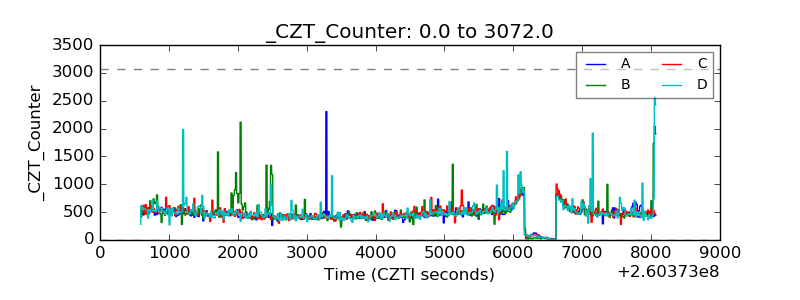

| CZT Counter |  |

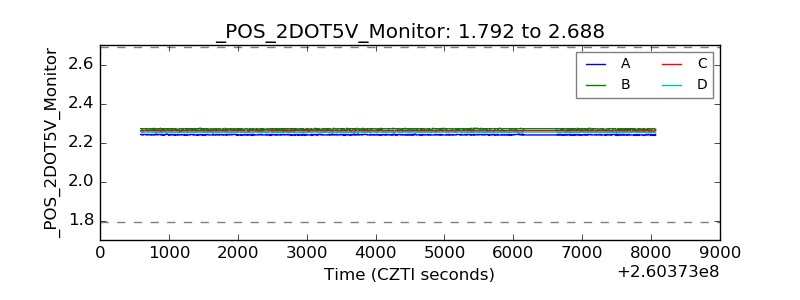

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

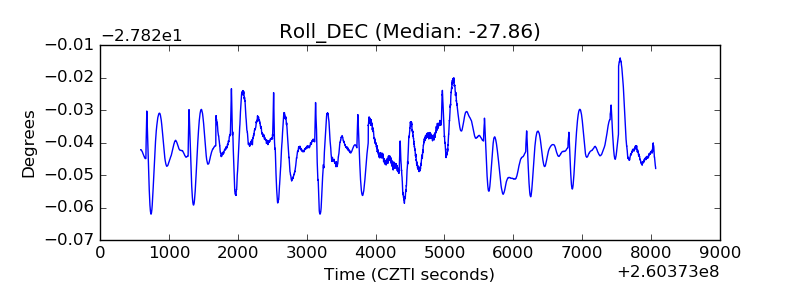

| _Roll_DEC |  |

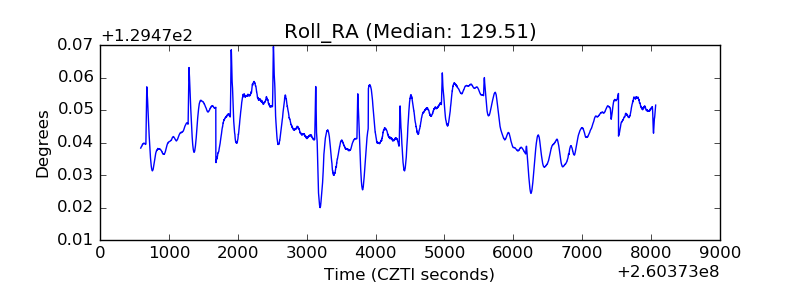

| _Roll_RA |  |
| Veto Counter |  |
