| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_193T01_9000002004_13595cztM0_level2.evt | modeM0/AS1A04_193T01_9000002004_13595cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,420,160 | 129,035,520 |
| Size | 468.7 MB | 123.1 MB |
| Events in quadrant A | 3,350,801 | 868,585 |
| Events in quadrant B | 3,963,749 | 859,083 |
| Events in quadrant C | 3,282,790 | 861,574 |
| Events in quadrant D | 3,810,068 | 831,590 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14713 | 2 |
| B | 0 | 16403 | 1 |
| C | 0 | 14449 | 1 |
| D | 0 | 15955 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6991 | 100 | 1.430411% |
| B | 6991 | 241 | 3.447289% |
| C | 6991 | 61 | 0.872550% |
| D | 6991 | 99 | 1.416106% |

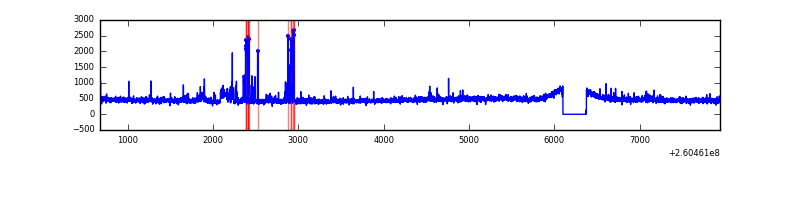

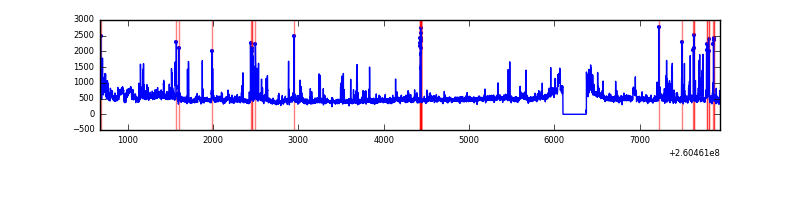

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7267 | 6993 | 15 | 15 | 0.21% | 0.21% |  |
| B | 7267 | 6993 | 135 | 135 | 1.86% | 1.93% |  |
| C | 7267 | 6993 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7267 | 6993 | 30 | 30 | 0.41% | 0.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 233 | 80141 | 477.55 | 814 | 795 | 166.2 |
| A | 1 | 162 | 41401 | 244.39 | 814 | 795 | 166.2 |
| A | 15 | 69 | 36125 | 212.64 | 814 | 795 | 166.2 |
| B | 0 | 182 | 330824 | 2177.34 | 805 | 784 | 151.6 |
| B | 0 | 85 | 216458 | 1422.85 | 805 | 784 | 151.6 |
| B | 3 | 64 | 98442 | 644.27 | 805 | 784 | 151.6 |
| C | 3 | 233 | 155210 | 845.6 | 786 | 787 | 182.6 |
| C | 0 | 207 | 37820 | 202.79 | 786 | 787 | 182.6 |
| C | 8 | 128 | 9256 | 46.37 | 786 | 787 | 182.6 |
| D | 13 | 122 | 227845 | 1220.4 | 788 | 767 | 186.1 |
| D | 10 | 157 | 127216 | 679.58 | 788 | 767 | 186.1 |
| D | 1 | 20 | 114258 | 609.94 | 788 | 767 | 186.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

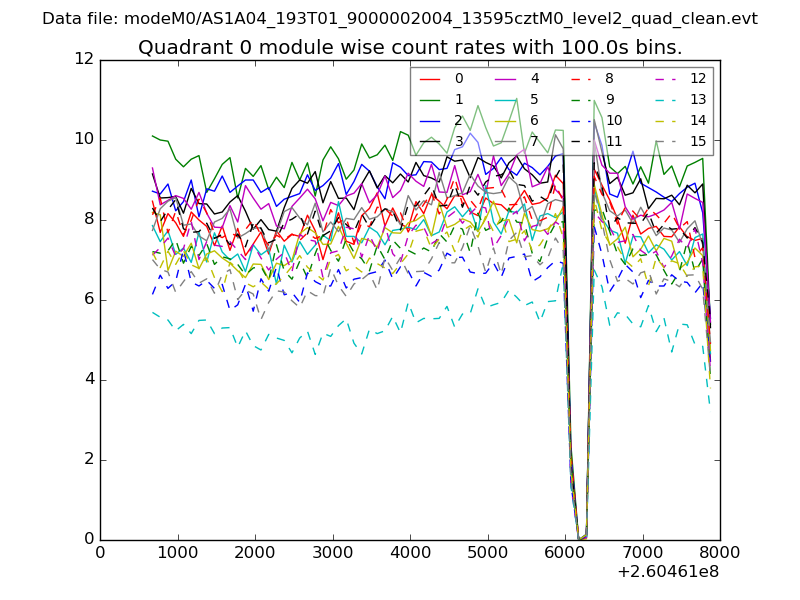

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

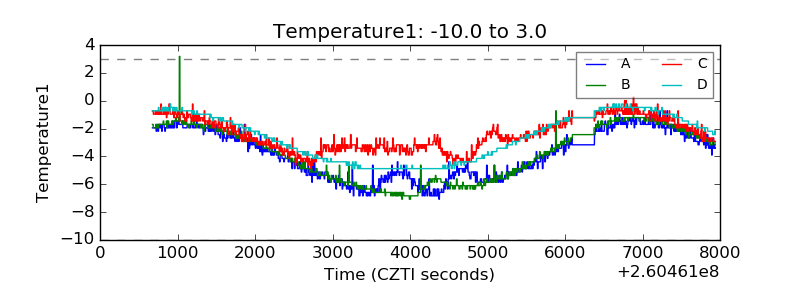

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

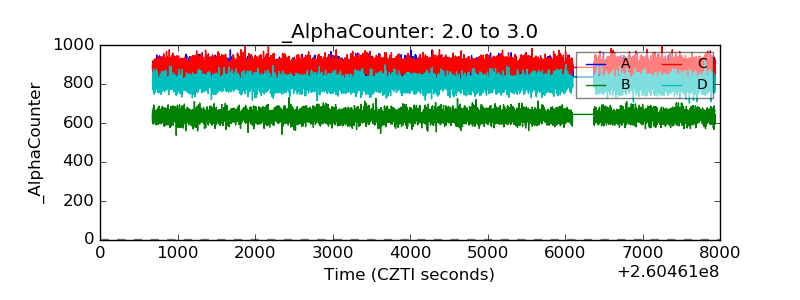

| Alpha Counter |  |

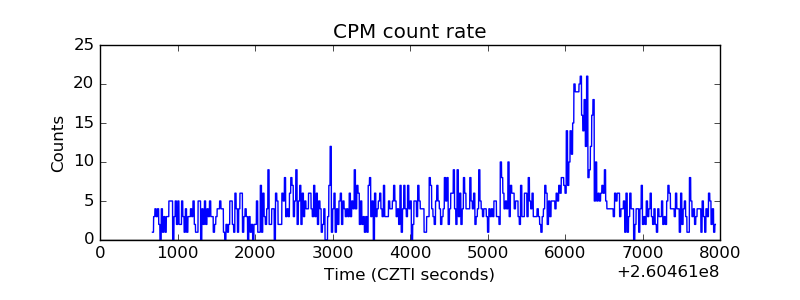

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

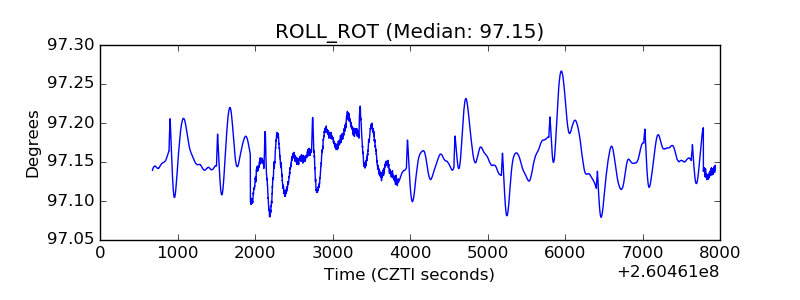

| _ROLL_ROT |  |

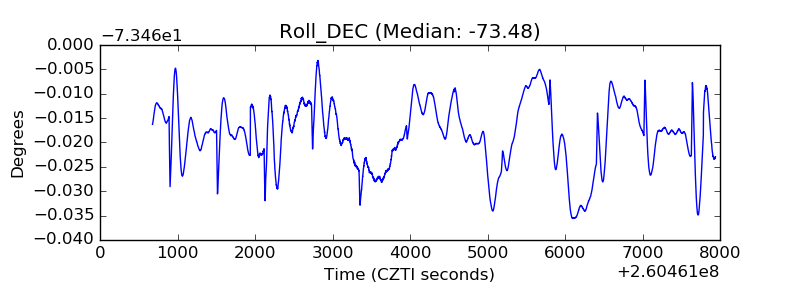

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
