| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C03_015T02_9000002008_13603cztM0_level2.evt | modeM0/AS1C03_015T02_9000002008_13603cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,763,200 | 99,423,360 |
| Size | 429.9 MB | 94.8 MB |
| Events in quadrant A | 2,364,043 | 675,039 |
| Events in quadrant B | 3,006,371 | 685,181 |
| Events in quadrant C | 2,377,558 | 681,385 |
| Events in quadrant D | 5,553,198 | 607,924 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10531 | 2 |
| B | 0 | 12286 | 1 |
| C | 0 | 10541 | 1 |
| D | 0 | 20167 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5152 | 10 | 0.194099% |
| B | 5152 | 119 | 2.309783% |
| C | 5152 | 5 | 0.097050% |
| D | 5152 | 889 | 17.255435% |

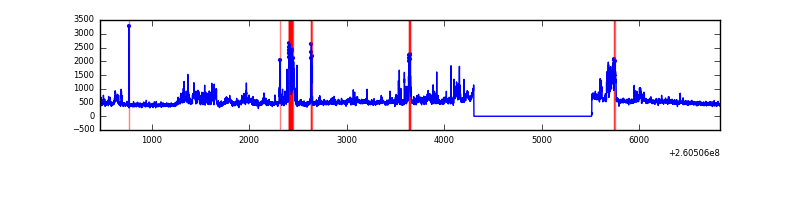

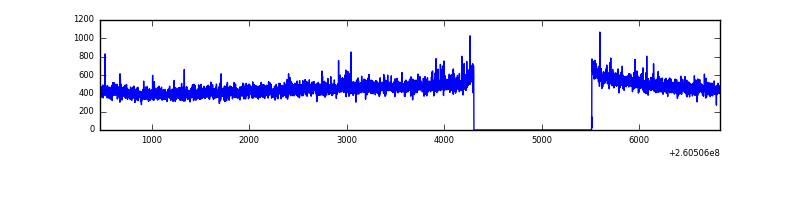

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6363 | 5154 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6363 | 5154 | 39 | 39 | 0.61% | 0.76% |  |
| C | 6363 | 5154 | 1 | 1 | 0.02% | 0.02% |  |
| D | 6363 | 5154 | 539 | 539 | 8.47% | 10.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 13481 | 105.33 | 607 | 598 | 122.3 |
| A | 12 | 189 | 5937 | 43.65 | 607 | 598 | 122.3 |
| A | 0 | 226 | 5565 | 40.61 | 607 | 598 | 122.3 |
| B | 0 | 219 | 458431 | 4062.64 | 604 | 591 | 112.7 |
| B | 0 | 214 | 124533 | 1099.8 | 604 | 591 | 112.7 |
| B | 3 | 209 | 18417 | 158.18 | 604 | 591 | 112.7 |
| C | 3 | 233 | 68636 | 506.98 | 585 | 589 | 134.2 |
| C | 0 | 207 | 19400 | 140.15 | 585 | 589 | 134.2 |
| C | 12 | 4 | 5138 | 33.89 | 585 | 589 | 134.2 |
| D | 13 | 122 | 3229153 | 24498.88 | 555 | 539 | 131.8 |
| D | 8 | 195 | 63680 | 479.12 | 555 | 539 | 131.8 |
| D | 1 | 20 | 46566 | 349.26 | 555 | 539 | 131.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

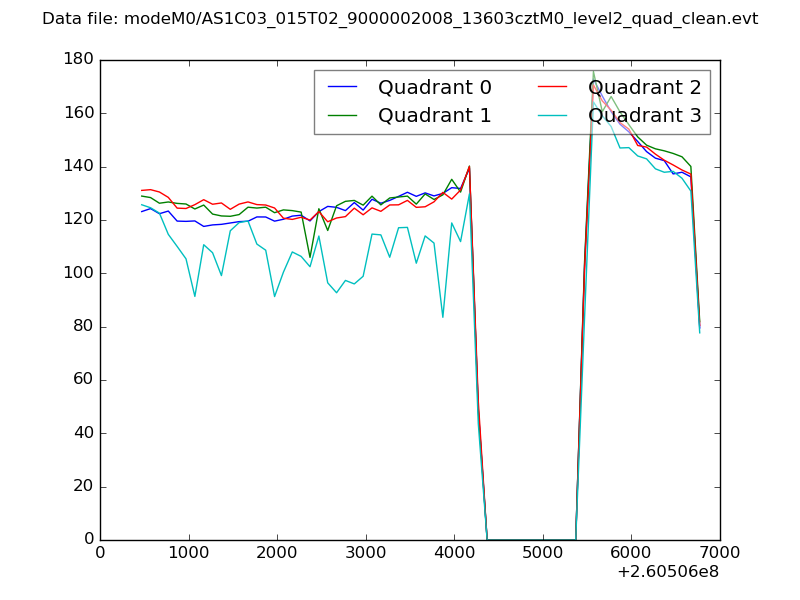

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

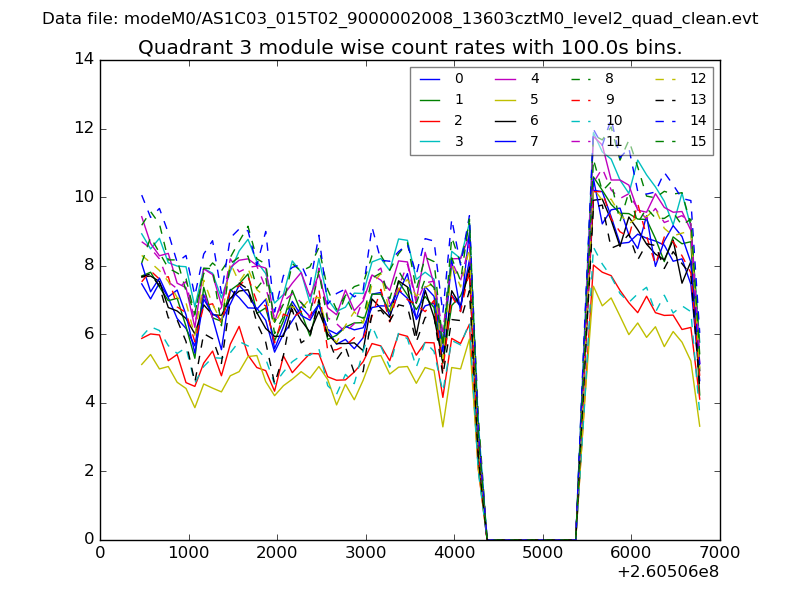

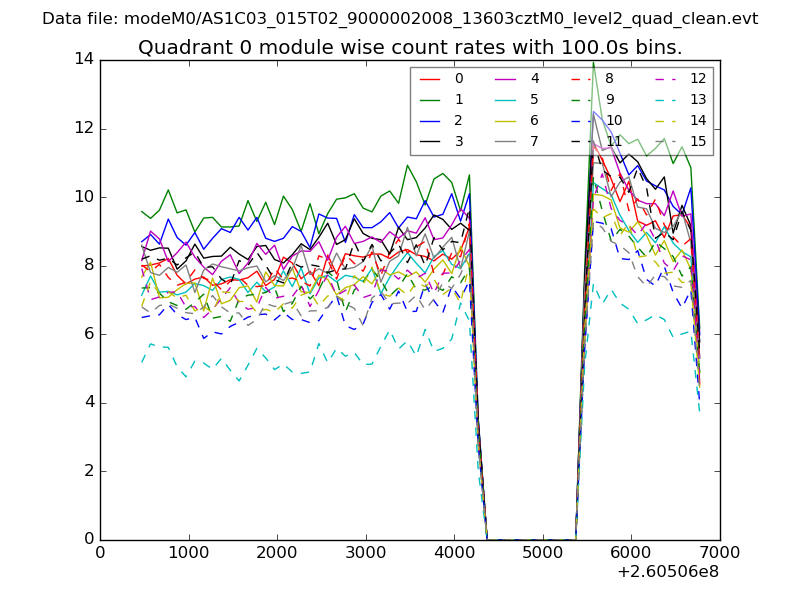

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

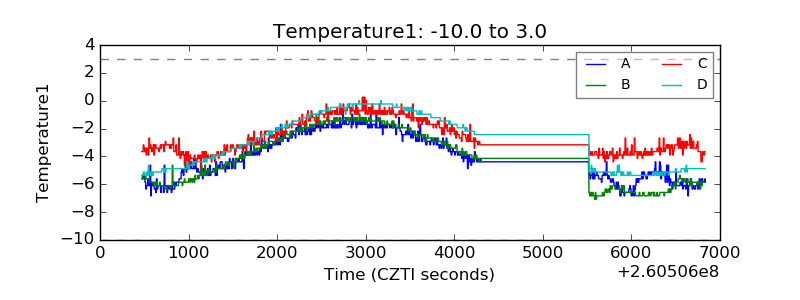

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

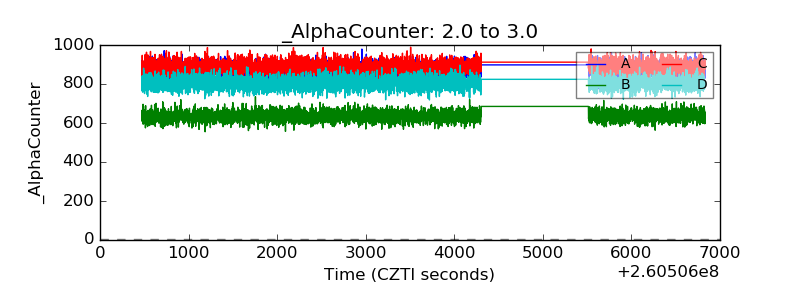

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

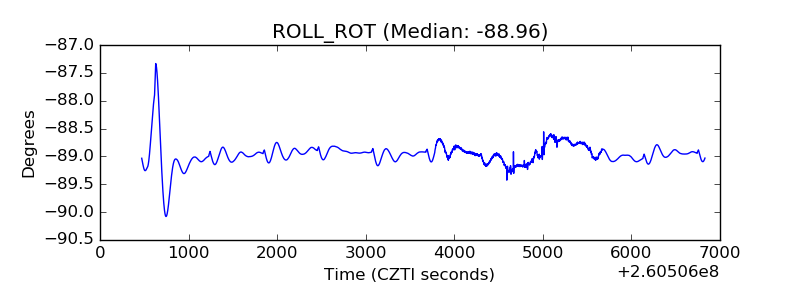

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
