| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_029T01_9000002010_13606cztM0_level2.evt | modeM0/AS1G08_029T01_9000002010_13606cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,268,800 | 74,640,960 |
| Size | 475.2 MB | 71.2 MB |
| Events in quadrant A | 3,376,875 | 466,214 |
| Events in quadrant B | 3,783,752 | 468,372 |
| Events in quadrant C | 3,328,559 | 452,527 |
| Events in quadrant D | 4,174,983 | 434,636 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13655 | 3 |
| B | 0 | 15146 | 2 |
| C | 0 | 13503 | 2 |
| D | 0 | 16497 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6278 | 94 | 1.497292% |
| B | 6278 | 137 | 2.182224% |
| C | 6278 | 59 | 0.939790% |
| D | 6278 | 127 | 2.022937% |

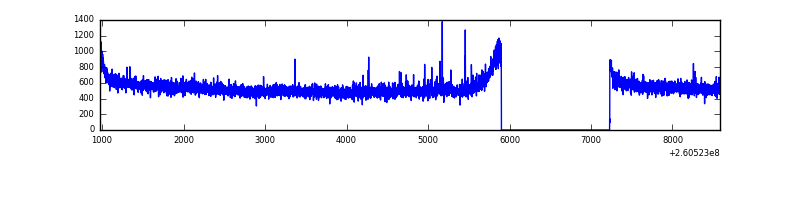

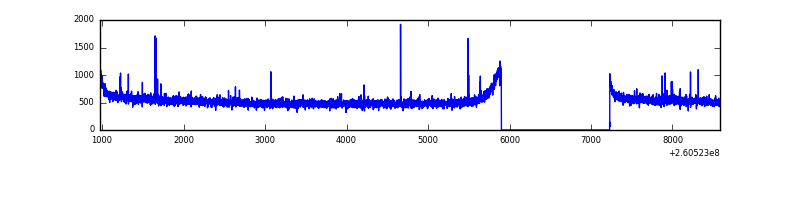

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7609 | 6280 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7609 | 6280 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7609 | 6280 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7609 | 6280 | 55 | 55 | 0.72% | 0.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 17857 | 97.83 | 867 | 853 | 173.8 |
| A | 2 | 250 | 11364 | 60.48 | 867 | 853 | 173.8 |
| A | 0 | 226 | 7969 | 40.94 | 867 | 853 | 173.8 |
| B | 3 | 64 | 169099 | 1048.87 | 857 | 841 | 160.4 |
| B | 0 | 219 | 129352 | 801.1 | 857 | 841 | 160.4 |
| B | 0 | 190 | 30698 | 186.12 | 857 | 841 | 160.4 |
| C | 3 | 233 | 103929 | 550.74 | 820 | 828 | 187.2 |
| C | 14 | 234 | 20366 | 104.37 | 820 | 828 | 187.2 |
| C | 0 | 207 | 6884 | 32.35 | 820 | 828 | 187.2 |
| D | 13 | 122 | 489522 | 2446.56 | 823 | 800 | 199.8 |
| D | 8 | 195 | 314667 | 1571.23 | 823 | 800 | 199.8 |
| D | 5 | 222 | 198366 | 989.02 | 823 | 800 | 199.8 |

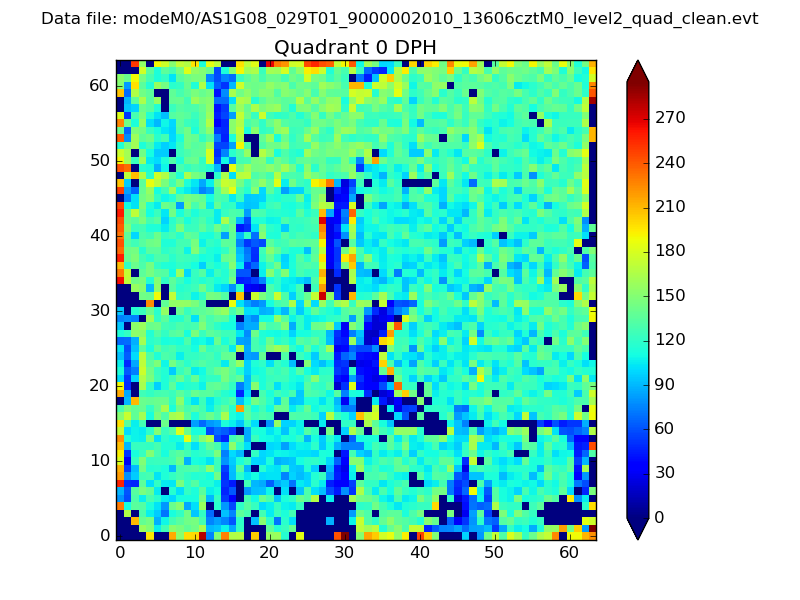

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

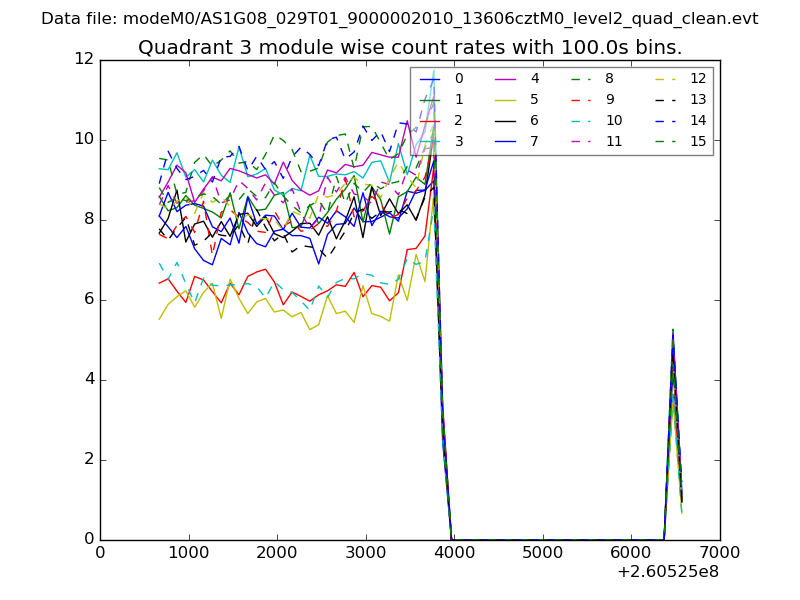

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

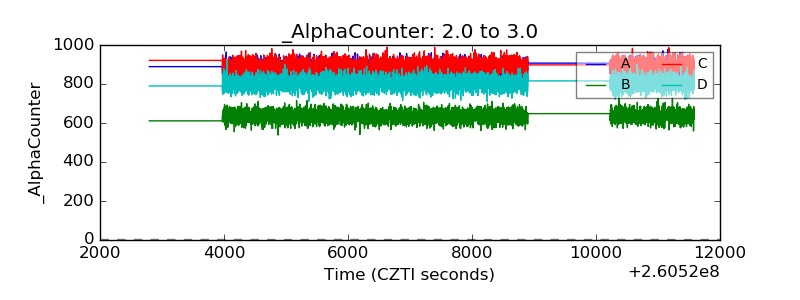

| Alpha Counter |  |
| _CPM_Rate |  |

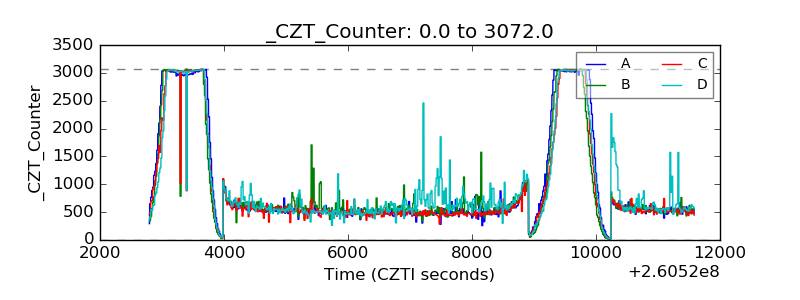

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

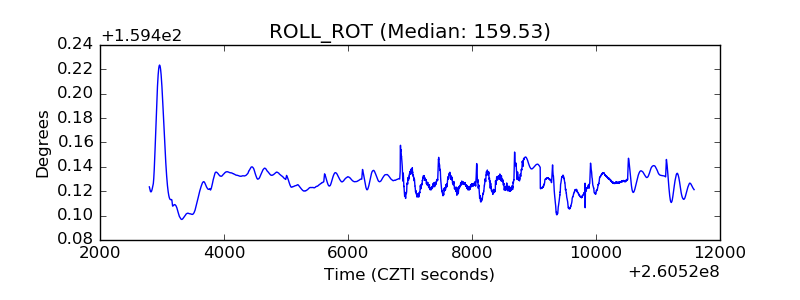

| _ROLL_ROT |  |

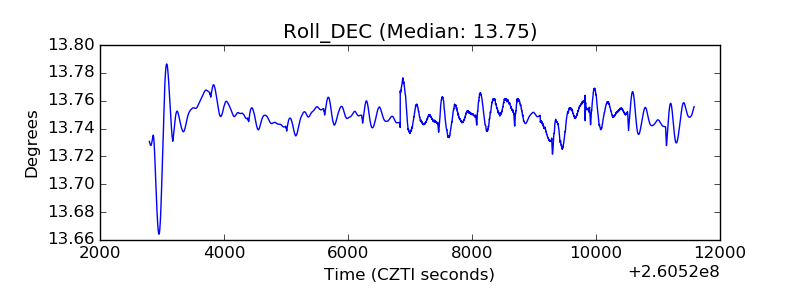

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
