| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_038T01_9000002018_13625cztM0_level2.evt | modeM0/AS1G08_038T01_9000002018_13625cztM0_level2_quad_clean.evt |
| Size (bytes) | 627,854,400 | 84,888,000 |
| Size | 598.8 MB | 81.0 MB |
| Events in quadrant A | 3,679,295 | 489,201 |
| Events in quadrant B | 4,510,211 | 496,546 |
| Events in quadrant C | 3,846,111 | 542,322 |
| Events in quadrant D | 6,457,836 | 507,829 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16056 | 3 |
| B | 0 | 18493 | 2 |
| C | 0 | 16106 | 2 |
| D | 0 | 24410 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7677 | 184 | 2.396770% |
| B | 7677 | 386 | 5.028006% |
| C | 7677 | 150 | 1.953888% |
| D | 7677 | 984 | 12.817507% |

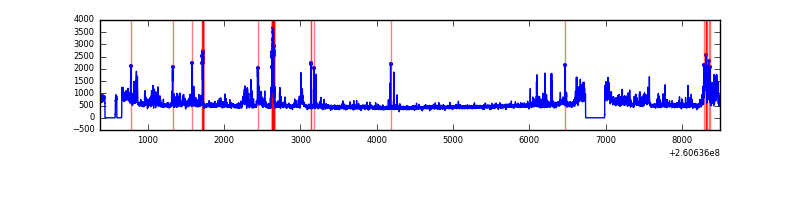

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8128 | 7681 | 8 | 8 | 0.10% | 0.10% |  |
| B | 8128 | 7681 | 48 | 48 | 0.59% | 0.62% |  |
| C | 8128 | 7681 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8128 | 7681 | 592 | 592 | 7.28% | 7.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 69 | 57673 | 297.83 | 934 | 911 | 190.6 |
| A | 1 | 162 | 17467 | 86.87 | 934 | 911 | 190.6 |
| A | 0 | 226 | 8412 | 39.36 | 934 | 911 | 190.6 |
| B | 0 | 219 | 638960 | 3605.84 | 928 | 904 | 177.0 |
| B | 3 | 64 | 169618 | 953.45 | 928 | 904 | 177.0 |
| B | 0 | 214 | 30275 | 165.98 | 928 | 904 | 177.0 |
| C | 3 | 233 | 253549 | 1193.81 | 920 | 926 | 211.6 |
| C | 13 | 61 | 6512 | 26.4 | 920 | 926 | 211.6 |
| C | 14 | 234 | 4655 | 17.62 | 920 | 926 | 211.6 |
| D | 13 | 122 | 1846014 | 8941.76 | 861 | 836 | 206.4 |
| D | 5 | 222 | 573879 | 2776.98 | 861 | 836 | 206.4 |
| D | 8 | 195 | 338651 | 1637.06 | 861 | 836 | 206.4 |

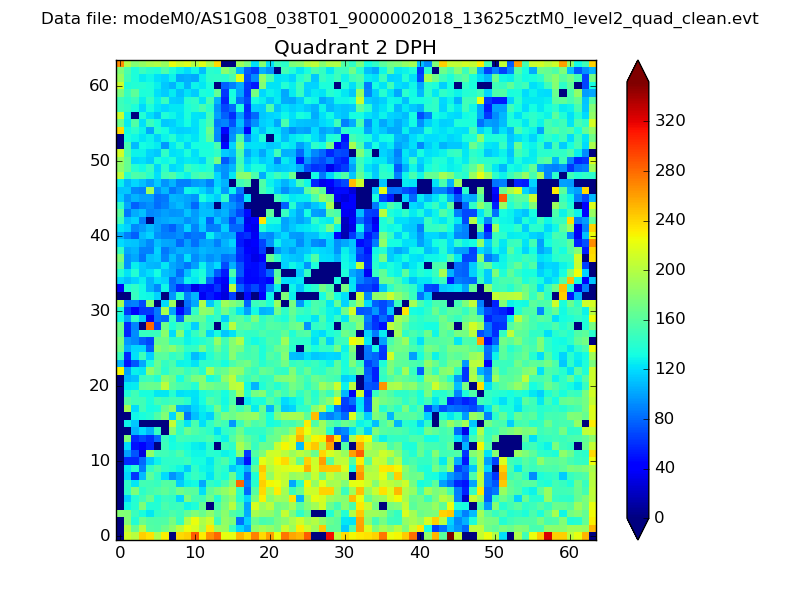

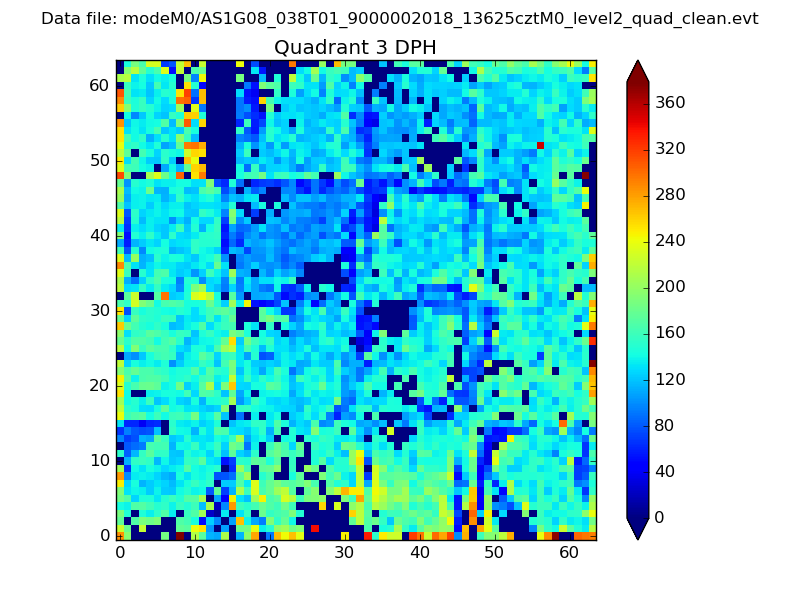

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

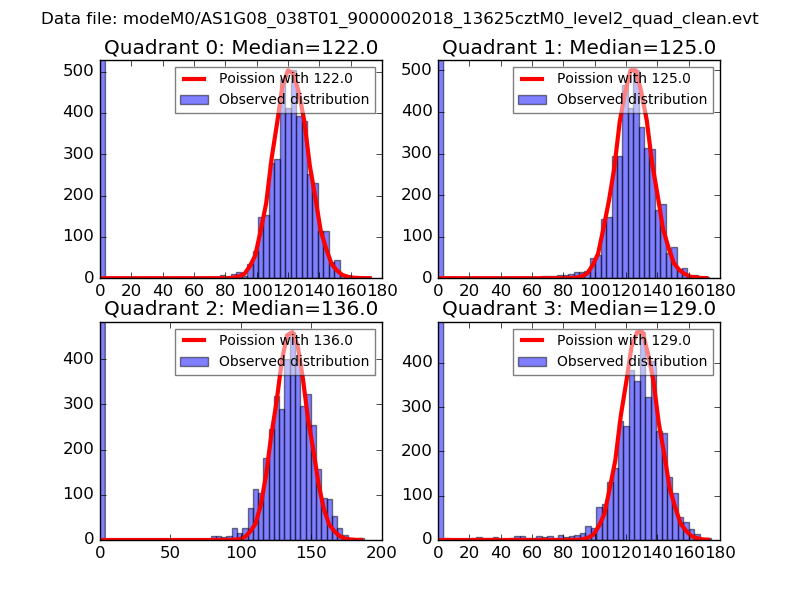

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

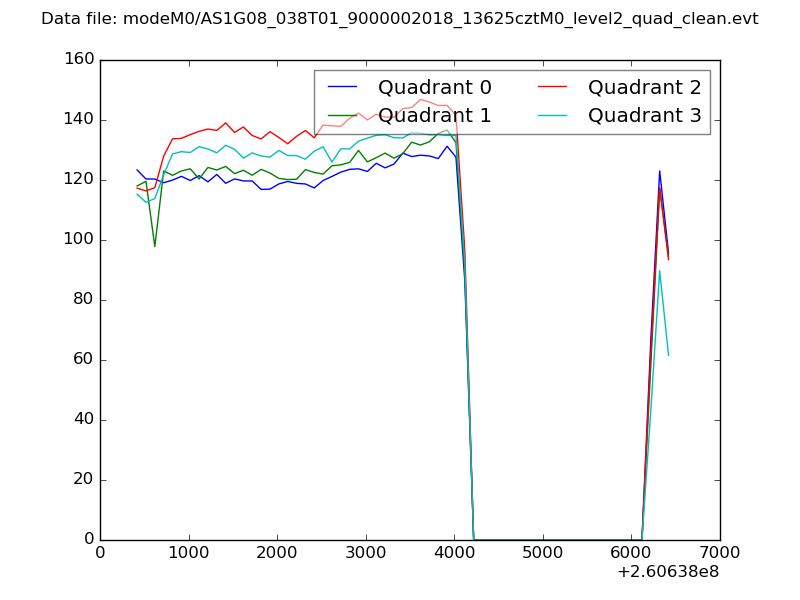

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

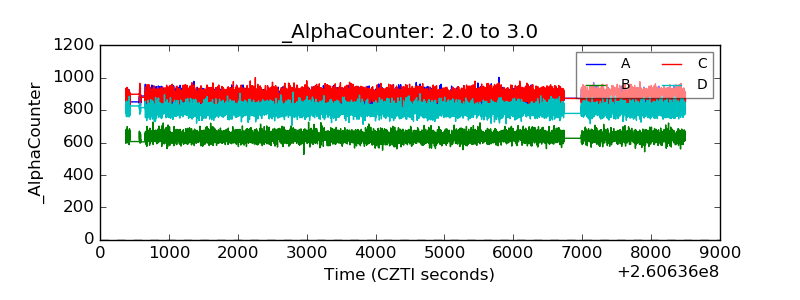

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

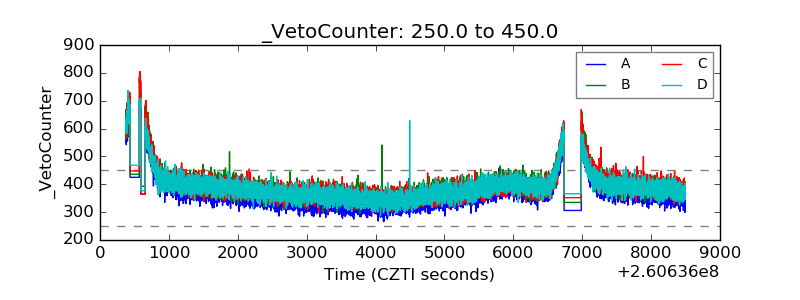

| Veto Counter |  |
