| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_038T01_9000002018_13626cztM0_level2.evt | modeM0/AS1G08_038T01_9000002018_13626cztM0_level2_quad_clean.evt |
| Size (bytes) | 633,199,680 | 93,231,360 |
| Size | 603.9 MB | 88.9 MB |
| Events in quadrant A | 3,623,044 | 555,532 |
| Events in quadrant B | 4,506,035 | 567,180 |
| Events in quadrant C | 3,692,273 | 618,511 |
| Events in quadrant D | 6,839,797 | 552,973 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15861 | 3 |
| B | 0 | 18468 | 2 |
| C | 0 | 15612 | 2 |
| D | 0 | 25475 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7602 | 87 | 1.144436% |
| B | 7602 | 279 | 3.670087% |
| C | 7602 | 69 | 0.907656% |
| D | 7602 | 1258 | 16.548277% |

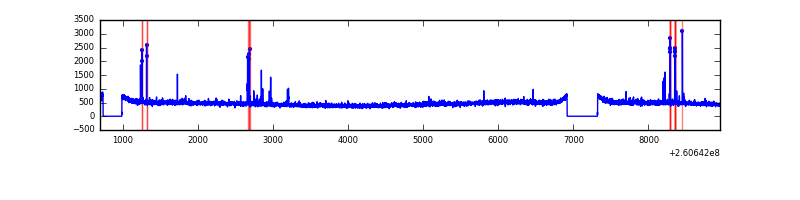

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8258 | 7605 | 18 | 18 | 0.22% | 0.24% |  |
| B | 8258 | 7605 | 25 | 25 | 0.30% | 0.33% |  |
| C | 8258 | 7605 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8258 | 7605 | 953 | 953 | 11.54% | 12.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 69 | 93912 | 497.7 | 911 | 890 | 186.9 |
| A | 1 | 162 | 17138 | 86.93 | 911 | 890 | 186.9 |
| A | 0 | 226 | 8088 | 38.51 | 911 | 890 | 186.9 |
| B | 0 | 219 | 639445 | 3708.62 | 907 | 884 | 172.2 |
| B | 0 | 182 | 98810 | 568.73 | 907 | 884 | 172.2 |
| B | 4 | 48 | 90138 | 518.37 | 907 | 884 | 172.2 |
| C | 3 | 233 | 165474 | 790.53 | 903 | 910 | 208.2 |
| C | 13 | 61 | 6422 | 26.48 | 903 | 910 | 208.2 |
| C | 14 | 234 | 4866 | 19.0 | 903 | 910 | 208.2 |
| D | 13 | 122 | 2670758 | 13514.72 | 824 | 804 | 197.6 |
| D | 5 | 222 | 625678 | 3162.97 | 824 | 804 | 197.6 |
| D | 8 | 195 | 193718 | 976.49 | 824 | 804 | 197.6 |

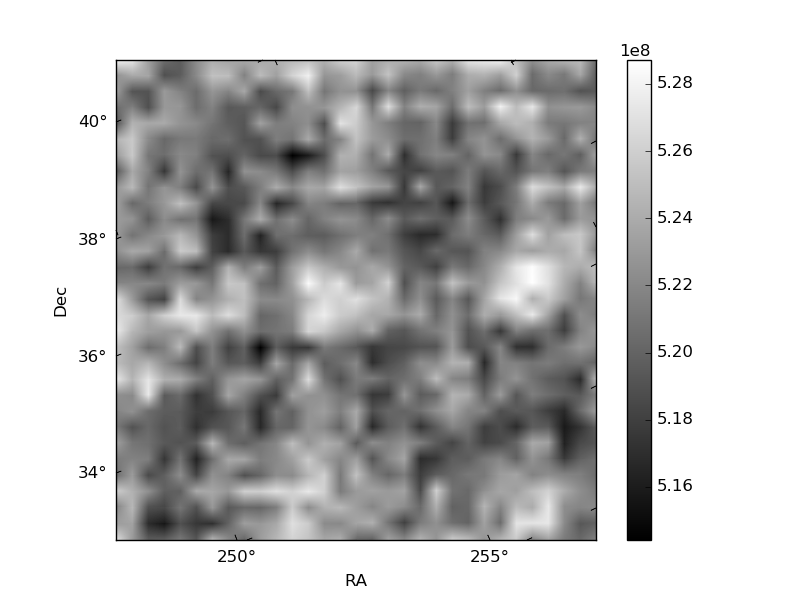

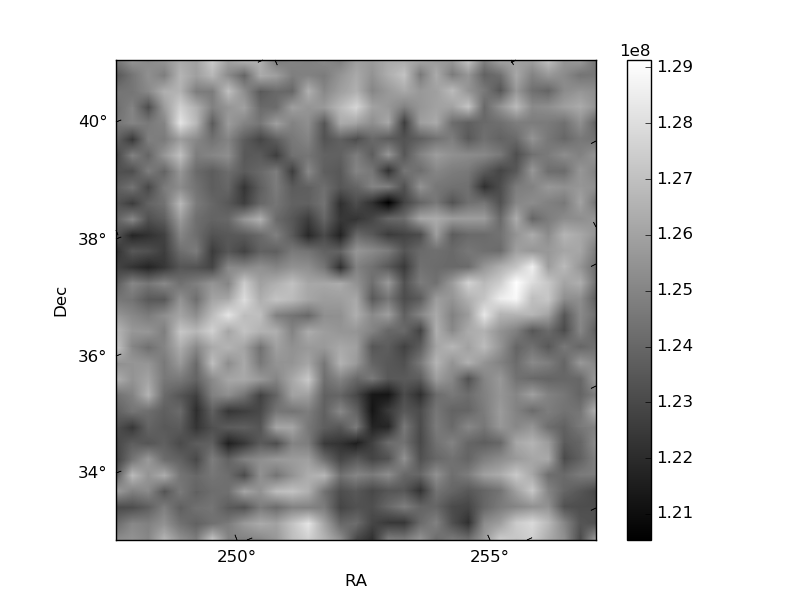

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

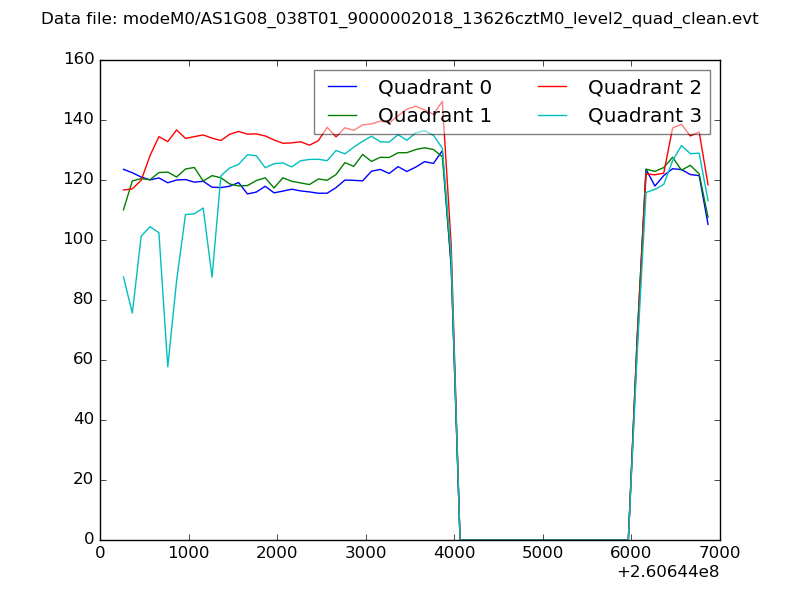

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

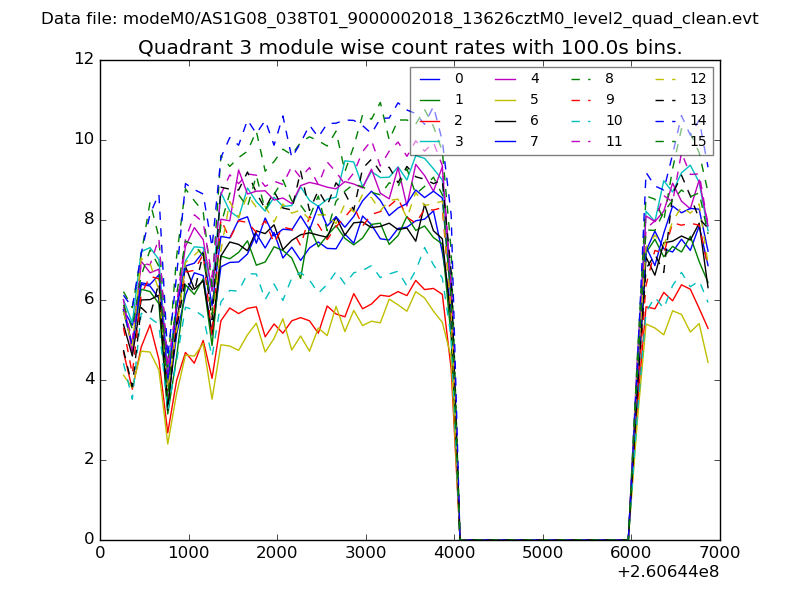

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

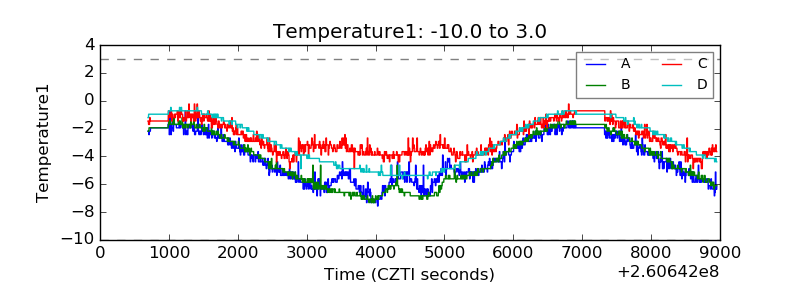

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

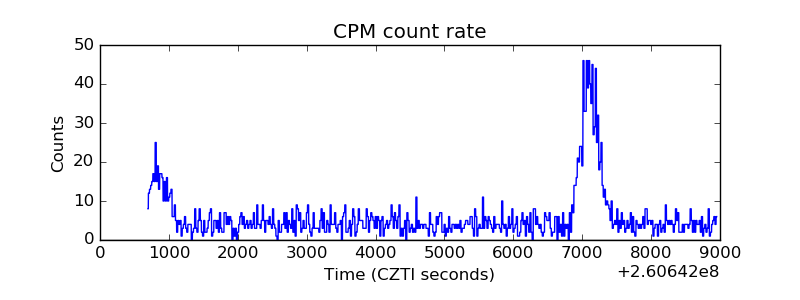

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
