| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_038T01_9000002018_13628cztM0_level2.evt | modeM0/AS1G08_038T01_9000002018_13628cztM0_level2_quad_clean.evt |
| Size (bytes) | 922,648,320 | 179,640,000 |
| Size | 879.9 MB | 171.3 MB |
| Events in quadrant A | 5,924,073 | 1,083,218 |
| Events in quadrant B | 6,933,028 | 1,105,521 |
| Events in quadrant C | 6,379,105 | 1,220,770 |
| Events in quadrant D | 7,836,840 | 1,143,650 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26486 | 4 |
| B | 0 | 29496 | 3 |
| C | 0 | 26638 | 3 |
| D | 0 | 31883 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 264 | 0 |
| B | 0 | 264 | 0 |
| C | 0 | 264 | 0 |
| D | 0 | 264 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12844 | 78 | 0.607287% |
| B | 12844 | 331 | 2.577079% |
| C | 12844 | 81 | 0.630645% |
| D | 12844 | 417 | 3.246652% |

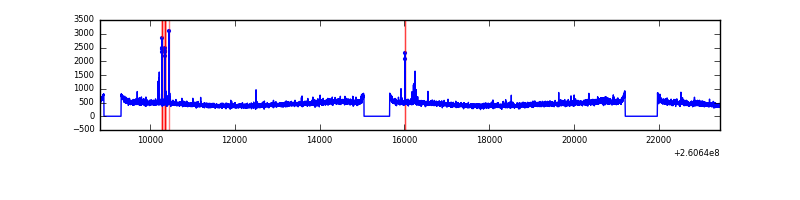

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14615 | 12848 | 12 | 12 | 0.08% | 0.09% |  |
| B | 14615 | 12848 | 75 | 75 | 0.51% | 0.58% |  |
| C | 14615 | 12848 | 3 | 3 | 0.02% | 0.02% |  |
| D | 14615 | 12848 | 257 | 257 | 1.76% | 2.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 69 | 73347 | 233.87 | 1507 | 1473 | 307.3 |
| A | 1 | 162 | 34936 | 108.89 | 1507 | 1473 | 307.3 |
| A | 0 | 226 | 13439 | 38.94 | 1507 | 1473 | 307.3 |
| B | 0 | 219 | 538817 | 1877.69 | 1509 | 1468 | 286.2 |
| B | 3 | 64 | 211786 | 734.93 | 1509 | 1468 | 286.2 |
| B | 0 | 182 | 98521 | 339.14 | 1509 | 1468 | 286.2 |
| C | 3 | 233 | 464568 | 1335.74 | 1513 | 1531 | 346.7 |
| C | 0 | 207 | 14743 | 38.11 | 1513 | 1531 | 346.7 |
| C | 14 | 234 | 10899 | 27.02 | 1513 | 1531 | 346.7 |
| D | 13 | 122 | 893703 | 2502.42 | 1485 | 1447 | 356.6 |
| D | 5 | 222 | 535918 | 1498.97 | 1485 | 1447 | 356.6 |
| D | 8 | 195 | 448594 | 1254.07 | 1485 | 1447 | 356.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

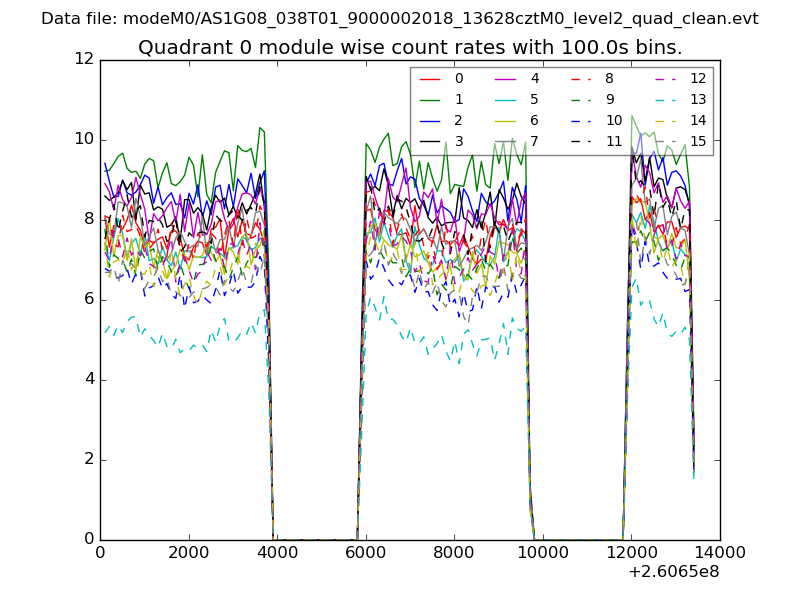

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

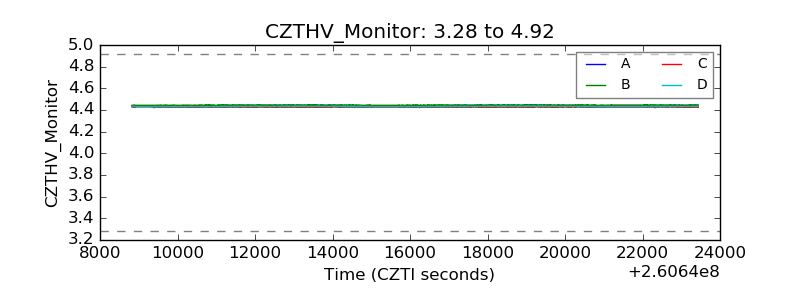

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

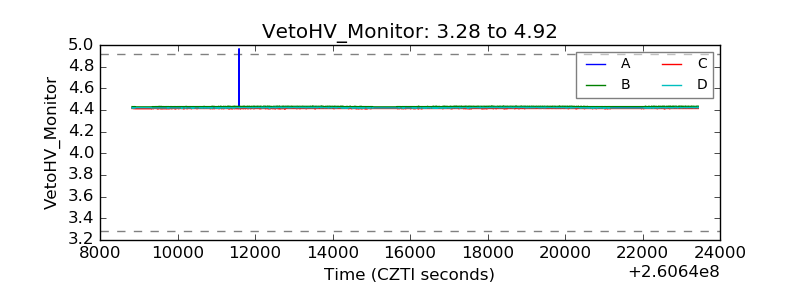

| Veto HV Monitor |  |
| Veto LLD |  |

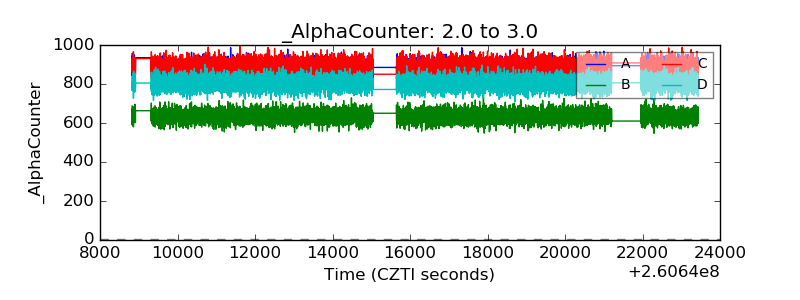

| Alpha Counter |  |
| _CPM_Rate |  |

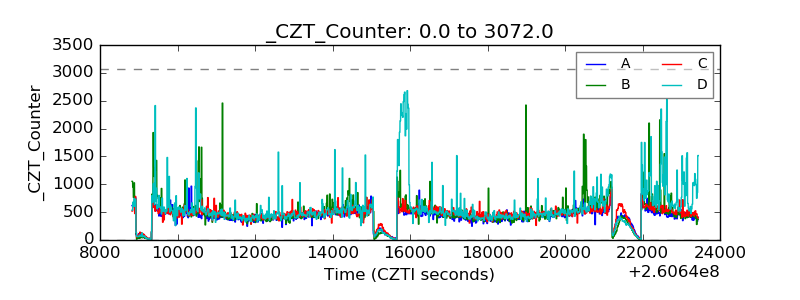

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

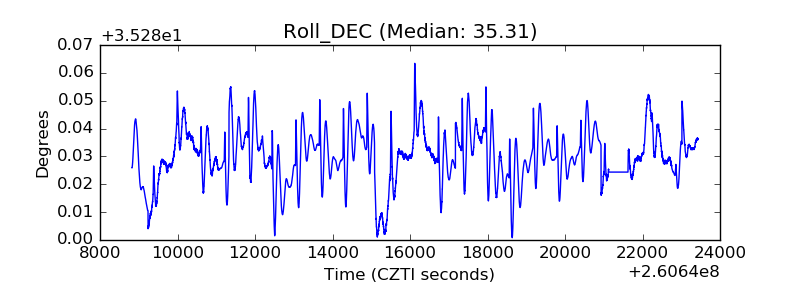

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
