| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_083T03_9000002022_13647cztM0_level2.evt | modeM0/AS1G08_083T03_9000002022_13647cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,510,720 | 87,644,160 |
| Size | 432.5 MB | 83.6 MB |
| Events in quadrant A | 3,165,178 | 553,181 |
| Events in quadrant B | 3,373,337 | 570,110 |
| Events in quadrant C | 3,368,790 | 553,468 |
| Events in quadrant D | 3,391,969 | 530,268 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13304 | 3 |
| B | 0 | 13873 | 2 |
| C | 0 | 13769 | 2 |
| D | 0 | 14075 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 25 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6410 | 18 | 0.280811% |
| B | 6410 | 38 | 0.592824% |
| C | 6410 | 19 | 0.296412% |
| D | 6410 | 43 | 0.670827% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8846 | 6413 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8846 | 6413 | 8 | 8 | 0.09% | 0.12% |  |
| C | 8846 | 6413 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8846 | 6413 | 25 | 25 | 0.28% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 7408 | 40.17 | 820 | 805 | 164.4 |
| A | 1 | 162 | 7079 | 38.17 | 820 | 805 | 164.4 |
| A | 12 | 194 | 6171 | 32.64 | 820 | 805 | 164.4 |
| B | 0 | 219 | 99389 | 641.66 | 828 | 810 | 153.6 |
| B | 12 | 111 | 17826 | 110.76 | 828 | 810 | 153.6 |
| B | 0 | 214 | 16511 | 102.2 | 828 | 810 | 153.6 |
| C | 3 | 233 | 209200 | 1123.22 | 809 | 813 | 185.5 |
| C | 13 | 61 | 5955 | 27.72 | 809 | 813 | 185.5 |
| C | 14 | 234 | 3009 | 11.84 | 809 | 813 | 185.5 |
| D | 13 | 249 | 107586 | 541.9 | 795 | 777 | 197.1 |
| D | 8 | 195 | 104101 | 524.22 | 795 | 777 | 197.1 |
| D | 5 | 222 | 64221 | 321.89 | 795 | 777 | 197.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

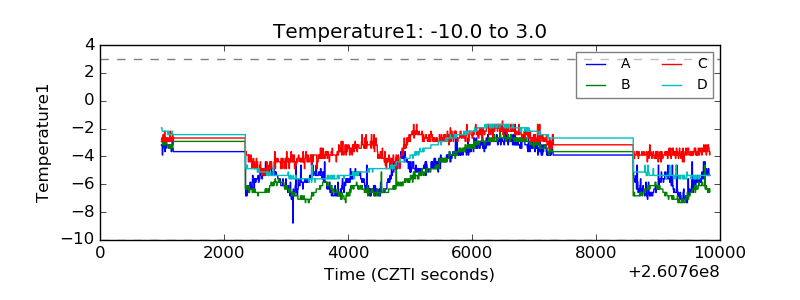

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

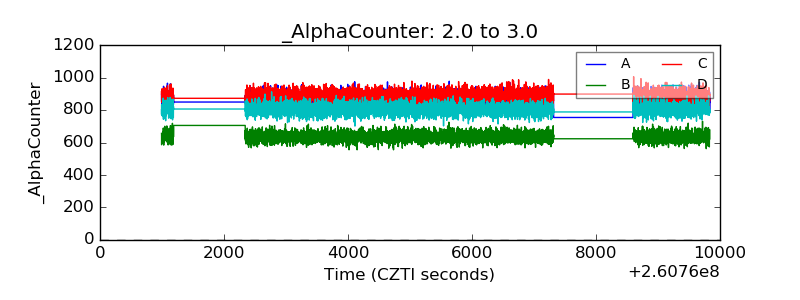

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

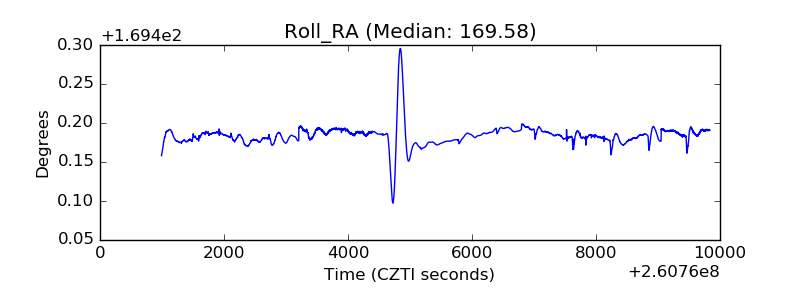

| _Roll_RA |  |
| Veto Counter |  |
