| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_070T01_9000002028_13673cztM0_level2.evt | modeM0/AS1G08_070T01_9000002028_13673cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,947,840 | 103,599,360 |
| Size | 562.6 MB | 98.8 MB |
| Events in quadrant A | 3,205,433 | 685,741 |
| Events in quadrant B | 3,732,353 | 736,715 |
| Events in quadrant C | 3,363,407 | 658,670 |
| Events in quadrant D | 7,115,434 | 592,902 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13735 | 3 |
| B | 0 | 15211 | 2 |
| C | 0 | 13965 | 2 |
| D | 0 | 25590 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6641 | 21 | 0.316217% |
| B | 6641 | 93 | 1.400392% |
| C | 6641 | 12 | 0.180696% |
| D | 6641 | 882 | 13.281132% |

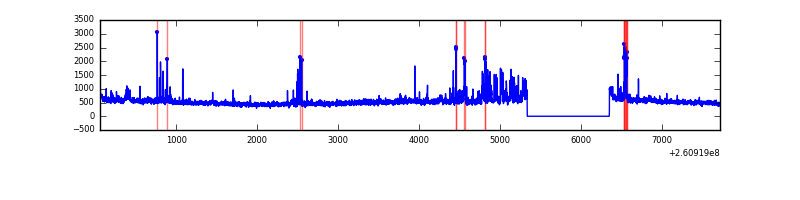

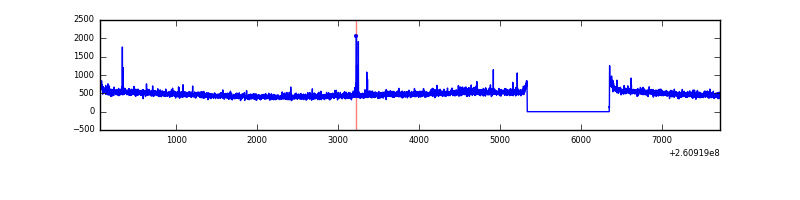

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7657 | 6643 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7657 | 6643 | 18 | 18 | 0.24% | 0.27% |  |
| C | 7657 | 6643 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7657 | 6643 | 854 | 854 | 11.15% | 12.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 24969 | 144.42 | 821 | 804 | 167.3 |
| A | 9 | 143 | 8606 | 46.63 | 821 | 804 | 167.3 |
| A | 1 | 178 | 8579 | 46.47 | 821 | 804 | 167.3 |
| B | 0 | 219 | 275885 | 1727.72 | 837 | 821 | 159.2 |
| B | 0 | 214 | 77570 | 482.07 | 837 | 821 | 159.2 |
| B | 0 | 182 | 49317 | 304.61 | 837 | 821 | 159.2 |
| C | 3 | 233 | 248936 | 1334.58 | 797 | 802 | 185.9 |
| C | 13 | 61 | 5764 | 26.69 | 797 | 802 | 185.9 |
| C | 8 | 128 | 4226 | 18.42 | 797 | 802 | 185.9 |
| D | 13 | 122 | 3600168 | 19655.86 | 754 | 735 | 183.1 |
| D | 5 | 222 | 226078 | 1230.56 | 754 | 735 | 183.1 |
| D | 12 | 110 | 158748 | 862.88 | 754 | 735 | 183.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

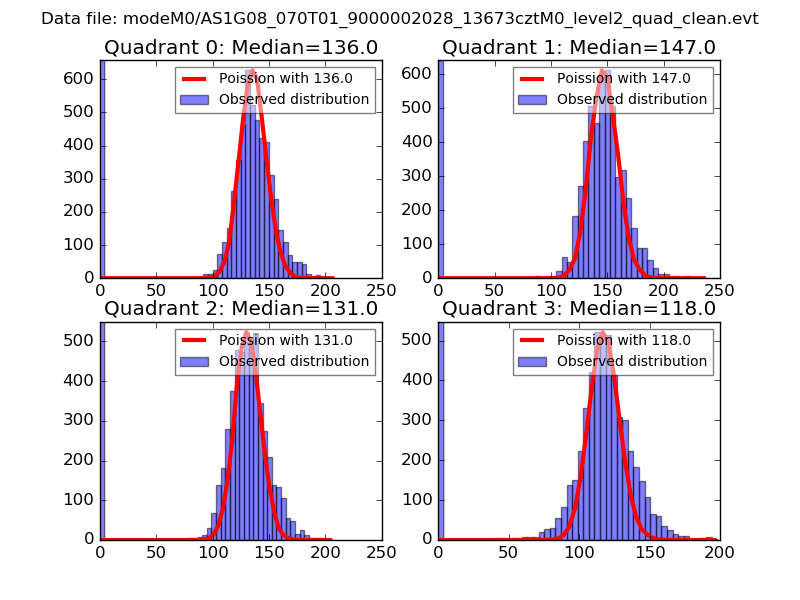

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

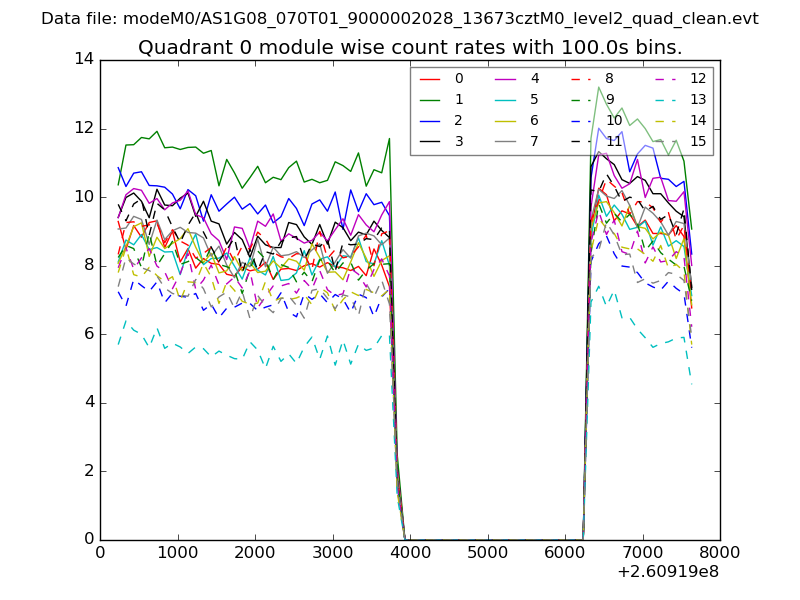

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

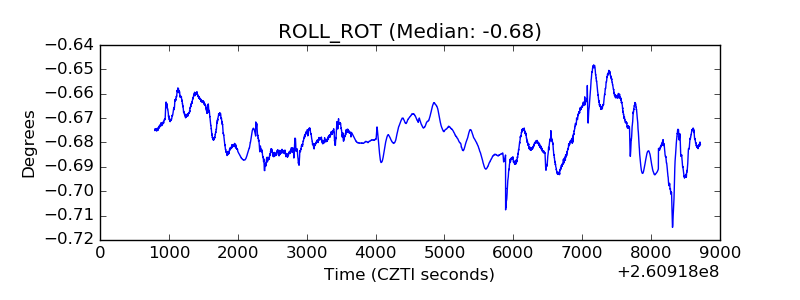

| _ROLL_ROT |  |
| _Roll_DEC |  |

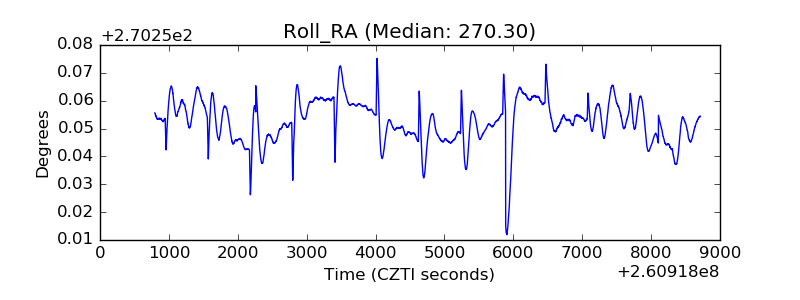

| _Roll_RA |  |

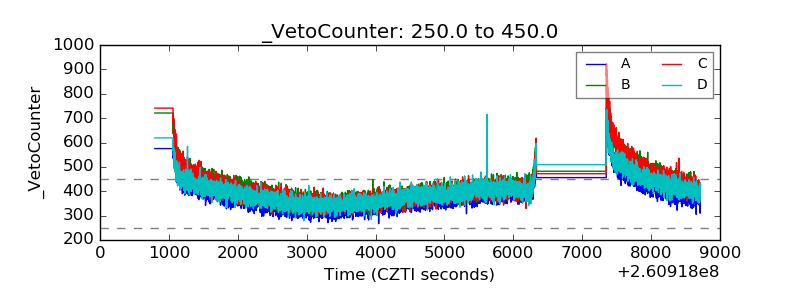

| Veto Counter |  |
