| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_070T01_9000002028_13686cztM0_level2.evt | modeM0/AS1G08_070T01_9000002028_13686cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,069,421,760 | 167,785,920 |
| Size | 1019.9 MB | 160.0 MB |
| Events in quadrant A | 6,300,356 | 1,073,907 |
| Events in quadrant B | 7,081,909 | 1,144,363 |
| Events in quadrant C | 6,440,374 | 1,024,937 |
| Events in quadrant D | 11,677,276 | 930,251 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 266 | 0 |
| B | 0 | 266 | 0 |
| C | 0 | 266 | 0 |
| D | 0 | 266 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27179 | 4 |
| B | 0 | 29189 | 3 |
| C | 0 | 27117 | 3 |
| D | 0 | 43518 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13150 | 127 | 0.965779% |
| B | 13150 | 209 | 1.589354% |
| C | 13150 | 83 | 0.631179% |
| D | 13150 | 1361 | 10.349810% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 14856 | 13154 | 5 | 5 | 0.03% | 0.04% |  |
| B | 14856 | 13154 | 38 | 38 | 0.26% | 0.29% |  |
| C | 14856 | 13154 | 4 | 4 | 0.03% | 0.03% |  |
| D | 14856 | 13154 | 1088 | 1088 | 7.32% | 8.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 69 | 82016 | 245.12 | 1611 | 1577 | 328.2 |
| A | 0 | 226 | 14250 | 38.62 | 1611 | 1577 | 328.2 |
| A | 8 | 15 | 12978 | 34.74 | 1611 | 1577 | 328.2 |
| B | 8 | 250 | 255782 | 822.86 | 1632 | 1599 | 308.9 |
| B | 0 | 219 | 178494 | 572.66 | 1632 | 1599 | 308.9 |
| B | 10 | 244 | 124679 | 398.44 | 1632 | 1599 | 308.9 |
| C | 3 | 233 | 350931 | 969.72 | 1552 | 1559 | 360.3 |
| C | 14 | 234 | 25305 | 65.91 | 1552 | 1559 | 360.3 |
| C | 13 | 61 | 11358 | 27.2 | 1552 | 1559 | 360.3 |
| D | 13 | 122 | 2789206 | 7800.71 | 1497 | 1458 | 357.4 |
| D | 5 | 222 | 1349393 | 3771.81 | 1497 | 1458 | 357.4 |
| D | 8 | 195 | 1077258 | 3010.32 | 1497 | 1458 | 357.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

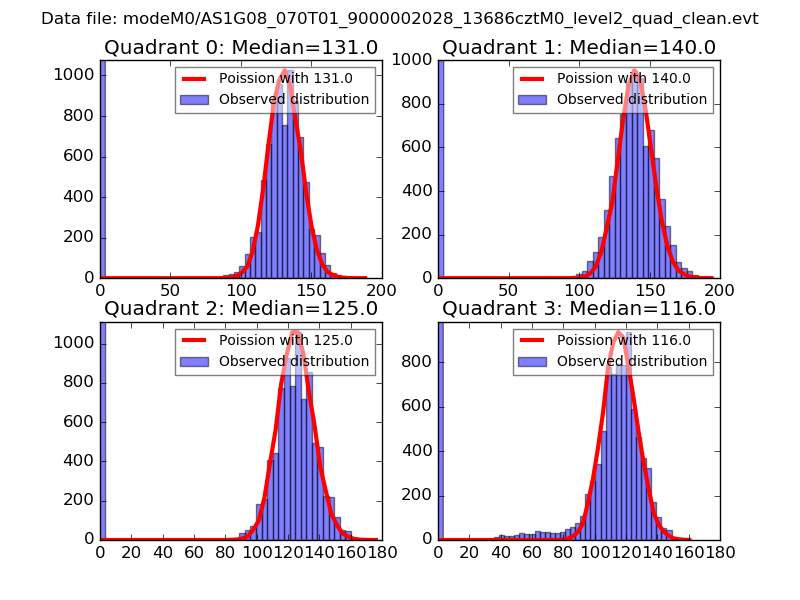

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

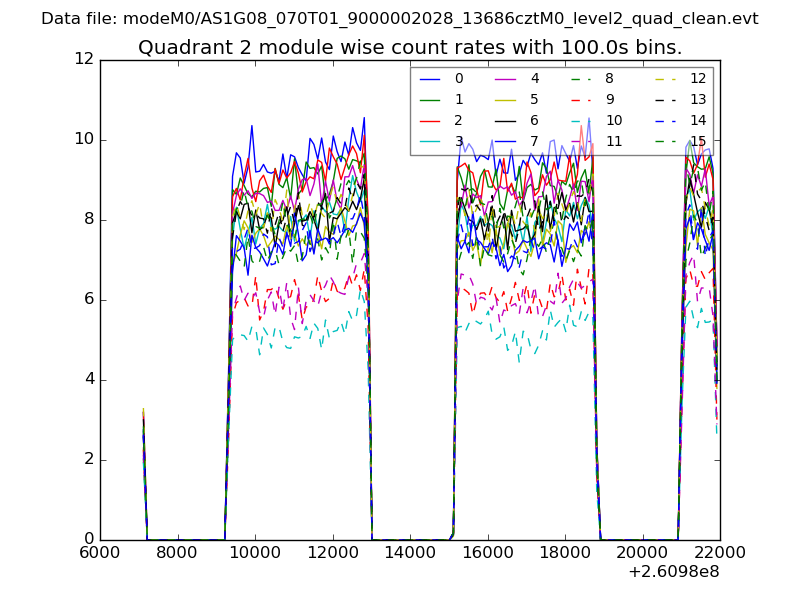

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

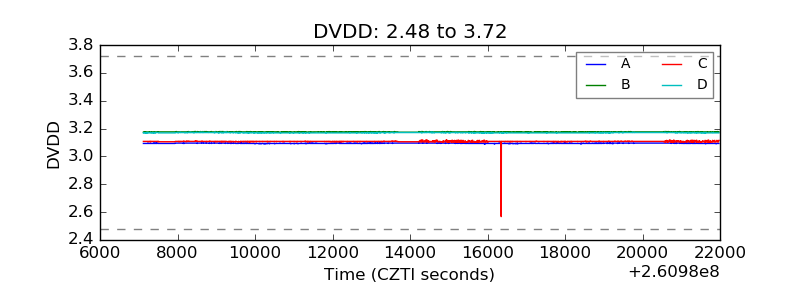

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

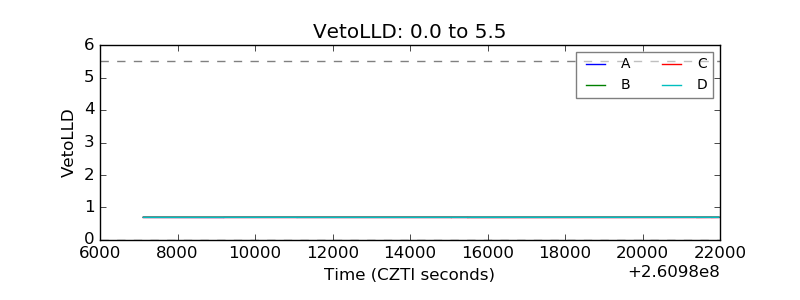

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

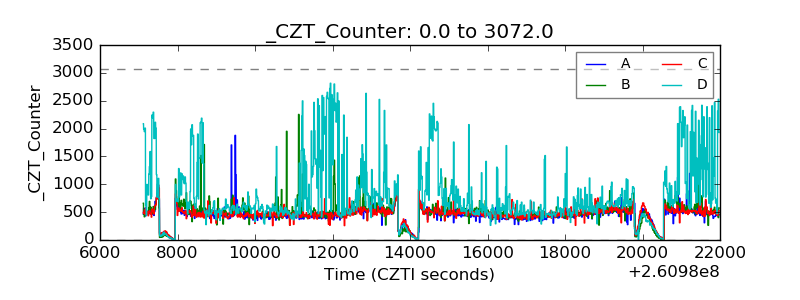

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

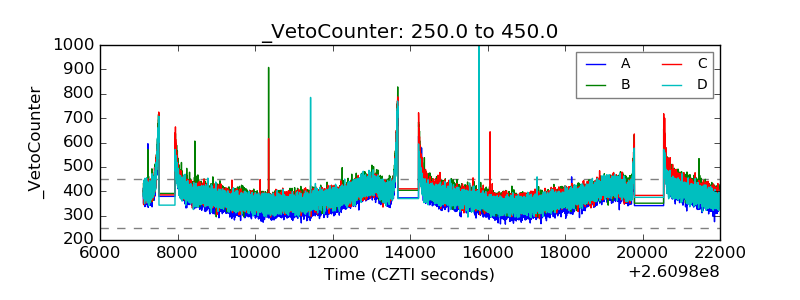

| Veto Counter |  |
