| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_070T01_9000002028_13687cztM0_level2.evt | modeM0/AS1G08_070T01_9000002028_13687cztM0_level2_quad_clean.evt |
| Size (bytes) | 668,381,760 | 100,025,280 |
| Size | 637.4 MB | 95.4 MB |
| Events in quadrant A | 3,633,794 | 651,096 |
| Events in quadrant B | 4,041,527 | 699,564 |
| Events in quadrant C | 3,777,167 | 624,111 |
| Events in quadrant D | 8,284,715 | 535,419 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15496 | 3 |
| B | 0 | 16726 | 2 |
| C | 0 | 15578 | 2 |
| D | 0 | 29769 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7456 | 46 | 0.616953% |
| B | 7456 | 63 | 0.844957% |
| C | 7456 | 19 | 0.254828% |
| D | 7456 | 1652 | 22.156652% |

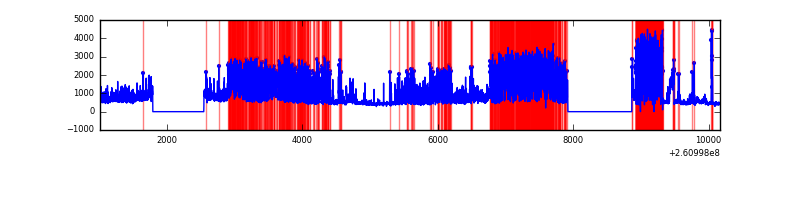

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9157 | 7459 | 6 | 6 | 0.07% | 0.08% |  |
| B | 9157 | 7459 | 7 | 7 | 0.08% | 0.09% |  |
| C | 9157 | 7459 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9157 | 7459 | 1128 | 1128 | 12.32% | 15.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 69 | 54558 | 282.14 | 928 | 907 | 190.2 |
| A | 0 | 226 | 8208 | 38.4 | 928 | 907 | 190.2 |
| A | 12 | 194 | 7022 | 32.16 | 928 | 907 | 190.2 |
| B | 0 | 219 | 130340 | 725.03 | 942 | 923 | 178.5 |
| B | 10 | 244 | 107799 | 598.75 | 942 | 923 | 178.5 |
| B | 8 | 250 | 56372 | 310.64 | 942 | 923 | 178.5 |
| C | 3 | 233 | 264984 | 1268.86 | 895 | 900 | 208.1 |
| C | 8 | 128 | 12131 | 53.96 | 895 | 900 | 208.1 |
| C | 8 | 112 | 6837 | 28.53 | 895 | 900 | 208.1 |
| D | 13 | 122 | 4399270 | 23031.44 | 796 | 772 | 191.0 |
| D | 8 | 195 | 495165 | 2588.74 | 796 | 772 | 191.0 |
| D | 5 | 222 | 176961 | 922.56 | 796 | 772 | 191.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

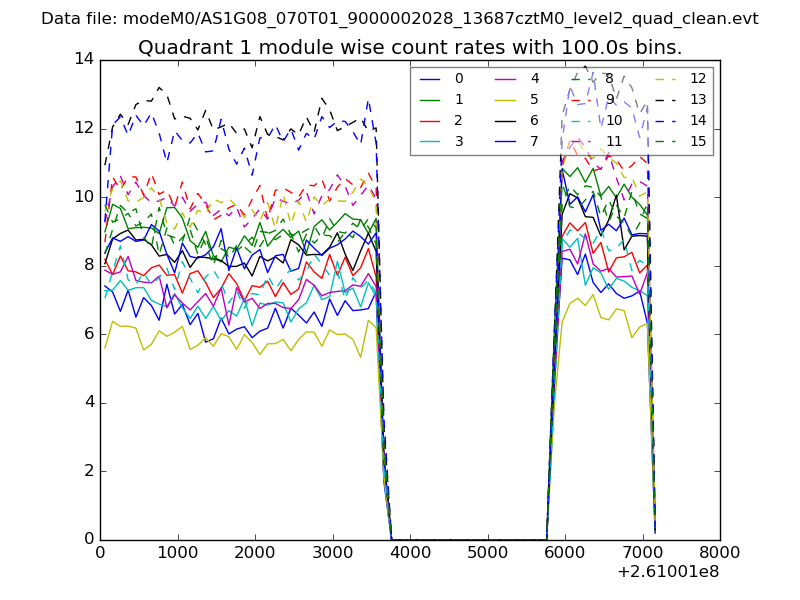

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

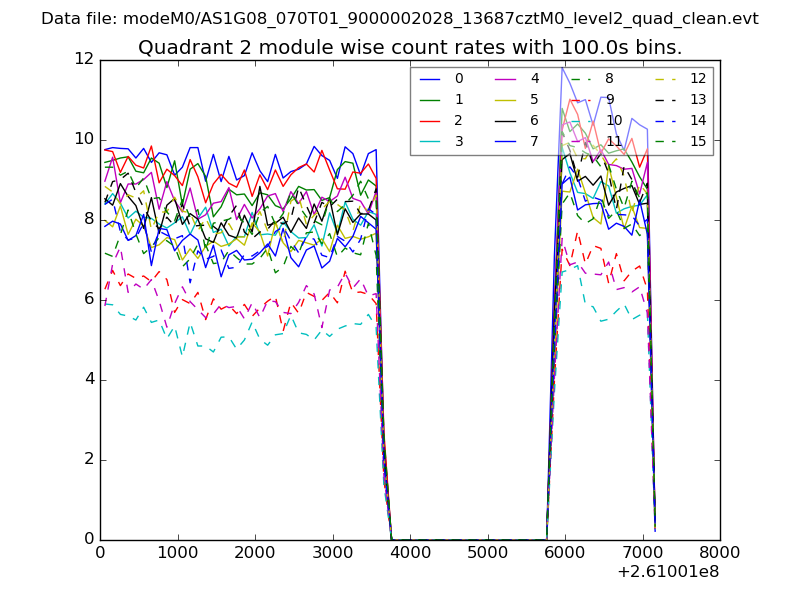

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

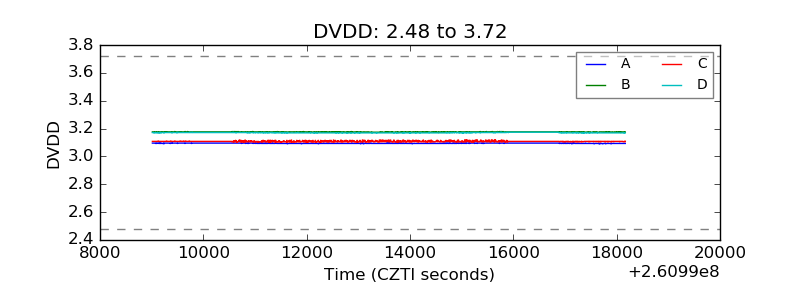

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

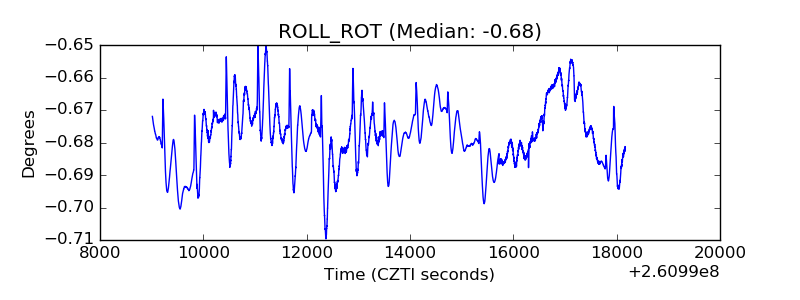

| _ROLL_ROT |  |

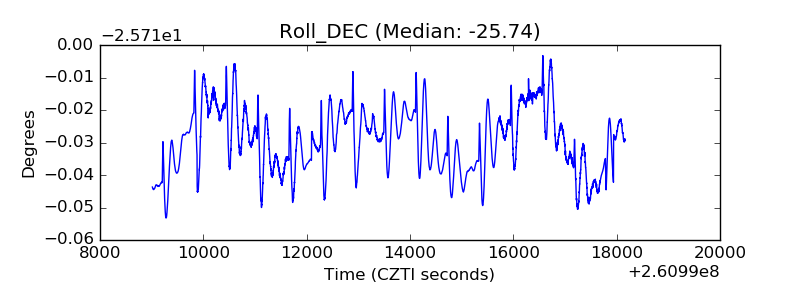

| _Roll_DEC |  |

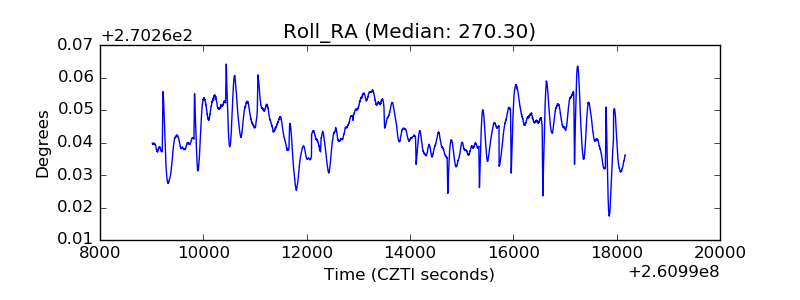

| _Roll_RA |  |
| Veto Counter |  |
