| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_039T01_9000002026_13664cztM0_level2.evt | modeM0/AS1T02_039T01_9000002026_13664cztM0_level2_quad_clean.evt |
| Size (bytes) | 554,993,280 | 103,777,920 |
| Size | 529.3 MB | 99.0 MB |
| Events in quadrant A | 3,560,467 | 699,020 |
| Events in quadrant B | 4,375,546 | 696,379 |
| Events in quadrant C | 3,514,218 | 682,287 |
| Events in quadrant D | 4,934,106 | 628,709 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14322 | 3 |
| B | 0 | 17148 | 2 |
| C | 0 | 14197 | 2 |
| D | 0 | 18709 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6259 | 116 | 1.853331% |
| B | 6259 | 428 | 6.838153% |
| C | 6259 | 86 | 1.374021% |
| D | 6259 | 386 | 6.167119% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7580 | 6262 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7580 | 6262 | 93 | 93 | 1.23% | 1.49% |  |
| C | 7580 | 6262 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7580 | 6262 | 331 | 331 | 4.37% | 5.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 157 | 45915 | 250.8 | 894 | 881 | 179.6 |
| A | 9 | 143 | 40682 | 221.66 | 894 | 881 | 179.6 |
| A | 1 | 162 | 18960 | 100.69 | 894 | 881 | 179.6 |
| B | 0 | 219 | 836706 | 5130.1 | 872 | 859 | 162.9 |
| B | 3 | 64 | 75684 | 459.25 | 872 | 859 | 162.9 |
| B | 0 | 214 | 20707 | 121.82 | 872 | 859 | 162.9 |
| C | 3 | 233 | 212222 | 1093.83 | 845 | 854 | 193.2 |
| C | 13 | 61 | 6255 | 27.95 | 845 | 854 | 193.2 |
| C | 14 | 234 | 3477 | 13.57 | 845 | 854 | 193.2 |
| D | 5 | 222 | 1389947 | 6874.09 | 839 | 819 | 202.1 |
| D | 13 | 249 | 163108 | 803.09 | 839 | 819 | 202.1 |
| D | 8 | 195 | 132751 | 652.86 | 839 | 819 | 202.1 |

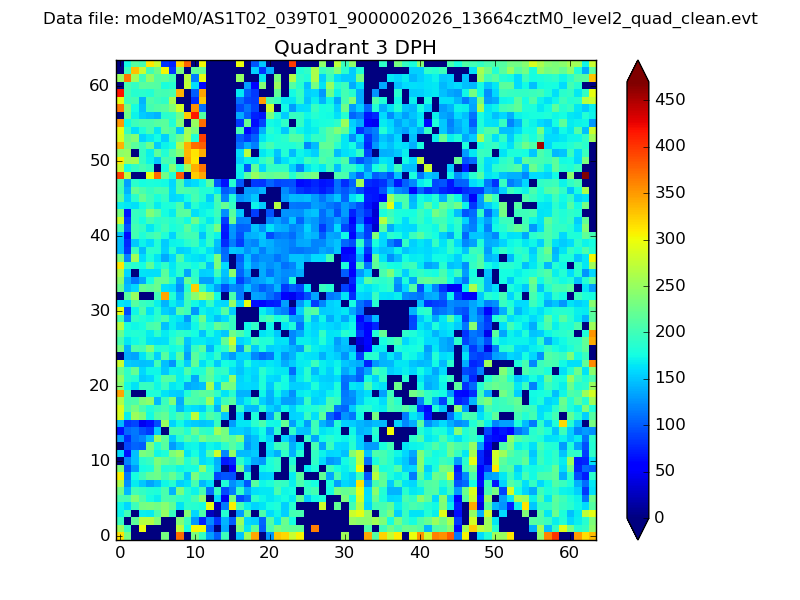

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

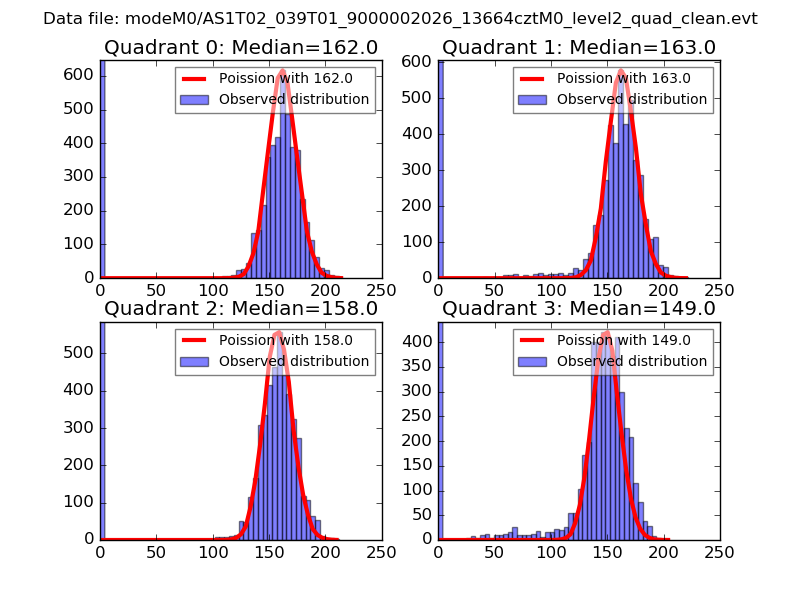

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

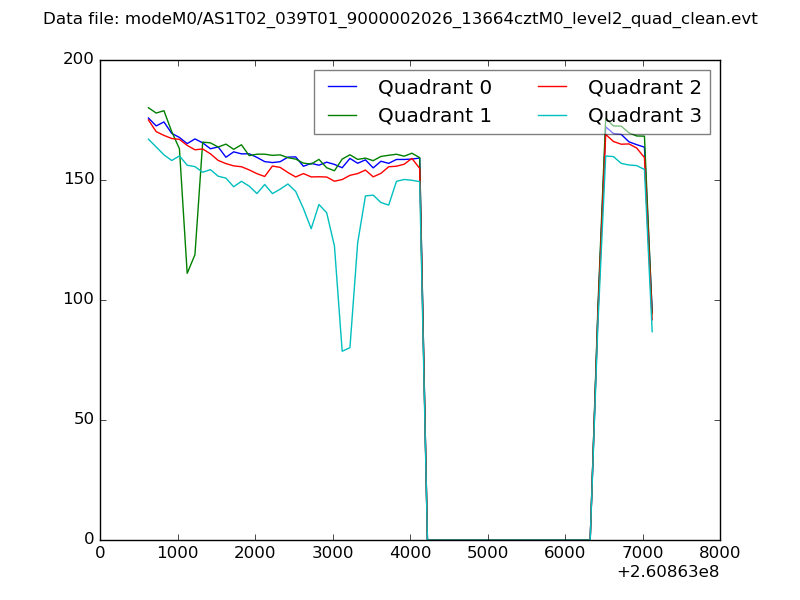

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

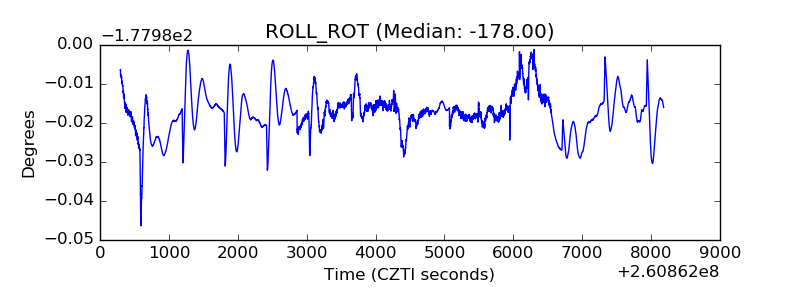

| _ROLL_ROT |  |

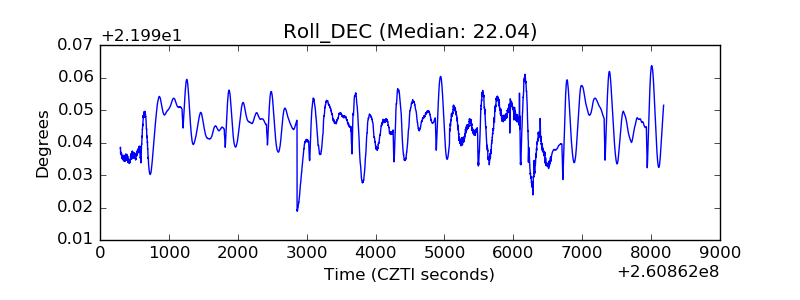

| _Roll_DEC |  |
| _Roll_RA |  |

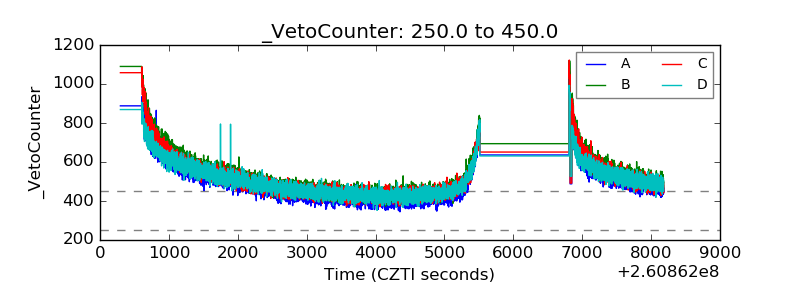

| Veto Counter |  |
