| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_041T01_9000002032_13709cztM0_level2.evt | modeM0/AS1T02_041T01_9000002032_13709cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,146,942,720 | 336,081,600 |
| Size | 1.1 GB | 320.5 MB |
| Events in quadrant A | 7,895,765 | 2,253,532 |
| Events in quadrant B | 8,314,603 | 2,320,038 |
| Events in quadrant C | 8,072,486 | 2,289,443 |
| Events in quadrant D | 9,335,430 | 2,178,733 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33927 | 5 |
| B | 0 | 35090 | 4 |
| C | 0 | 34264 | 4 |
| D | 0 | 39023 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 336 | 0 |
| B | 0 | 336 | 0 |
| C | 0 | 336 | 0 |
| D | 0 | 336 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 45 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16517 | 157 | 0.950536% |
| B | 16517 | 226 | 1.368287% |
| C | 16517 | 83 | 0.502513% |
| D | 16517 | 373 | 2.258279% |

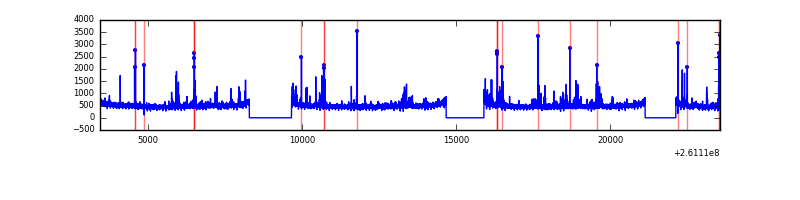

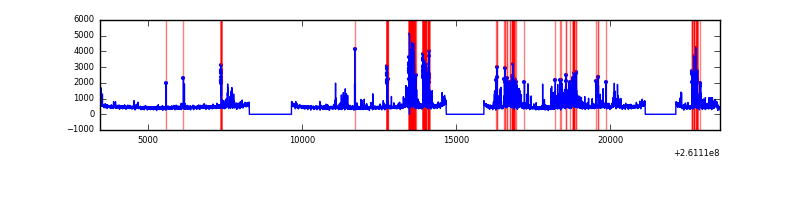

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20108 | 16521 | 7 | 7 | 0.03% | 0.04% |  |
| B | 20108 | 16521 | 22 | 22 | 0.11% | 0.13% |  |
| C | 20108 | 16521 | 1 | 1 | 0.00% | 0.01% |  |
| D | 20108 | 16521 | 260 | 260 | 1.29% | 1.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 115640 | 284.43 | 2007 | 1968 | 399.6 |
| A | 1 | 162 | 26893 | 62.37 | 2007 | 1968 | 399.6 |
| A | 15 | 69 | 21769 | 49.55 | 2007 | 1968 | 399.6 |
| B | 0 | 219 | 156287 | 418.86 | 2011 | 1965 | 368.4 |
| B | 8 | 250 | 104352 | 277.9 | 2011 | 1965 | 368.4 |
| B | 3 | 64 | 60363 | 158.5 | 2011 | 1965 | 368.4 |
| C | 3 | 233 | 389951 | 887.65 | 1946 | 1955 | 437.1 |
| C | 14 | 220 | 39347 | 85.54 | 1946 | 1955 | 437.1 |
| C | 0 | 207 | 28450 | 60.61 | 1946 | 1955 | 437.1 |
| D | 9 | 85 | 614998 | 1228.75 | 1913 | 1875 | 499.0 |
| D | 2 | 136 | 586758 | 1172.16 | 1913 | 1875 | 499.0 |
| D | 1 | 52 | 238094 | 473.4 | 1913 | 1875 | 499.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

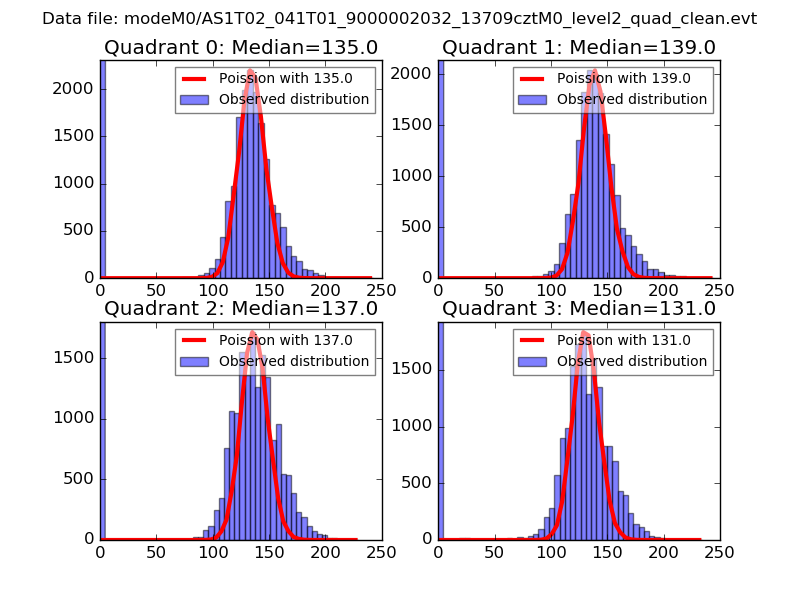

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

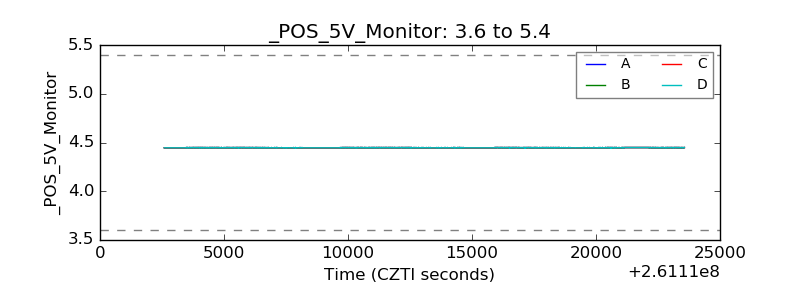

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

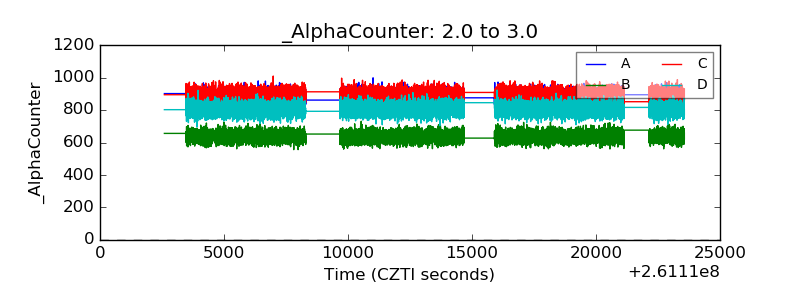

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
