| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_041T01_9000002032_13716cztM0_level2.evt | modeM0/AS1T02_041T01_9000002032_13716cztM0_level2_quad_clean.evt |
| Size (bytes) | 439,692,480 | 128,646,720 |
| Size | 419.3 MB | 122.7 MB |
| Events in quadrant A | 3,083,703 | 841,251 |
| Events in quadrant B | 3,201,523 | 869,297 |
| Events in quadrant C | 3,386,383 | 876,604 |
| Events in quadrant D | 3,186,473 | 840,063 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13829 | 3 |
| B | 0 | 13997 | 2 |
| C | 0 | 14433 | 2 |
| D | 0 | 14131 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6730 | 20 | 0.297177% |
| B | 6730 | 20 | 0.297177% |
| C | 6730 | 74 | 1.099554% |
| D | 6730 | 17 | 0.252600% |

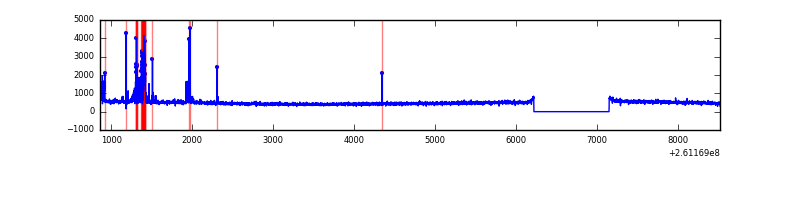

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7661 | 6732 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7661 | 6732 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7661 | 6732 | 39 | 39 | 0.51% | 0.58% |  |
| D | 7661 | 6732 | 8 | 8 | 0.10% | 0.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 69 | 31998 | 193.65 | 787 | 768 | 161.3 |
| A | 1 | 162 | 11767 | 68.2 | 787 | 768 | 161.3 |
| A | 15 | 222 | 9981 | 57.13 | 787 | 768 | 161.3 |
| B | 0 | 219 | 34311 | 221.99 | 796 | 776 | 151.1 |
| B | 8 | 250 | 25521 | 163.81 | 796 | 776 | 151.1 |
| B | 4 | 173 | 17478 | 110.56 | 796 | 776 | 151.1 |
| C | 4 | 254 | 212585 | 1182.79 | 782 | 787 | 179.1 |
| C | 3 | 233 | 117500 | 651.78 | 782 | 787 | 179.1 |
| C | 14 | 234 | 6287 | 30.71 | 782 | 787 | 179.1 |
| D | 8 | 195 | 72451 | 386.49 | 778 | 754 | 185.5 |
| D | 13 | 249 | 53900 | 286.49 | 778 | 754 | 185.5 |
| D | 10 | 157 | 51668 | 274.46 | 778 | 754 | 185.5 |

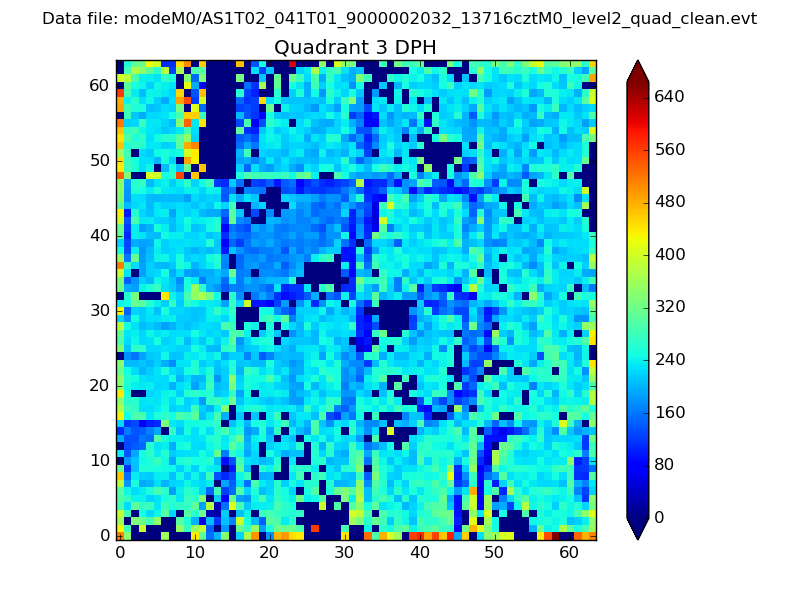

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

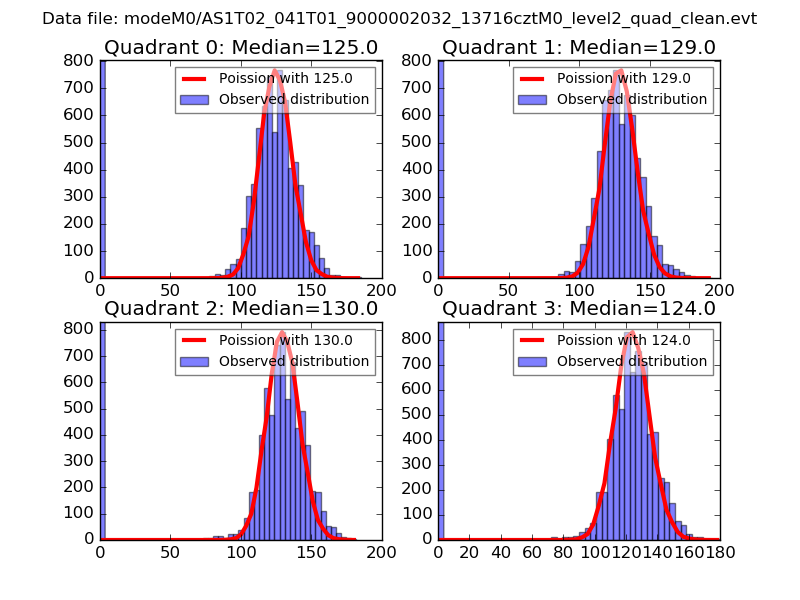

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

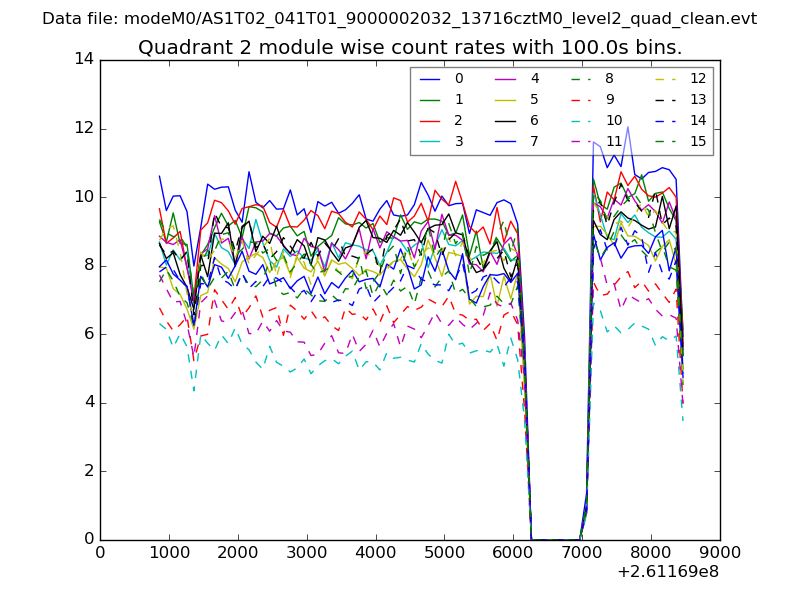

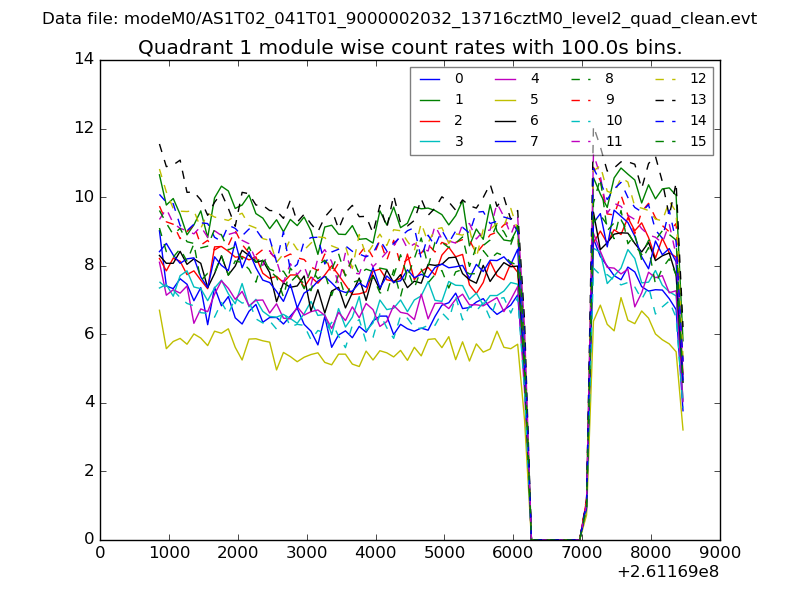

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

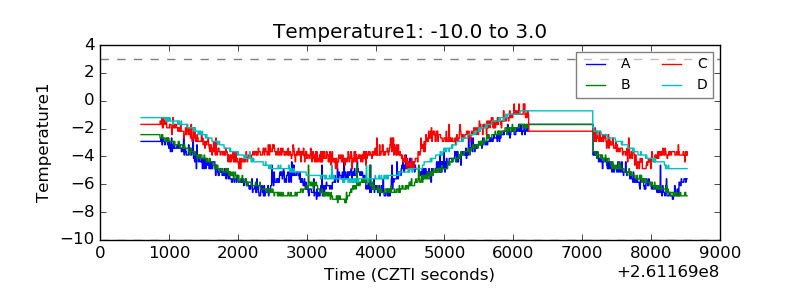

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

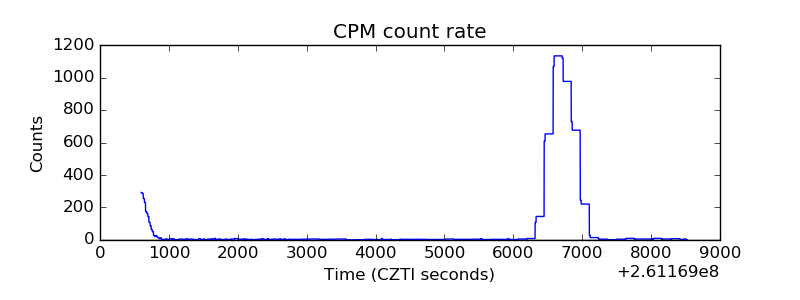

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

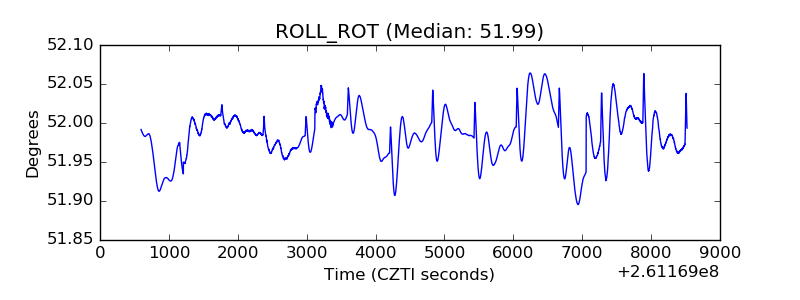

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
