| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T02_041T01_9000002032_13717cztM0_level2.evt | modeM0/AS1T02_041T01_9000002032_13717cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,457,920 | 129,528,000 |
| Size | 438.2 MB | 123.5 MB |
| Events in quadrant A | 3,043,192 | 849,339 |
| Events in quadrant B | 3,472,440 | 877,185 |
| Events in quadrant C | 3,165,893 | 892,575 |
| Events in quadrant D | 3,783,298 | 842,407 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13614 | 3 |
| B | 0 | 14655 | 2 |
| C | 0 | 13711 | 2 |
| D | 0 | 15655 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6617 | 22 | 0.332477% |
| B | 6617 | 44 | 0.664954% |
| C | 6617 | 11 | 0.166238% |
| D | 6617 | 65 | 0.982318% |

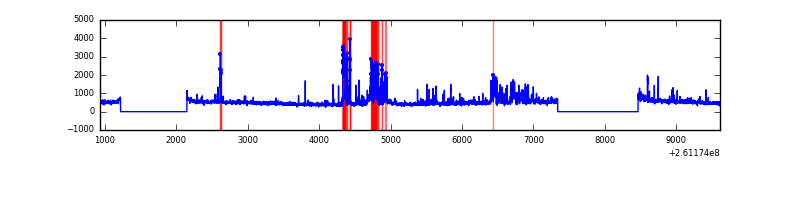

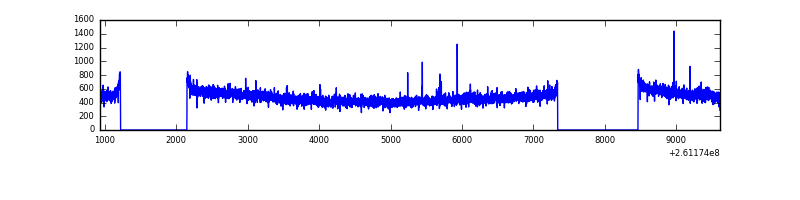

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8673 | 6620 | 6 | 6 | 0.07% | 0.09% |  |
| B | 8673 | 6620 | 14 | 14 | 0.16% | 0.21% |  |
| C | 8673 | 6620 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8673 | 6620 | 77 | 77 | 0.89% | 1.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 69 | 31612 | 195.39 | 780 | 764 | 157.9 |
| A | 1 | 162 | 9531 | 55.53 | 780 | 764 | 157.9 |
| A | 0 | 226 | 6867 | 38.66 | 780 | 764 | 157.9 |
| B | 0 | 219 | 251980 | 1682.63 | 791 | 770 | 149.3 |
| B | 4 | 173 | 43841 | 288.49 | 791 | 770 | 149.3 |
| B | 8 | 250 | 39618 | 260.21 | 791 | 770 | 149.3 |
| C | 3 | 233 | 111387 | 618.34 | 781 | 784 | 178.9 |
| C | 12 | 4 | 6687 | 33.0 | 781 | 784 | 178.9 |
| C | 13 | 61 | 5805 | 28.07 | 781 | 784 | 178.9 |
| D | 5 | 222 | 601783 | 3282.52 | 767 | 745 | 183.1 |
| D | 8 | 195 | 152945 | 831.23 | 767 | 745 | 183.1 |
| D | 1 | 52 | 45956 | 246.92 | 767 | 745 | 183.1 |

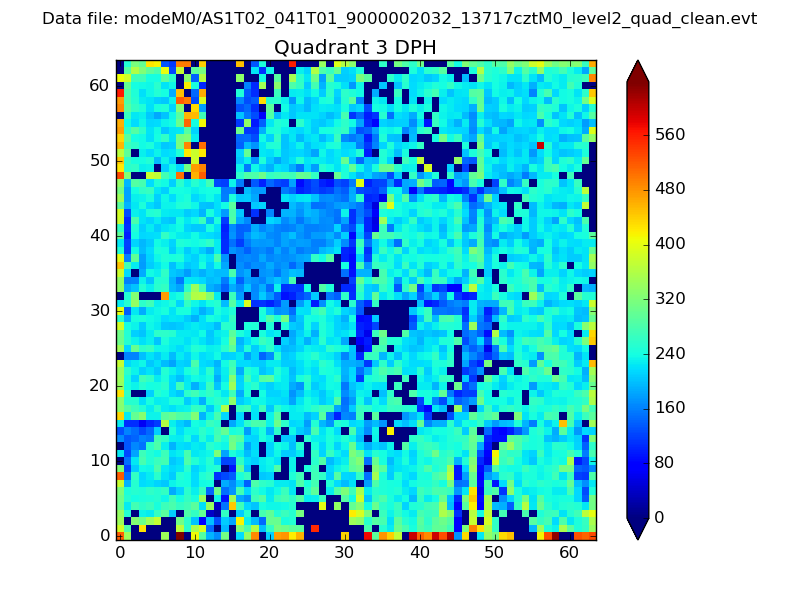

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

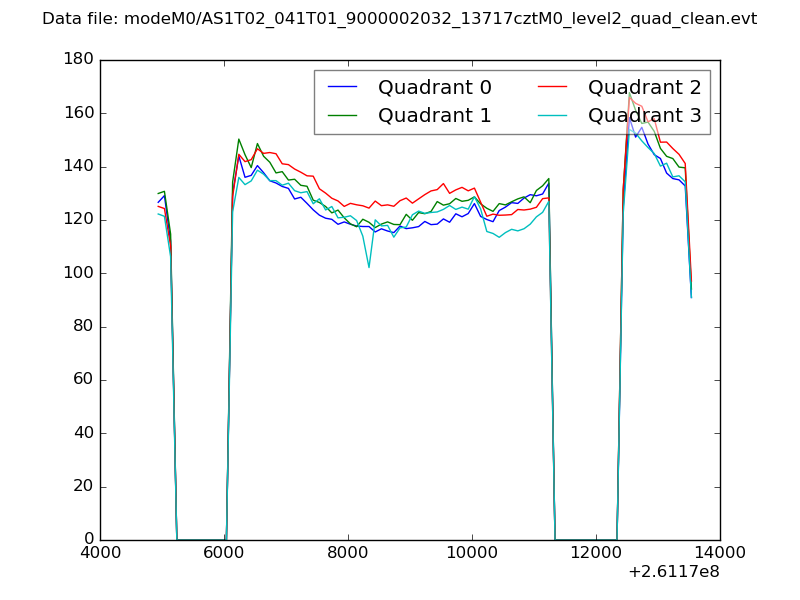

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

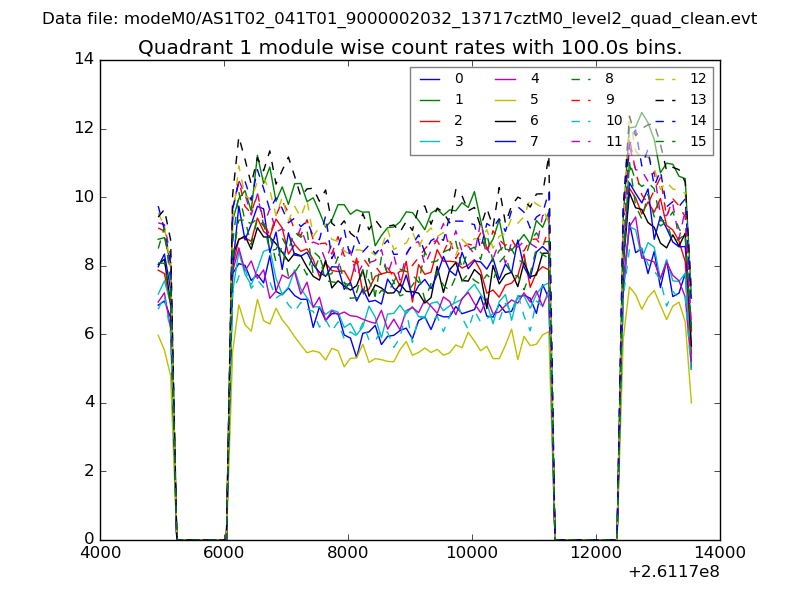

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

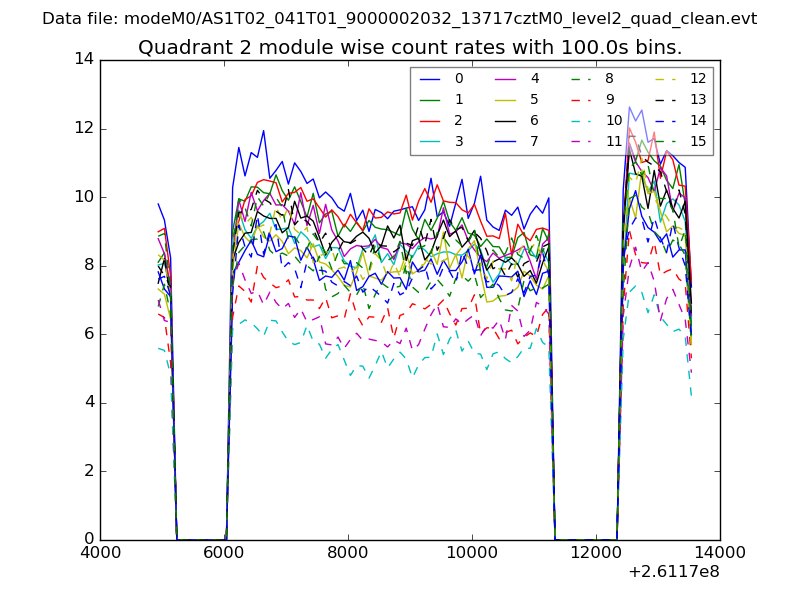

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

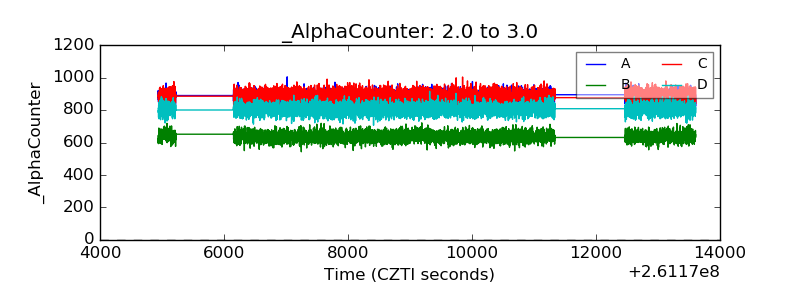

| Alpha Counter |  |

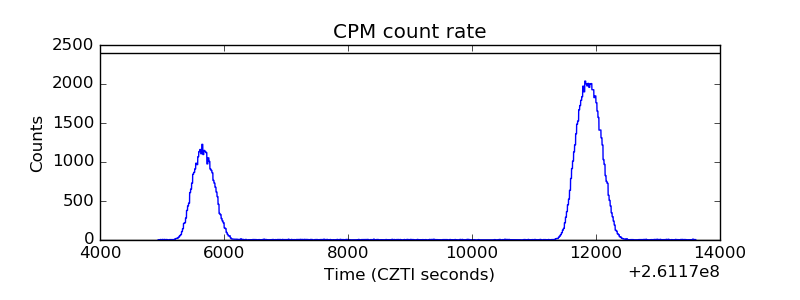

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
