| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_062T01_9000002038_13764cztM0_level2.evt | modeM0/AS1G08_062T01_9000002038_13764cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,822,080 | 114,108,480 |
| Size | 488.1 MB | 108.8 MB |
| Events in quadrant A | 3,454,947 | 751,220 |
| Events in quadrant B | 3,537,861 | 756,230 |
| Events in quadrant C | 3,228,028 | 787,181 |
| Events in quadrant D | 4,855,190 | 724,340 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14246 | 3 |
| B | 0 | 14720 | 2 |
| C | 0 | 13519 | 2 |
| D | 0 | 18747 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6259 | 90 | 1.437929% |
| B | 6259 | 100 | 1.597699% |
| C | 6259 | 41 | 0.655057% |
| D | 6259 | 403 | 6.438728% |

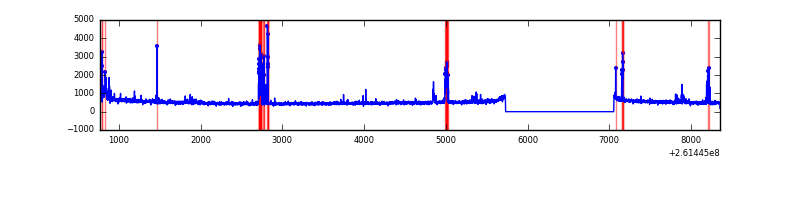

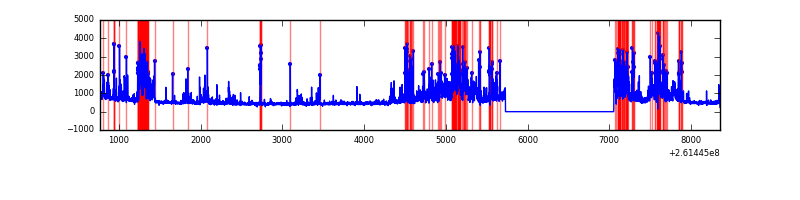

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7585 | 6261 | 48 | 48 | 0.63% | 0.77% |  |
| B | 7585 | 6261 | 26 | 26 | 0.34% | 0.42% |  |
| C | 7585 | 6261 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7585 | 6261 | 276 | 276 | 3.64% | 4.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 301956 | 1835.73 | 809 | 795 | 164.1 |
| A | 1 | 162 | 19994 | 117.03 | 809 | 795 | 164.1 |
| A | 0 | 226 | 7559 | 41.23 | 809 | 795 | 164.1 |
| B | 0 | 219 | 230851 | 1518.05 | 816 | 799 | 151.5 |
| B | 4 | 80 | 33935 | 218.66 | 816 | 799 | 151.5 |
| B | 0 | 189 | 22954 | 146.2 | 816 | 799 | 151.5 |
| C | 3 | 233 | 75182 | 397.97 | 806 | 815 | 186.9 |
| C | 6 | 253 | 8148 | 39.24 | 806 | 815 | 186.9 |
| C | 13 | 61 | 5819 | 26.78 | 806 | 815 | 186.9 |
| D | 5 | 222 | 818725 | 4342.36 | 775 | 755 | 188.4 |
| D | 1 | 52 | 612225 | 3246.11 | 775 | 755 | 188.4 |
| D | 13 | 249 | 268415 | 1420.93 | 775 | 755 | 188.4 |

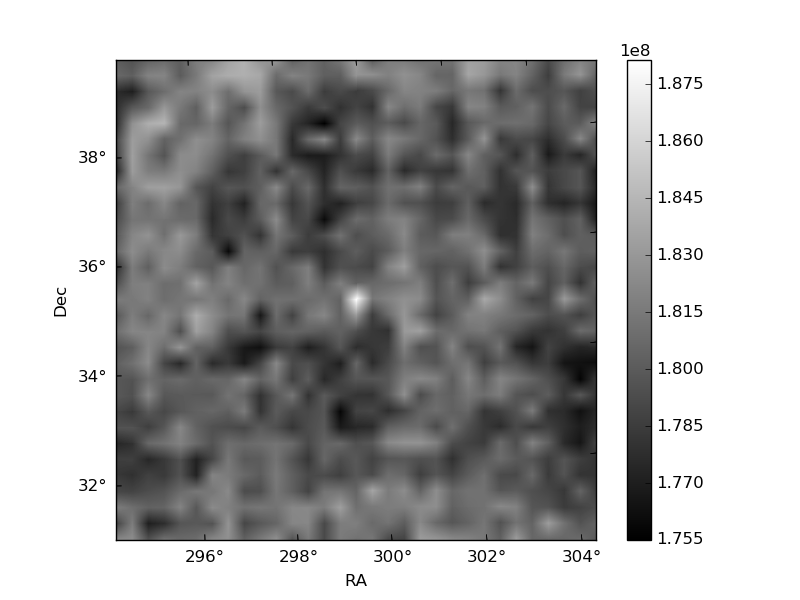

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

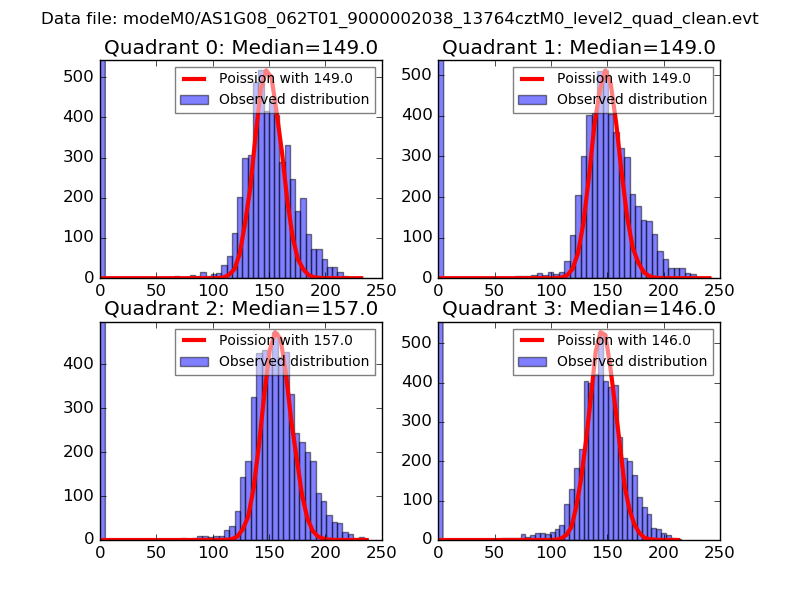

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

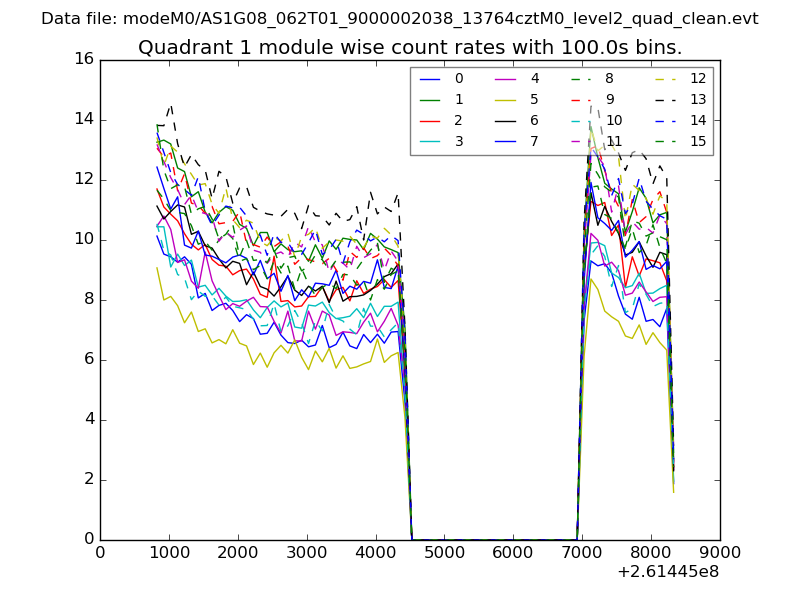

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

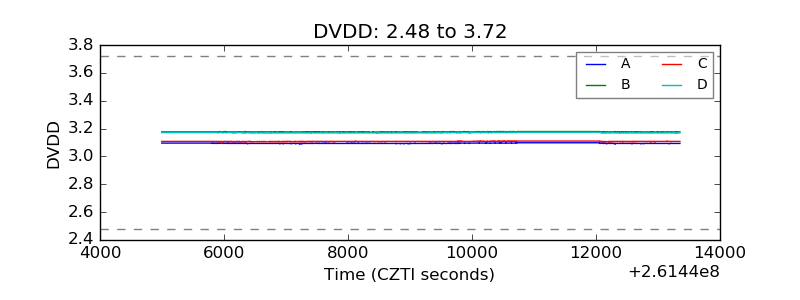

| D_VDD |  |

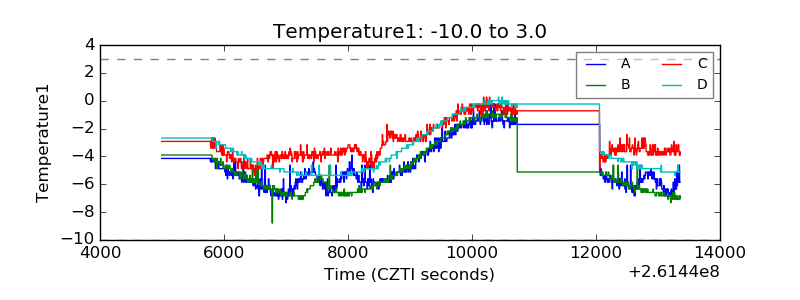

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

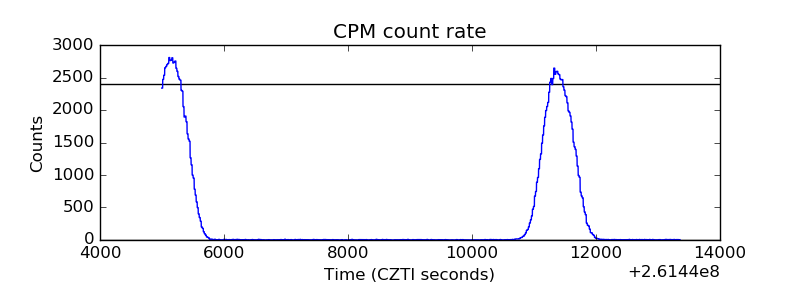

| _CPM_Rate |  |
