| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G08_062T01_9000002038_13766cztM0_level2.evt | modeM0/AS1G08_062T01_9000002038_13766cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,917,120 | 93,925,440 |
| Size | 471.0 MB | 89.6 MB |
| Events in quadrant A | 3,652,913 | 600,060 |
| Events in quadrant B | 3,225,834 | 602,735 |
| Events in quadrant C | 3,767,004 | 614,881 |
| Events in quadrant D | 3,885,254 | 587,329 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14895 | 2 |
| B | 0 | 13503 | 1 |
| C | 0 | 15203 | 1 |
| D | 0 | 15798 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6297 | 249 | 3.954264% |
| B | 6297 | 59 | 0.936954% |
| C | 6297 | 115 | 1.826266% |
| D | 6297 | 89 | 1.413371% |

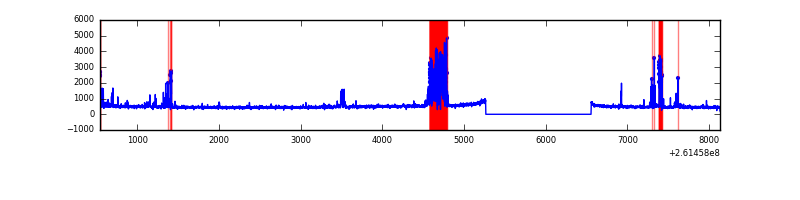

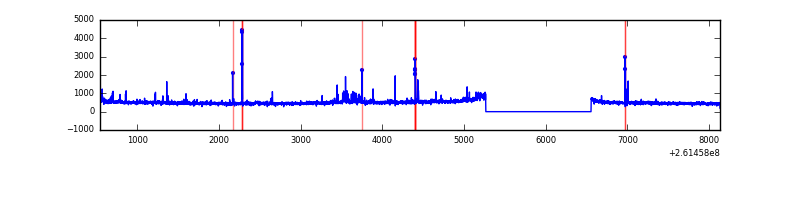

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7588 | 6299 | 191 | 191 | 2.52% | 3.03% |  |
| B | 7588 | 6299 | 12 | 12 | 0.16% | 0.19% |  |
| C | 7588 | 6299 | 84 | 84 | 1.11% | 1.33% |  |
| D | 7588 | 6299 | 51 | 51 | 0.67% | 0.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 693432 | 4512.33 | 761 | 747 | 153.5 |
| A | 1 | 162 | 12470 | 76.37 | 761 | 747 | 153.5 |
| A | 0 | 23 | 8850 | 52.79 | 761 | 747 | 153.5 |
| B | 0 | 219 | 83767 | 566.44 | 778 | 760 | 146.5 |
| B | 4 | 80 | 30275 | 201.41 | 778 | 760 | 146.5 |
| B | 5 | 32 | 25606 | 169.55 | 778 | 760 | 146.5 |
| C | 9 | 236 | 702195 | 4017.87 | 758 | 763 | 174.6 |
| C | 3 | 233 | 99179 | 563.74 | 758 | 763 | 174.6 |
| C | 14 | 234 | 7005 | 35.75 | 758 | 763 | 174.6 |
| D | 1 | 52 | 395762 | 2166.44 | 750 | 728 | 182.3 |
| D | 10 | 157 | 224064 | 1224.82 | 750 | 728 | 182.3 |
| D | 5 | 222 | 170938 | 933.46 | 750 | 728 | 182.3 |

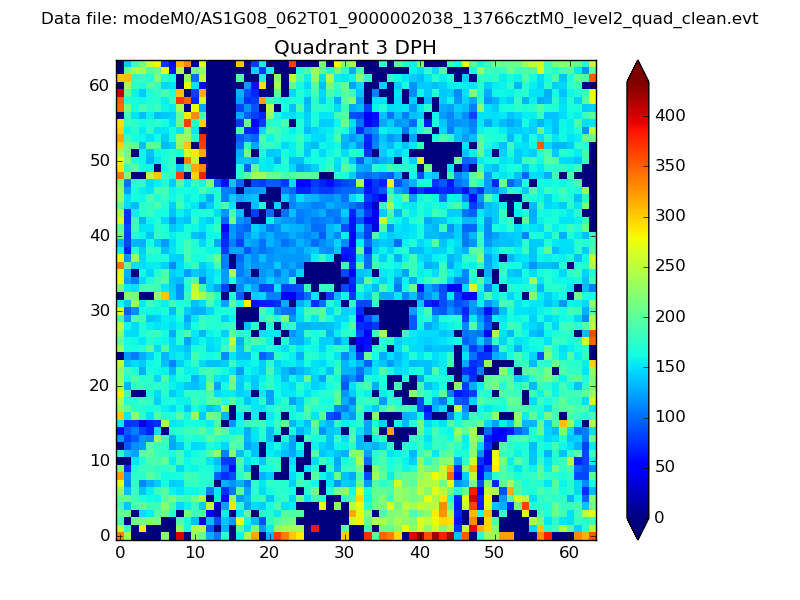

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

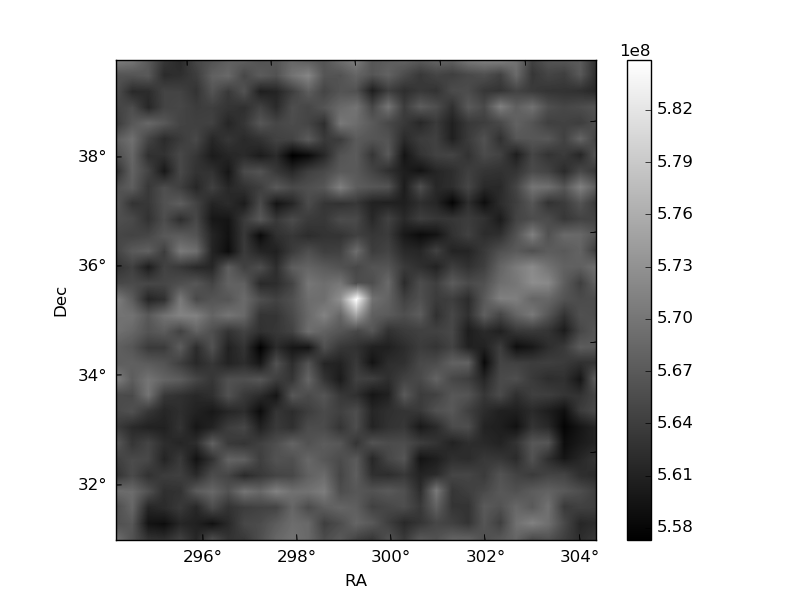

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

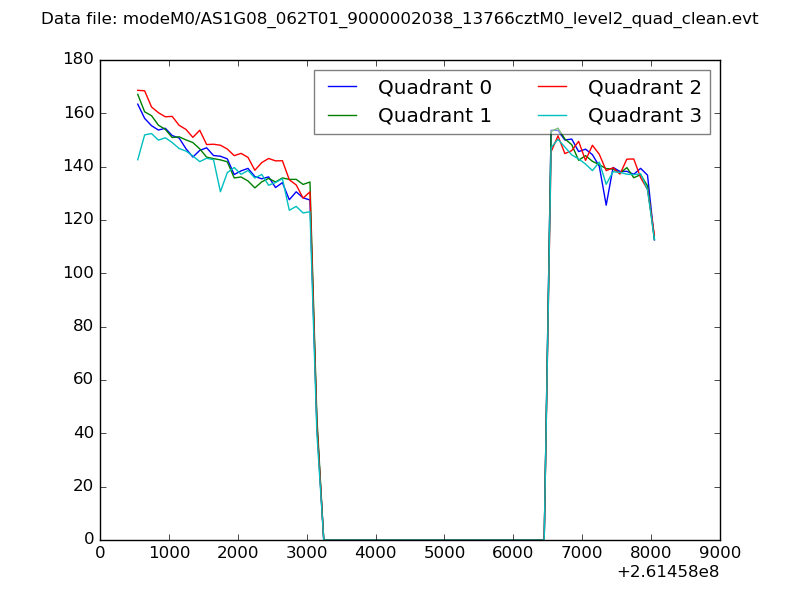

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

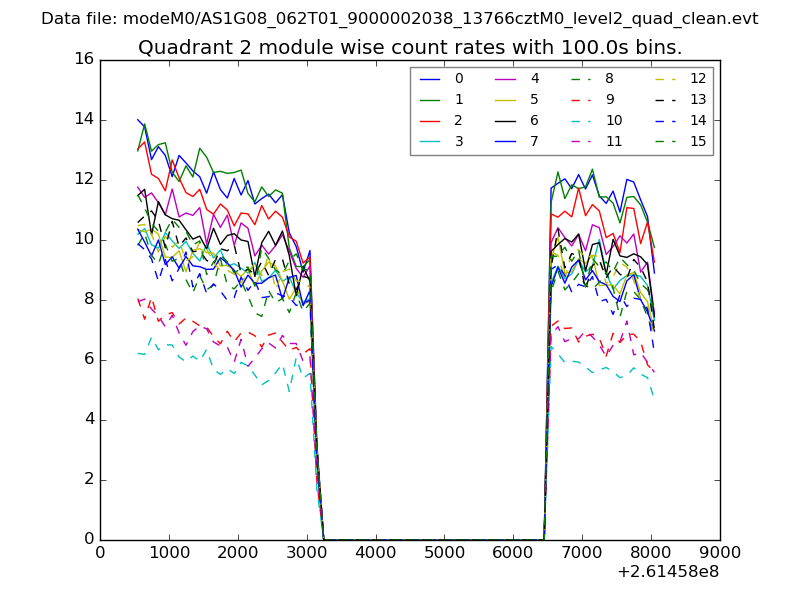

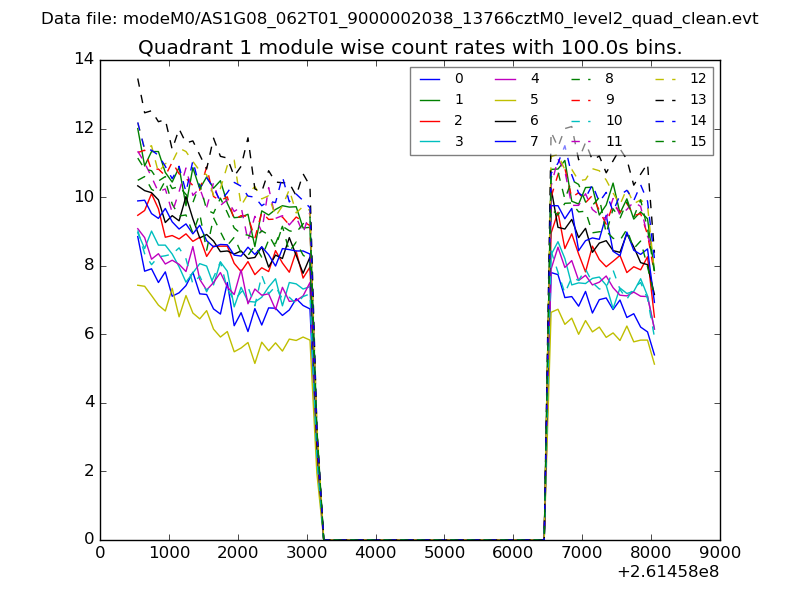

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

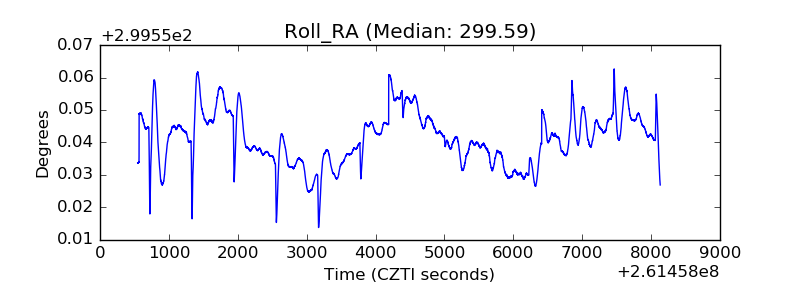

| _Roll_RA |  |
| Veto Counter |  |
