| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040cztM0_level2.fits | modeM0/AS1A04_199T01_9000002040cztM0_level2_quad_clean.evt |
| Size (bytes) | 4,096,992,960 | 3,656,341,440 |
| Size | 3.8 GB | 3.4 GB |
| Events in quadrant A | 25,094,464 | 21,409,141 |
| Events in quadrant B | 24,189,878 | 21,419,368 |
| Events in quadrant C | 24,584,978 | 20,395,780 |
| Events in quadrant D | 20,619,860 | 17,929,975 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 657 | 0 |
| B | 0 | 657 | 0 |
| C | 0 | 657 | 0 |
| D | 0 | 657 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8798 | 0 |
| B | 0 | 8798 | 0 |
| C | 0 | 8798 | 0 |
| D | 0 | 8798 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 904171 | 0 |
| B | 0 | 922236 | 0 |
| C | 0 | 891884 | 0 |
| D | 0 | 1213529 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 431925 | 7062 | 1.635006% |
| B | 431925 | 8746 | 2.024889% |
| C | 431925 | 4370 | 1.011750% |
| D | 431925 | 22871 | 5.295132% |

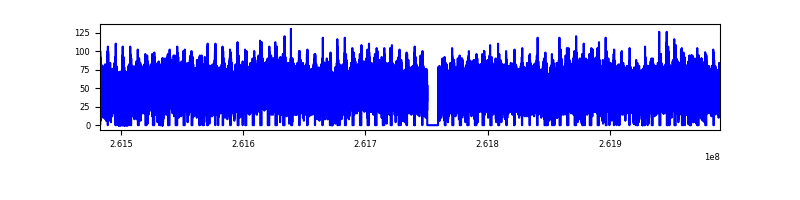

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 506881 | 431886 | 0 | 0 | 0.00% | 0.00% |  |
| B | 506881 | 431771 | 0 | 0 | 0.00% | 0.00% |  |
| C | 506881 | 431903 | 0 | 0 | 0.00% | 0.00% |  |
| D | 506881 | 431463 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 29 | 24098 | 11.06 | 6522 | 6079 | 1629.3 |
| A | 7 | 110 | 20531 | 8.87 | 6522 | 6079 | 1629.3 |
| A | 9 | 19 | 18611 | 7.69 | 6522 | 6079 | 1629.3 |
| B | 2 | 9 | 20951 | 11.91 | 6386 | 6063 | 1250.5 |
| B | 3 | 17 | 16252 | 8.15 | 6386 | 6063 | 1250.5 |
| B | 14 | 254 | 15955 | 7.91 | 6386 | 6063 | 1250.5 |
| C | 1 | 81 | 18569 | 7.46 | 6489 | 6008 | 1683.9 |
| C | 1 | 80 | 18529 | 7.44 | 6489 | 6008 | 1683.9 |
| C | 12 | 241 | 17186 | 6.64 | 6489 | 6008 | 1683.9 |
| D | 3 | 14 | 15137 | 6.16 | 5899 | 5347 | 1589.9 |
| D | 6 | 231 | 14893 | 6.0 | 5899 | 5347 | 1589.9 |
| D | 7 | 3 | 14457 | 5.73 | 5899 | 5347 | 1589.9 |

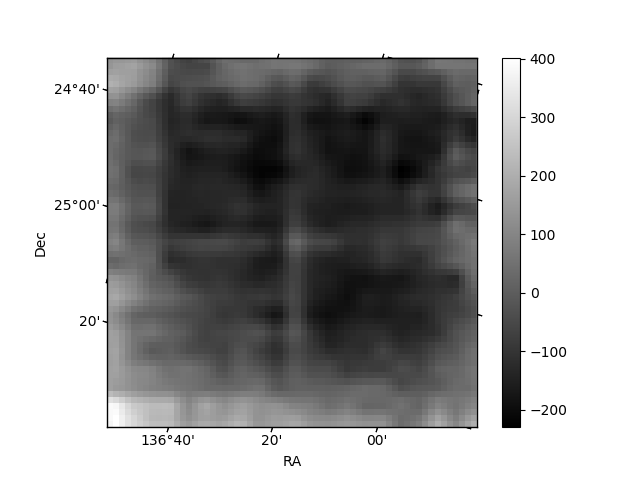

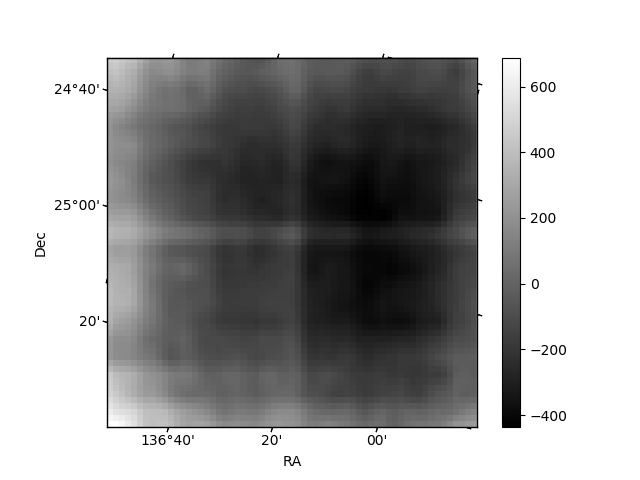

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

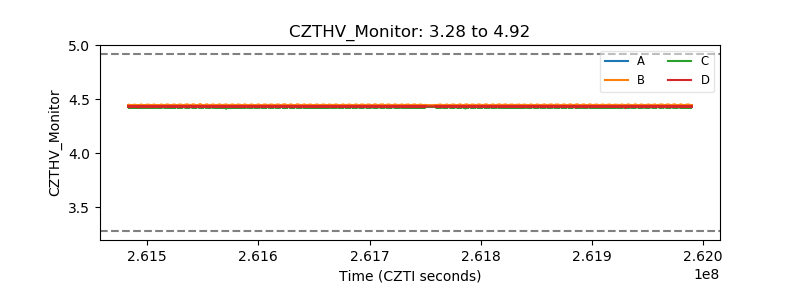

| CZT HV Monitor |  |

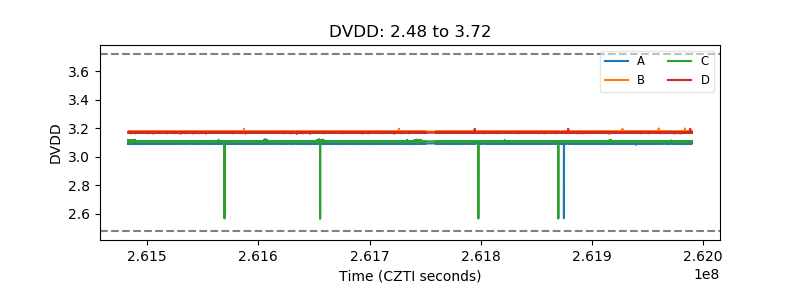

| D_VDD |  |

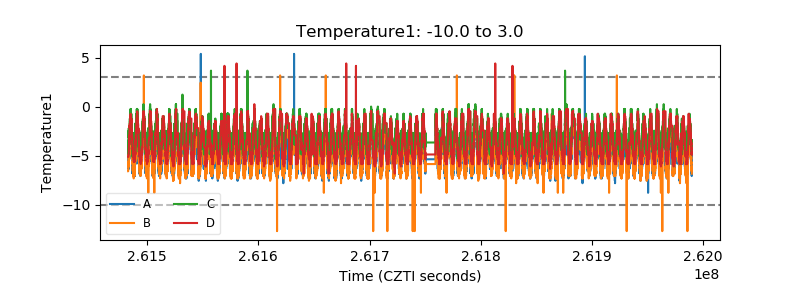

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

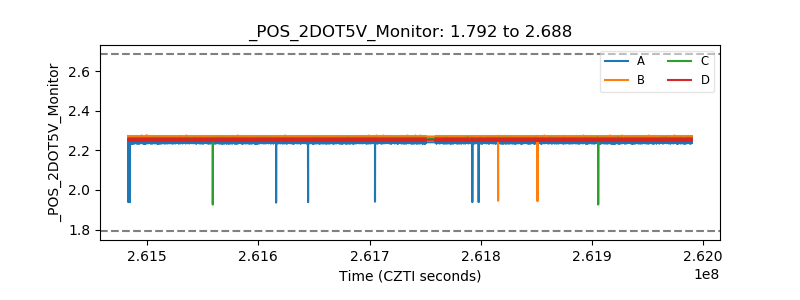

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

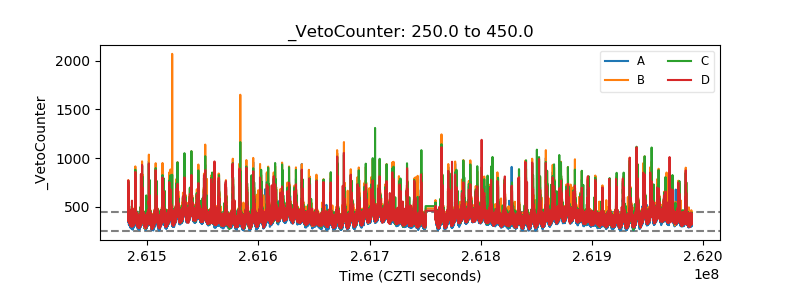

| Veto Counter |  |
