| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13770cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13770cztM0_level2_quad_clean.evt |
| Size (bytes) | 588,435,840 | 95,947,200 |
| Size | 561.2 MB | 91.5 MB |
| Events in quadrant A | 4,147,581 | 589,184 |
| Events in quadrant B | 4,037,956 | 600,051 |
| Events in quadrant C | 3,945,524 | 592,643 |
| Events in quadrant D | 5,141,783 | 562,638 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17596 | 3 |
| B | 0 | 17200 | 2 |
| C | 0 | 16919 | 2 |
| D | 0 | 20483 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8063 | 434 | 5.382612% |
| B | 8063 | 389 | 4.824507% |
| C | 8063 | 278 | 3.447848% |
| D | 8063 | 433 | 5.370210% |

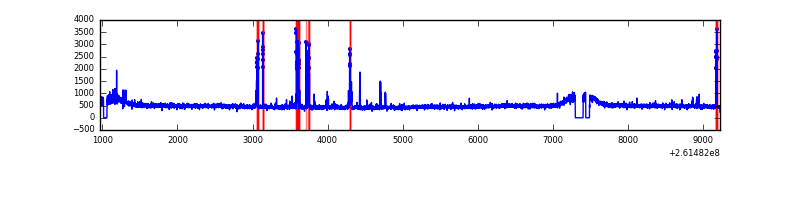

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8264 | 8067 | 60 | 60 | 0.73% | 0.74% |  |
| B | 8264 | 8067 | 13 | 13 | 0.16% | 0.16% |  |
| C | 8264 | 8066 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8264 | 8067 | 83 | 83 | 1.00% | 1.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 176850 | 851.65 | 998 | 973 | 206.5 |
| A | 15 | 69 | 89338 | 427.89 | 998 | 973 | 206.5 |
| A | 1 | 162 | 18299 | 83.9 | 998 | 973 | 206.5 |
| B | 3 | 64 | 43426 | 216.04 | 998 | 969 | 196.5 |
| B | 4 | 80 | 34001 | 168.08 | 998 | 969 | 196.5 |
| B | 3 | 209 | 25584 | 125.25 | 998 | 969 | 196.5 |
| C | 3 | 233 | 116362 | 506.43 | 976 | 979 | 227.8 |
| C | 8 | 128 | 11190 | 44.82 | 976 | 979 | 227.8 |
| C | 13 | 61 | 6890 | 25.94 | 976 | 979 | 227.8 |
| D | 1 | 52 | 972763 | 4069.19 | 975 | 945 | 238.8 |
| D | 13 | 249 | 184515 | 768.64 | 975 | 945 | 238.8 |
| D | 10 | 157 | 177437 | 739.01 | 975 | 945 | 238.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

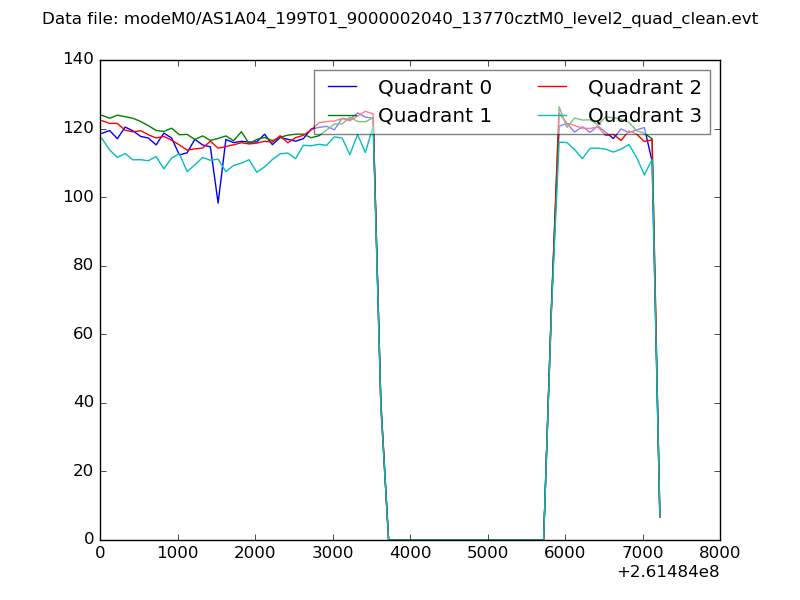

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

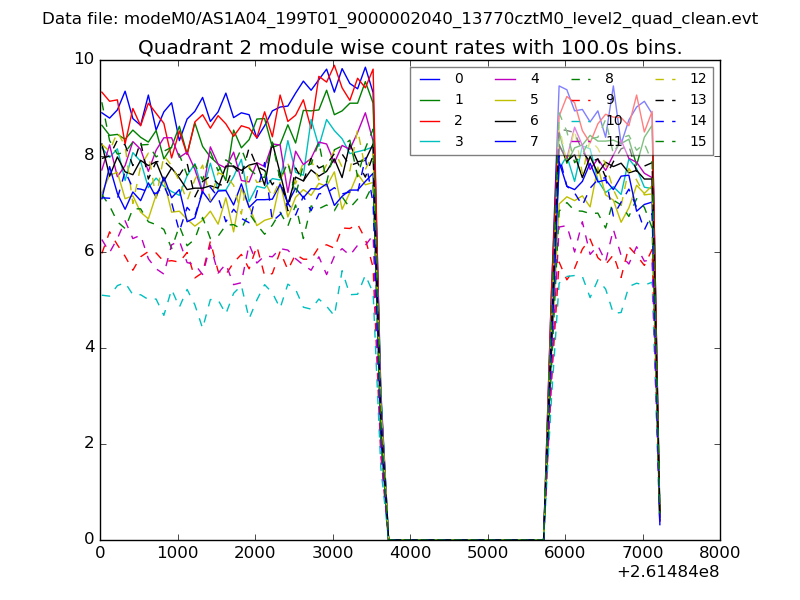

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

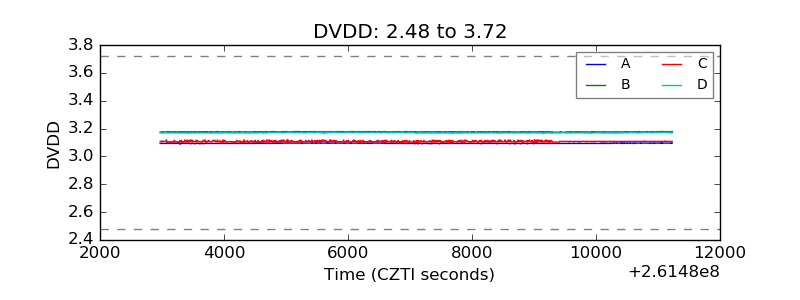

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

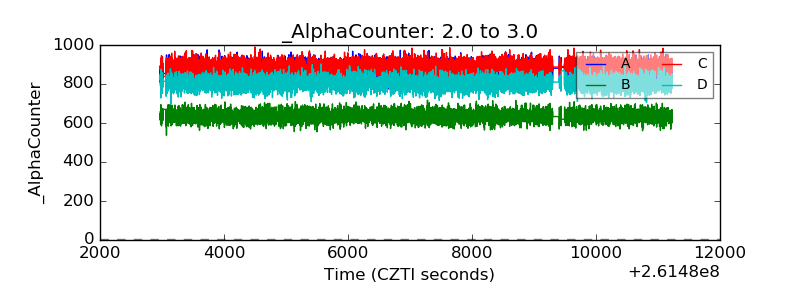

| Alpha Counter |  |

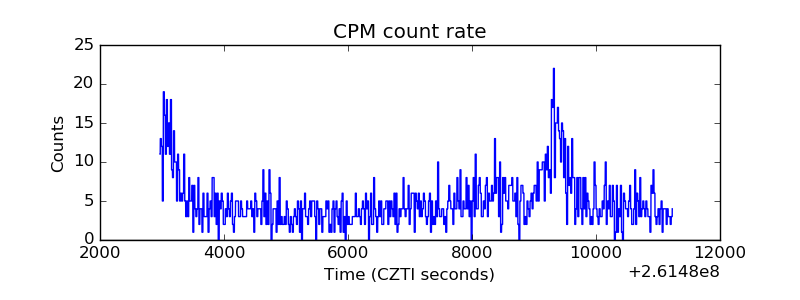

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

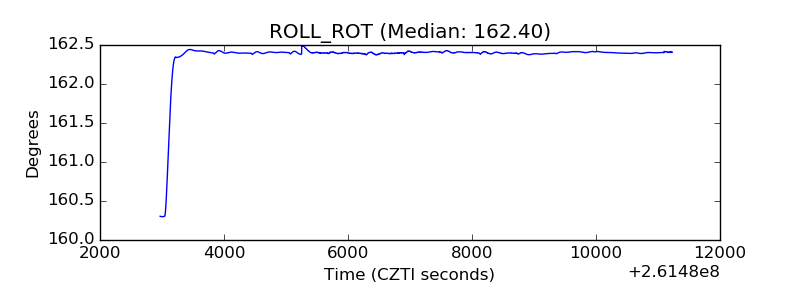

| _ROLL_ROT |  |

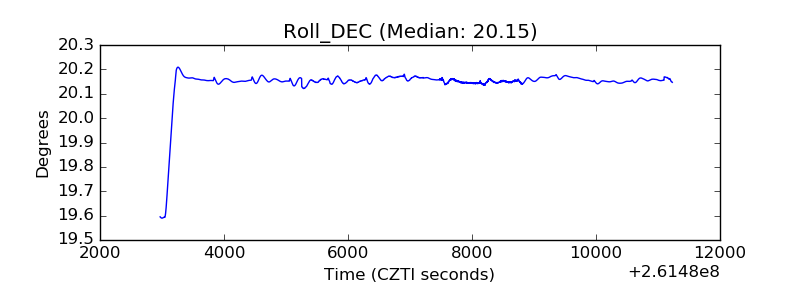

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
