| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13776cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13776cztM0_level2_quad_clean.evt |
| Size (bytes) | 431,602,560 | 86,999,040 |
| Size | 411.6 MB | 83.0 MB |
| Events in quadrant A | 2,991,180 | 549,464 |
| Events in quadrant B | 3,121,980 | 561,275 |
| Events in quadrant C | 2,995,290 | 552,283 |
| Events in quadrant D | 3,527,536 | 524,984 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13143 | 3 |
| B | 0 | 13415 | 2 |
| C | 0 | 13079 | 2 |
| D | 0 | 14835 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6401 | 26 | 0.406187% |
| B | 6401 | 40 | 0.624902% |
| C | 6401 | 14 | 0.218716% |
| D | 6401 | 53 | 0.827996% |

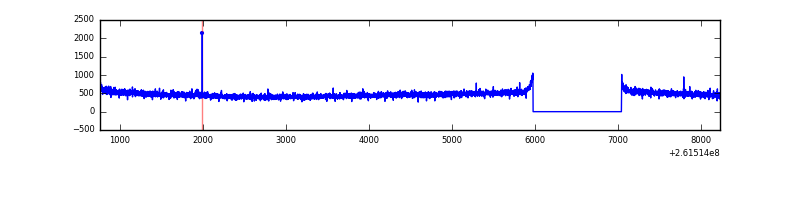

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7467 | 6403 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7467 | 6403 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7467 | 6403 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7467 | 6403 | 29 | 29 | 0.39% | 0.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 12846 | 77.04 | 766 | 749 | 157.0 |
| A | 8 | 15 | 7427 | 42.53 | 766 | 749 | 157.0 |
| A | 0 | 226 | 6956 | 39.53 | 766 | 749 | 157.0 |
| B | 0 | 219 | 36255 | 239.49 | 773 | 755 | 148.2 |
| B | 4 | 142 | 18706 | 121.1 | 773 | 755 | 148.2 |
| B | 12 | 111 | 17073 | 110.08 | 773 | 755 | 148.2 |
| C | 3 | 233 | 60581 | 341.58 | 750 | 756 | 175.1 |
| C | 14 | 220 | 5543 | 27.33 | 750 | 756 | 175.1 |
| C | 13 | 61 | 5403 | 26.53 | 750 | 756 | 175.1 |
| D | 1 | 52 | 474586 | 2625.77 | 744 | 723 | 180.5 |
| D | 5 | 222 | 104036 | 572.48 | 744 | 723 | 180.5 |
| D | 13 | 249 | 61496 | 336.76 | 744 | 723 | 180.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

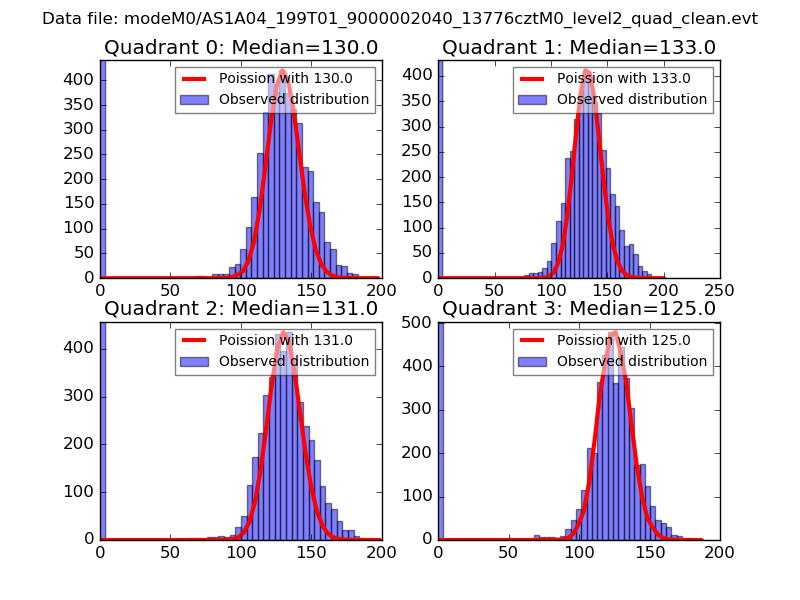

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

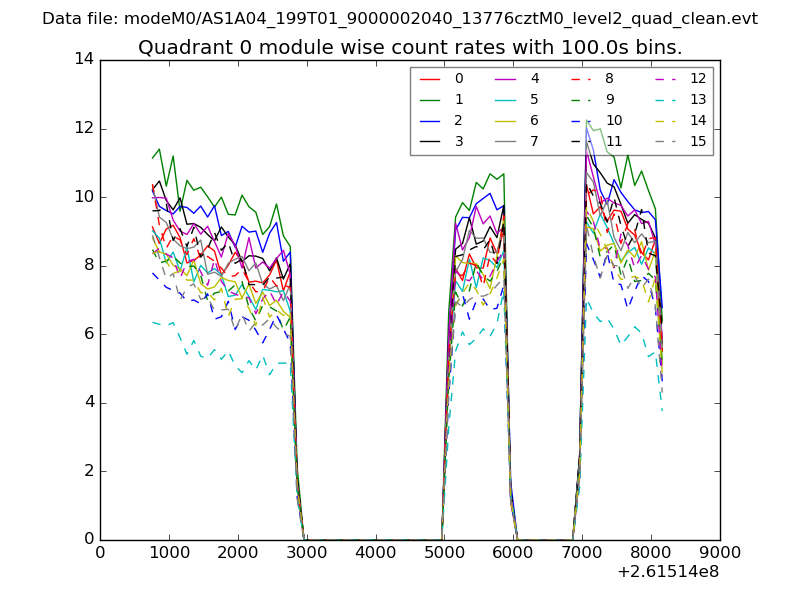

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

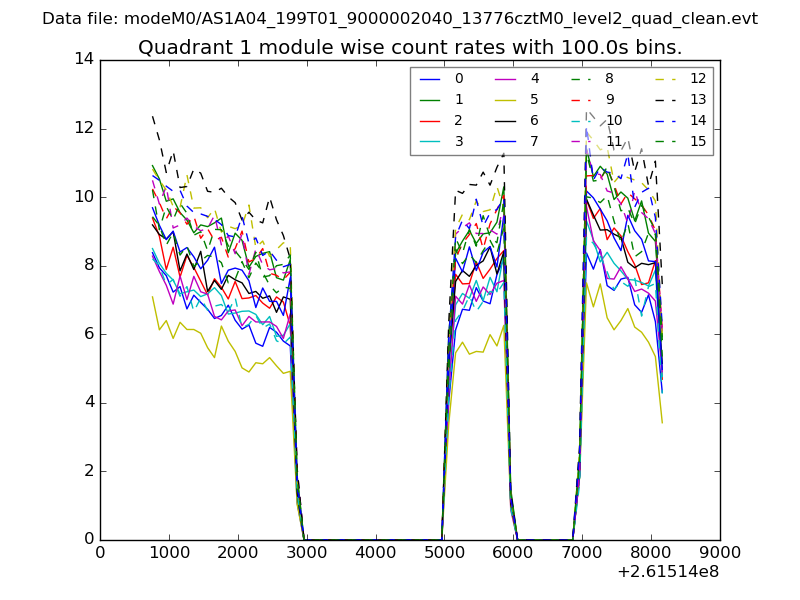

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

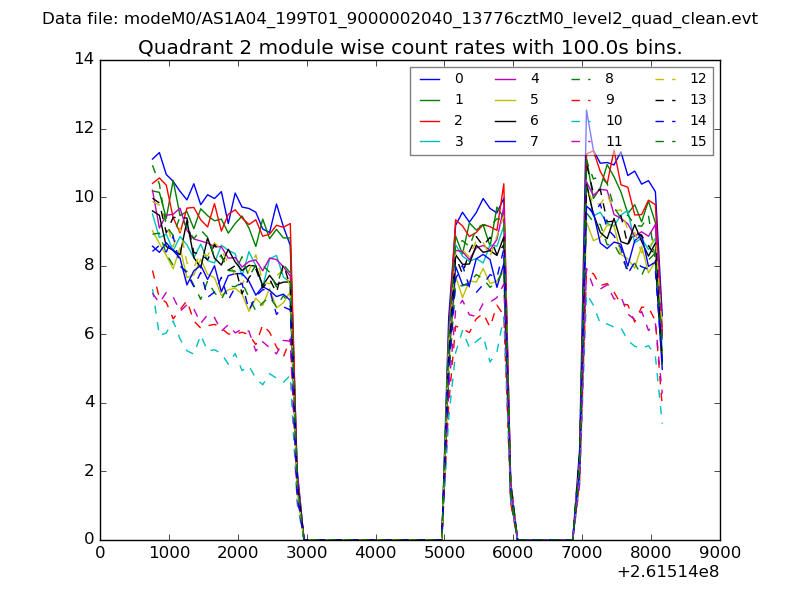

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

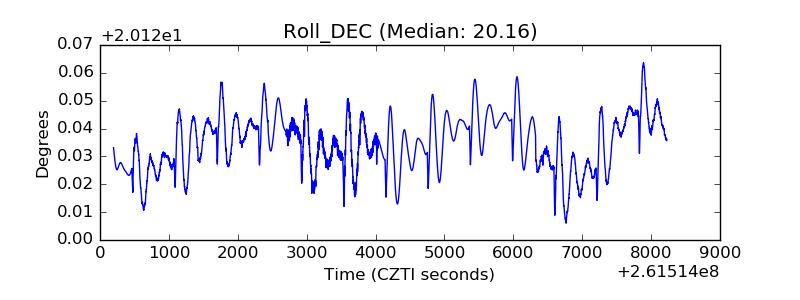

| _Roll_DEC |  |

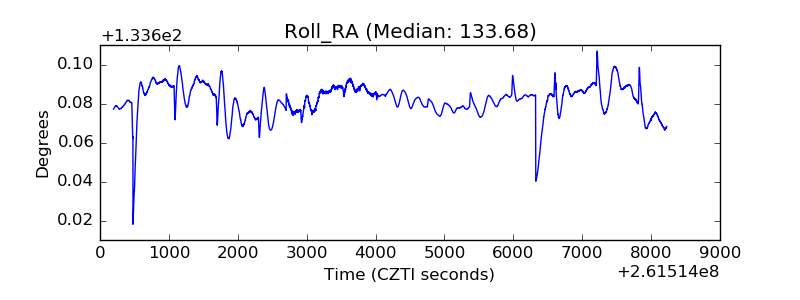

| _Roll_RA |  |
| Veto Counter |  |
