| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13789cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13789cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,809,920 | 88,372,800 |
| Size | 429.0 MB | 84.3 MB |
| Events in quadrant A | 3,125,566 | 557,719 |
| Events in quadrant B | 3,454,152 | 566,944 |
| Events in quadrant C | 3,124,579 | 558,572 |
| Events in quadrant D | 3,472,314 | 535,305 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13563 | 3 |
| B | 0 | 14387 | 2 |
| C | 0 | 13468 | 2 |
| D | 0 | 14553 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6559 | 31 | 0.472633% |
| B | 6559 | 85 | 1.295929% |
| C | 6559 | 12 | 0.182955% |
| D | 6559 | 50 | 0.762311% |

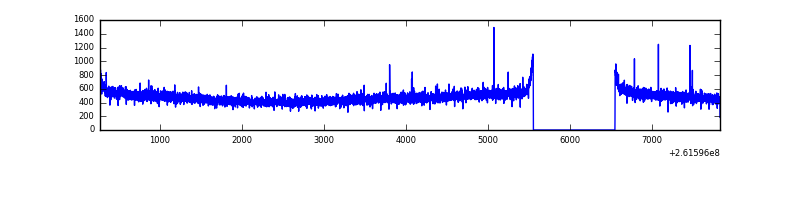

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7555 | 6561 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7555 | 6561 | 28 | 28 | 0.37% | 0.43% |  |
| C | 7555 | 6561 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7555 | 6561 | 32 | 32 | 0.42% | 0.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 23 | 48465 | 296.41 | 784 | 766 | 160.9 |
| A | 8 | 15 | 19305 | 115.2 | 784 | 766 | 160.9 |
| A | 1 | 162 | 16354 | 96.87 | 784 | 766 | 160.9 |
| B | 0 | 219 | 130907 | 862.03 | 785 | 766 | 151.0 |
| B | 10 | 252 | 94238 | 619.14 | 785 | 766 | 151.0 |
| B | 4 | 80 | 65776 | 430.61 | 785 | 766 | 151.0 |
| C | 3 | 233 | 132403 | 736.84 | 765 | 769 | 178.6 |
| C | 13 | 61 | 5459 | 26.25 | 765 | 769 | 178.6 |
| C | 0 | 207 | 3715 | 16.49 | 765 | 769 | 178.6 |
| D | 1 | 52 | 342533 | 1838.29 | 762 | 740 | 185.9 |
| D | 13 | 249 | 177670 | 951.6 | 762 | 740 | 185.9 |
| D | 10 | 157 | 57679 | 306.24 | 762 | 740 | 185.9 |

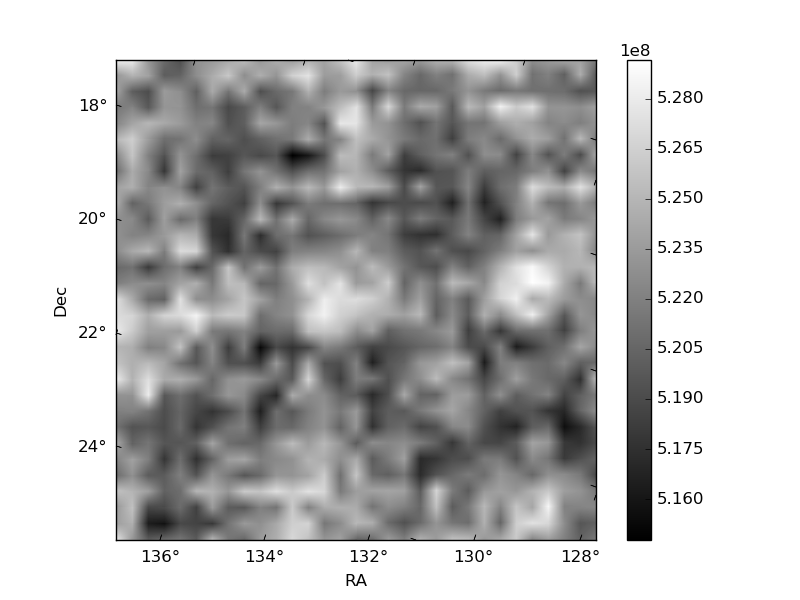

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

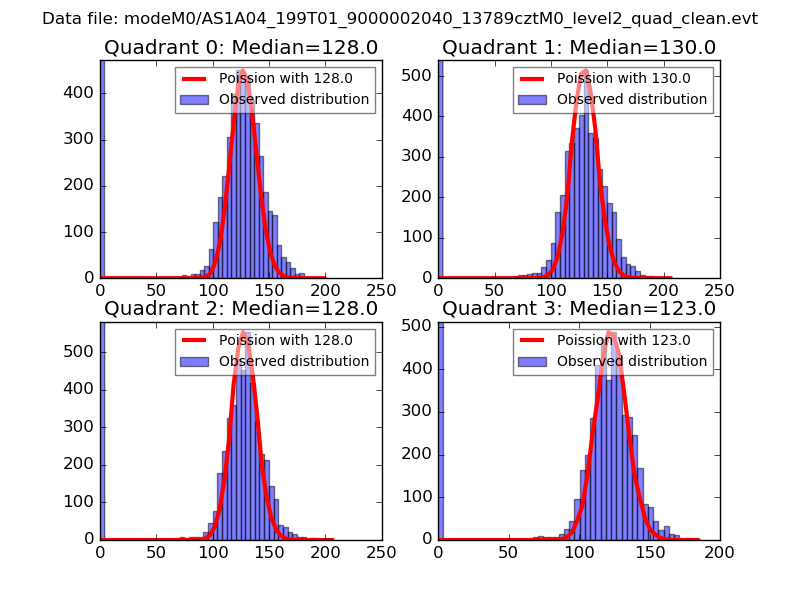

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

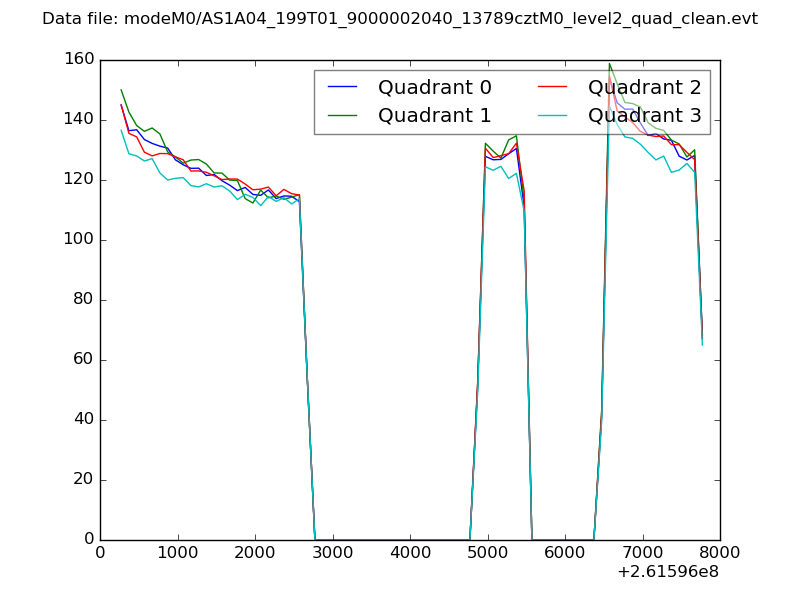

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

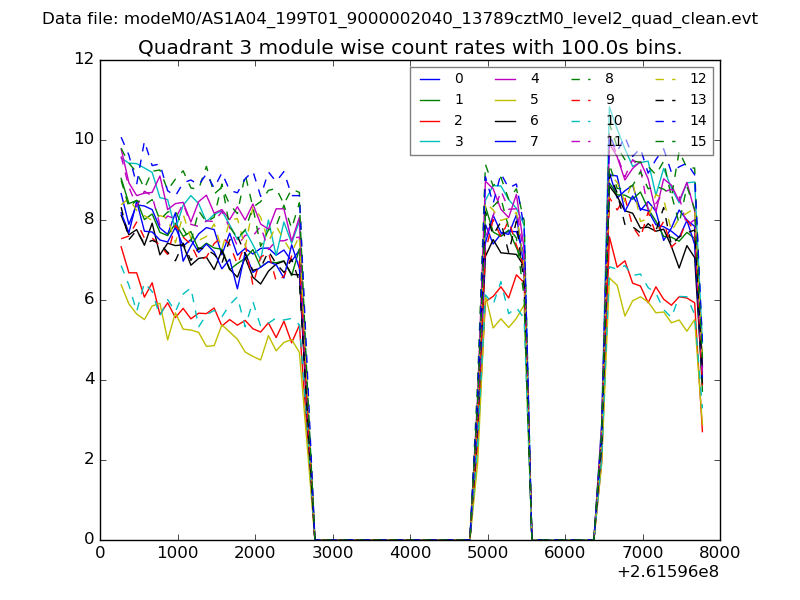

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

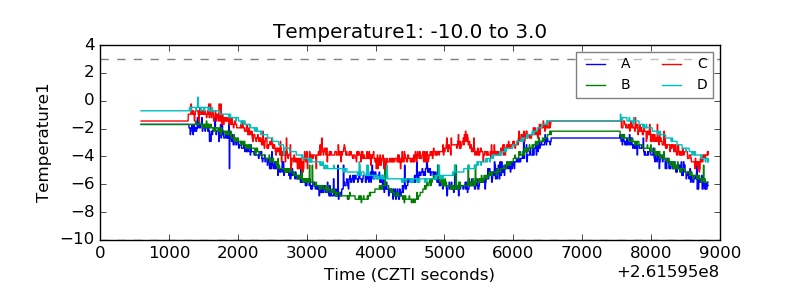

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

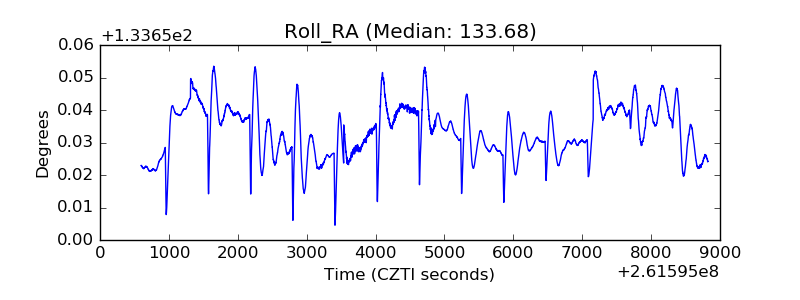

| _Roll_RA |  |

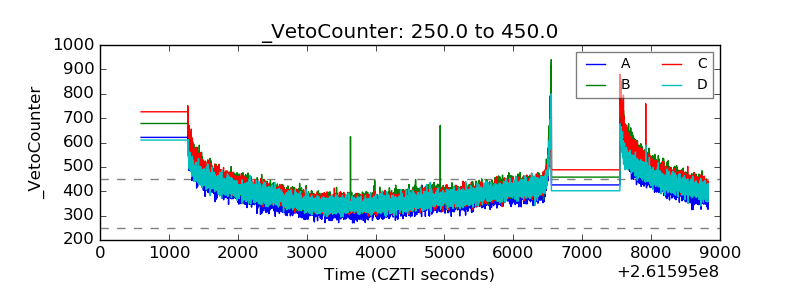

| Veto Counter |  |
