| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13805cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13805cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,067,200 | 88,848,000 |
| Size | 432.1 MB | 84.7 MB |
| Events in quadrant A | 3,138,356 | 563,545 |
| Events in quadrant B | 3,263,393 | 572,745 |
| Events in quadrant C | 3,052,250 | 562,446 |
| Events in quadrant D | 3,826,081 | 539,135 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13467 | 3 |
| B | 0 | 13904 | 2 |
| C | 0 | 13326 | 2 |
| D | 0 | 15838 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6483 | 42 | 0.647848% |
| B | 6483 | 74 | 1.141447% |
| C | 6483 | 21 | 0.323924% |
| D | 6483 | 33 | 0.509024% |

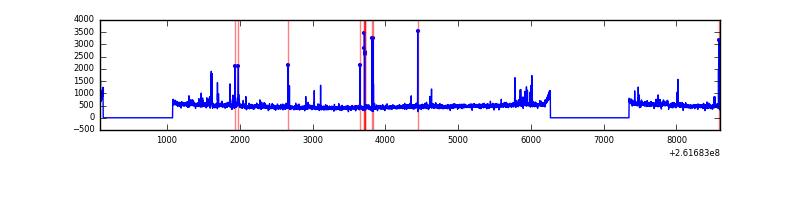

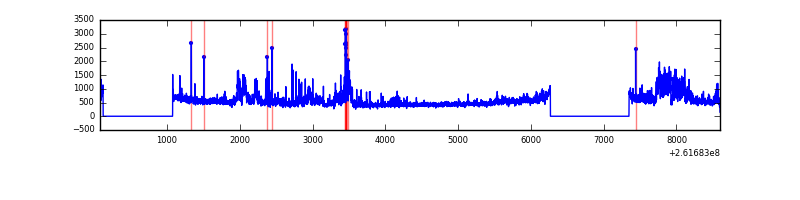

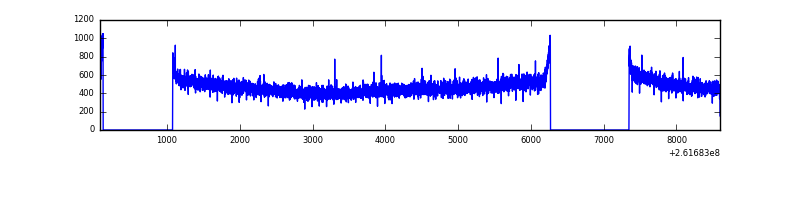

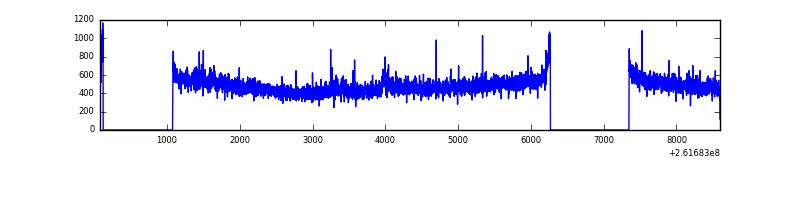

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8519 | 6486 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8519 | 6486 | 13 | 13 | 0.15% | 0.20% |  |
| C | 8519 | 6486 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8519 | 6486 | 14 | 14 | 0.16% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 111845 | 698.18 | 781 | 767 | 159.1 |
| A | 1 | 162 | 15153 | 90.42 | 781 | 767 | 159.1 |
| A | 0 | 226 | 7116 | 39.91 | 781 | 767 | 159.1 |
| B | 0 | 219 | 66493 | 441.81 | 784 | 765 | 148.8 |
| B | 4 | 80 | 59808 | 396.88 | 784 | 765 | 148.8 |
| B | 10 | 252 | 28916 | 189.23 | 784 | 765 | 148.8 |
| C | 3 | 233 | 70869 | 395.11 | 763 | 767 | 177.4 |
| C | 13 | 61 | 5715 | 27.89 | 763 | 767 | 177.4 |
| C | 4 | 175 | 4903 | 23.31 | 763 | 767 | 177.4 |
| D | 1 | 52 | 392450 | 2028.42 | 756 | 736 | 193.1 |
| D | 5 | 222 | 320207 | 1654.33 | 756 | 736 | 193.1 |
| D | 10 | 157 | 167185 | 861.93 | 756 | 736 | 193.1 |

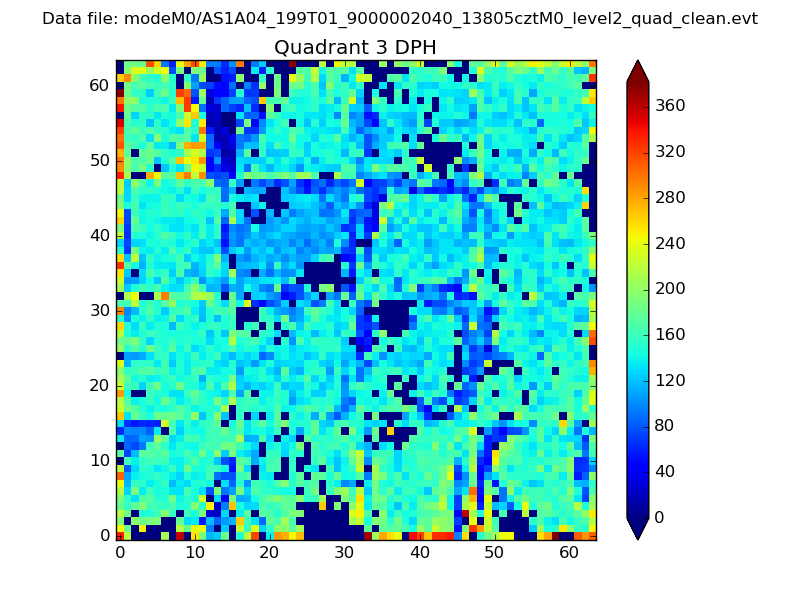

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

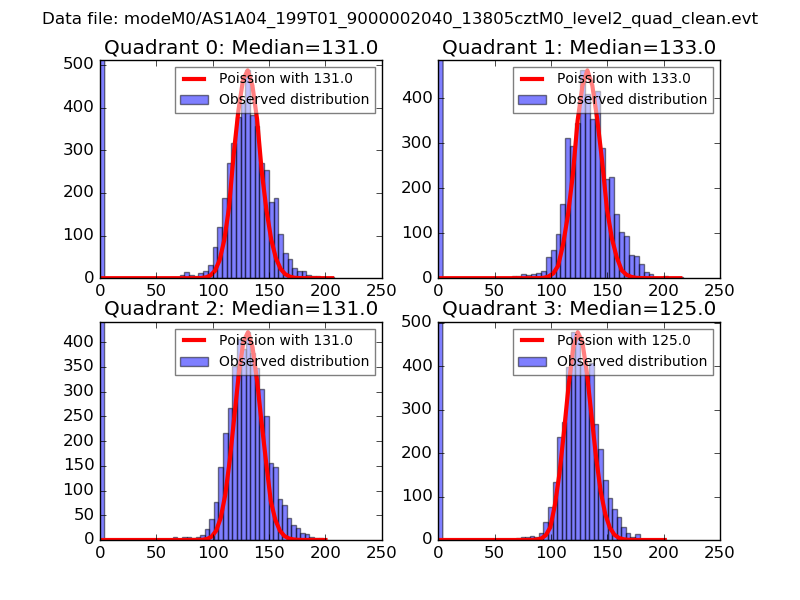

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

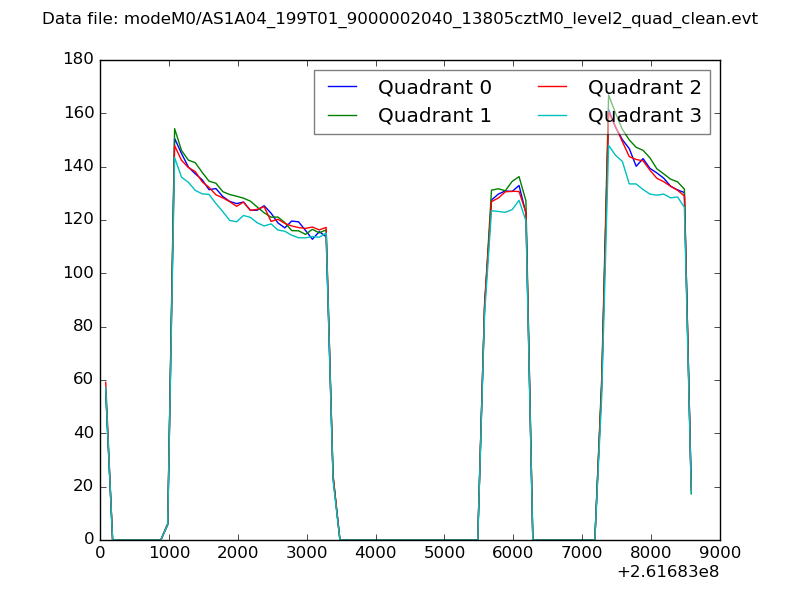

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

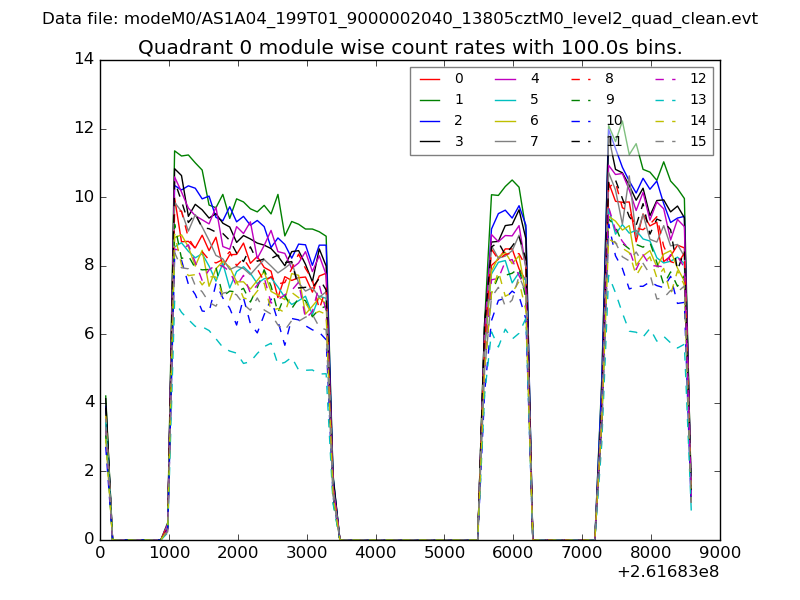

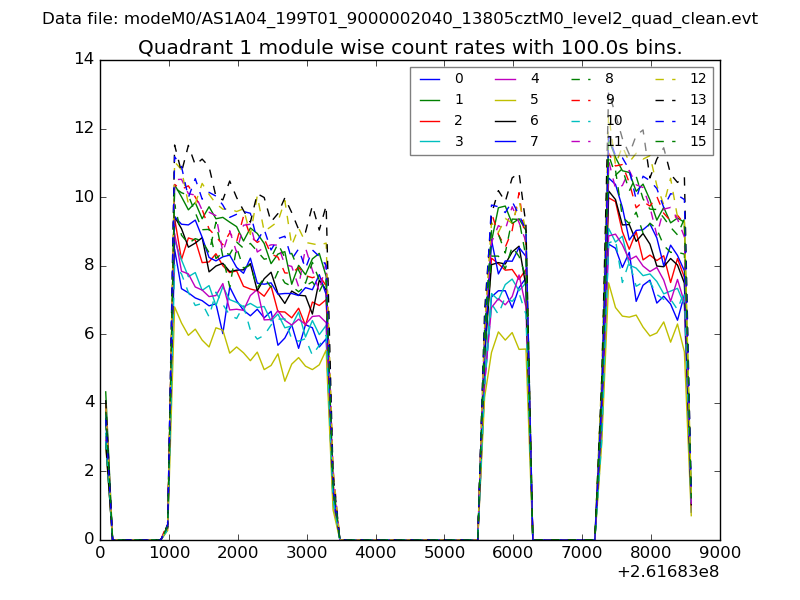

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

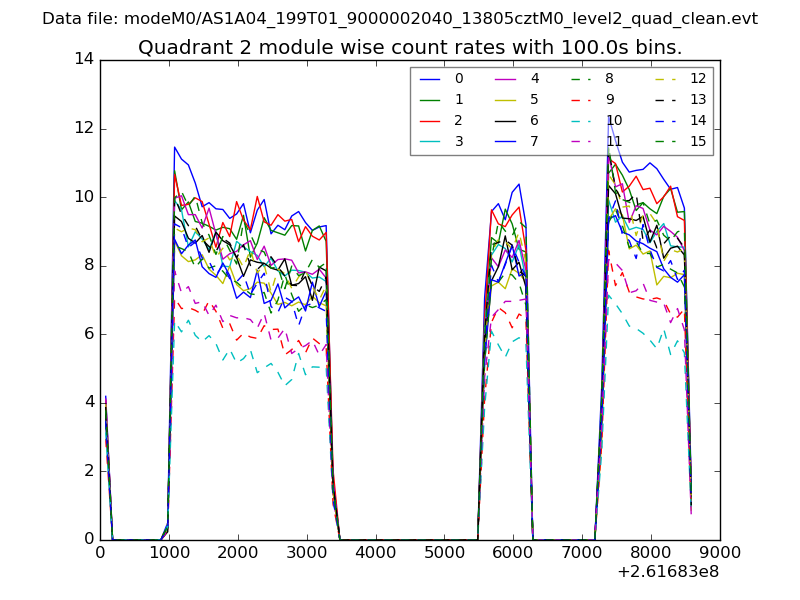

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

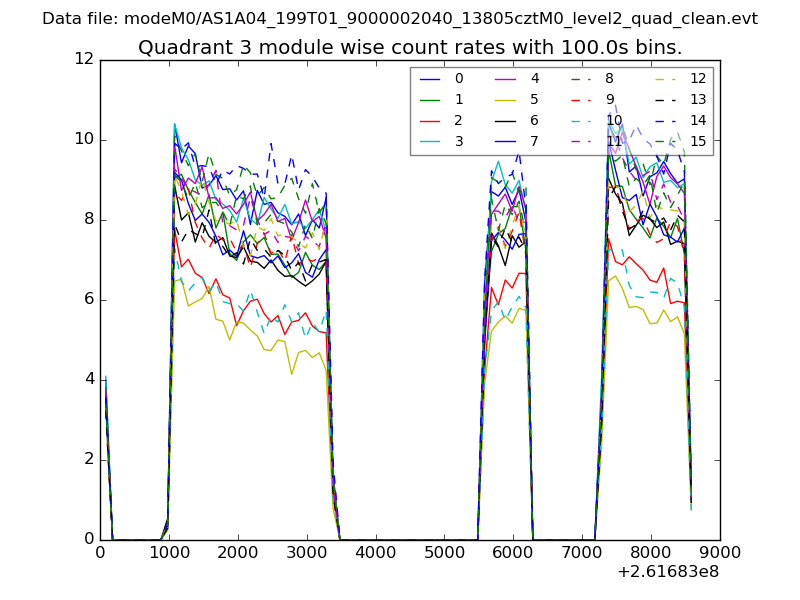

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

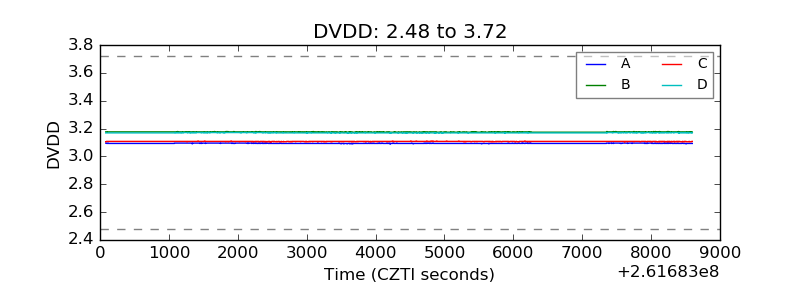

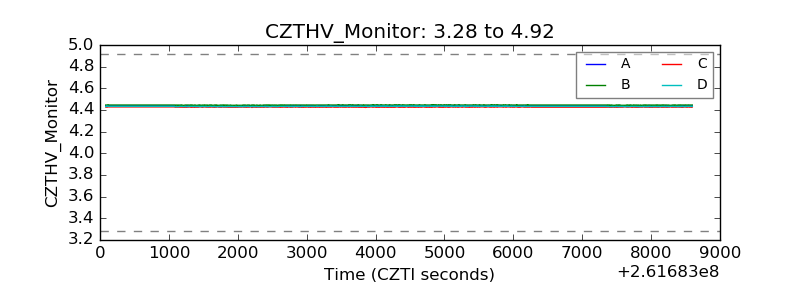

| CZT HV Monitor |  |
| D_VDD |  |

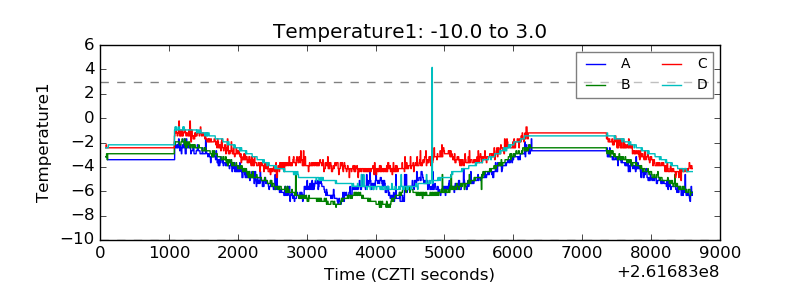

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

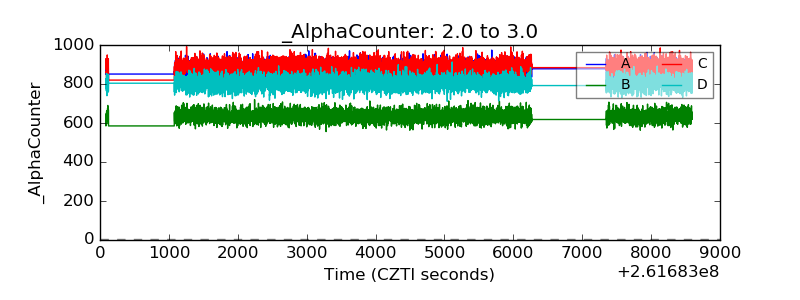

| Alpha Counter |  |
| _CPM_Rate |  |

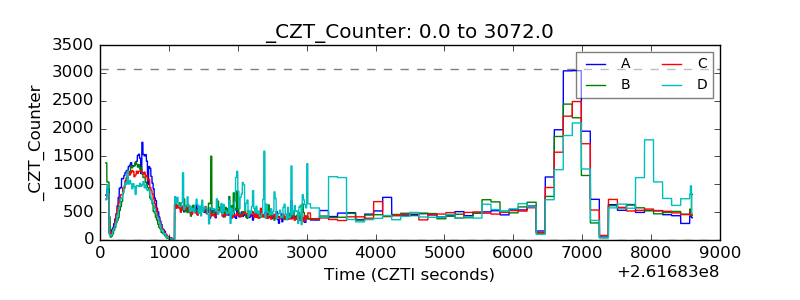

| CZT Counter |  |

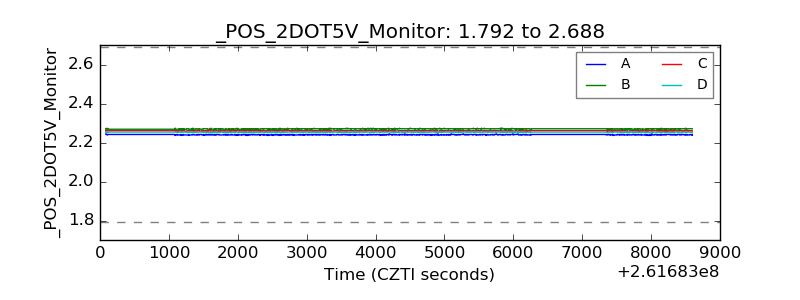

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

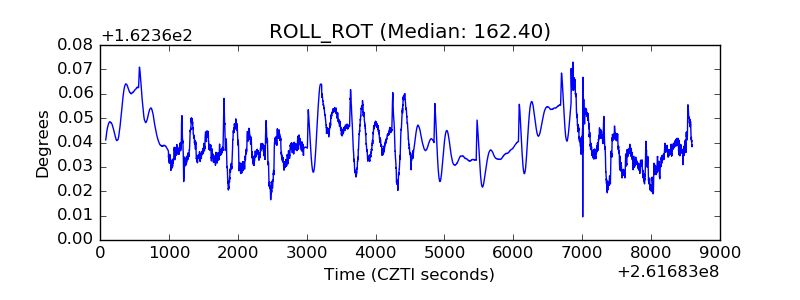

| _ROLL_ROT |  |

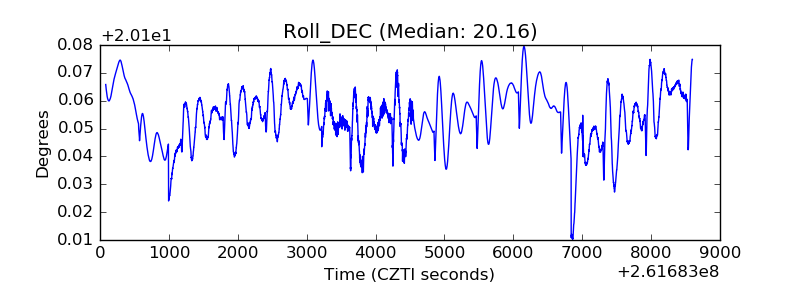

| _Roll_DEC |  |

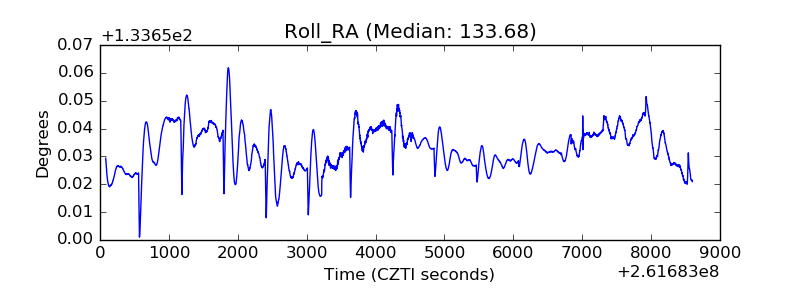

| _Roll_RA |  |

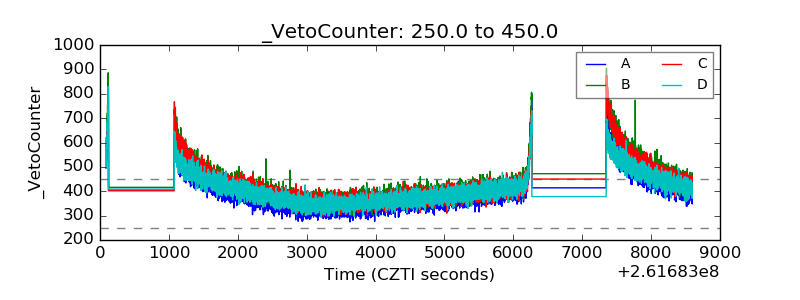

| Veto Counter |  |
