| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13809cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13809cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,661,440 | 77,535,360 |
| Size | 504.2 MB | 73.9 MB |
| Events in quadrant A | 3,388,972 | 482,364 |
| Events in quadrant B | 3,573,240 | 490,528 |
| Events in quadrant C | 3,394,002 | 471,285 |
| Events in quadrant D | 5,200,365 | 436,735 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14015 | 3 |
| B | 0 | 14574 | 2 |
| C | 0 | 14041 | 2 |
| D | 0 | 19887 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6687 | 60 | 0.897263% |
| B | 6687 | 119 | 1.779572% |
| C | 6687 | 40 | 0.598176% |
| D | 6687 | 324 | 4.845222% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9313 | 6690 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9313 | 6690 | 14 | 14 | 0.15% | 0.21% |  |
| C | 9313 | 6690 | 3 | 3 | 0.03% | 0.04% |  |
| D | 9313 | 6690 | 213 | 213 | 2.29% | 3.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 23626 | 129.06 | 871 | 854 | 176.5 |
| A | 1 | 162 | 12397 | 65.42 | 871 | 854 | 176.5 |
| A | 0 | 226 | 7994 | 40.46 | 871 | 854 | 176.5 |
| B | 3 | 64 | 51977 | 310.69 | 874 | 854 | 164.5 |
| B | 8 | 250 | 40407 | 240.37 | 874 | 854 | 164.5 |
| B | 12 | 111 | 18953 | 109.99 | 874 | 854 | 164.5 |
| C | 3 | 233 | 91050 | 462.93 | 841 | 848 | 194.8 |
| C | 14 | 234 | 15621 | 75.82 | 841 | 848 | 194.8 |
| C | 4 | 175 | 7379 | 33.52 | 841 | 848 | 194.8 |
| D | 1 | 52 | 1691192 | 7896.94 | 814 | 797 | 214.1 |
| D | 5 | 222 | 115754 | 537.04 | 814 | 797 | 214.1 |
| D | 10 | 157 | 115665 | 536.62 | 814 | 797 | 214.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

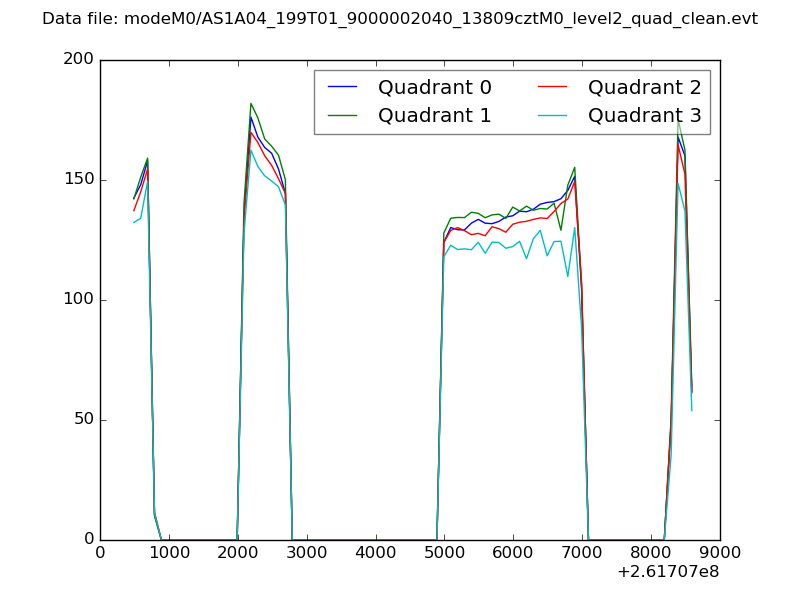

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

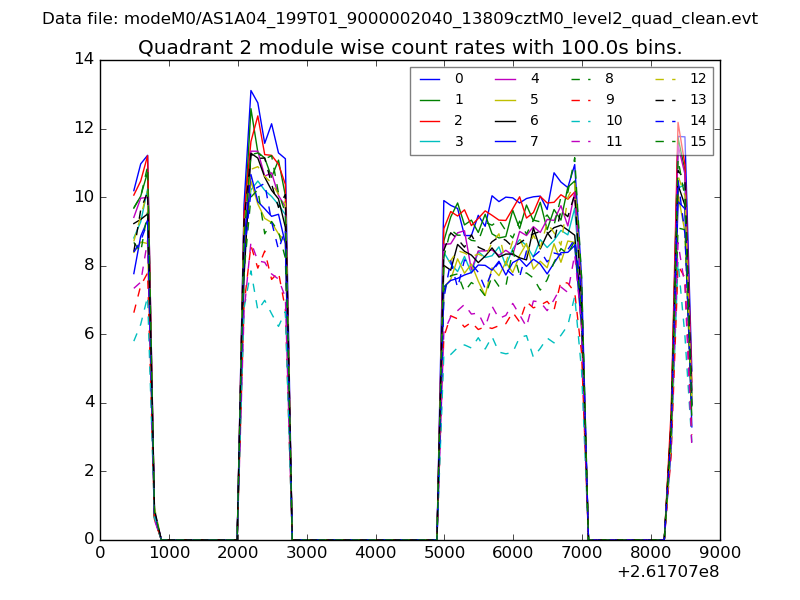

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

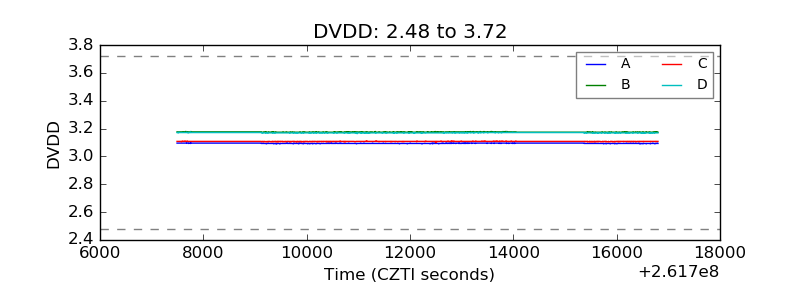

| D_VDD |  |

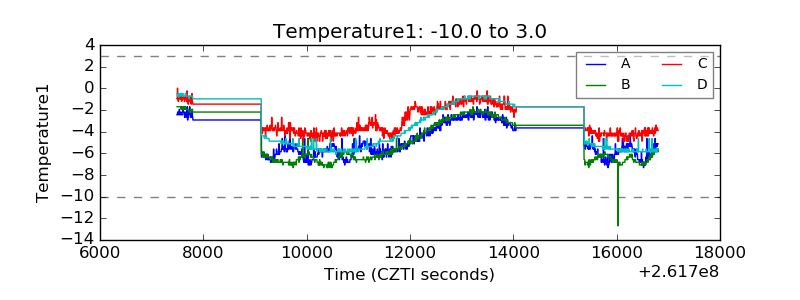

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

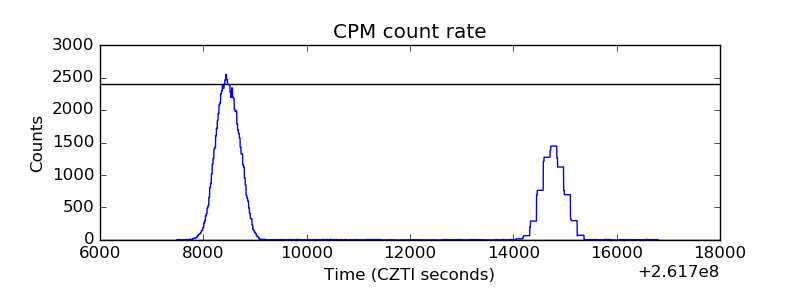

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

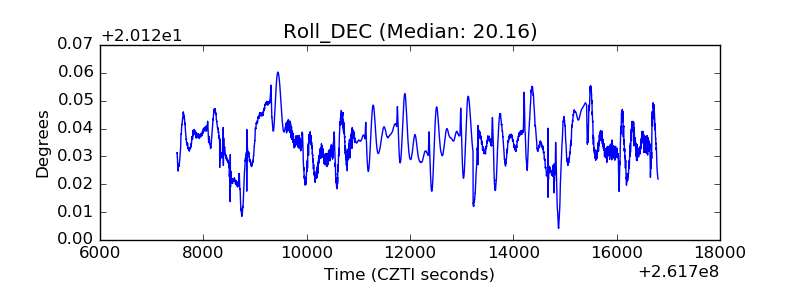

| _Roll_DEC |  |

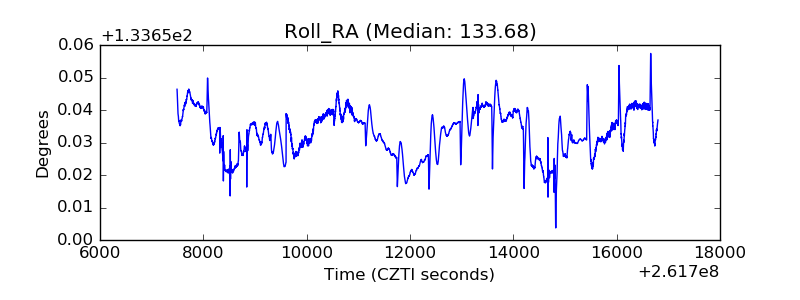

| _Roll_RA |  |
| Veto Counter |  |
