| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13823cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13823cztM0_level2_quad_clean.evt |
| Size (bytes) | 516,456,000 | 75,977,280 |
| Size | 492.5 MB | 72.5 MB |
| Events in quadrant A | 3,050,756 | 478,251 |
| Events in quadrant B | 3,290,625 | 493,783 |
| Events in quadrant C | 3,071,016 | 473,012 |
| Events in quadrant D | 5,810,137 | 424,659 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12784 | 3 |
| B | 0 | 13421 | 2 |
| C | 0 | 12829 | 2 |
| D | 0 | 21527 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6179 | 20 | 0.323677% |
| B | 6179 | 57 | 0.922479% |
| C | 6179 | 21 | 0.339861% |
| D | 6179 | 353 | 5.712899% |

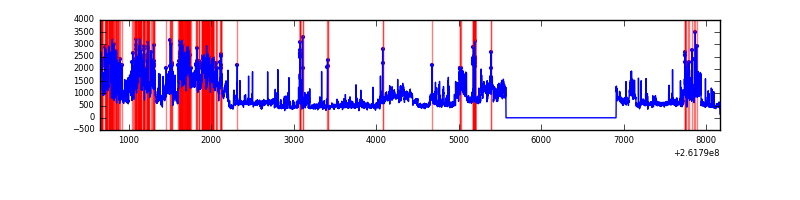

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7515 | 6181 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7515 | 6181 | 13 | 13 | 0.17% | 0.21% |  |
| C | 7515 | 6181 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7515 | 6181 | 386 | 386 | 5.14% | 6.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 1 | 162 | 9580 | 55.17 | 788 | 772 | 159.7 |
| A | 0 | 226 | 7146 | 39.92 | 788 | 772 | 159.7 |
| A | 15 | 69 | 6958 | 38.75 | 788 | 772 | 159.7 |
| B | 3 | 209 | 50384 | 329.79 | 797 | 779 | 150.4 |
| B | 4 | 173 | 43491 | 283.96 | 797 | 779 | 150.4 |
| B | 10 | 246 | 31589 | 204.83 | 797 | 779 | 150.4 |
| C | 3 | 233 | 68330 | 378.01 | 765 | 771 | 178.7 |
| C | 4 | 175 | 15686 | 83.45 | 765 | 771 | 178.7 |
| C | 13 | 61 | 5588 | 26.95 | 765 | 771 | 178.7 |
| D | 10 | 157 | 1130333 | 6241.1 | 739 | 716 | 181.0 |
| D | 5 | 222 | 846388 | 4672.31 | 739 | 716 | 181.0 |
| D | 13 | 122 | 623185 | 3439.12 | 739 | 716 | 181.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

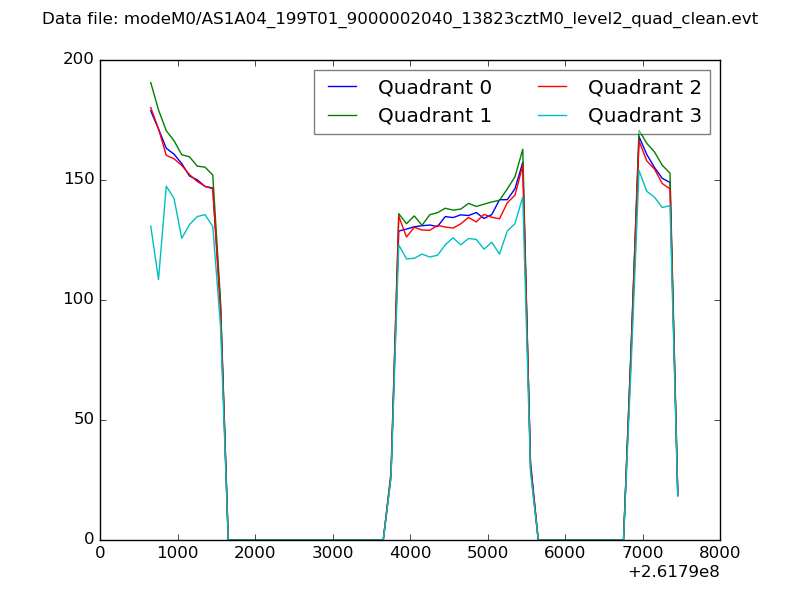

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

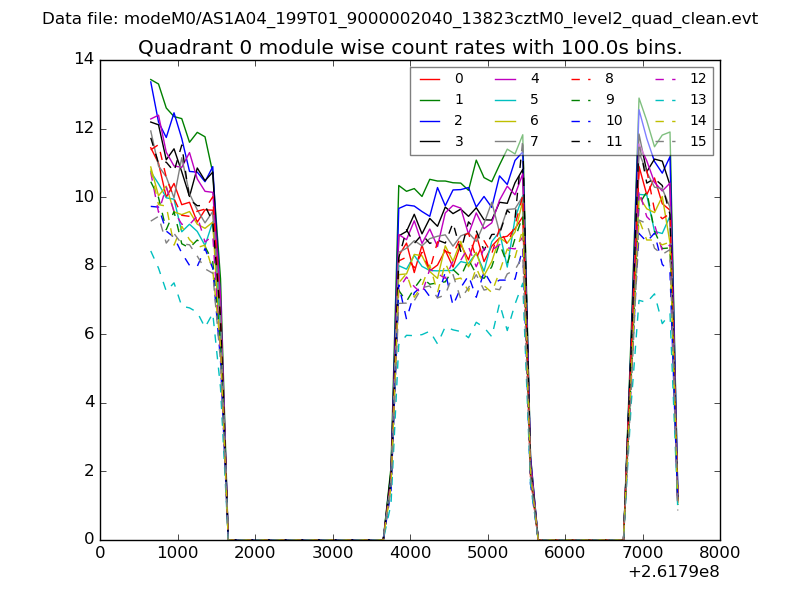

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

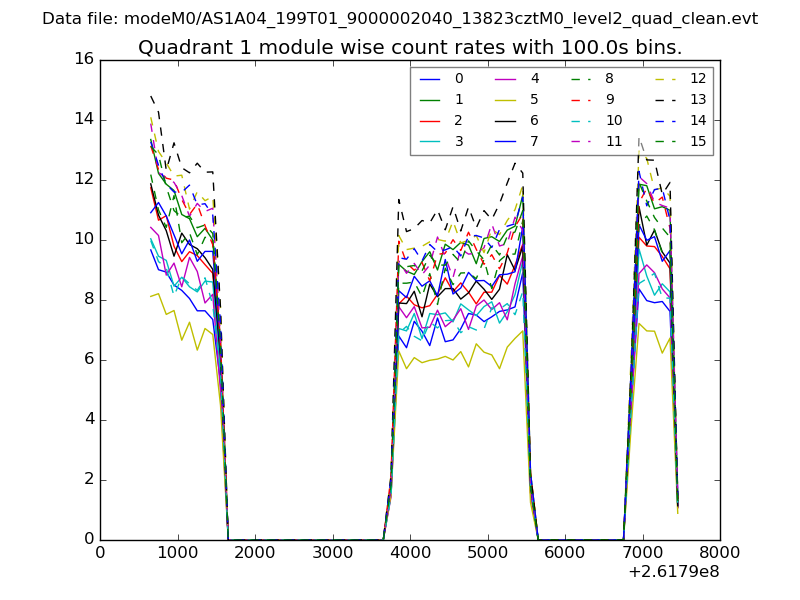

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

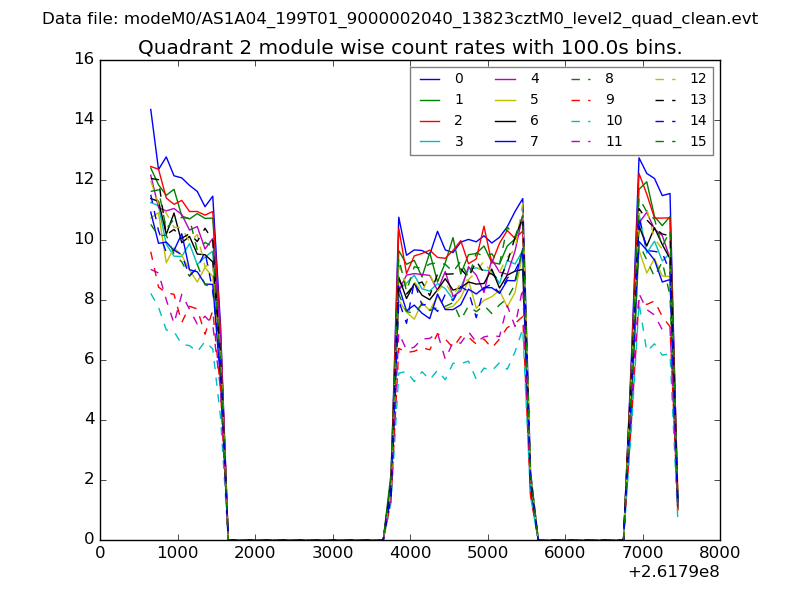

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

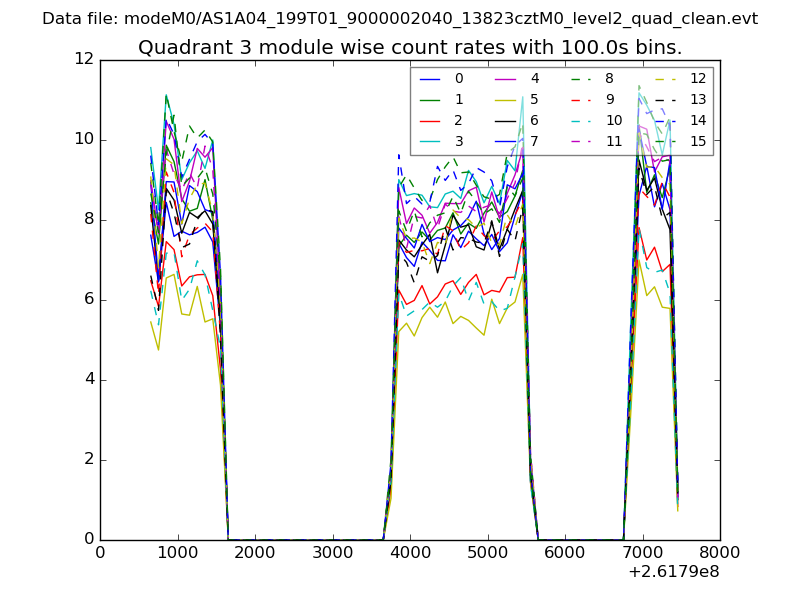

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

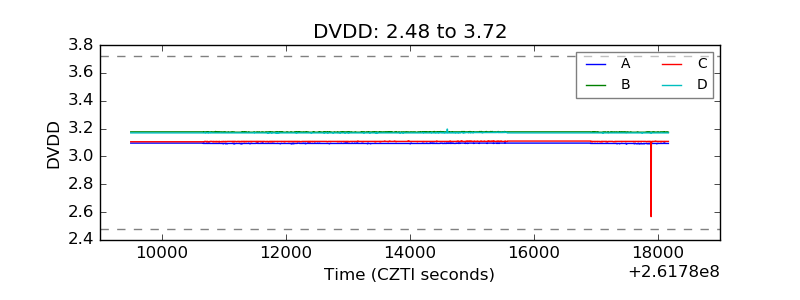

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

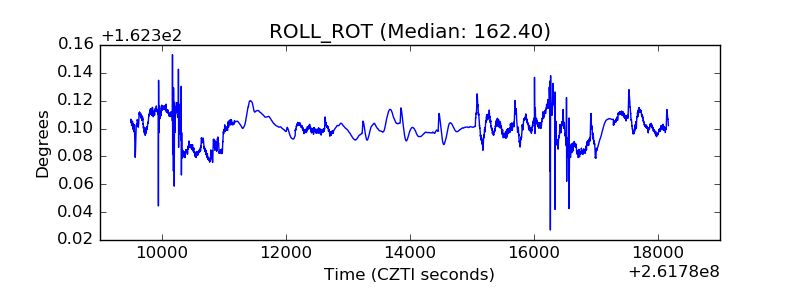

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
