| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A04_199T01_9000002040_13832cztM0_level2.evt | modeM0/AS1A04_199T01_9000002040_13832cztM0_level2_quad_clean.evt |
| Size (bytes) | 653,446,080 | 84,623,040 |
| Size | 623.2 MB | 80.7 MB |
| Events in quadrant A | 3,215,309 | 553,126 |
| Events in quadrant B | 3,338,273 | 558,749 |
| Events in quadrant C | 3,100,546 | 550,223 |
| Events in quadrant D | 9,687,652 | 438,378 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13948 | 3 |
| B | 0 | 14253 | 2 |
| C | 0 | 13572 | 2 |
| D | 0 | 33491 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6611 | 57 | 0.862199% |
| B | 6611 | 100 | 1.512630% |
| C | 6611 | 33 | 0.499168% |
| D | 6611 | 1775 | 26.849191% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

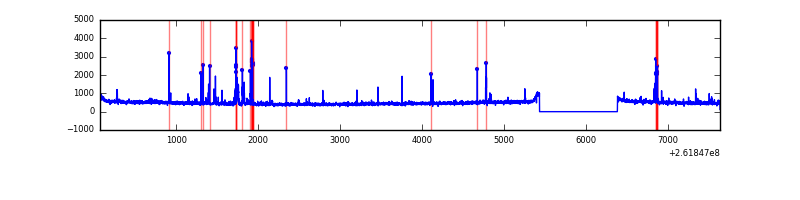

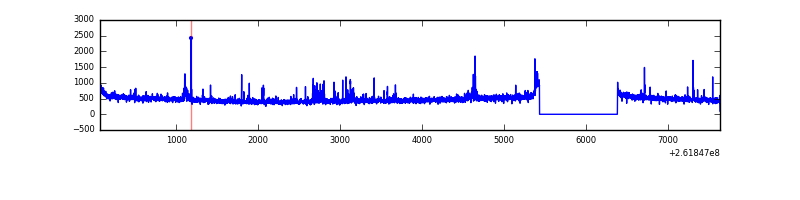

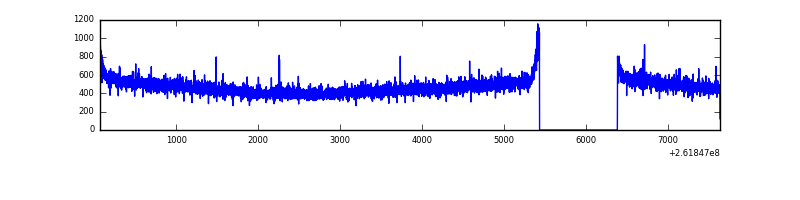

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7562 | 6612 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7562 | 6612 | 35 | 35 | 0.46% | 0.53% |  |
| C | 7562 | 6612 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7562 | 6612 | 1621 | 1621 | 21.44% | 24.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 112839 | 689.32 | 793 | 775 | 162.6 |
| A | 0 | 23 | 17612 | 103.57 | 793 | 775 | 162.6 |
| A | 1 | 162 | 11710 | 67.26 | 793 | 775 | 162.6 |
| B | 3 | 64 | 150624 | 996.81 | 790 | 770 | 150.3 |
| B | 4 | 142 | 32834 | 213.29 | 790 | 770 | 150.3 |
| B | 4 | 80 | 28108 | 181.85 | 790 | 770 | 150.3 |
| C | 3 | 233 | 90164 | 492.55 | 772 | 775 | 181.5 |
| C | 13 | 61 | 5605 | 26.61 | 772 | 775 | 181.5 |
| C | 3 | 202 | 1958 | 6.52 | 772 | 775 | 181.5 |
| D | 5 | 222 | 5496696 | 32426.26 | 695 | 673 | 169.5 |
| D | 1 | 52 | 629697 | 3711.21 | 695 | 673 | 169.5 |
| D | 13 | 122 | 488180 | 2876.27 | 695 | 673 | 169.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

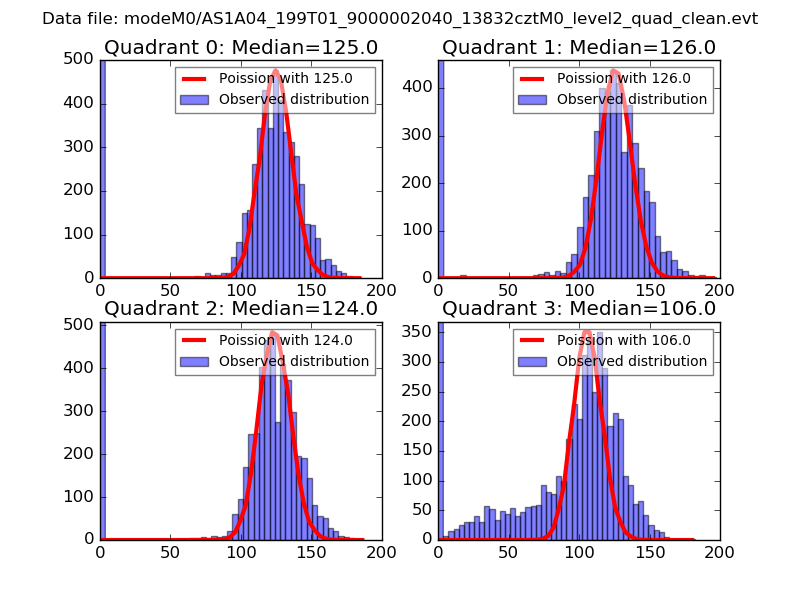

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

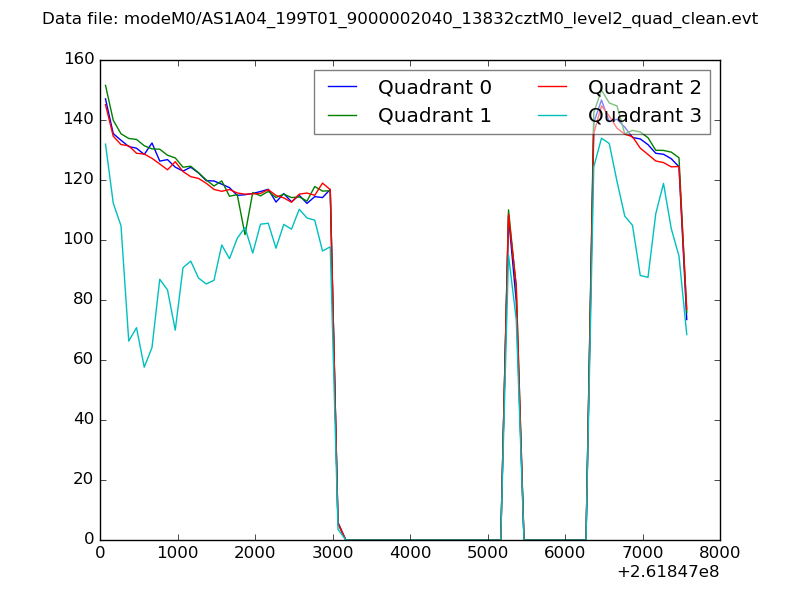

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

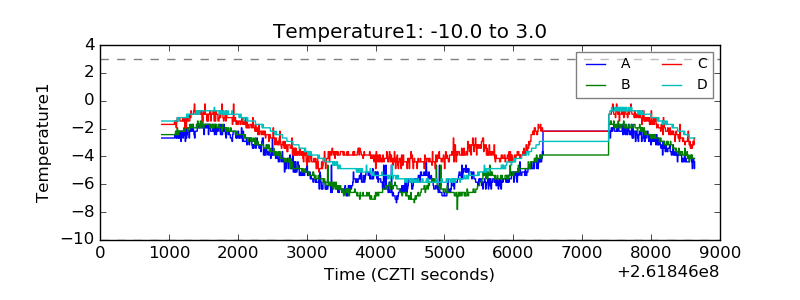

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

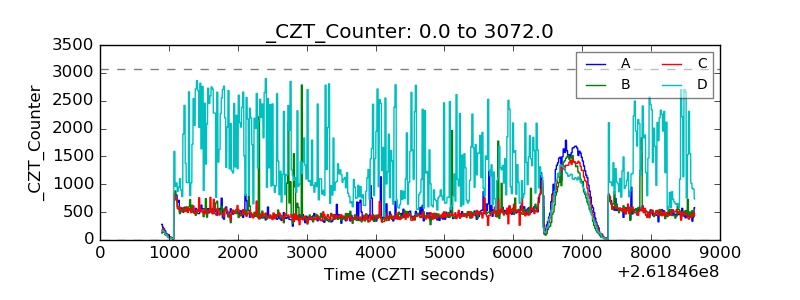

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
